Product Overview

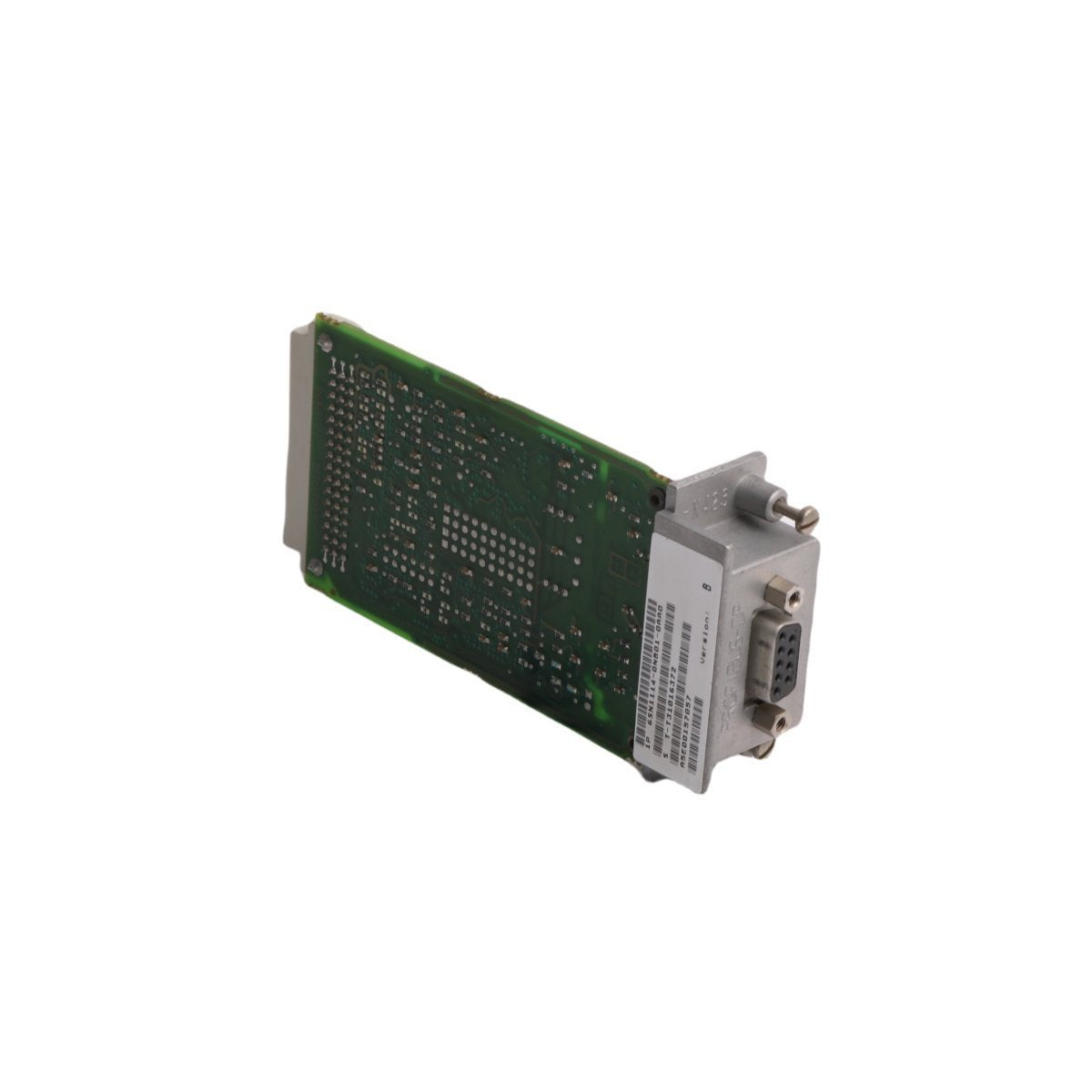

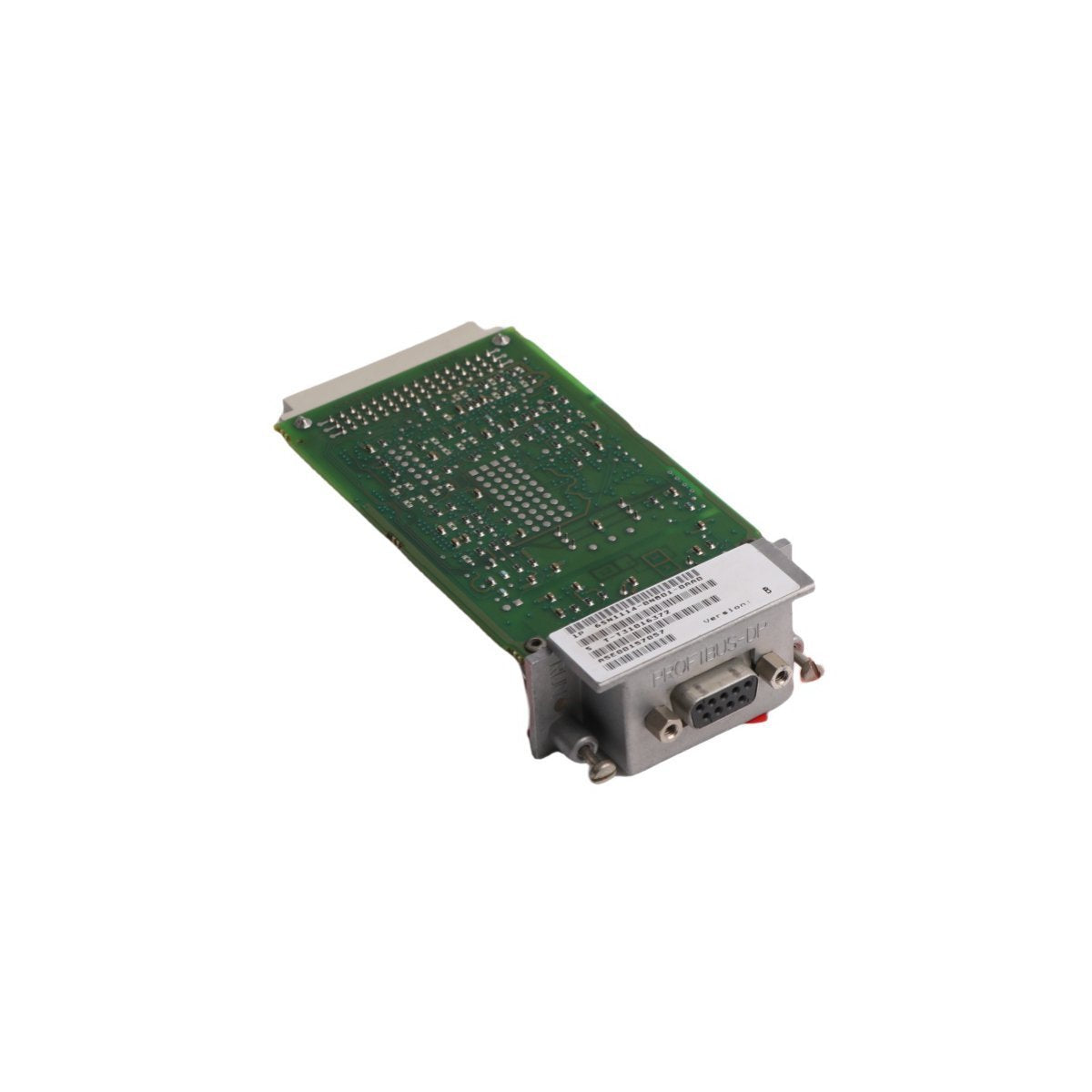

The 6SN1114-0NB01-0AA0 is a specialized Profibus-DP option module designed to enhance the communication capabilities of the Siemens SIMODRIVE 611 universal drive system. This add-on board serves as the high-speed data bridge between the drive's control unit and a centralized automation network. By integrating this module, users can achieve sophisticated 2-axis motion control via a single fieldbus connection. It enables the transmission of cyclic and acyclic data, allowing for real-time setpoint management, parameterization, and detailed diagnostic feedback. Engineered for the rigorous demands of CNC and motion-intensive environments, it transforms a standard drive into a networked intelligent node within a SINUMERIK or SIMATIC ecosystem.

Advanced Motion Specs & Hardware Capabilities

• Communication Protocol: PROFIBUS-DP up to 12 Mbit/s.

• Axis Control: Supports simultaneous 2-axis control on a single hardware interface.

• Operational Modes: Flexible switching between speed control, torque control, and point-to-point positioning.

• High-Frequency Performance: Capable of managing motor frequencies reaching 1400 Hz for high-speed spindle applications.

• Positioning Memory: Internal storage for up to 256 traversing blocks with independent velocity and acceleration profiles.

• Integrated Protection: Onboard shielding against electromagnetic interference (EMI) and short-circuit faults.

• I/O Integration: Facilitates the connection of external encoder systems and distributed 24V DC logic signals.

• Compact Footprint: Weighing only 0.08 kg, it installs directly into the option slot of the SIMODRIVE 611 control unit.

Strategic Industrial Implementations

CNC Machine Tooling

This module is a staple in high-precision milling, turning, and grinding centers. It allows the SINUMERIK controller to manage complex multi-axis interpolation and tool-spindle synchronization via the Profibus network, ensuring sub-micron accuracy.

Automated Production Lines

In manufacturing cells where rapid changeovers are required, the 6SN1114-0NB01-0AA0 enables the PLC to download different motion profiles (traversing blocks) on the fly, reducing setup times for diverse product runs.

High-Speed Packaging & Material Handling

The module's ability to handle high motor frequencies makes it ideal for synchronized conveyor systems and rotary packaging machines that require consistent torque and velocity control under varying load conditions.

System Maintenance and Reliability

As a key component of the legacy SIMODRIVE 611 line, this board is essential for maintaining existing production infrastructure. Its robust design ensures that drive diagnostics are reported instantly to the HMI, allowing for predictive maintenance and significantly reduced unplanned downtime in harsh factory environments.
