Product Overview

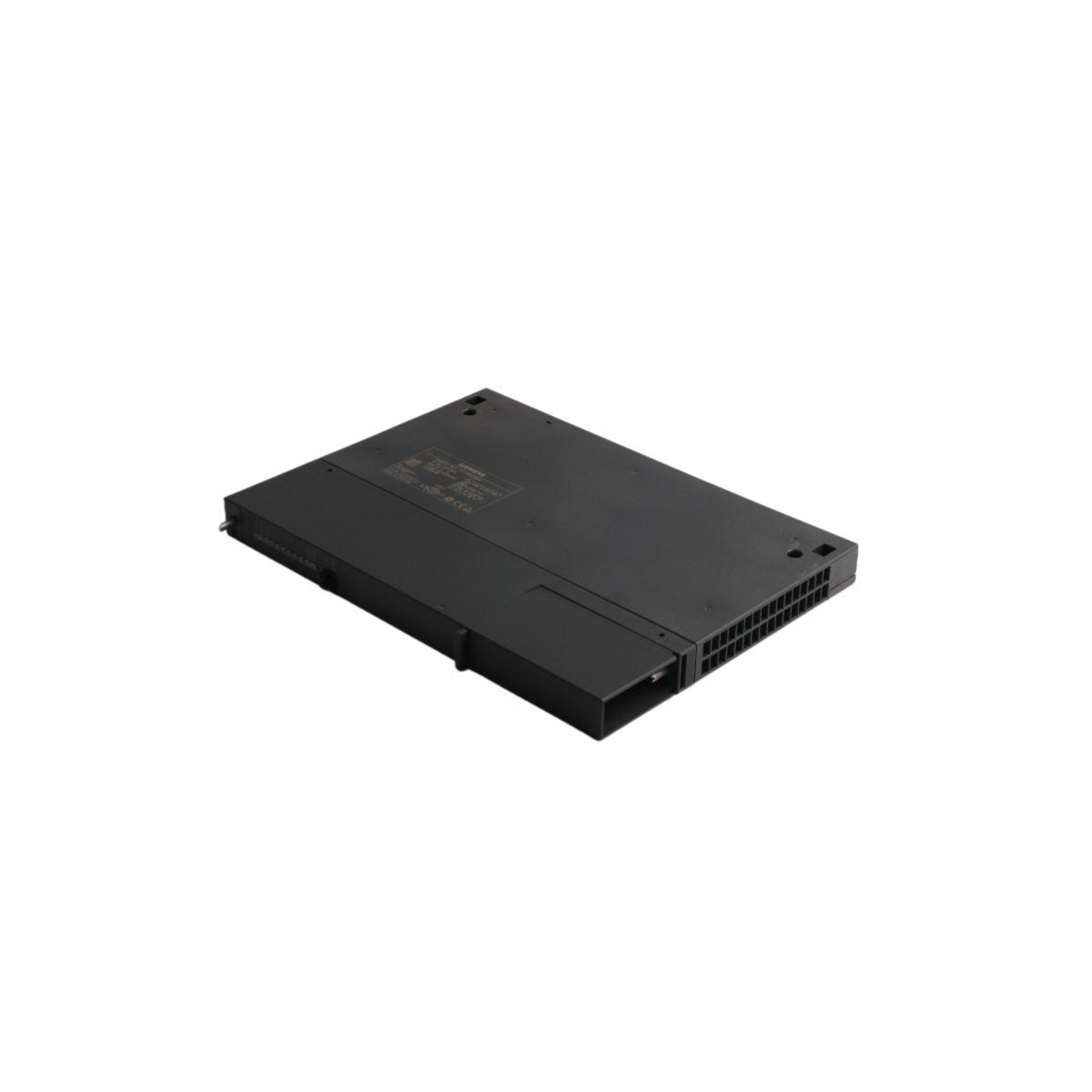

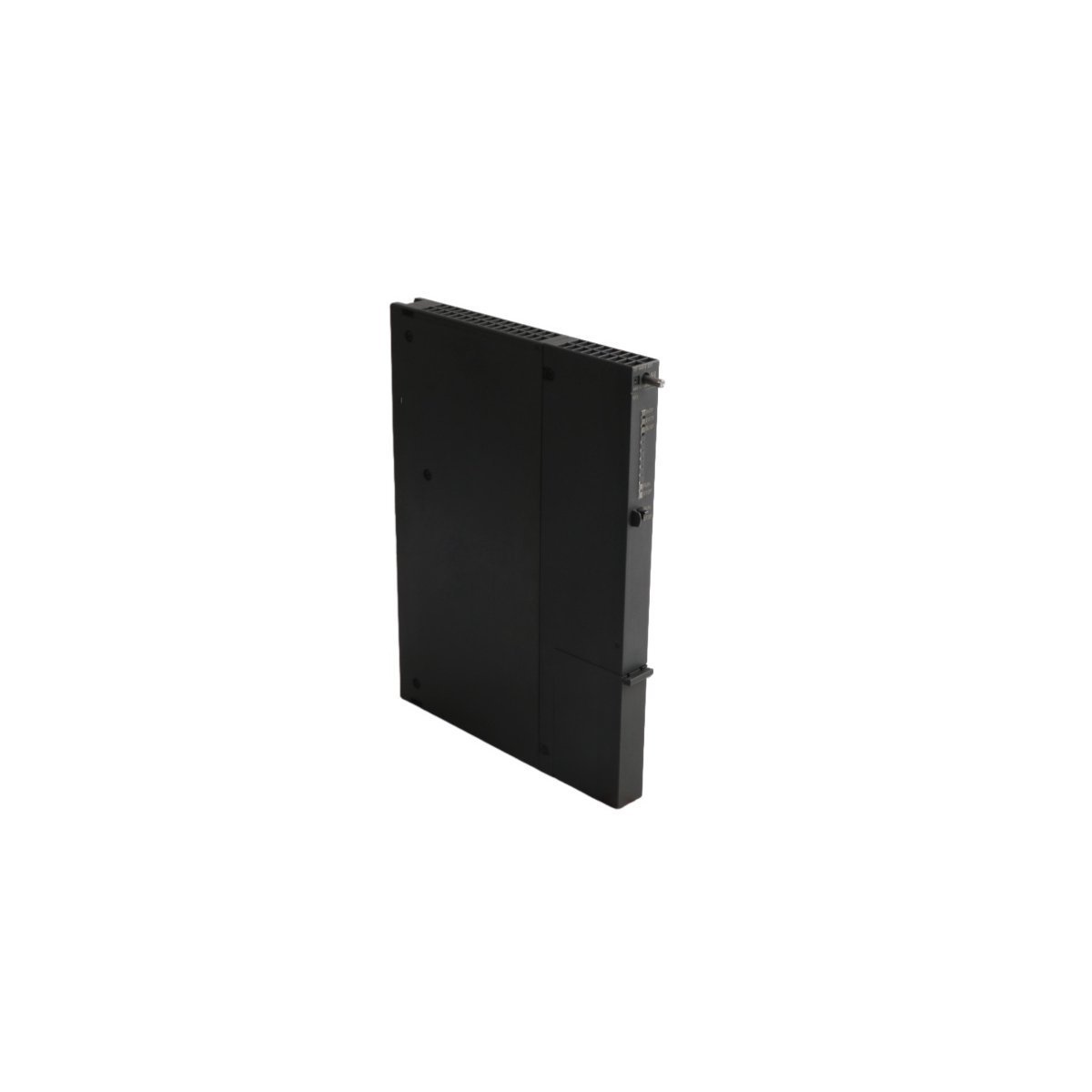

The Siemens 6GK7443-5DX05-0XE0 is a high-tier communication processor specifically developed for the SIMATIC S7-400 PLC platform. As an "Extended" version of the CP 443-5, this module provides a robust and high-speed PROFIBUS DP interface, acting as a master for distributed I/O systems or as a communication link between multiple controllers. It is designed to offload communication tasks from the CPU, ensuring that the main processor remains dedicated to executing time-critical control logic. This module is particularly vital for large-scale automation architectures where high-volume data exchange, legacy S5 integration, and comprehensive network diagnostics are required to maintain system transparency and peak operational efficiency.

System Architecture and Technical Attributes

Industrial Networking and Deployment Utility

The 6GK7443-5DX05-0XE0 serves as the backbone for decentralized control and multi-vendor networking in advanced manufacturing environments. Its primary applications include:

• Distributed I/O Management: Functioning as a PROFIBUS DP master to control hundreds of remote I/O points, sensors, and actuators across vast production floors.

• Legacy Infrastructure Bridging: Facilitating seamless data exchange between modern SIMATIC S7-400 controllers and older SIMATIC S5 systems via FDL (Fieldbus Data Link) communication.

• HMI and Engineering Access: Providing a dedicated channel for PG/OP communication, allowing HMI panels and engineering stations to access PLC data without impacting cyclic process timing.

• Multi-PLC Synchronization: Enabling high-speed cross-communication between various S7-400 racks in a plant-wide network for coordinated material handling and process control.

• System Modernization: Serving as a crucial interface during incremental plant upgrades, allowing for the integration of modern PROFIBUS-enabled field devices into existing automation frameworks.
