Product Overview

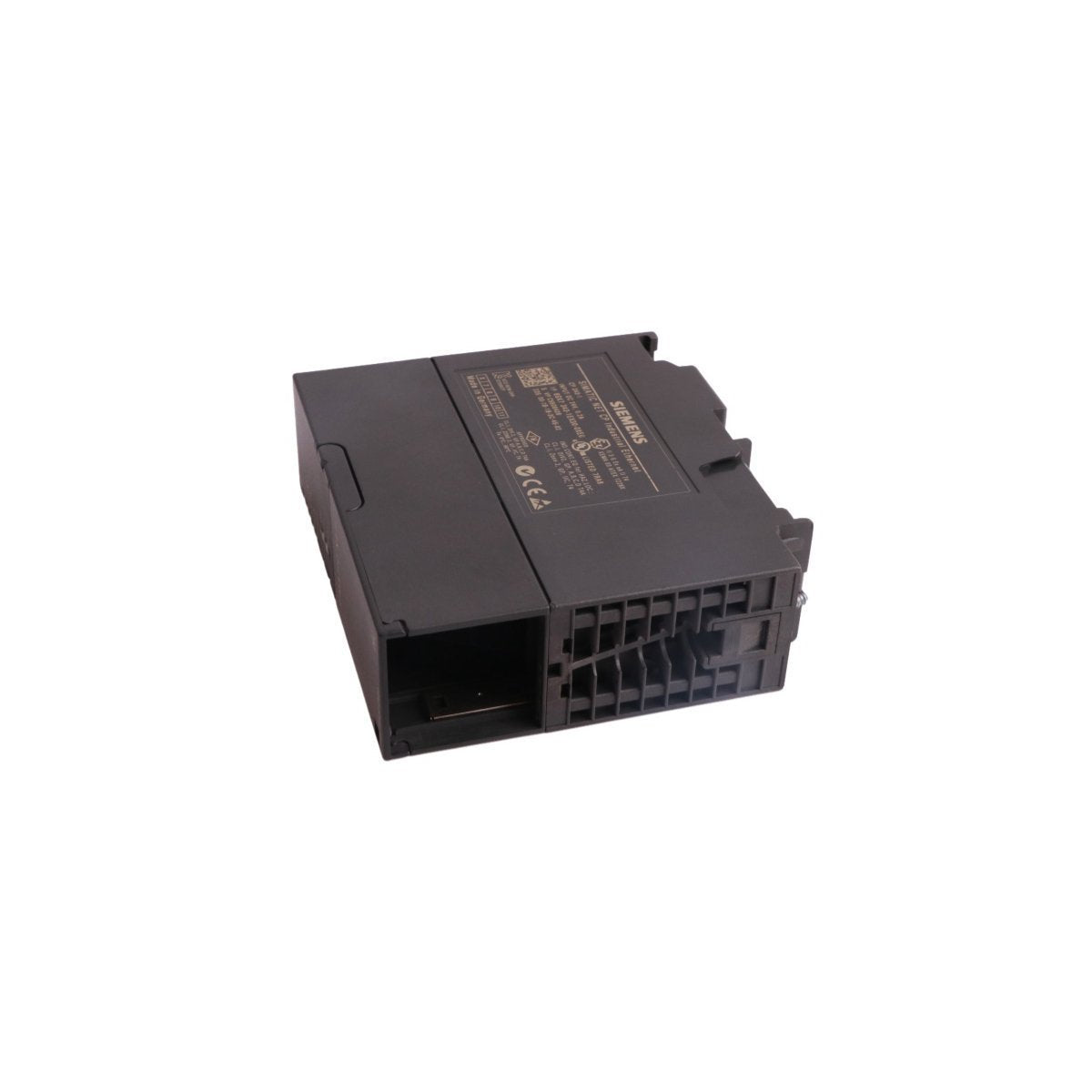

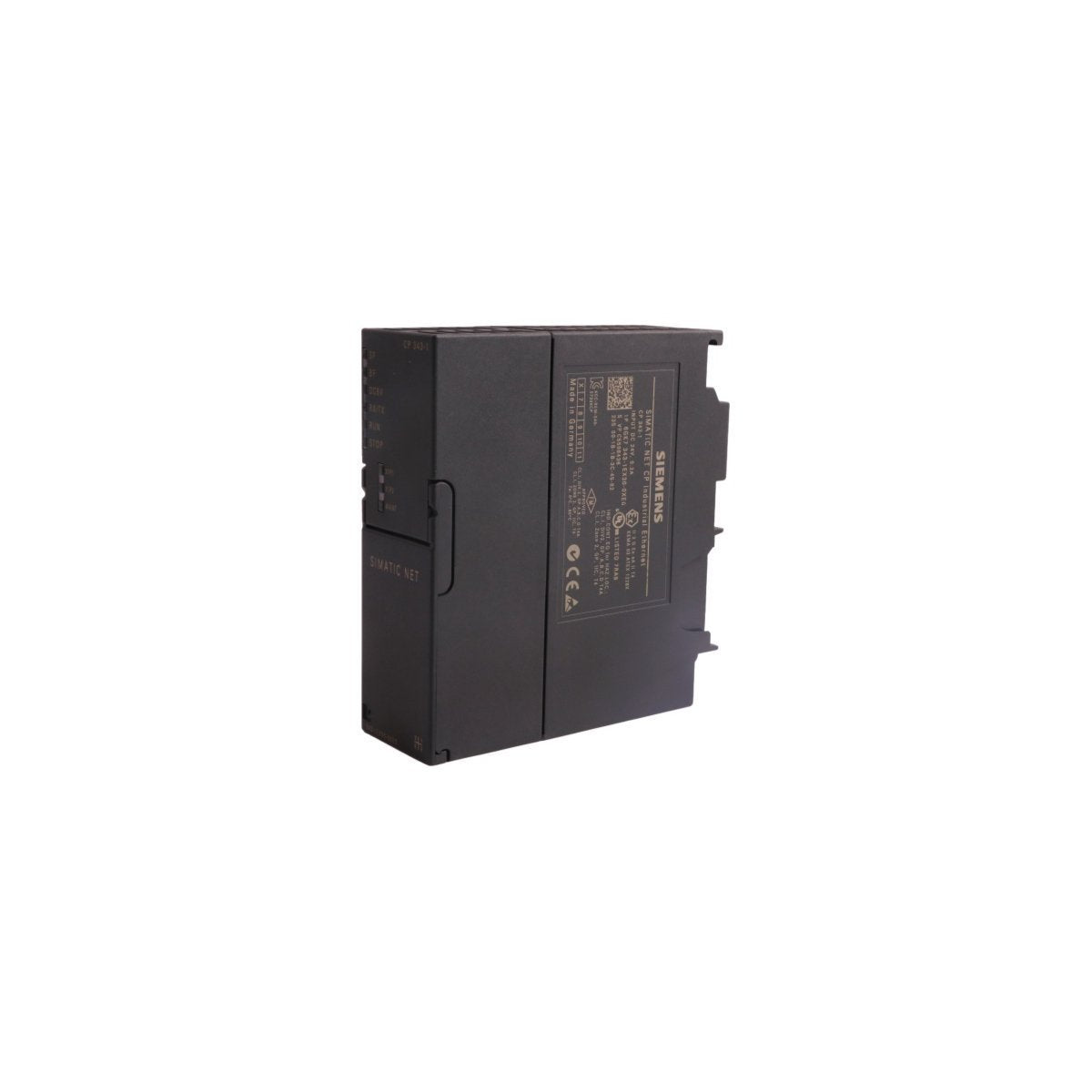

The Siemens 6GK7343-1EX30-0XE0 is a high-performance CP 343-1 communications processor designed to connect the SIMATIC S7-300 PLC to Industrial Ethernet networks. This module acts as a versatile bridge, supporting multiple protocols including TCP/IP, ISO, and UDP to facilitate seamless data exchange between the controller and supervisory systems like SCADA or ERP. By integrating an ERTEC 200-based 2-port real-time switch, the module allows for the implementation of linear bus topologies directly on the factory floor, significantly reducing the requirement for external network hardware while maintaining high-speed, deterministic PROFINET communication.

Advanced Networking Parameters and Hardware Details

Engineered for the rigorous demands of industrial environments, this Ethernet module provides the following technical and physical specifications:

• Communication Protocols: PROFINET IO (Controller or Device), S7 communication, and Open Communication (SEND/RECEIVE).

• Integrated Switch: 2-port RJ45 switch supporting 10/100 Mbit/s autosensing.

• IP Management: Supports DHCP, Autoconfiguration, and initialization via LAN.

• Clock Synchronization: Integrated NTP (Network Time Protocol) for system-wide time uniformity.

• Physical Mass: 0.95 kg.

• Unit Dimensions: 2.5 cm x 83.8 cm x 5.1 cm.

• Security: Integrated firewall and VPN capabilities for secure remote access (depending on firmware).

• Operational Integrity: Diagnostic support via Web browser and SNMP.

Industrial Networking Implementations

The 6GK7343-1EX30-0XE0 is a vital component in modernizing S7-300 installations and enabling Industry 4.0 connectivity. Its primary deployment scenarios include:

• Automated Production Cells: Acting as a PROFINET IO Controller to manage distributed I/O modules and drive systems with real-time precision.

• Centralized Data Collection: Facilitating S7 communication for high-speed "Fetch/Write" operations between multiple PLC stations and a central control room.

• Cross-Platform Integration: Utilizing the SEND/RECEIVE interface (RFC1006) to exchange critical process data with non-Siemens hardware and PC-based systems.

• Distributed Clock Management: Using NTP synchronization to ensure that event logs and alarm sequences across different controllers are timestamped with millisecond accuracy.
