Product Overview

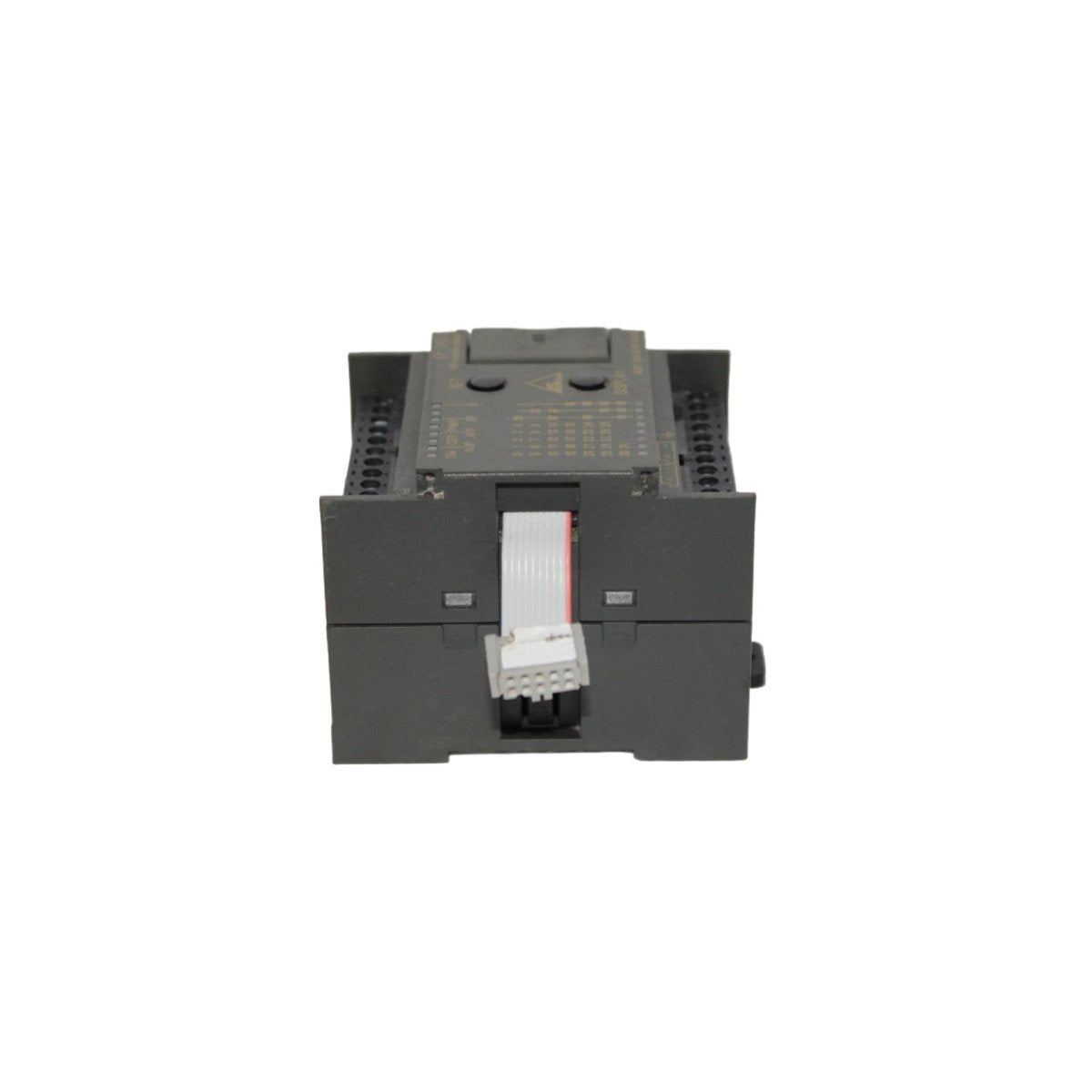

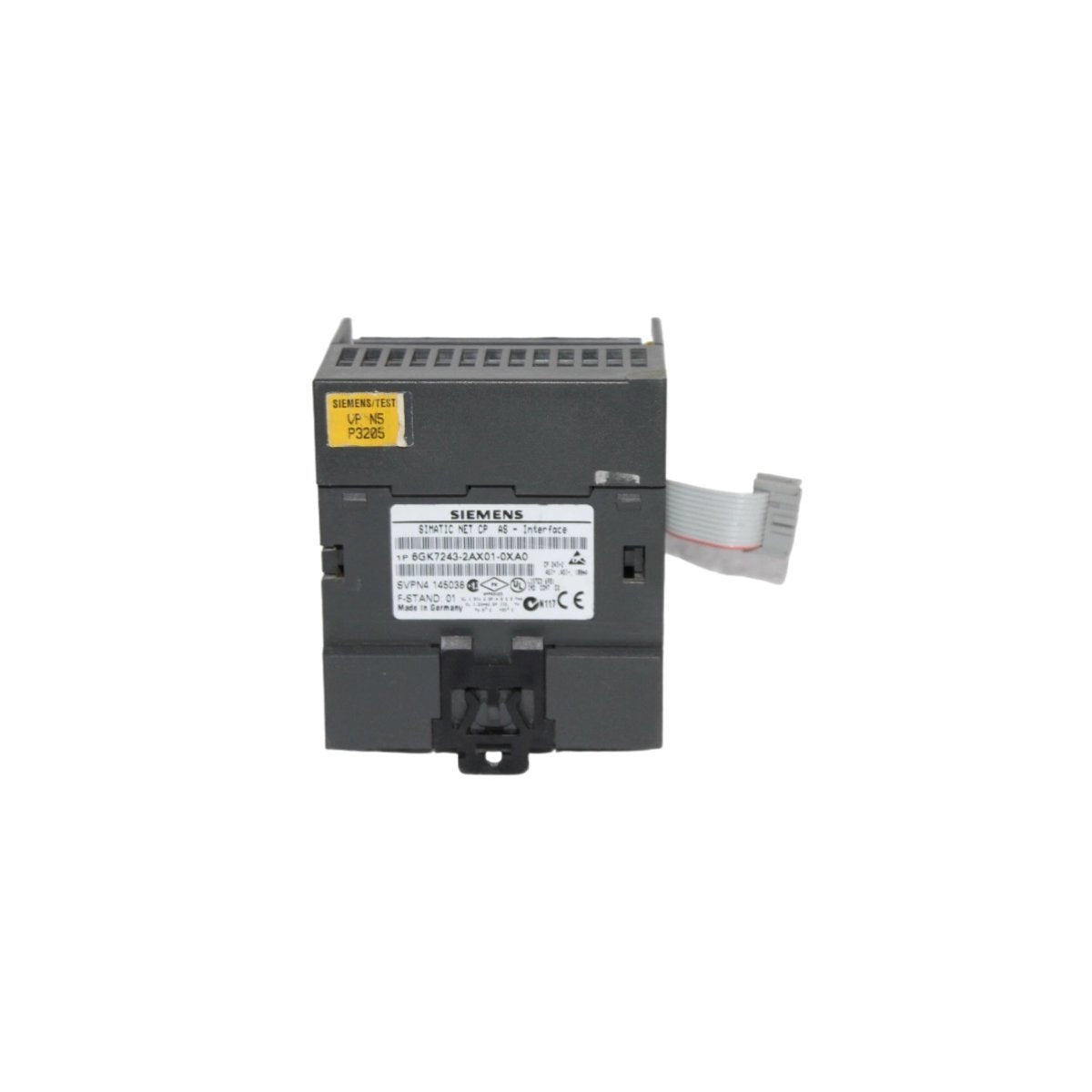

The Siemens 6GK7243-2AX01-0XA0 is a high-performance communication processor (CM 1243-2) designed to serve as an Actuator-Sensor Interface (AS-i) Master for the SIMATIC S7-1200 PLC series. This module enables the seamless integration of lower-level field devices—such as sensors, actuators, and E-stop buttons—into a centralized automation network. By acting as a gateway between the AS-i field bus and the S7-1200 CPU, this module simplifies wiring complexity and enhances system modularity. Engineered for high-speed deterministic communication, it allows for the management of extensive sensor networks while maintaining the rugged electrical and mechanical standards required for direct placement on the factory floor.

Technical Performance and Interface Capabilities

This communication processor is built to provide reliable data exchange across decentralized architectures with advanced diagnostic and configuration features.

• Network Capacity: Supports the connection of up to 62 AS-Interface slaves (standard and A/B types).

• System Integration: Fully integrated into the TIA Portal, allowing for effortless configuration and drag-and-drop programming.

• Operational Supply: Powered via the internal S7-1200 backplane bus or an external 24V DC source.

• Communication Profile: Compliant with AS-Interface Specification V3.0, ensuring compatibility with the latest generation of field devices.

• Front-End Diagnostics: Integrated LEDs provide immediate visual feedback for bus errors, module faults, and power status.

• Data Consistency: Optimized for rapid I/O cyclic data exchange to ensure real-time response for motion and safety signals.

Strategic Field Applications and Utility

The 6GK7243-2AX01-0XA0 is the primary choice for engineers looking to reduce wiring overhead while maintaining high levels of system transparency.

Modular Conveyor SystemsIn logistics and material handling, the CM 1243-2 is utilized to monitor long stretches of conveyor belts. By using a single AS-i cable for power and data, it connects hundreds of photo-eyes and motor starters back to the S7-1200, drastically reducing installation time and cabling costs.

Automotive Component AssemblyFor specialized assembly cells, this processor handles the complex I/O requirements of pneumatic manifolds and proximity switches. The TIA Portal integration allows technicians to identify a failing sensor remotely, minimizing the Mean Time To Repair (MTTR).

Food and Beverage PackagingIn environments requiring frequent washdowns, the AS-i master supports distributed IP67-rated modules. This allows the PLC to remain protected in a remote cabinet while the CM 1243-2 manages the high-speed logic of capping, labeling, and filling stations.

Safety-Related MonitoringWhen combined with AS-i Safety at Work components, this module facilitates the monitoring of emergency stop circuits and light curtains. It provides the necessary infrastructure for localized safety logic within the broader S7-1200 control framework.
