Product Overview

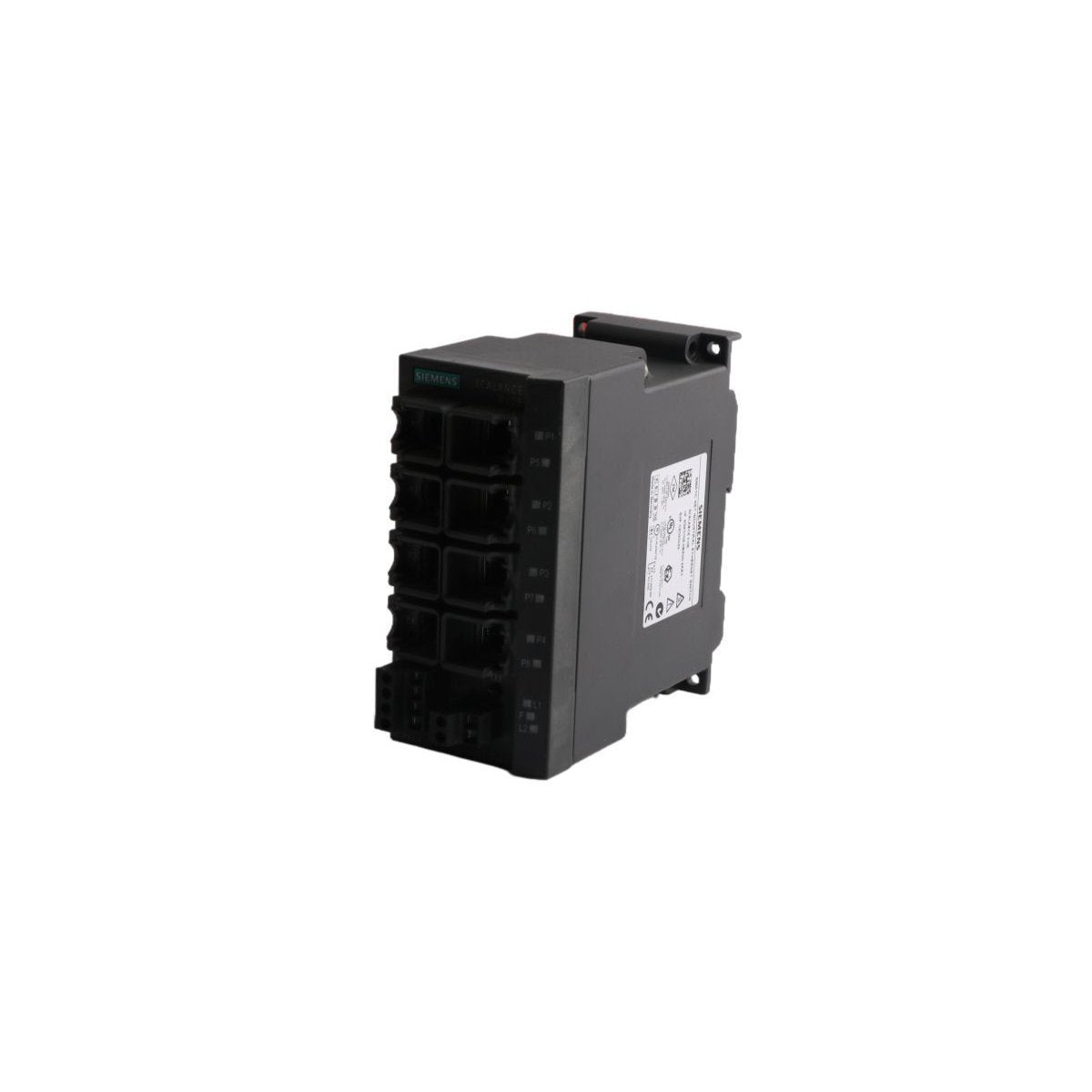

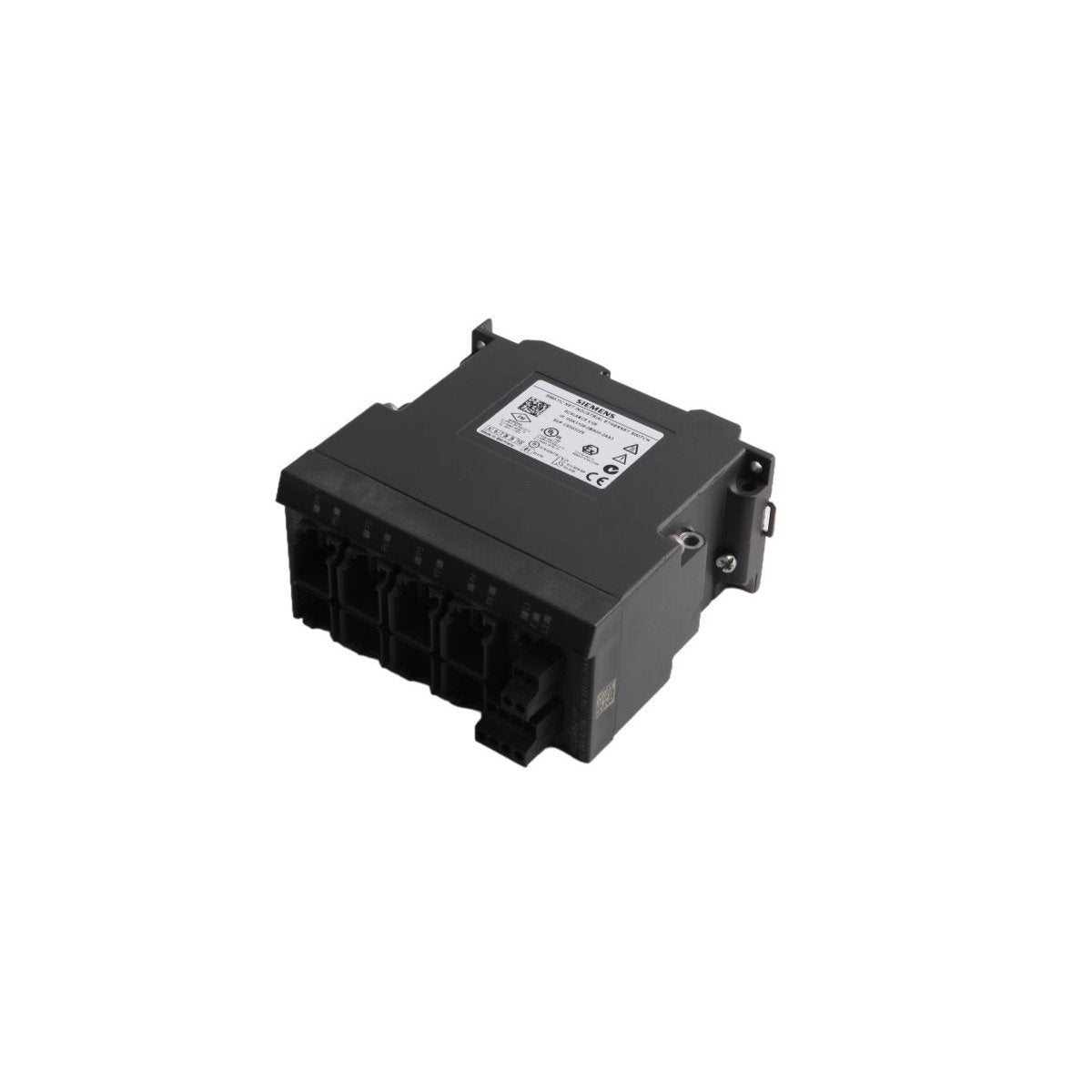

The Siemens 6GK5108-2BB00-2AB2 is a high-reliability unmanaged Industrial Ethernet switch belonging to the SCALANCE XB-100 product line. Optimized for space-saving installation in control cabinets, this networking component facilitates the seamless connection of PLCs, HMIs, and other industrial peripherals. It serves as a robust communication bridge, combining traditional copper-based networking with fiber optic capabilities to extend data transmission distances without the need for complex software configuration. Designed for "plug-and-play" deployment, this switch ensures consistent data flow in star or line network topologies, providing a cost-effective solution for modern manufacturing environments.

Technical System Architecture

This networking hardware is engineered for durability and efficient data distribution in harsh industrial settings.

• Interface Configuration: 8x 10/100 Mbit/s RJ45 electrical ports and 2x 100 Mbit/s Multimode BFOC (ST) fiber optic ports.

• Transmission Range: Fiber optic ports support distances up to 5 km with 50/125 µm or 62.5/125 µm multimode glass fibers.

• Power Redundancy: Supports a dual 24 V AC/DC power supply input to maintain uptime during single-source failures.

• Diagnostics: Integrated LED indicators for per-port link status, data traffic, and power supply monitoring.

• Housing Protection: IP20-rated plastic enclosure designed for standard DIN rail or wall mounting.

• Mechanical Specifications: Weight of 0.95 kg and physical dimensions of 2.5 cm x 5.1 cm x 83.8 cm (Note: dimensions reflect specialized slim-profile rack mounting).

• Operating Temperature: Suitable for standard industrial environments with reliable passive cooling.

Strategic Industrial Implementations

The 6GK5108-2BB00-2AB2 is widely utilized in sectors where high noise immunity and simplified network expansion are prioritized.

• Distributed Automation: Linking remote I/O stations to a central controller over fiber optics to eliminate electromagnetic interference (EMI).

• Machine-Level Networking: Providing the primary communication backbone for small-scale production cells where multiple Ethernet-capable devices require local connectivity.

• Building Automation: Integrating HVAC, lighting controllers, and security systems into a unified Ethernet network with minimal setup time.

• Material Handling: Connecting scanners and motorized drive controllers on conveyor lines where long-distance cable runs are bridged by the multimode fiber ports.

• Energy Management: Monitoring power meters and protection relays in localized sub-stations via a resilient star topology.
