Product Overview

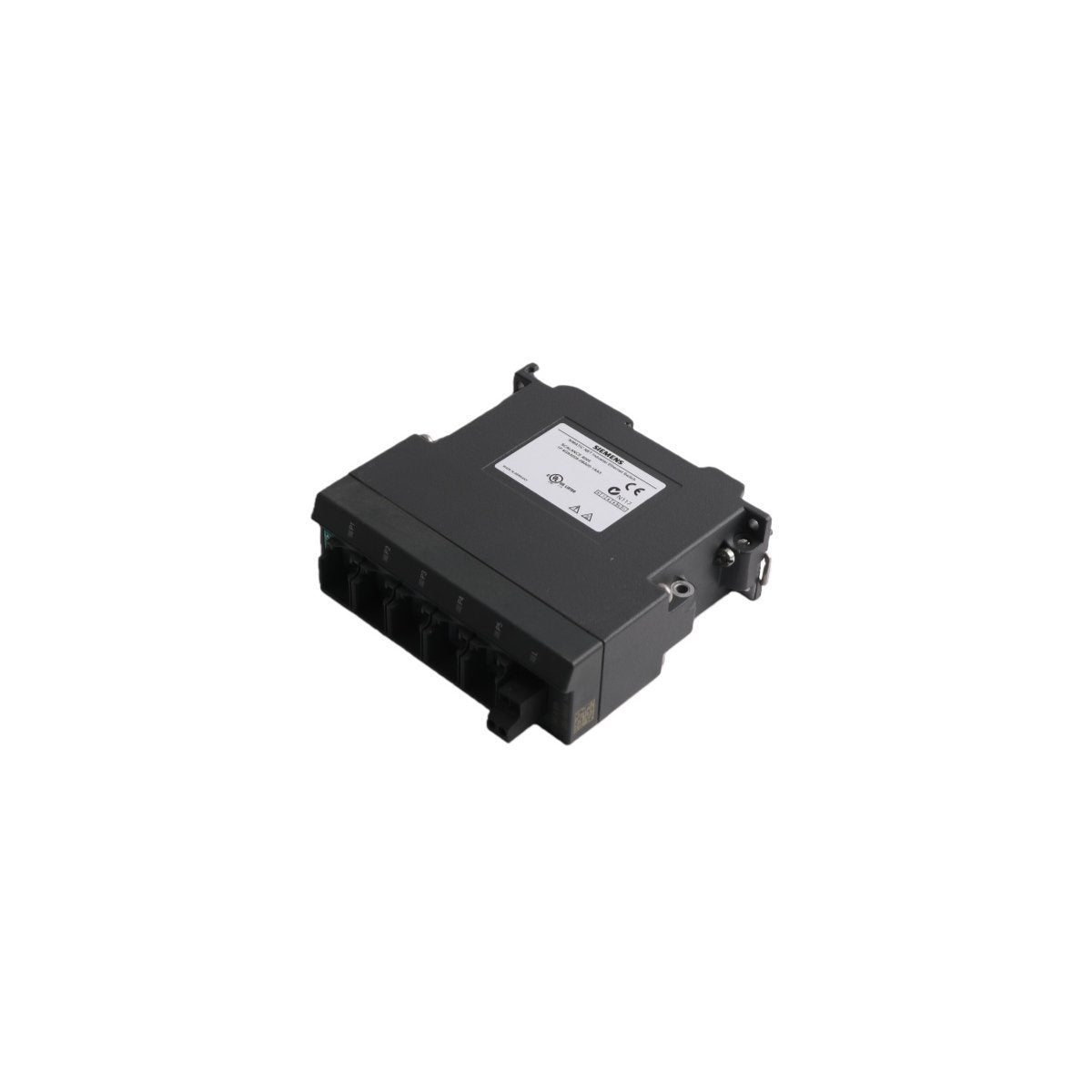

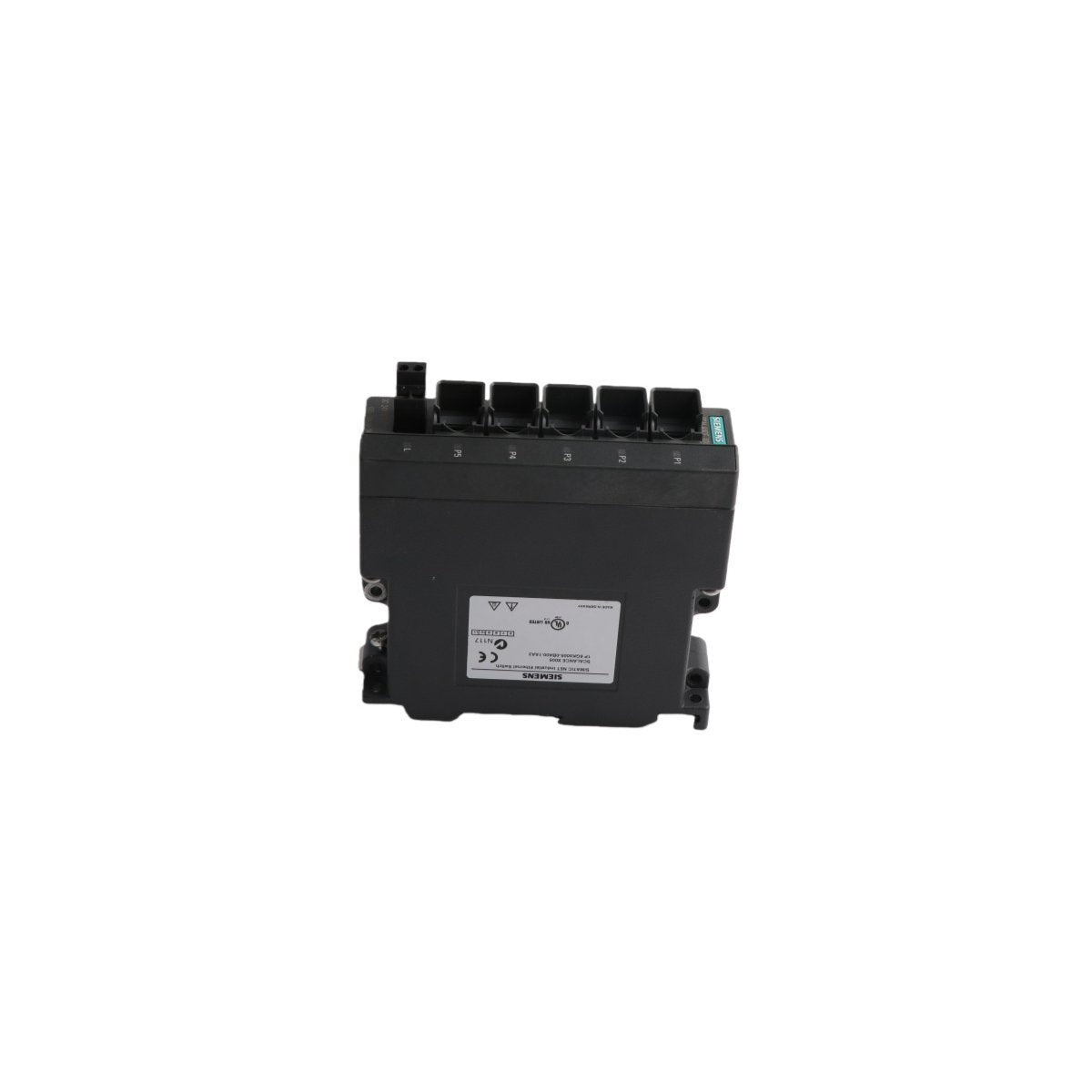

The Siemens 6GK5005-0BA00-1AA3 is a professional-grade, unmanaged Industrial Ethernet switch from the SCALANCE X-000 entry-level series. Engineered to provide reliable localized networking, this device features five 10/100 Mbit/s RJ45 ports housed in a ruggedized metal enclosure. It is specifically designed to facilitate seamless data exchange between PLCs, human-machine interfaces (HMIs), and field-level distributed I/O. By removing the complexity of managed networking, the 6GK5005-0BA00-1AA3 offers a "plug-and-play" solution that ensures high uptime and deterministic communication within PROFINET environments and standard Ethernet-based industrial architectures.

Network Architecture and Hardware Performance

This switch is optimized for the harsh electrical and mechanical conditions found in production environments:

• Port Configuration: 5 x 10/100 Mbit/s RJ45 electrical ports with automatic crossover (Auto-MDI/MDI-X) and auto-negotiation.

• Mechanical Integrity: Features a robust IP30-rated metal housing with specialized securing collars for PROFINET-compliant RJ45 connectors to prevent vibration-induced disconnects.

• Power Specification: Operates on a standard 24V DC industrial power supply (18V to 32V range).

• Diagnostic Suite: Comprehensive front-facing LED indicators provide real-time status updates for system power, link integrity, and data traffic per port.

• Installation Efficiency: Ultra-compact design optimized for 35mm DIN-rail mounting or wall mounting within confined control cabinets.

• Environmental Tolerance: Specifically rated for operation in wide temperature ranges, typically found in non-climate-controlled industrial settings.

• Unmanaged Logic: Data transmission is handled via store-and-forward switching technology, requiring zero software configuration for immediate deployment.

Industrial Networking Scenarios

The SCALANCE X005 is a strategic choice for decentralized machine-level networks where simplicity and reliability are the primary requirements:
