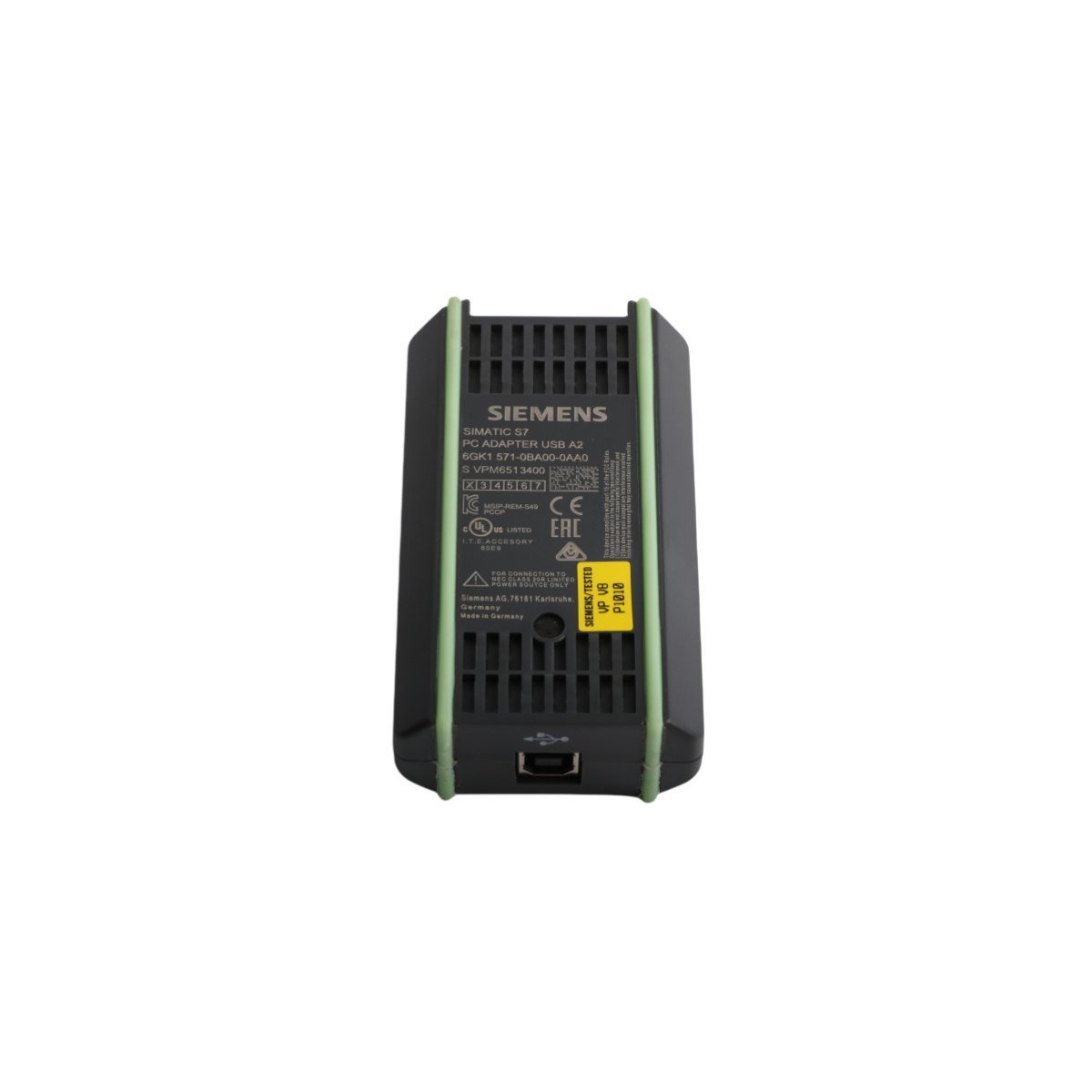

Product Overview

The Siemens 6GK1571-0BA00-0AA0, widely known as the PC Adapter USB A2, is a professional-grade portable interface designed to connect a computer (PC/Laptop) to industrial automation networks. This compact device serves as the primary communication bridge for programming, parameterization, and hardware diagnostics via USB 2.0. By supporting MPI and PROFIBUS protocols, it enables technicians and engineers to access SIMATIC S7-300, S7-400, and larger automation systems directly. Unlike fixed network switches, this adapter is a dedicated tool for field service and commissioning, ensuring a stable and high-speed link between the engineering software (such as TIA Portal or Step 7) and the field-level controller.

Hardware Communication Profiles and Physical Metrics

This adapter is engineered for mobility and high-speed data integrity, featuring active bus power capabilities and a durable industrial housing.

• Host Interface: USB 2.0 (High Speed)

• Network Interfaces: MPI and PROFIBUS DP (9-pin Sub-D)

• Maximum Transmission Rate: Up to 12 Mbit/s on PROFIBUS

• Power Supply: Powered directly via USB bus or from the MPI/DP interface

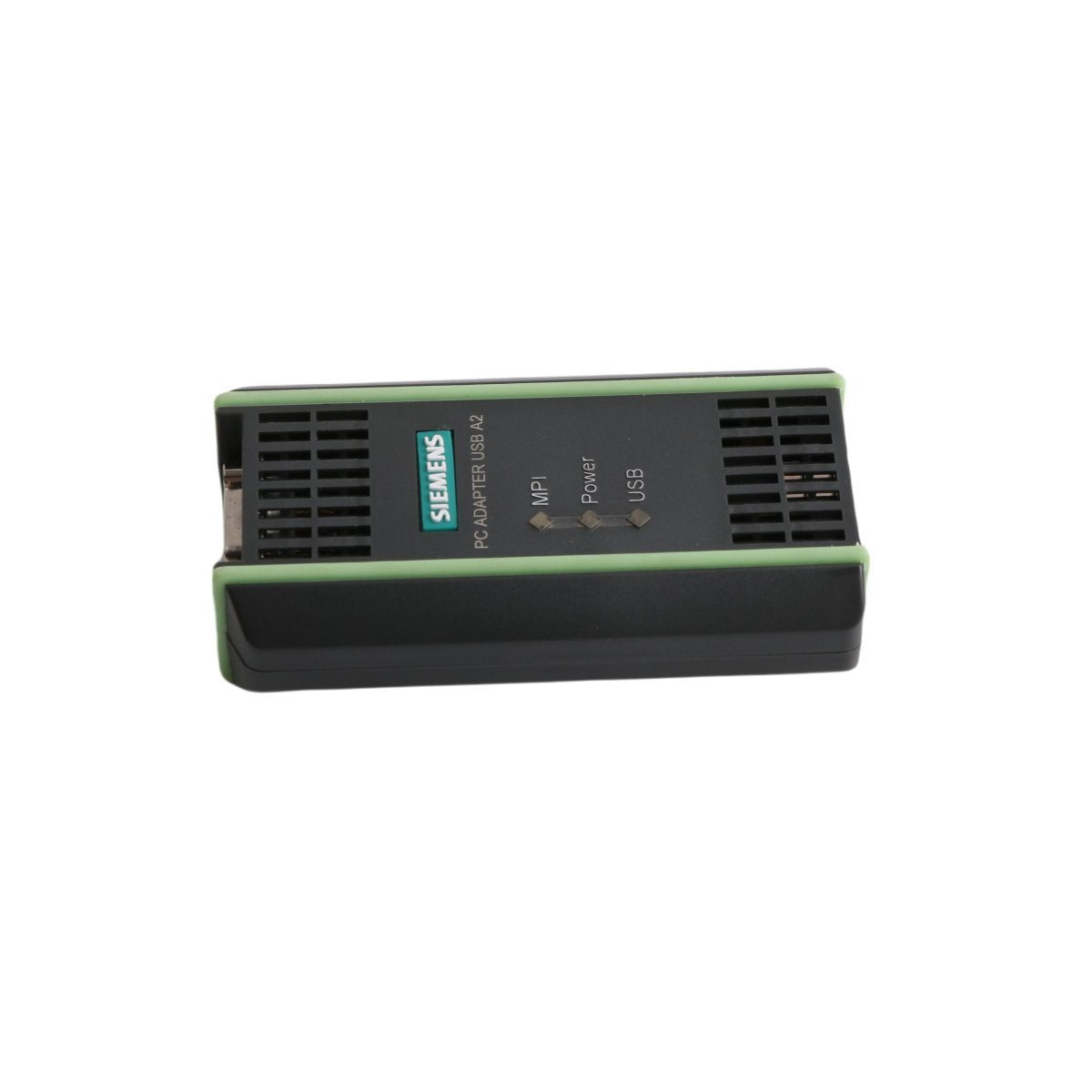

• Status Monitoring: Three integrated LEDs for Power, USB, and MPI/DP activity

• Operating System Support: Compatible with Windows 7, 10, and 11 (64-bit versions)

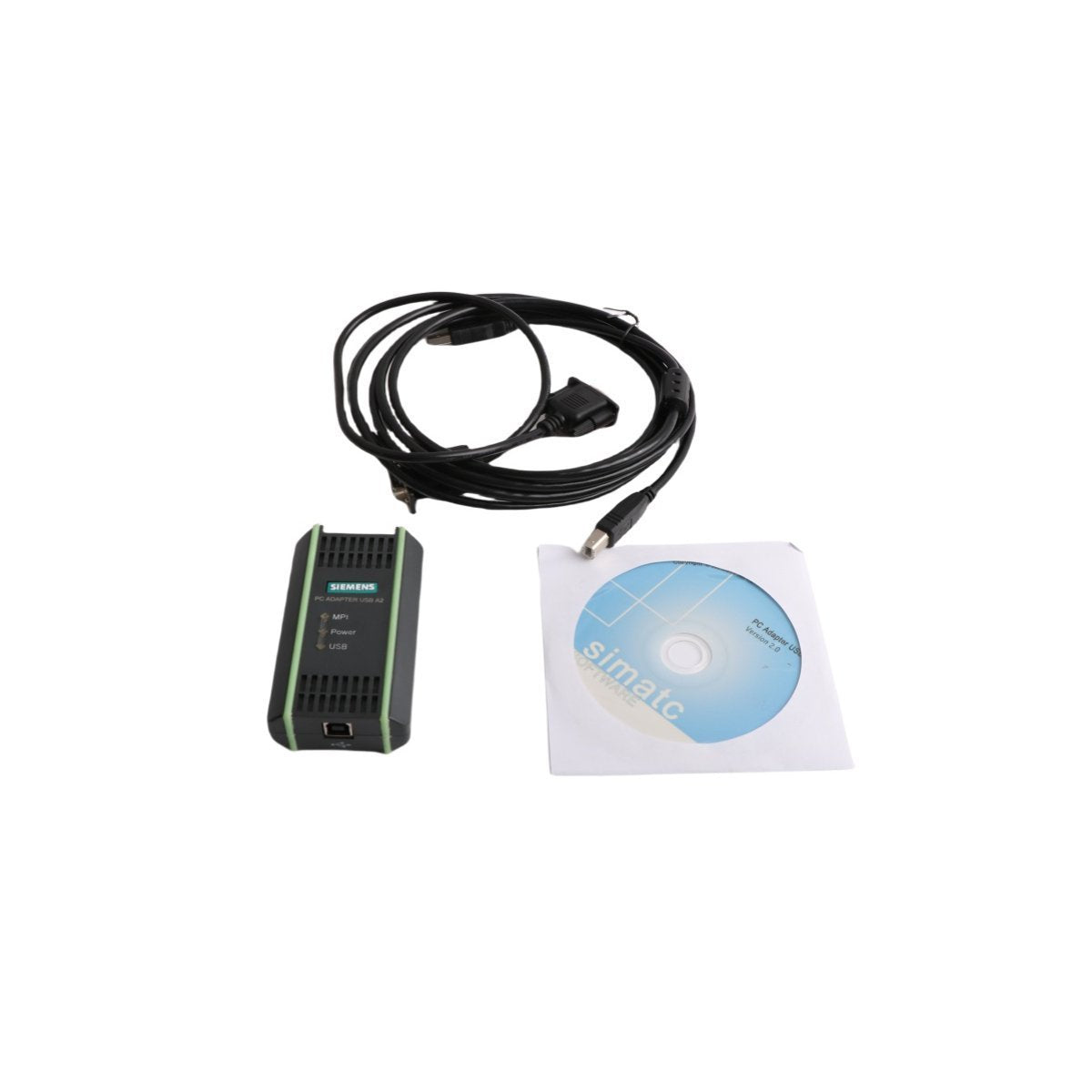

• Cable Inclusion: Ships with a USB cable (5 meters) and a 0.3m MPI/DP cable

• Physical Dimensions: 10.5 cm x 5.8 cm x 2.5 cm

• Device Weight: 0.08 kg

• Shipping Weight: Approximately 0.45 kg (Total kit)

• Production Origin: Germany

Operational Use Cases

On-Site PLC Programming and DebuggingThe PC Adapter USB A2 is the essential tool for field engineers performing on-site logic updates. Its "Plug and Play" capability allows a laptop to be linked to an S7-300 MPI port or a PROFIBUS node instantly, enabling real-time monitoring of variable tables and code execution without requiring a permanent network backbone.

Drive System CommissioningIn addition to PLC logic, this adapter is frequently used to configure SINAMICS drive parameters. By connecting to the DP port of the drive, technicians can use the STARTER or Startdrive toolsets to perform motor ID runs, adjust ramp times, and optimize control loops from a mobile workstation.

Network Troubleshooting and AnalysisWhen communication errors occur on a PROFIBUS segment, the 6GK1571-0BA00-0AA0 acts as a diagnostic gateway. It allows maintenance teams to scan for active nodes, verify baud rates, and identify address conflicts on the bus, significantly reducing the time required to resolve network downtime.

Firmware Updates and MaintenanceThis interface provides the high-bandwidth connection necessary for flashing firmware updates to CPU modules or communication processors. Its stable data stream ensures that critical system updates are completed without the risk of packet loss or interruption, which is vital for maintaining the security and performance of industrial hardware.
