Product Overview

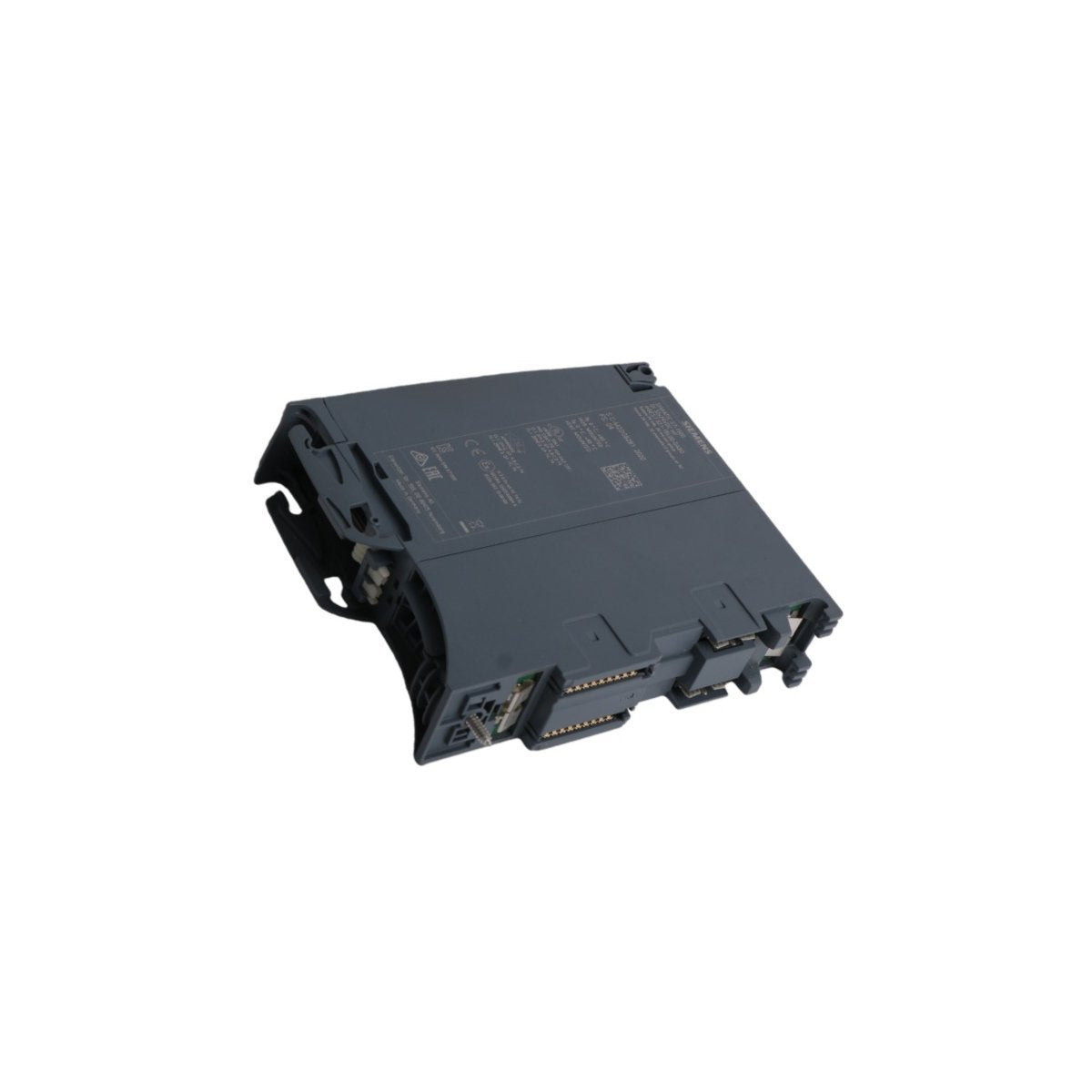

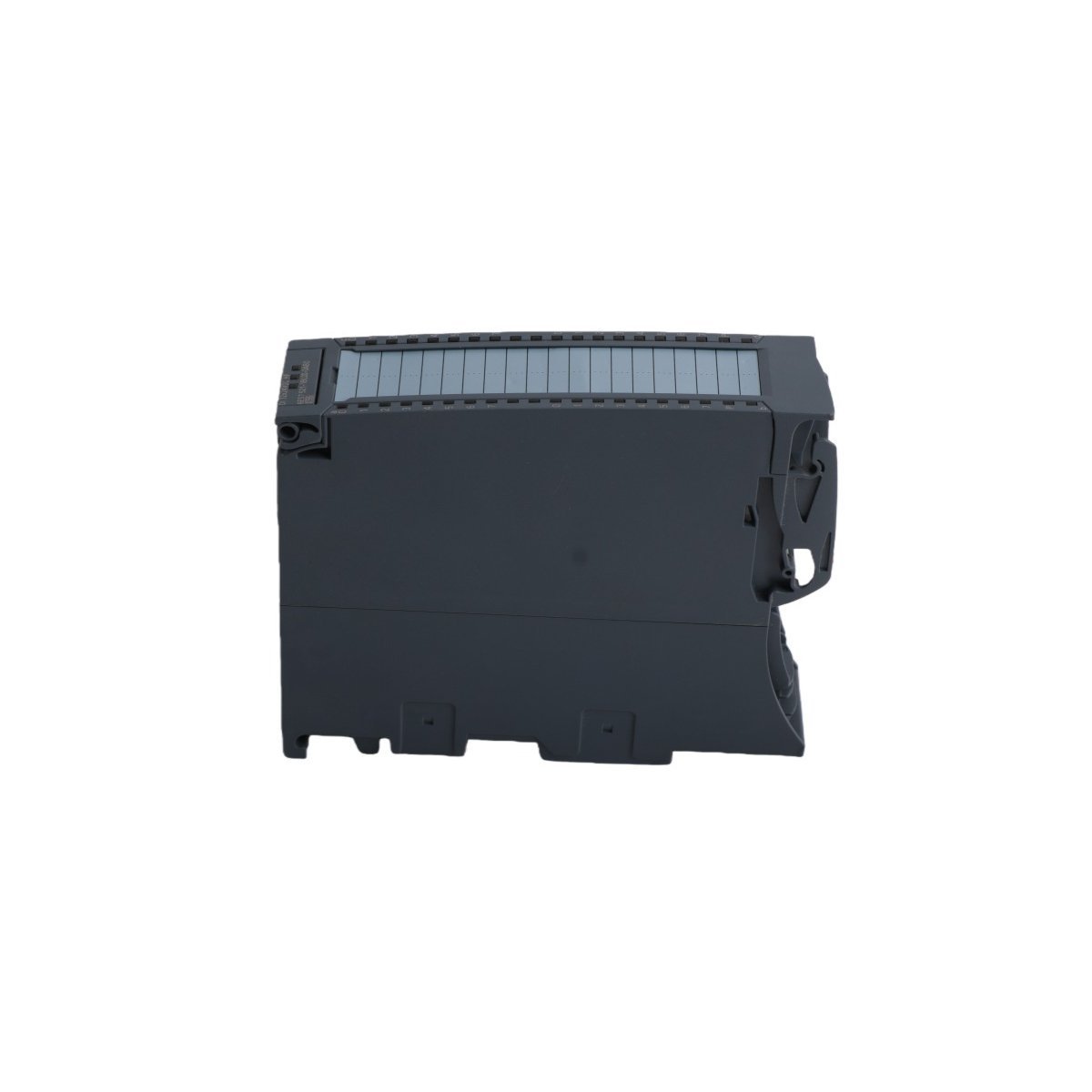

The Siemens 6ES7521-1BL00-0AA0 is a high-density digital input module engineered for the SIMATIC S7-1500 and ET 200MP automation systems. This "High Feature" (HF) module provides 32 discrete input channels, allowing for massive I/O expansion within a compact footprint. Designed to interface with 24V DC field devices, it excels in high-speed applications where synchronized data acquisition is mandatory. The module supports isochronous mode, ensuring that signal states are captured in perfect sync with the PLC's bus cycle, which is essential for precision motion control and rapid processing tasks.

Advanced Functional Parameters and Hardware Attributes

The hardware is built to accommodate firmware updates, ensuring long-term compatibility with evolving industrial communication standards. It features a prioritized startup (Fast Startup) to minimize system initialization time following a power cycle.

Industrial Applications and System Integration

This 32-channel module is a cornerstone for large-scale industrial projects requiring high-density signal monitoring. In automotive assembly lines, the 6ES7521-1BL00-0AA0 is frequently utilized to aggregate signals from proximity sensors, limit switches, and safety interlocks. Its high-speed counting capability (up to 10 kHz) makes it ideal for simple flow measurement or pulse-based positioning tasks without the need for dedicated counter modules. Within the chemical and pharmaceutical industries, the integrated diagnostic features allow for proactive maintenance by detecting wire breaks or power supply failures before they lead to system-wide downtime. Furthermore, its support for isochronous mode makes it the preferred choice for synchronized manufacturing cells where sensor inputs must be aligned with high-speed servo drive operations.
