Product Overview

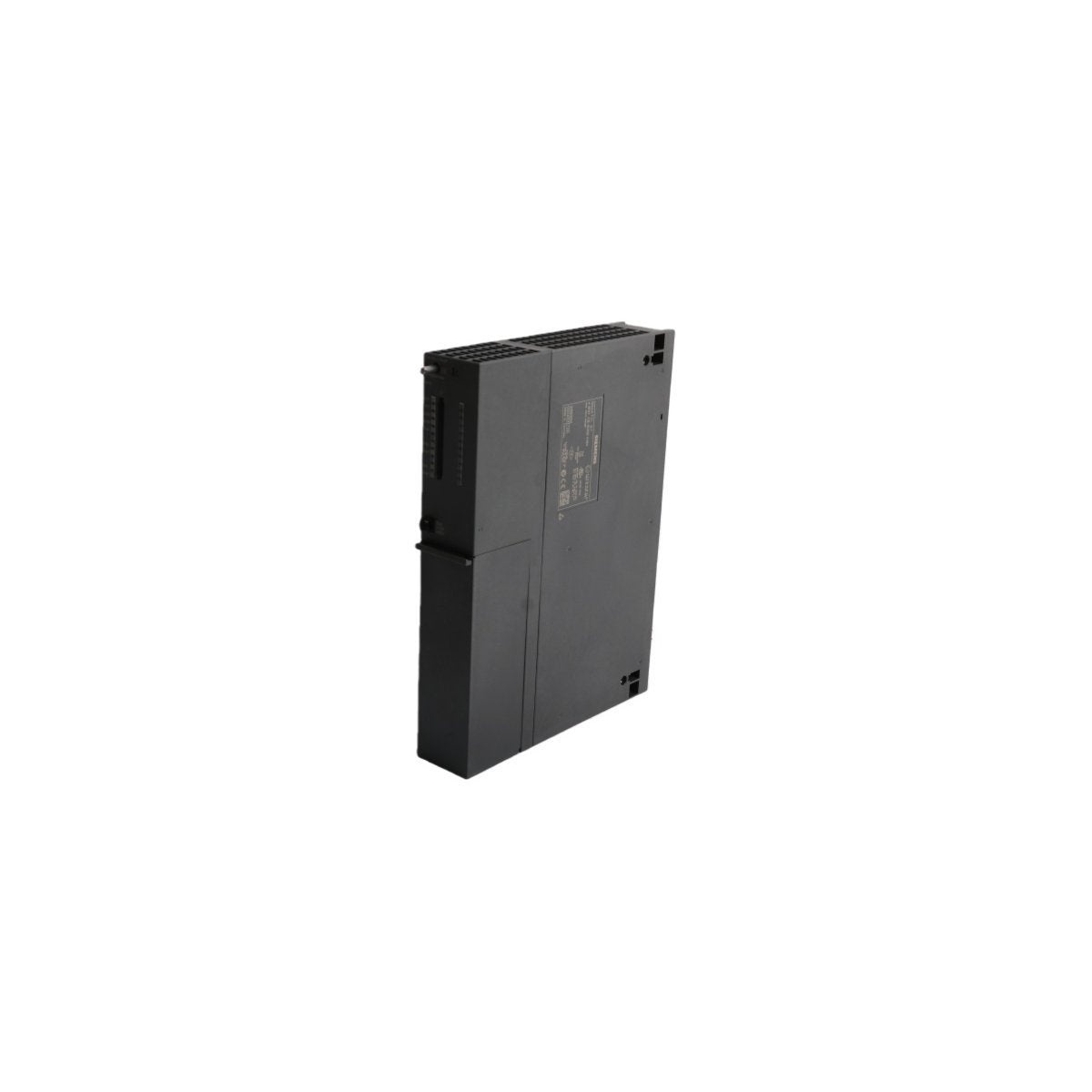

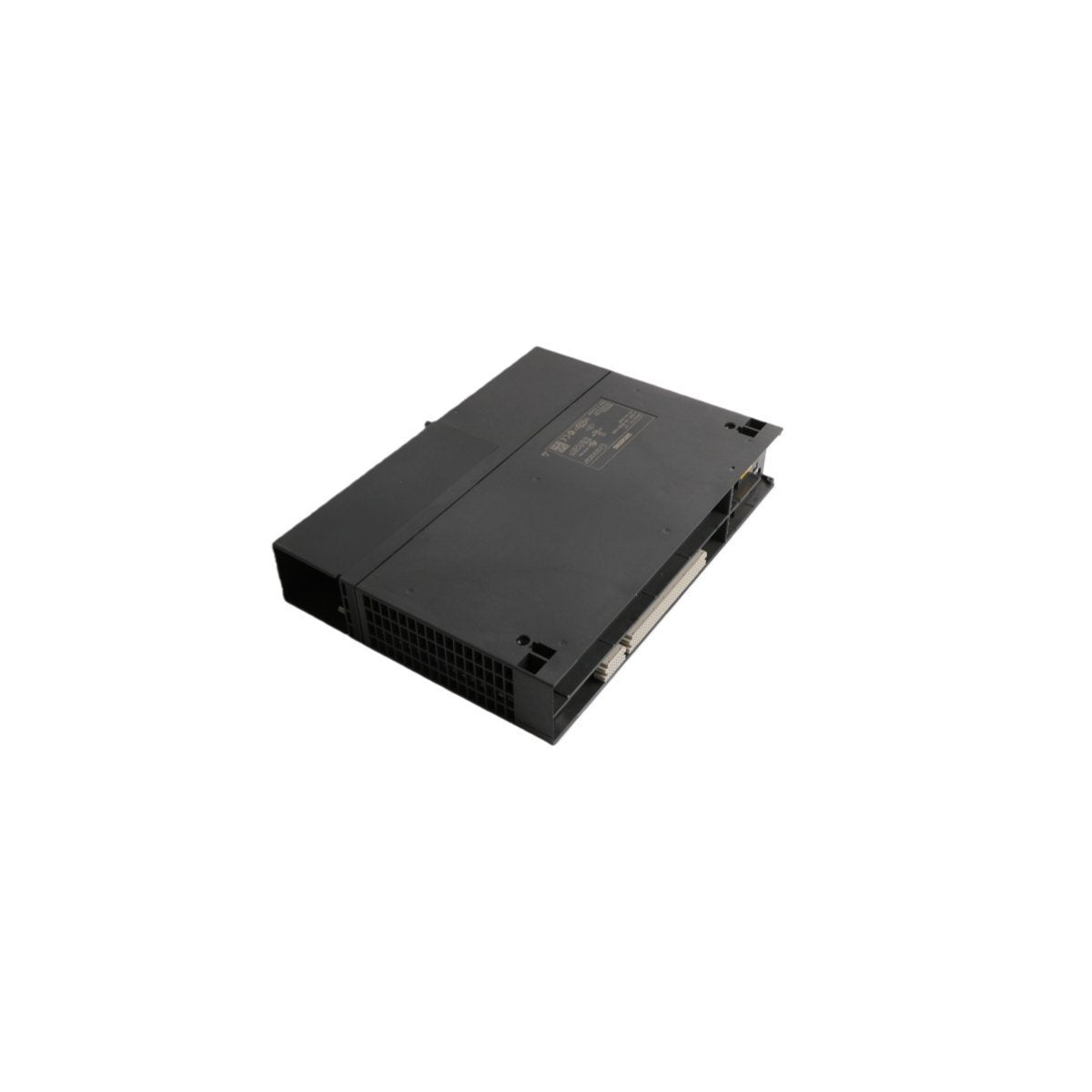

The Siemens 6ES7416-3ER05-0AB0 is a flagship central processing unit within the SIMATIC S7-400 portfolio, specifically engineered for large-scale industrial plants and complex automation architectures. This CPU acts as the primary intelligence for high-end control systems, capable of managing massive I/O counts and executing high-speed arithmetic operations. With an integrated 11.2 MB work memory—split equally between program code and operational data—this unit supports the most memory-intensive logic sequences without compromising cycle times. Its multi-protocol communication backbone ensures it can bridge legacy PROFIBUS networks with modern Industrial Ethernet infrastructures, providing a future-proof foundation for enterprise-level automation.

Core Architecture and Hardware Parameters

Designed for maximum data throughput and multi-tasking, this CPU provides the hardware muscle required for synchronized motion control and intricate process regulation.

• Work Memory: 11.2 MB (5.6 MB for Code / 5.6 MB for Data)

• Processing Speed: Approximately 0.03 µs for binary operations

• Onboard Interface 1: Combined MPI/DP port (up to 12 Mbit/s)

• Onboard Interface 2: PROFINET/Ethernet port with 2-port switch functionality

• Expansion Slot: 1 slot for IF 964-DP plug-in modules

• Power Consumption: 1.3 A nominal current from the backplane bus

• Dimensions: 50 mm (Width) x 290 mm (Height) x 219 mm (Depth)

• Product Weight: 0.95 kg (Net) / 1.10 kg (Gross)

• Storage Backup: Requires external backup battery or memory card for non-volatile storage

Strategic Industrial Implementations

Automotive Powertrain and AssemblyThe 6ES7416-3ER05-0AB0 is frequently utilized in engine assembly lines where the CPU must coordinate hundreds of distributed nodes via PROFINET while managing complex safety and motion logic in real-time.

Chemical and Petrochemical ProcessingDue to its high work memory and ability to handle large data blocks, this unit is ideal for batch processing applications. It manages extensive recipe data and PID control loops with high precision, ensuring consistent product quality in volatile environments.

Power Generation and Grid ManagementIn utility-scale power plants, the S7-400 series provides the necessary reliability for sequence-of-events recording and high-speed protection logic. The redundant communication capabilities of the PN/DP interface allow for fail-safe integration into SCADA systems.

Large-Scale Material HandlingFor automated warehouse systems or massive baggage handling installations at international airports, this CPU manages the high-speed sorting algorithms and wide-area communication required across several kilometers of industrial networking.
