Product Overview

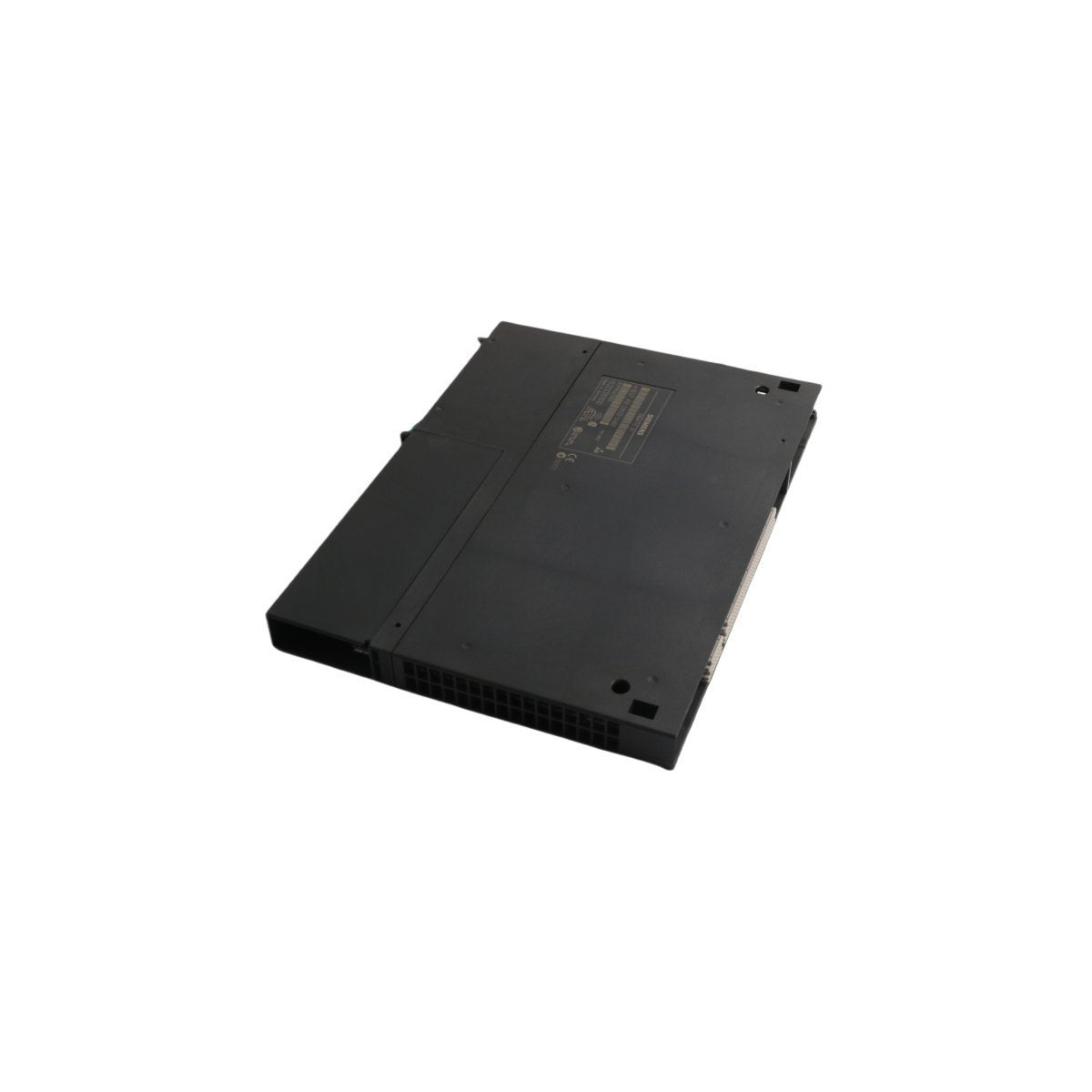

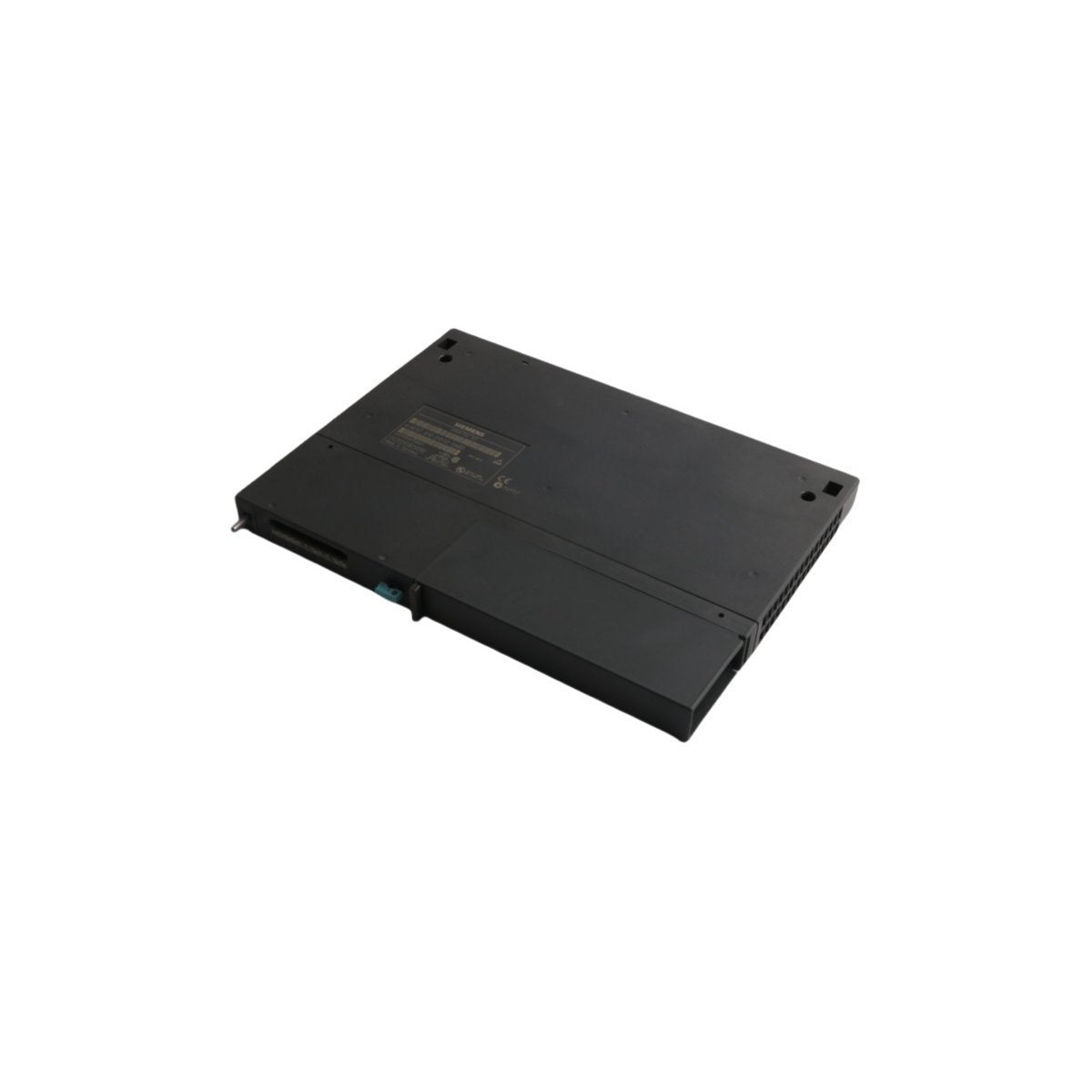

The Siemens 6ES7416-2XK02-0AB0 is a high-performance central processing unit belonging to the SIMATIC S7-400 series, specifically engineered for large-scale automation and complex process control. This CPU 416-2 DP acts as the intelligent core of the PLC rack, managing high-volume data traffic and executing sophisticated logic programs with extreme speed. Featuring a substantial 3.2 MB integrated work memory, it is designed to handle memory-intensive applications without performance degradation. The module is optimized for decentralized architectures, utilizing its integrated interfaces to coordinate vast I/O networks while maintaining system-wide synchronization and high availability in mission-critical industrial environments.

Core Processing Capabilities and Physical Metrics

• Memory Configuration: 3.2 MB Work Memory (distributed for code and data)

• Processing Speed: Approximately 0.1 ms for bit operations

• Communication Interfaces: 1x MPI/DP (Combined) and 1x dedicated PROFIBUS DP interface

• Environmental Range: Sustains operation from -25°C to +60°C

• Security Protocol: Multi-level password protection and unauthorized access blocking

• Diagnostic Features: System status LEDs and comprehensive internal error logging

• Physical Weight: 0.78 kg

• Module Dimensions: 2.5 x 12.3 x 29 cm

• System Type: S7-400 Modular PLC

• Manufacturing Origin: Germany

• HS Classification: 8537101190

Industrial Deployment and Automation Utility

The 6ES7416-2XK02-0AB0 is the preferred choice for sectors requiring uncompromising reliability and massive computational throughput. Key applications include:

• Process Industry Management: Controlling continuous production cycles in chemical, pharmaceutical, and oil and gas facilities where downtime results in significant losses.

• Complex Infrastructure Control: Managing power distribution networks and water treatment plants that require high-speed data logging and redundant fail-safe configurations.

• Automotive Manufacturing: Coordinating large-scale assembly lines where the CPU must synchronize hundreds of distributed I/O points and robotic cells via PROFIBUS DP.

• Critical Factory Automation: Implementing advanced PID control loops and motion sequences in high-output manufacturing environments.

• Redundant System Architectures: Serving as a primary controller in configurations designed for high availability, ensuring the process remains active even during hardware maintenance.
