Product Overview

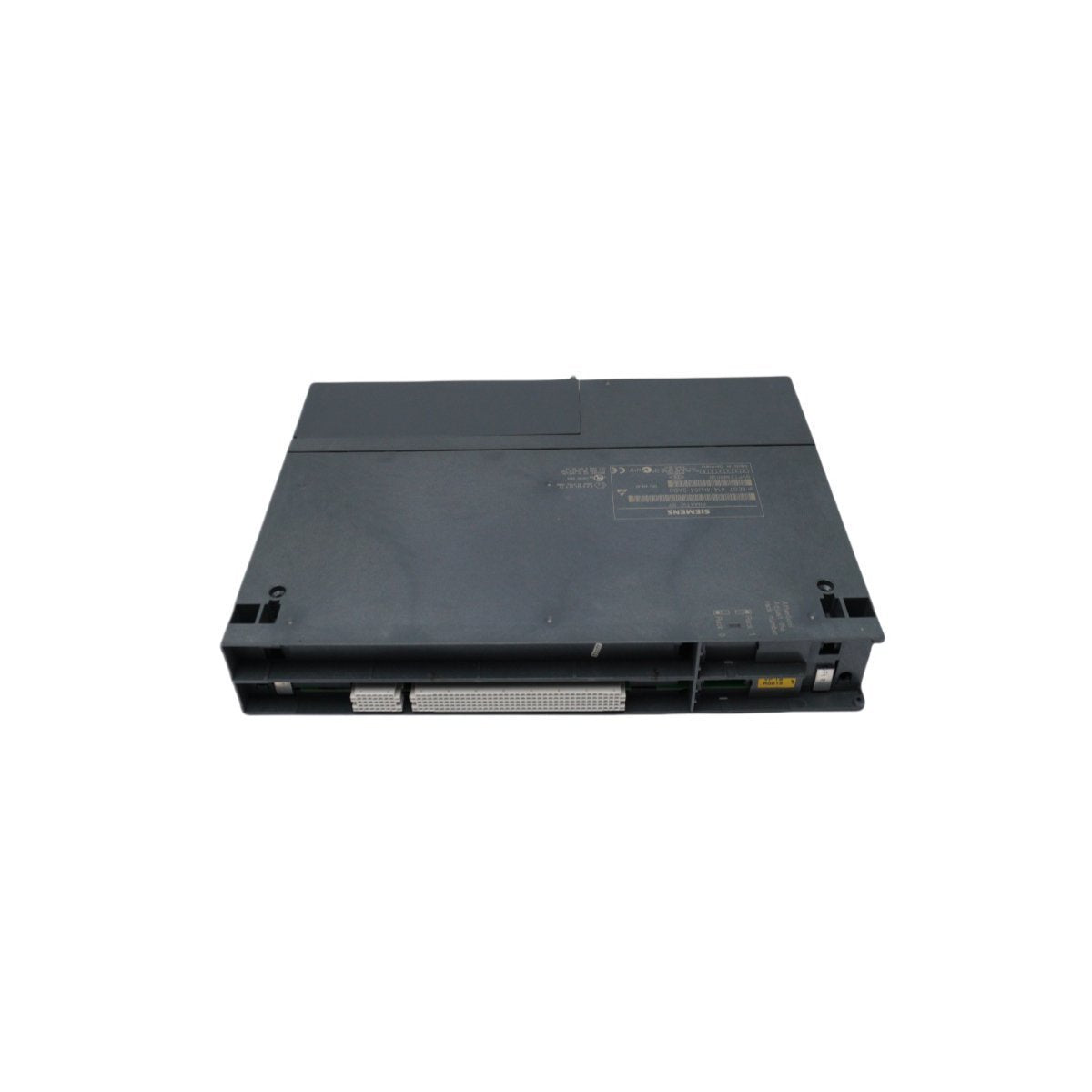

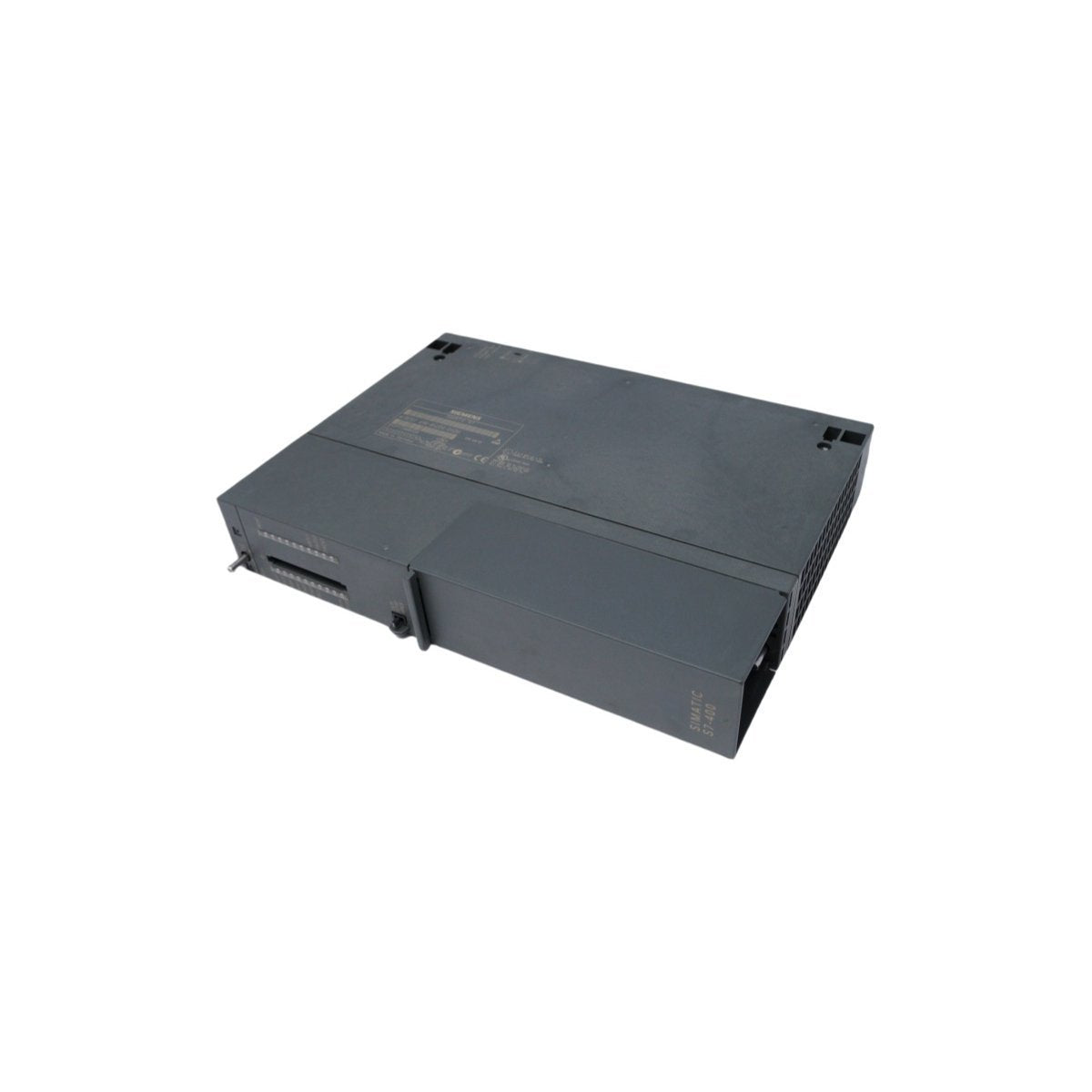

The Siemens 6ES7414-4HJ04-0AB0 is a high-availability central processing unit engineered for the SIMATIC S7-400H controller family. This robust processor module is designed to handle mid-to-high-range automation tasks where system uptime is a critical requirement. Featuring 1.4 MB of integrated work memory, it provides the computational speed and storage capacity necessary for managing complex control algorithms and extensive data blocks. As a "high-availability" (H) designated CPU, it supports redundant configurations, ensuring that industrial processes continue to run even in the event of a hardware failure. Its fanless design and modular architecture make it a reliable cornerstone for large-scale distributed I/O and fieldbus communication.

Advanced Computational & Hardware Metrics

This processor is optimized for large-scale networking and high-speed execution within a multi-processor environment.

• Work Memory: 1.4 MB integrated (700 KB for programs / 700 KB for data)

• Onboard Interfaces: 1x MPI/PROFIBUS-DP and 1x PROFIBUS-DP interface

• Synchronization Ports: 2 slots for sync modules to facilitate redundant CPU pairing

• Processing Speed: Approximately 0.045 µs for bit operations

• Expansion Capability: Support for multi-computing (up to 4 CPUs in one rack)

• Max I/O Capacity: Scalable architecture supporting thousands of digital and analog signals

• Unit Weight: 1.16 kg

• Casing Dimensions: 5 cm x 21.7 cm x 29 cm

• Origin of Manufacture: Germany

• Hardware Lifecycle: Active and fully supported for high-tier automation projects

High-Availability Industrial Applications

The 6ES7414-4HJ04-0AB0 is the preferred choice for sectors where process interruption is not an option.

• Petrochemical and Refining: Managing complex distillation and safety-instrumented functions where a controller shutdown could lead to hazardous conditions.

• Energy Distribution: Controlling substation logic and power grid monitoring systems that require 24/7 reliability.

• Large-Scale Water Treatment: Supervising distributed pumping stations and chemical dosing systems across wide geographic areas.

• Automotive Manufacturing: Coordinating high-speed body-in-white assembly lines where synchronized multi-CPU processing is needed for throughput.

• Pharmaceutical Production: Overseeing critical batch processes that must maintain strict environmental and logic continuity for regulatory compliance.
