Product Overview

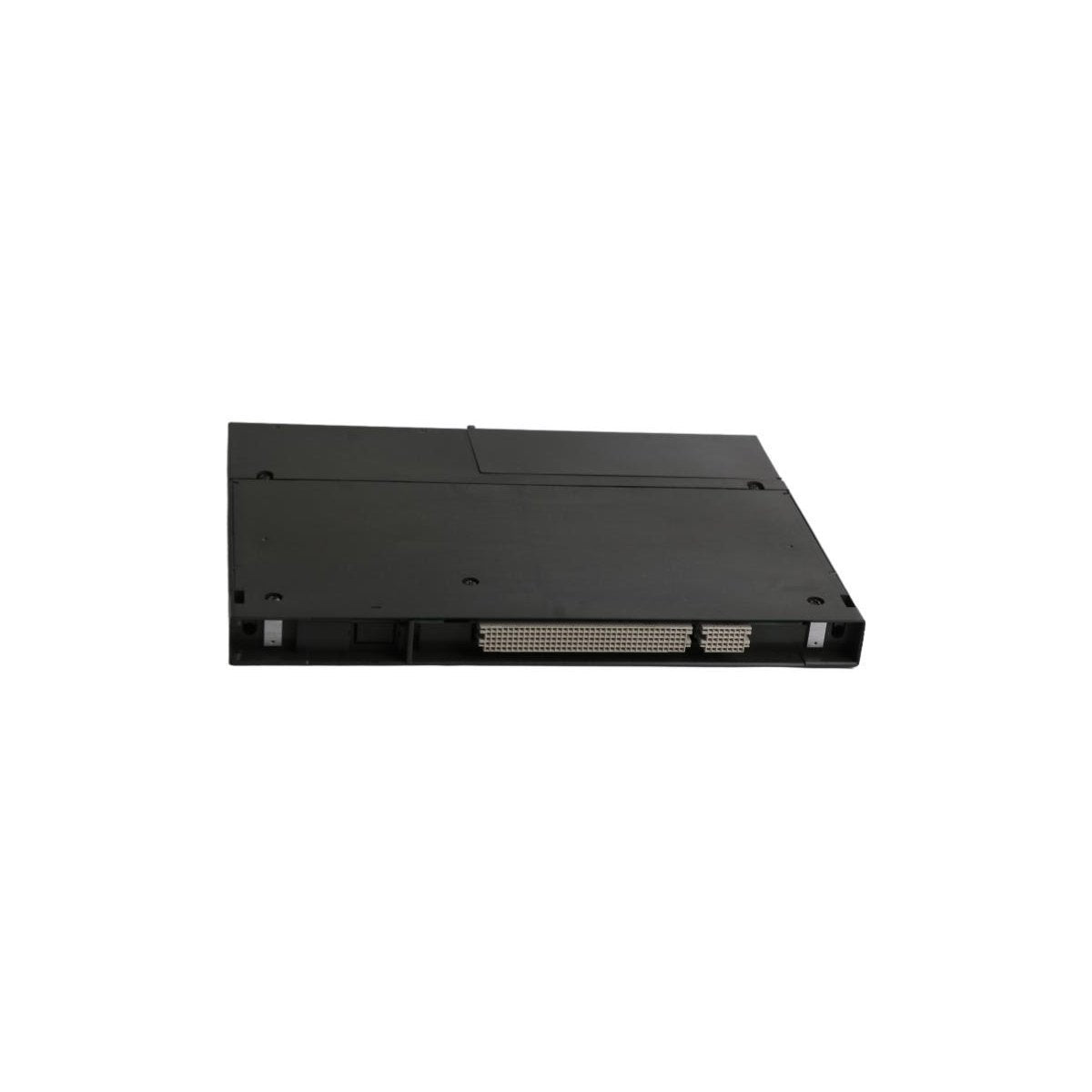

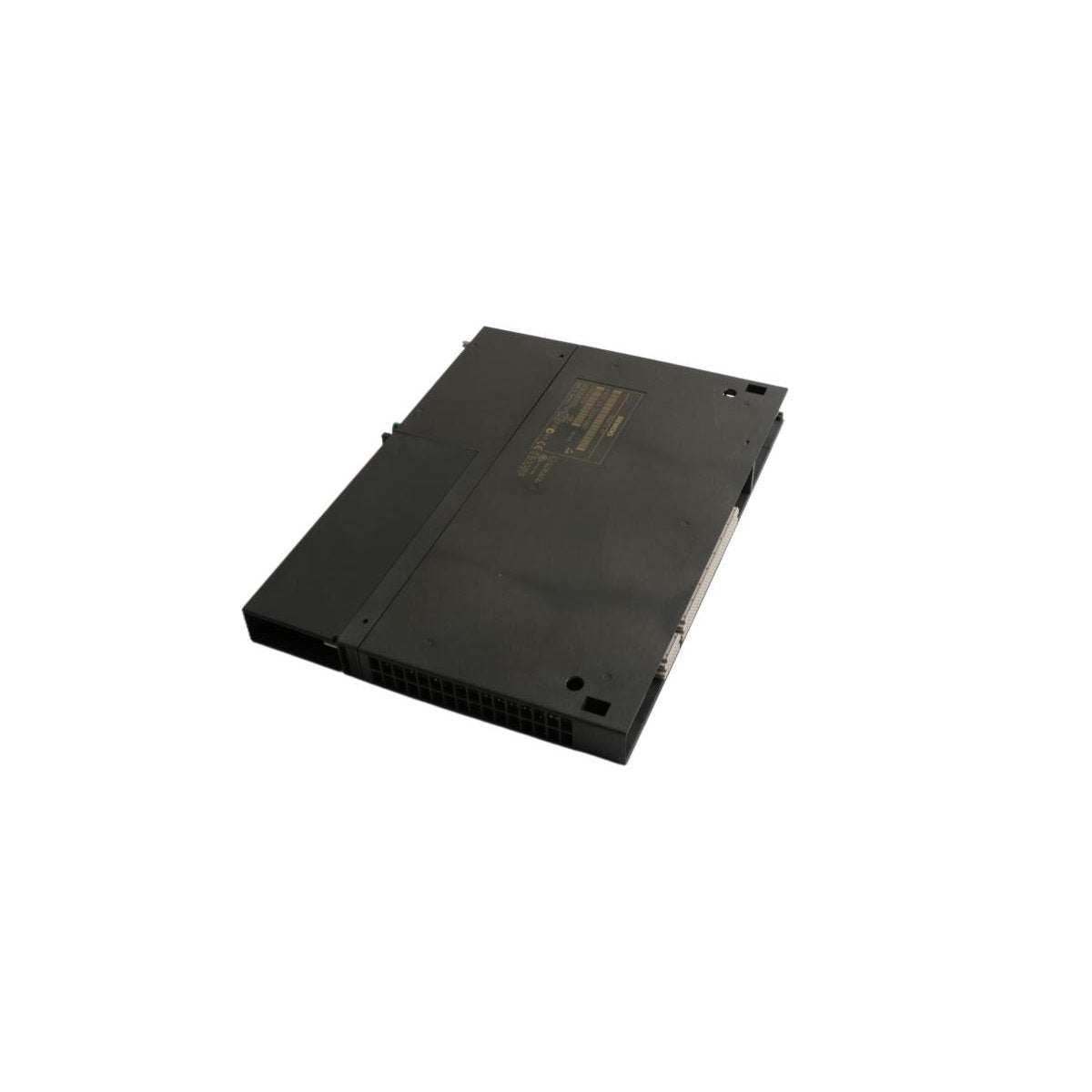

The Siemens 6ES7414-2XG04-0AB0 is a mid-to-high range Central Processing Unit designed for the SIMATIC S7-400 controller platform. Engineered for large-scale automation projects, this CPU handles complex interlocking, high-speed counting, and extensive data processing with professional-grade reliability. It serves as the primary intelligence for decentralized control architectures, offering the scalability needed to manage thousands of I/O points. With its dual-interface design, it facilitates high-speed communication across industrial networks, ensuring that plant-wide processes remain synchronized and responsive under heavy computational loads.

Essential Performance Metrics and Architecture

This processor is characterized by its balanced memory allocation and its ability to handle system modifications without interrupting the production cycle.

• Work Memory: 512 KB total (Split into 256 KB for program code and 256 KB for operational data)

• Integrated Interface 1: Combined MPI and PROFIBUS DP (Up to 12 Mbit/s)

• Integrated Interface 2: Dedicated PROFIBUS DP interface

• Programming Environment: Requires STEP 7 V5.2 SP1 HF3 or higher

• Processing Speeds: Optimized for rapid bit and word operations

• Availability Feature: Supports Configuration in RUN (CiR) for seamless hardware updates

• Power Consumption: Low heat dissipation with a typical 4.5 W power loss

• Physical Width: Occupies a single slot in an S7-400 rack

• Device Dimensions: 2.5 cm W x 5.1 cm H x 83.8 cm D (Boxed dimensions)

• Net Weight: 0.72 kg

• Gross Shipping Weight: 0.95 kg

• Input Voltage: 24 V DC (via backplane or power supply)

Industrial Implementation and Systems Usage

Large-Scale Process ControlIn industries such as chemical refining or power generation, the 6ES7414-2XG04-0AB0 manages complex PID loops and safety interlocks. Its 512 KB memory allows for the storage of intricate process sequences, ensuring that even the most detailed automation logic is executed with deterministic timing.

High-Availability ManufacturingFor assembly lines that cannot afford downtime, the Configuration in RUN (CiR) functionality is a vital asset. It allows maintenance teams to add or remove I/O modules on the PROFIBUS network without stopping the CPU, maintaining continuous production while the system architecture is expanded.

Centralized Factory BackboneActing as a master in a PROFIBUS DP environment, this CPU coordinates communication between dozens of remote I/O stations, drives, and specialized instrumentation. Its high-speed 12 Mbit/s MPI/DP port ensures that data from the factory floor reaches the HMI or SCADA system without lag.

Sophisticated Data ManagementThe dedicated 256 KB data memory partition is ideal for applications requiring extensive logging or recipe management. This allows the processor to handle large tables of variable parameters for food and beverage batching or pharmaceutical formulation while keeping the execution code isolated and efficient.
