Product Overview

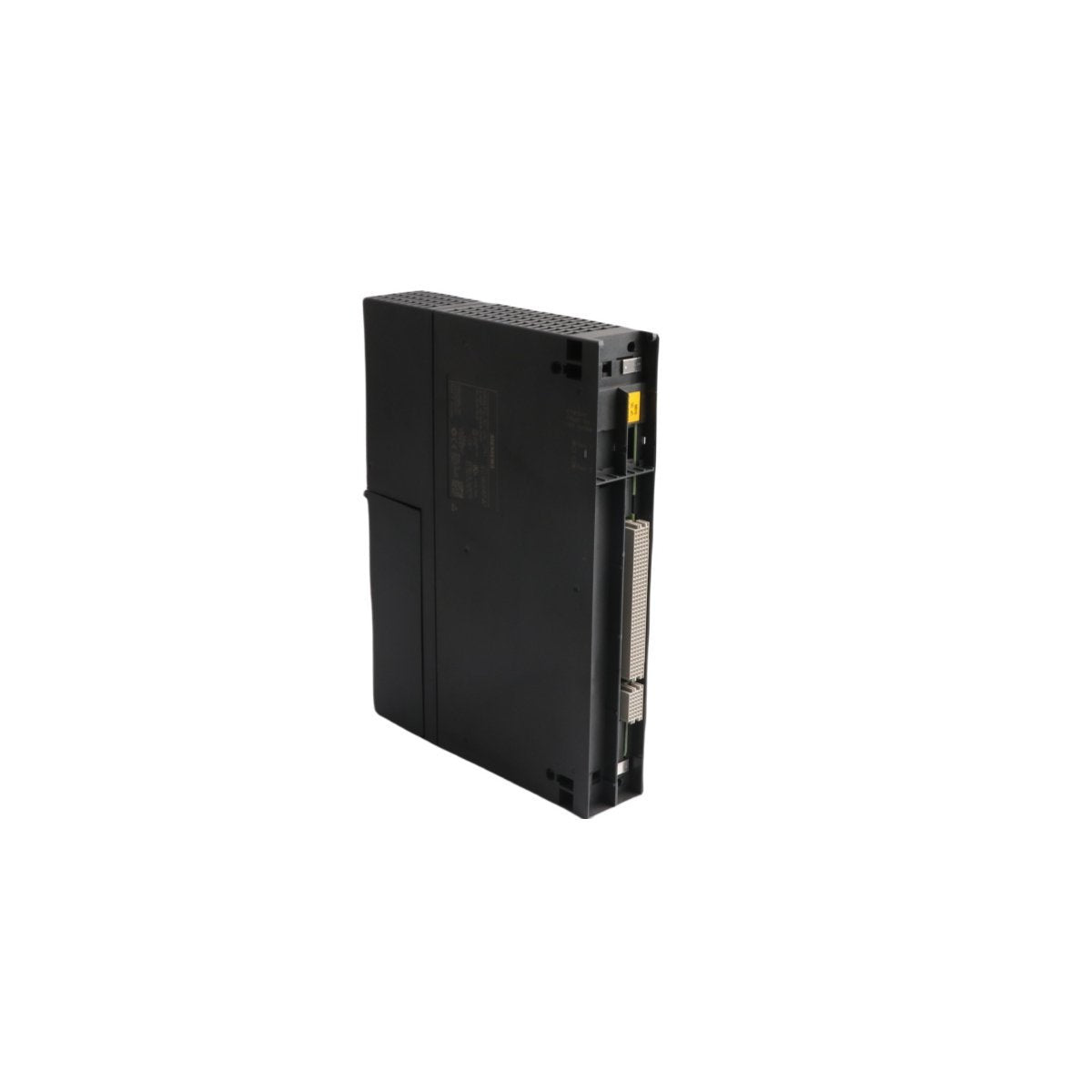

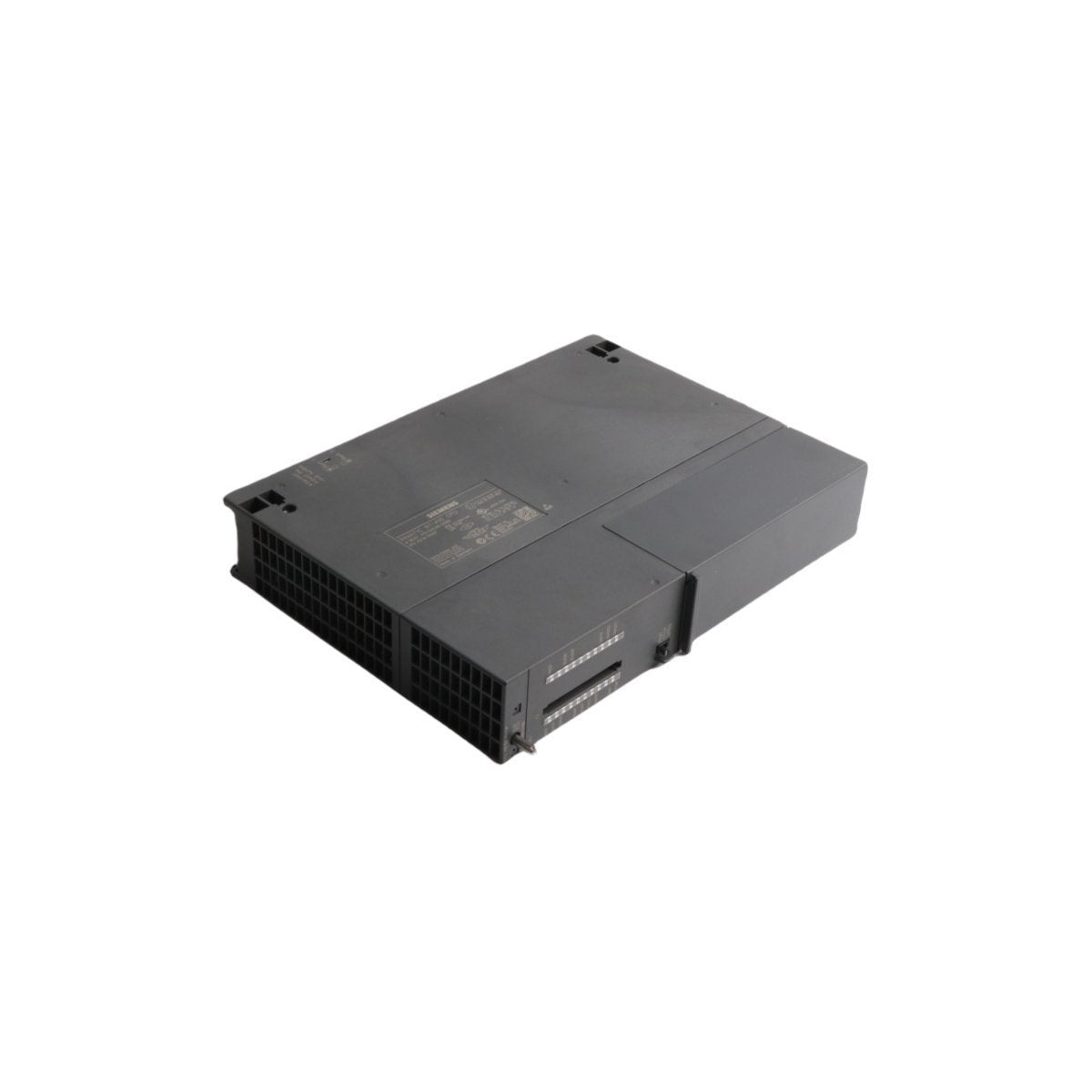

The Siemens 6ES7412-5HK06-0AB0 is a high-availability CPU 412-5H specifically engineered for the SIMATIC S7-400H and S7-400F/FH controller platforms. As a core processor module for fault-tolerant and safety-related automation systems, it ensures that industrial processes remain active even in the event of hardware or communication failures. This central processing unit is designed to manage complex control tasks with deterministic timing, providing a redundant architecture that is essential for mission-critical infrastructure. By utilizing integrated synchronization capabilities, the 6ES7412-5HK06-0AB0 allows two controllers to operate in tandem, providing a seamless "bumpless" switchover to maintain system integrity and prevent costly production shutdowns.

Computational Architecture and Hardware Profile

The 6ES7412-5HK06-0AB0 is defined by its robust communication array and specialized memory distribution:

• Work Memory: 1 Megabyte total (split into 512 KB for program execution and 512 KB for data storage)

• Onboard Interfaces: 1x MPI/DP combined port, 1x dedicated PROFIBUS DP interface, and 1x PROFINET port with 2-port switch

• Redundancy Support: 2x slots for specialized synchronization modules to link redundant CPU pairs

• Bit Performance: High-speed execution of binary and floating-point operations for real-time control

• Storage Options: Expandable via SIMATIC Memory Cards for high-volume program archival

• Physical Weight: 1.16 kg (Net)

• Unit Dimensions: 5.0 cm x 21.7 cm x 29.0 cm

• Manufacturing Origin: Germany

• HS Export Code: 8537101190

This processor is housed in a rugged chassis designed for the S7-400 rack system, featuring active thermal management and sophisticated diagnostic LEDs for real-time status monitoring of the redundancy link and bus activity.

Industrial Applications and Fault-Tolerant Utility

The 6ES7412-5HK06-0AB0 is the primary choice for industrial sectors where process downtime is not an option. In the oil and gas industry, it manages emergency shutdown (ESD) systems and fire and gas (F&G) monitoring, where its fail-safe (F-system) capabilities ensure personnel safety and environmental protection. Within the power generation field, it is used for turbine control and substation automation, where the redundant H-system architecture prevents grid instability during localized hardware faults. It is also extensively deployed in large-scale manufacturing and chemical processing plants to manage continuous batch operations. The integrated PROFINET interface allows for high-speed communication with decentralized I/O, while the synchronization slots enable the CPU to maintain an identical image of the process memory with its redundant partner. This makes the 6ES7412-5HK06-0AB0 an essential component for any high-availability automation backbone requiring German-engineered reliability and comprehensive system diagnostics.
