Product Overview

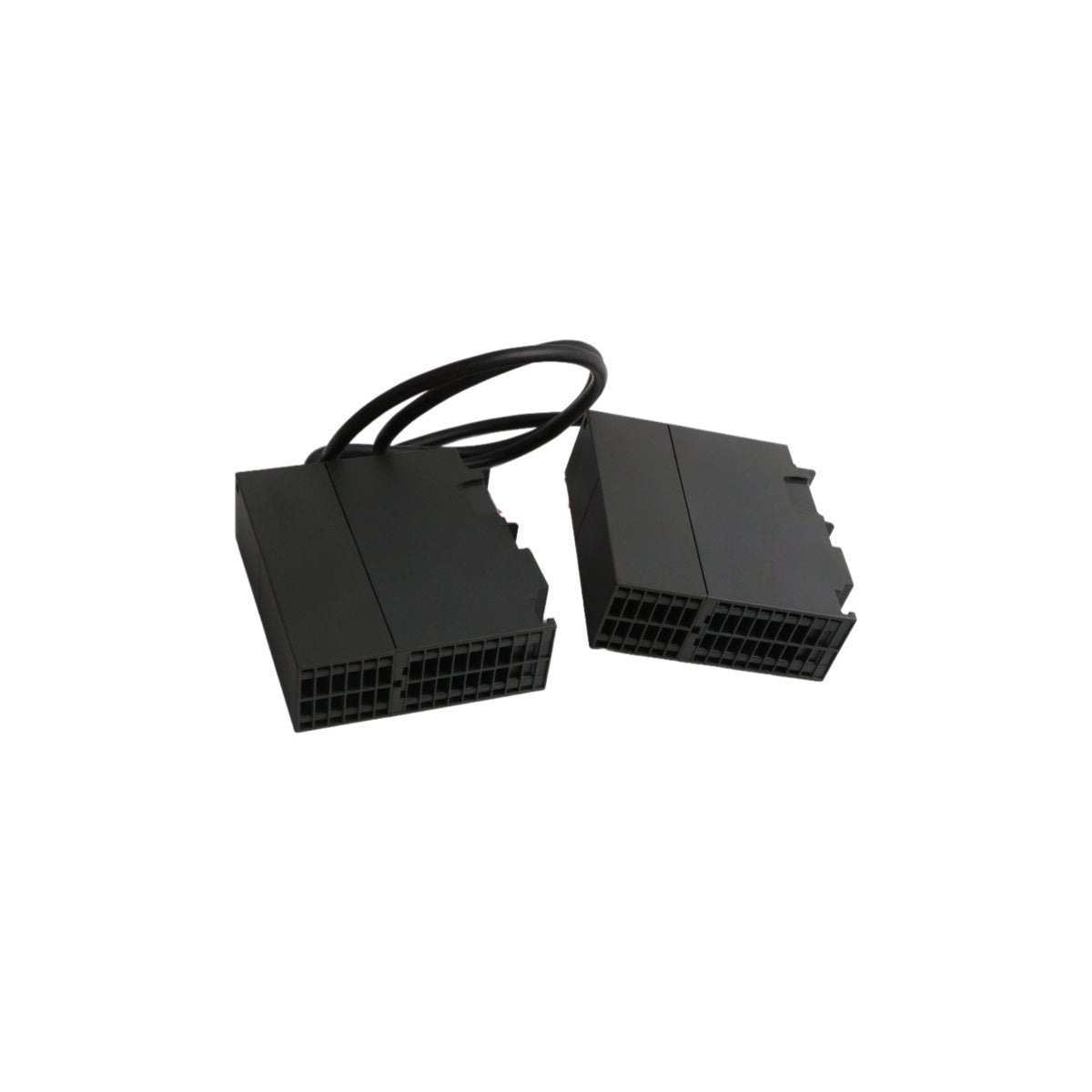

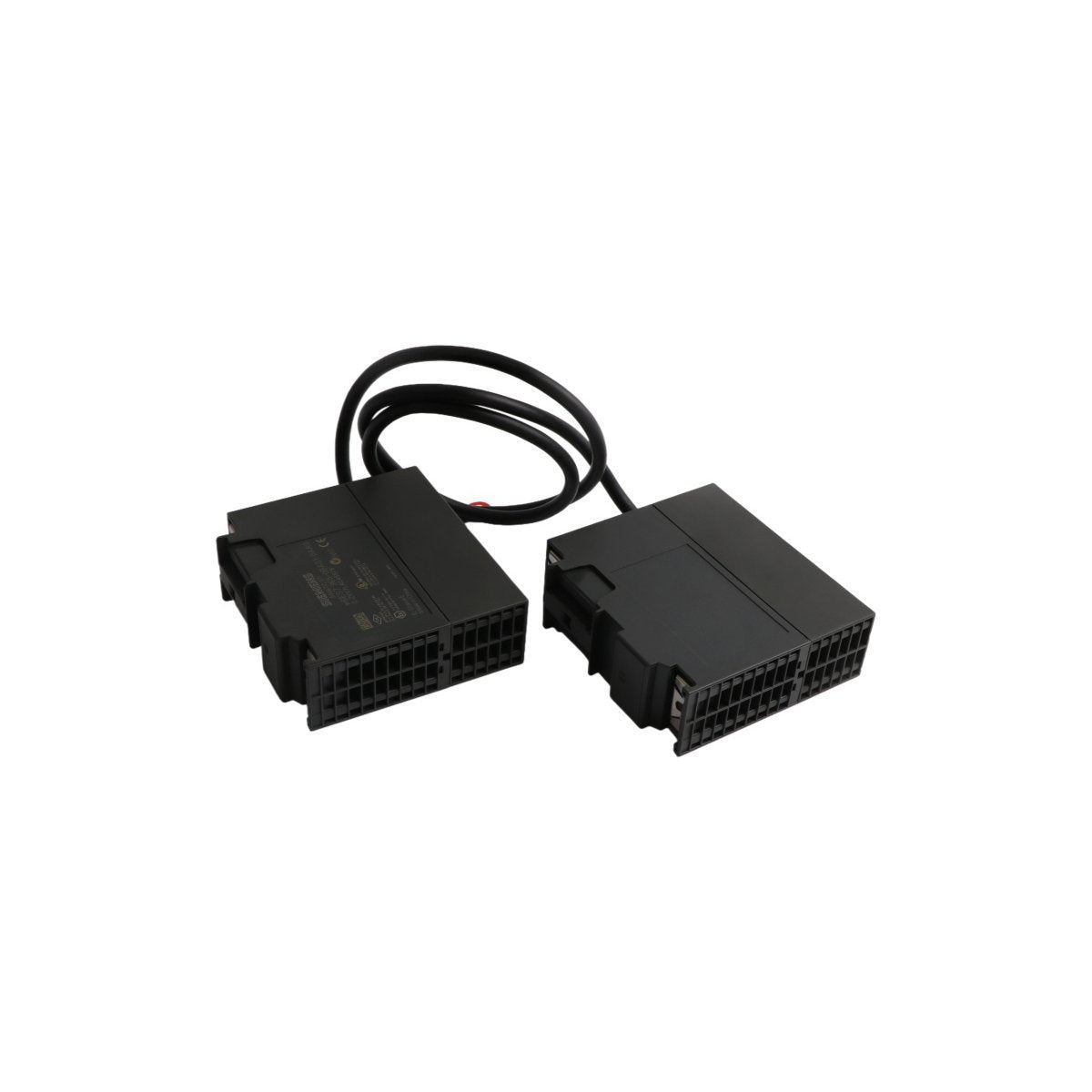

The Siemens 6ES7365-0BA01-0AA0 is a specialized IM 365 interface module set designed to facilitate the physical expansion of a SIMATIC S7-300 PLC system. This hardware pair allows for the connection of one central rack to one expansion rack (ER), effectively doubling the available slot capacity for signal modules. Unlike more complex interface solutions, the IM 365 is engineered for simplicity and cost-efficiency in localized setups where the expansion rack is situated within a 1-meter range. By using this module, the backplane bus is extended directly, allowing the CPU to address I/O modules on the second rack as if they were located on the primary rail, all without the need for additional "C-bus" (communication bus) configurations.

Technical Infrastructure and Hardware Parameters

This interface set is characterized by its hard-wired reliability and ease of integration into standard S7-300 mounting rails.

• Module Configuration: Sold as a complete set consisting of two modules (one for the central rack and one for the expansion rack).

• Interconnect: Includes a permanently attached 1-meter (3.3 ft) connecting cable.

• Expansion Limit: Supports the addition of 1 expansion rack with up to 8 signal modules.

• Bus Support: Transfers the P-bus (peripheral bus) only; does not support modules requiring the C-bus (e.g., certain FM or CP modules).

• Power Supply: The expansion rack is powered directly from the central rack via the IM 365; no additional power supply module is required on the ER.

• Current Handling: Supports a maximum current output of 1.2A for the expansion rack.

• Mass: 0.58 kg (Net weight) / 0.95 kg (Shipping weight).

• Unit Dimensions: 4.0 cm x 12.5 cm x 12.0 cm (Standard S7-300 module width).

• Manufacturing Origin: Germany.

• HS Tariff Code: 8537101190.

Industrial Deployment and System Scalability

The 6ES7365-0BA01-0AA0 is the primary choice for automation engineers requiring immediate I/O density increases in localized control cabinets.

• Localized I/O Expansion: Ideal for machinery that has outgrown its primary 8-slot limit but remains contained within a single control enclosure.

• Cost-Optimized Engineering: Eliminates the need for a secondary power supply (PS 307) on the expansion rack, significantly reducing hardware costs for basic digital and analog I/O setups.

• High-Density Assembly Lines: Providing additional slots for 16 or 32-channel digital modules in complex sorting and packaging systems.

• Retrofit Projects: Facilitating the addition of extra sensors or actuators to an existing S7-300 station without relocating the original CPU or power source.

• Panel Building: Streamlining cabinet layouts by allowing a vertical or horizontal split of the PLC racks while maintaining high-speed bus communication.
