Product Overview

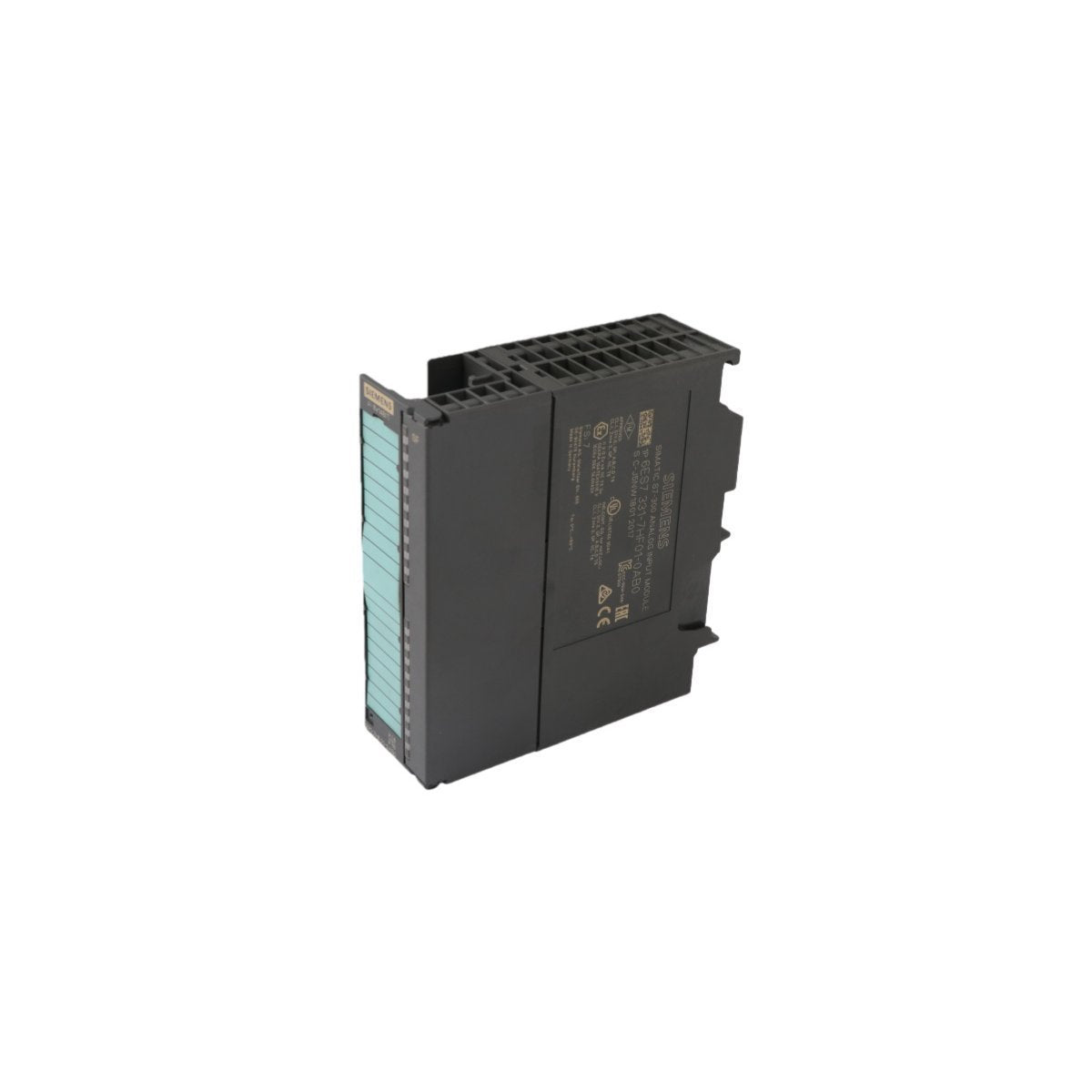

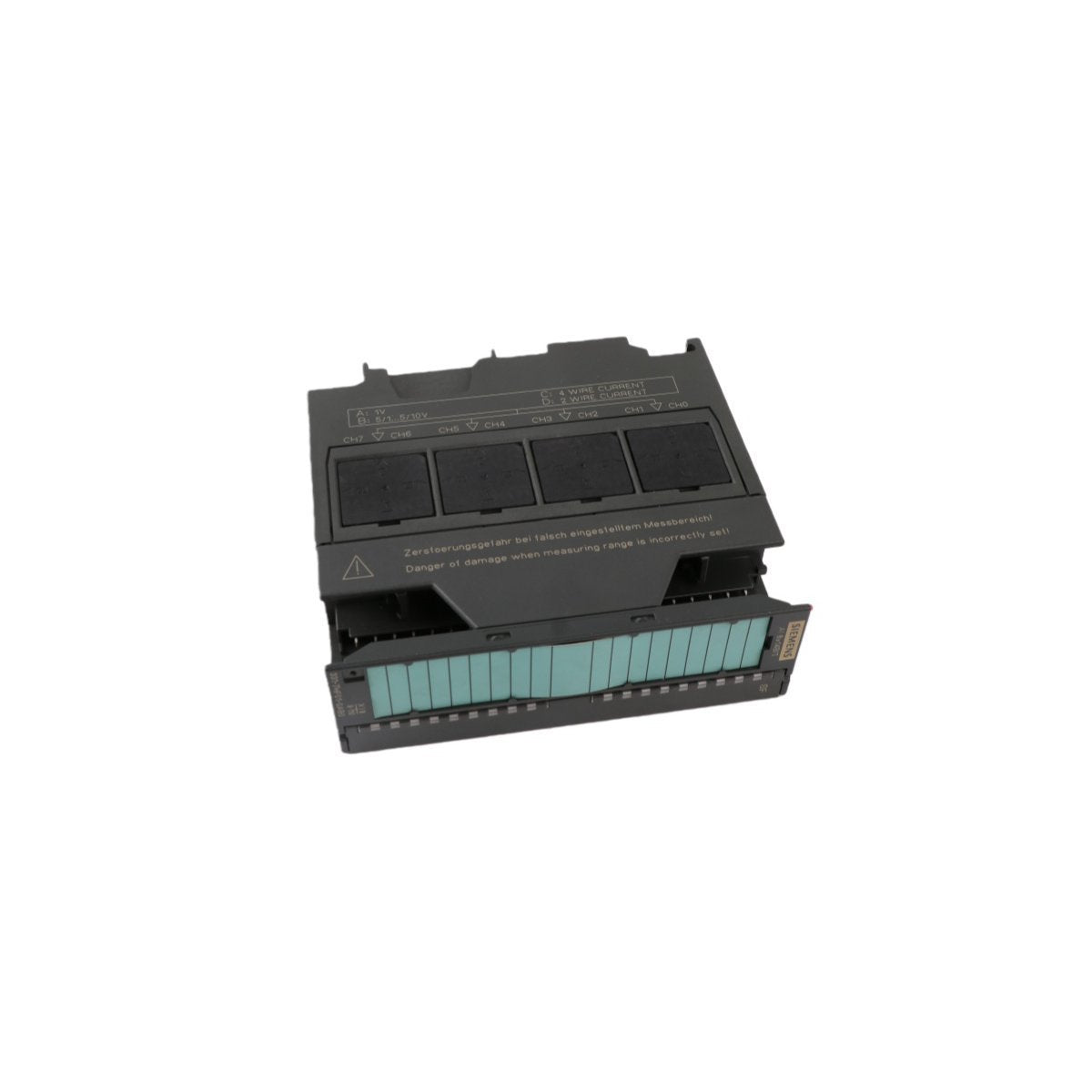

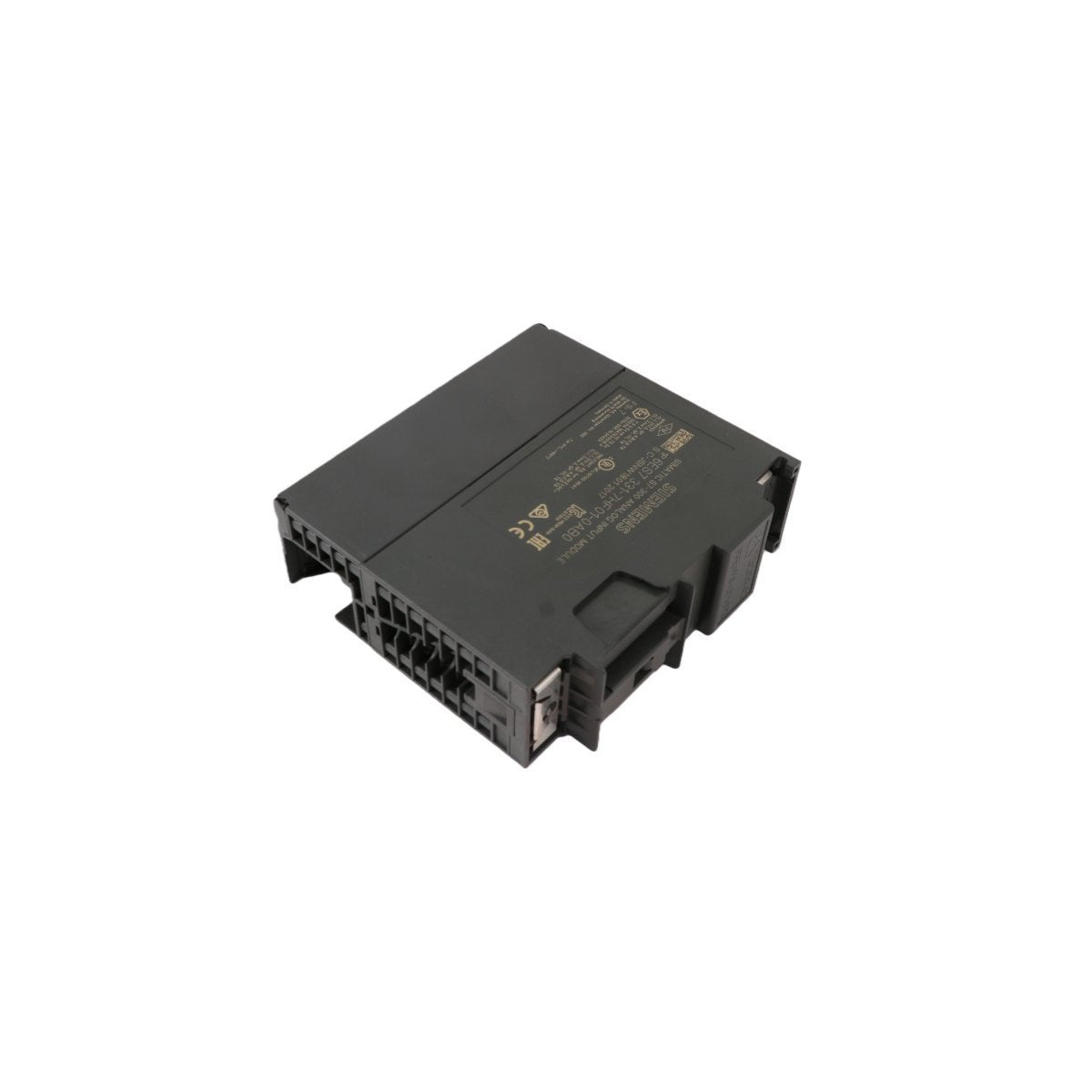

The Siemens 6ES7331-7HF01-0AB0 is a professional-grade SM 331 analog input expansion module engineered for the SIMATIC S7-300 PLC ecosystem. Optimized for high-velocity signal processing, this module features 8 independent channels with a high-fidelity 14-bit resolution. It acts as a high-speed gateway for bringing precise field instrumentation data into the controller, supporting both voltage and current measurement ranges. Designed for deterministic automation environments, the module supports isochronous mode, allowing for perfectly synchronized data sampling that is essential for complex motion control and high-end process regulation.

Advanced Hardware Logic and Performance Specifications

The 6ES7331-7HF01-0AB0 is built with specialized electrical architecture to ensure data integrity and system safety:

• Sampling Velocity: Ultra-fast conversion time of 52 µs per channel, enabling high-frequency signal tracking.

• Measurement Fidelity: 14-bit plus sign resolution ensures granular accuracy for sensitive process variables.

• Signal Flexibility: Universally compatible with standard voltage (±1V, ±5V, ±10V, 1-5V) and current (±20mA, 0-20mA, 4-20mA) inputs.

• Electrical Isolation: Integrated galvanic isolation between the backplane bus and the analog channels to safeguard the CPU from field-side interference.

• Diagnostic Intelligence: Onboard detection for wire breaks, signal overflow/underflow, and external power loss with Group Fault (SF) LED.

• Synchronization: Full support for isochronous operation within PROFIBUS-DP networks for time-critical data acquisition.

• Connection System: Standard 20-pin front connector interface for streamlined and organized field wiring.

Industrial Applications and Dynamic Use Cases

This high-speed module is typically deployed in environments where millisecond-level accuracy is mandatory for operational safety and quality:
