Product Overview

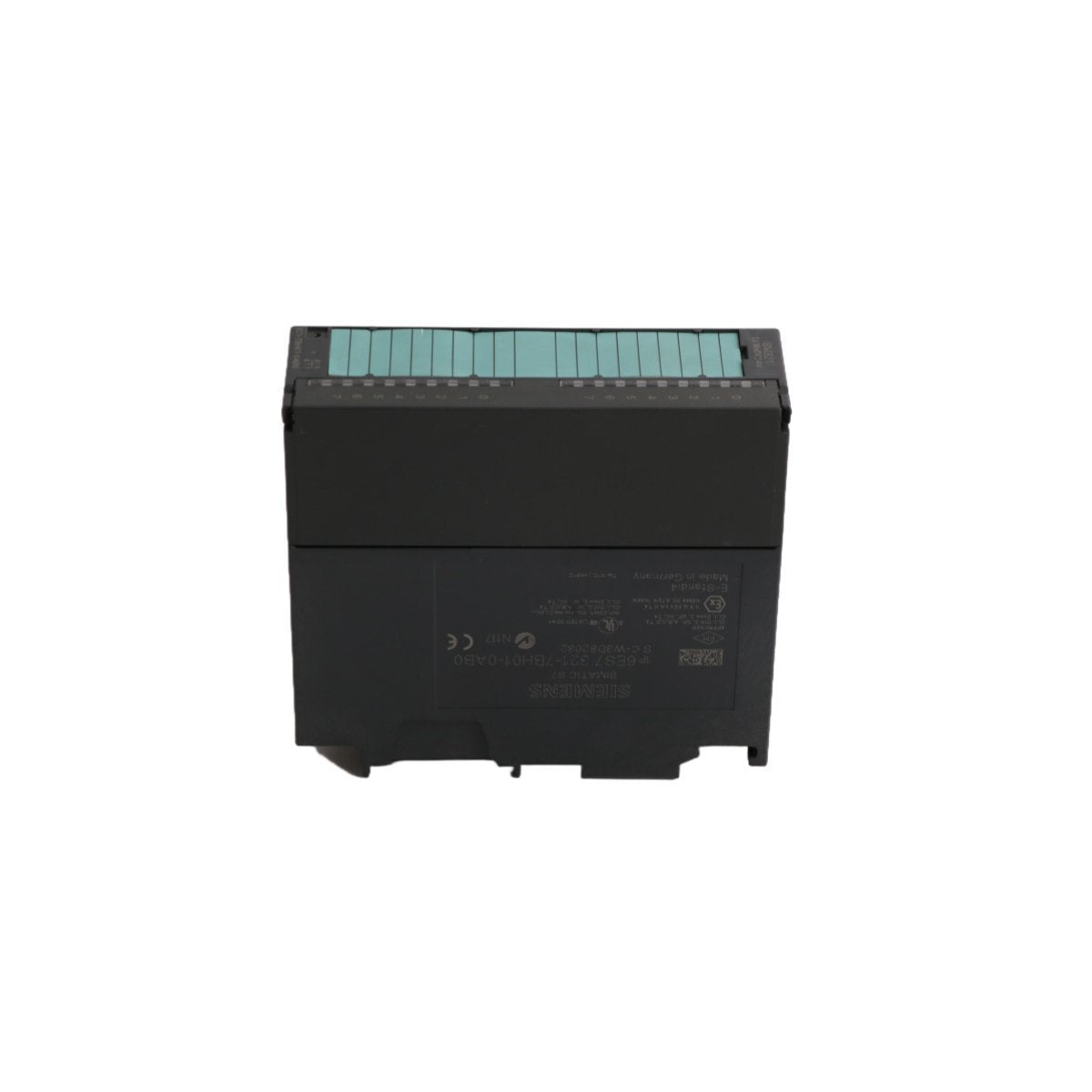

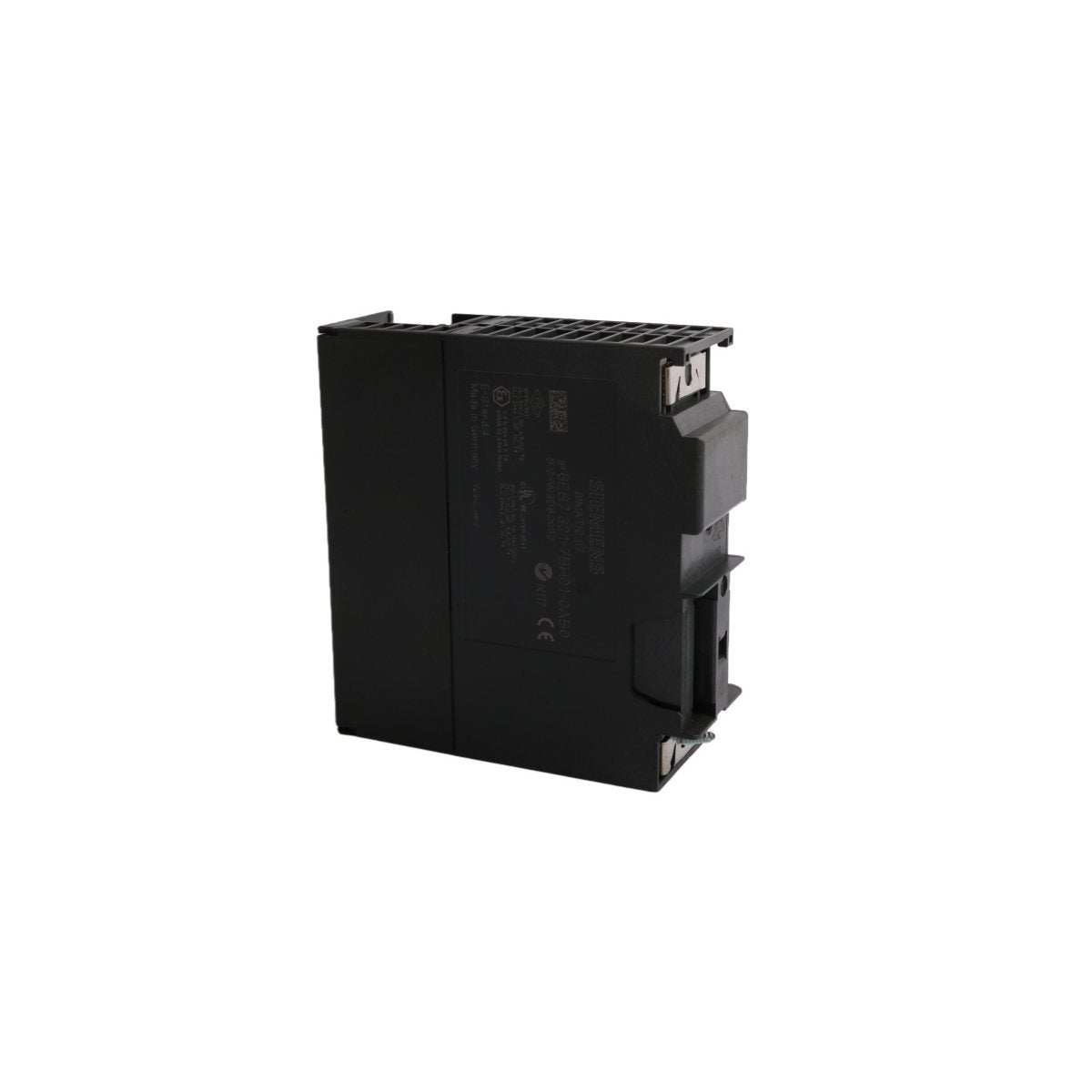

The 6ES7321-1BH01-0AA0 is a high-density digital signal acquisition module engineered for the SIMATIC S7-300 PLC series. This module serves as the primary sensory interface for the controller, allowing it to interpret 16 discrete binary signals from the industrial field. By utilizing a 24V DC sink/source architecture, it bridges the gap between mechanical field devices—such as limit switches, pushbuttons, and proximity sensors—and the central processing unit. Its design focuses on electrical robustness, featuring optocoupler isolation to shield the sensitive internal logic of the PLC from external surges and electromagnetic interference (EMI) commonly found in factory environments.

Component Specifications & Hardware Profile

Automation Scenarios & Field Utility

• Manufacturing Cell Monitoring: Integrated into assembly lines to track the real-time position of mechanical arms and workpieces via limit switches.

• Conveyor Logic Control: Capturing signals from photo-electric sensors to manage product flow, sorting, and accumulation in logistics centers.

• Machine Safety Interlocks: Interfacing with panel-mounted buttons and safety gates to provide the PLC with critical "Ready" or "Stop" state information.

• System Retrofitting: Acting as a reliable replacement for legacy S7-300 installations, ensuring continued operation of existing automation racks without the need for comprehensive software rewrites.

• Packaging Machinery: Coordinating high-speed discrete triggers for labeling, sealing, and pneumatic actuator feedback loops.
