Product Overview

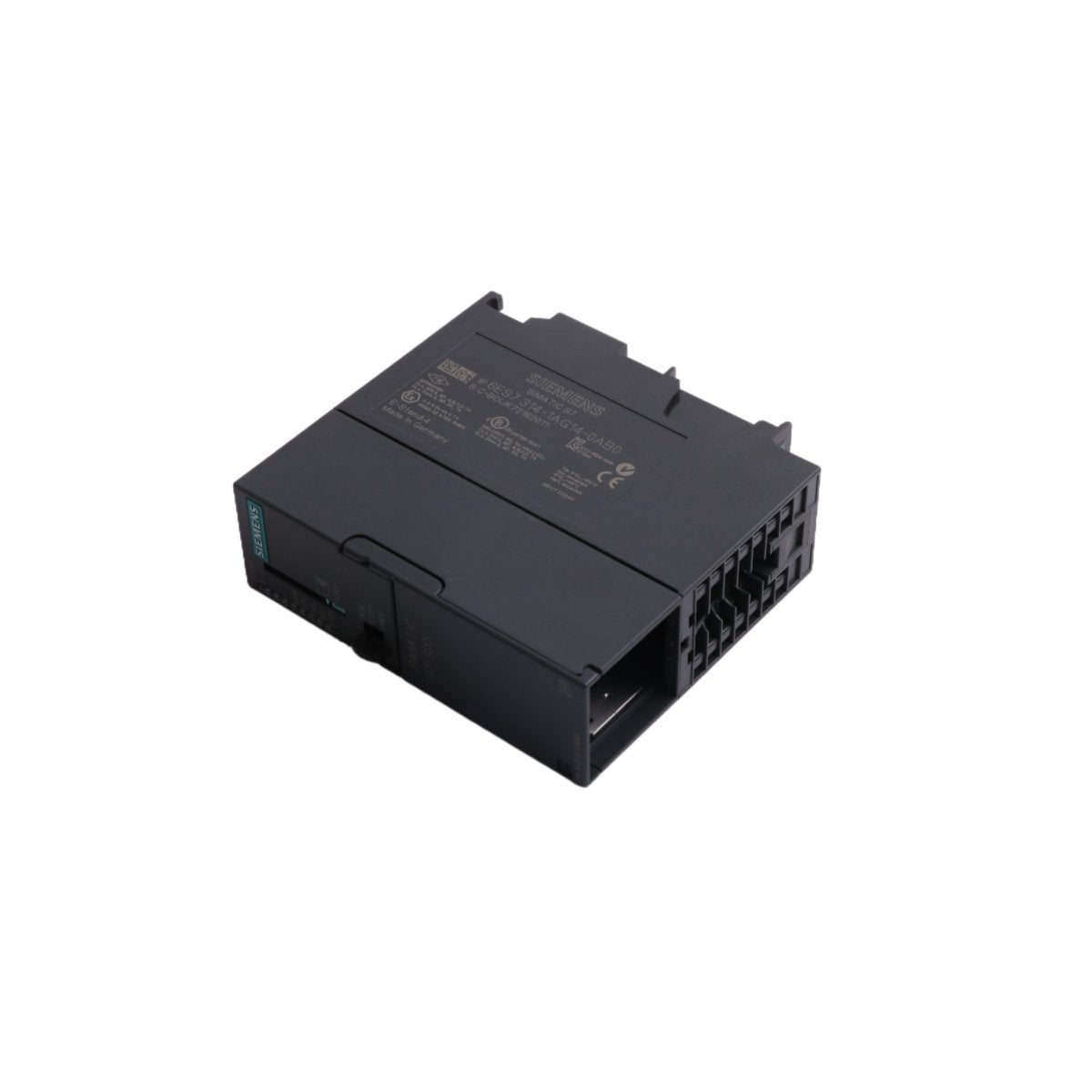

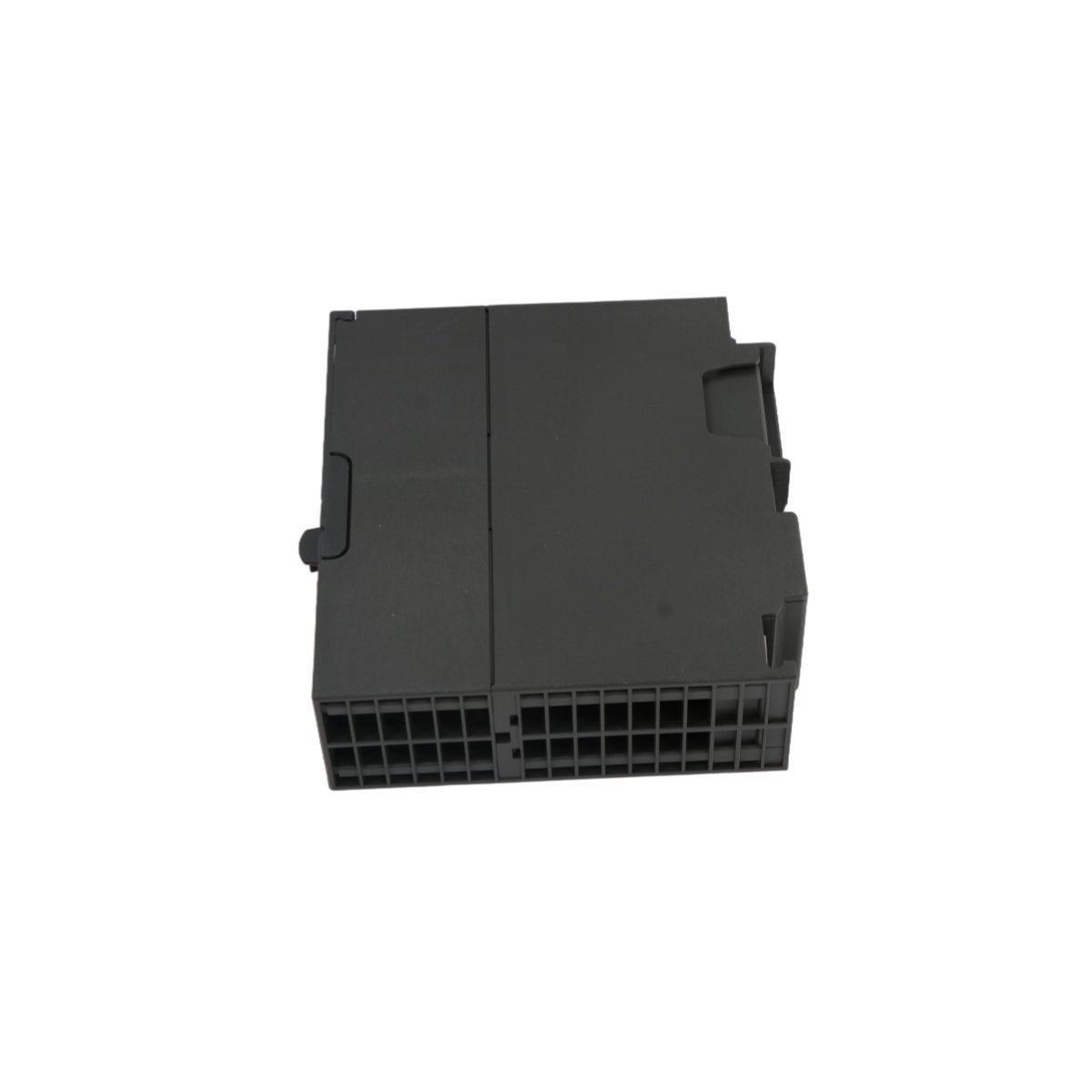

The Siemens 6ES7314-1AG14-0AB0 is a high-performance central processing unit designed for the modular SIMATIC S7-300 PLC system. Positioned as a mid-range controller, this CPU 314 module offers a balanced combination of processing speed and memory capacity for a variety of discrete and process automation tasks. It is engineered to handle medium-scale programs, providing a stable backbone for machines that require a higher volume of I/O points and more sophisticated logic than entry-level controllers. With its proven architecture, this processor ensures high system availability and deterministic response times in demanding industrial environments.

Core Hardware Parameters and Performance Data

This processor is characterized by its efficient execution times and flexible communication options, essential for modern manufacturing setups.

• Work Memory: 128 KB integrated (non-expandable)

• Instruction Execution Speed: 0.06 µs for bit operations; 0.12 µs for word operations

• Integrated Interface: 1x MPI (Multi-Point Interface) for programming and HMI communication

• Memory Management: Requires a SIMATIC Micro Memory Card (MMC) for retentive data storage and program backup

• Supply Voltage: 24V DC (nominal)

• Scalability: Supports up to 1024 digital and 256 analog I/O points across multiple racks

• Physical Mass: 0.24 kg

• Dimensions: 10.5 cm x 12.5 cm x 4.0 cm

• Manufacturing Origin: Germany

Industrial Implementation and Solutions

The 6ES7314-1AG14-0AB0 is a versatile controller utilized across numerous sectors where reliable sequence control and data processing are required.

• Manufacturing and Assembly: Managing coordinated movements and logic for automated assembly lines and specialized tooling machines.

• Packaging Systems: Controlling high-speed wrapping, labeling, and palletizing equipment that requires rapid I/O processing.

• Material Handling: Governing the operations of complex conveyor networks, lifting stations, and automated sorting systems.

• Facility Automation: Regulating environmental controls and peripheral systems in large industrial complexes where MPI networking is utilized for localized control.

• Food and Beverage: Overseeing batch processing and bottling lines where precision timing and hygienic environment tolerance are necessary.
