Product Overview

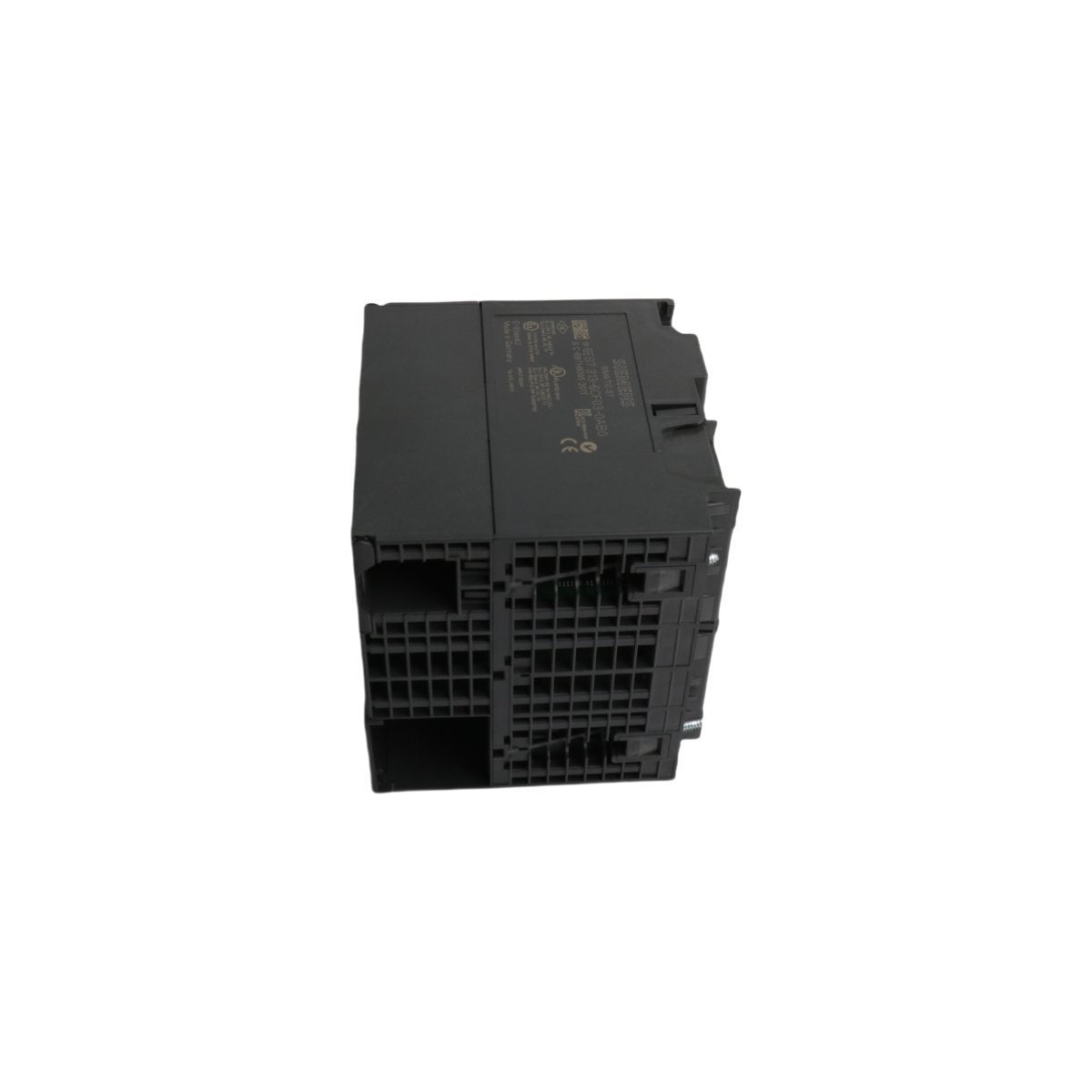

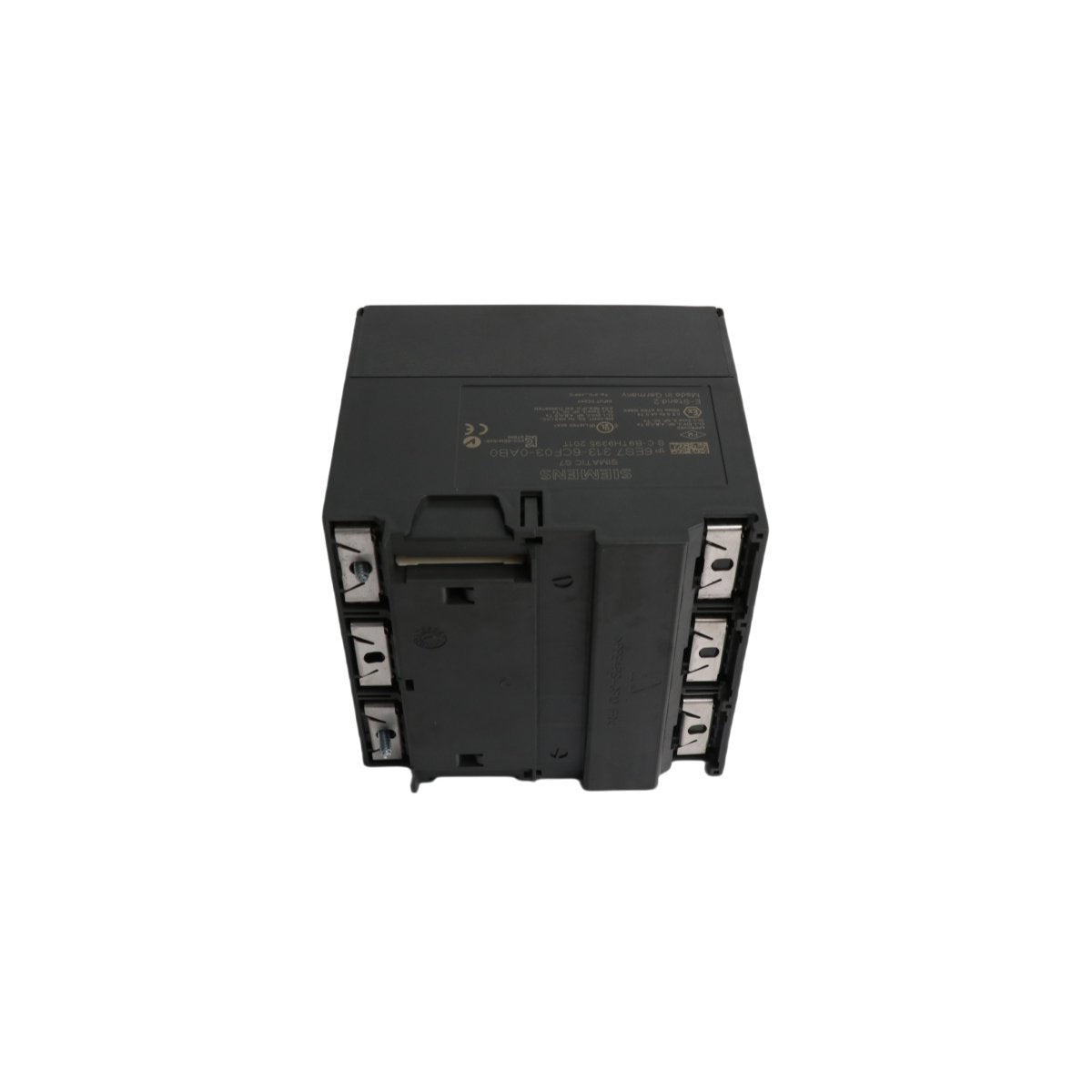

The Siemens 6ES7313-6CF03-0AB0 is a highly integrated, compact controller within the SIMATIC S7-300 family, designed for applications where both processing power and space efficiency are paramount. As a "Compact" variant, this CPU features built-in digital I/O and integrated technological functions, reducing the need for additional expansion modules in smaller systems. It is equipped with a dual-interface setup, including a dedicated MPI port and a versatile PROFIBUS DP interface, allowing it to function as a standalone controller or a smart node within a larger networked architecture.

Hardware Architecture and Functional Parameters

This processor is characterized by its robust memory management and flexible communication modes. The following specifications detail its physical and technical profile:

• Processing Unit: CPU 313C-2 DP with integrated 16 digital inputs and 16 digital outputs.

• Memory Capacity: 64 KB work memory; requires Micro Memory Card (MMC) for operation.

• Dual Communication Ports: Interface 1 (MPI) and Interface 2 (PROFIBUS DP Master/Slave).

• Technological Functions: Integrated high-speed counters (3 channels, 30 kHz) and frequency measurement.

• Net Weight: 0.56 kg.

• Module Dimensions: 12 cm x 12.2 cm x 12.5 cm (W x H x D).

• Operational Status: Active.

• Manufacturing Origin: Germany.

Field Deployment and Machine Applications

The 6ES7313-6CF03-0AB0 is engineered for mid-range automation tasks requiring high-speed counting or decentralized peripheral control. Typical use cases include:

• Packaging Machinery: Utilizing the high-speed counters for precise positioning and flow control in filling or wrapping stations.

• Substation Control: Acting as a PROFIBUS DP slave to a larger S7-400 or S7-1500 system while managing local I/O in a distributed plant layout.

• Material Handling: Coordinating conveyor speeds and sensor feedback in sorting systems where local processing reduces backplane traffic.

• Custom Serial Integration: Implementing point-to-point communication through virtual master configurations to interface with legacy scanners or specialized lab equipment.
