Product Overview

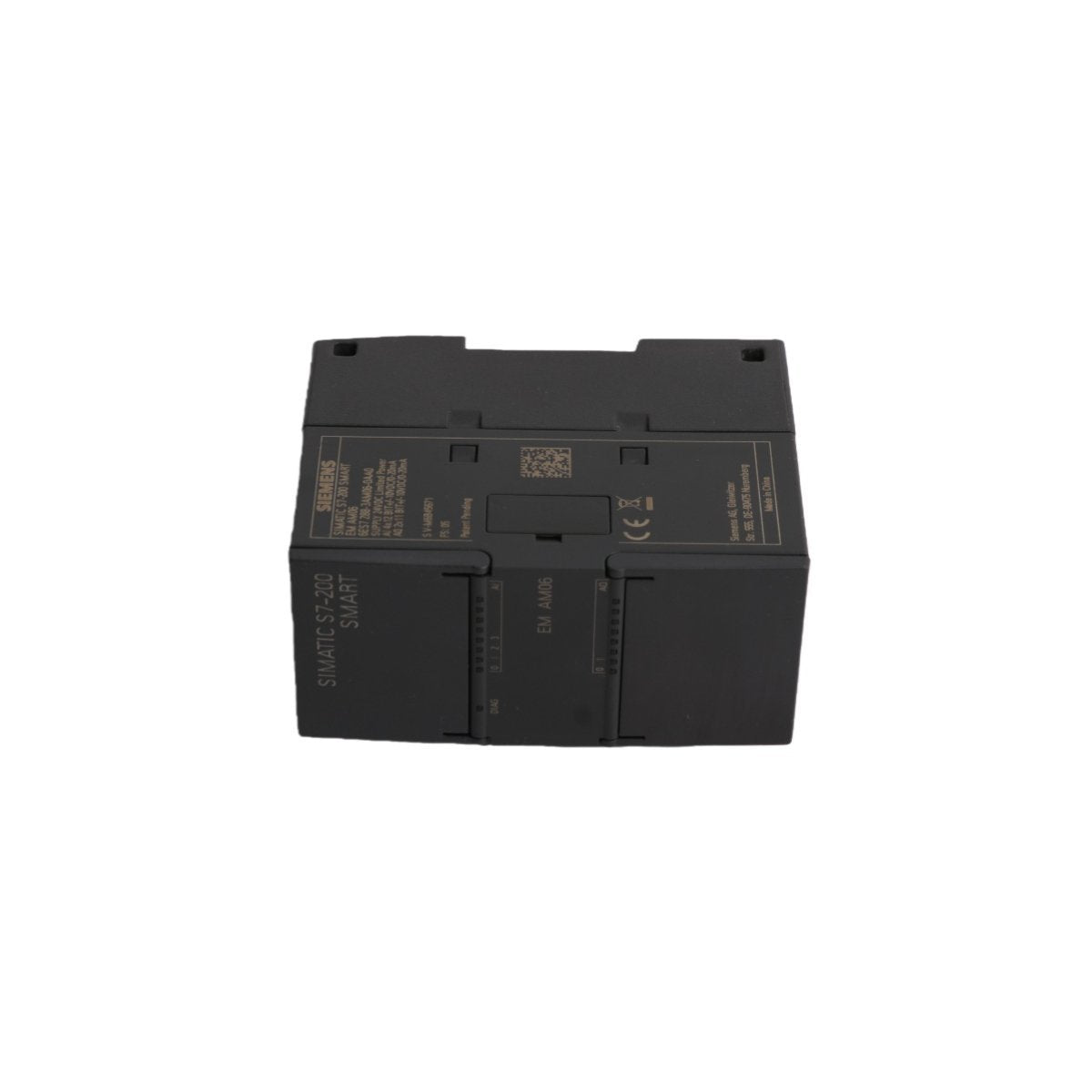

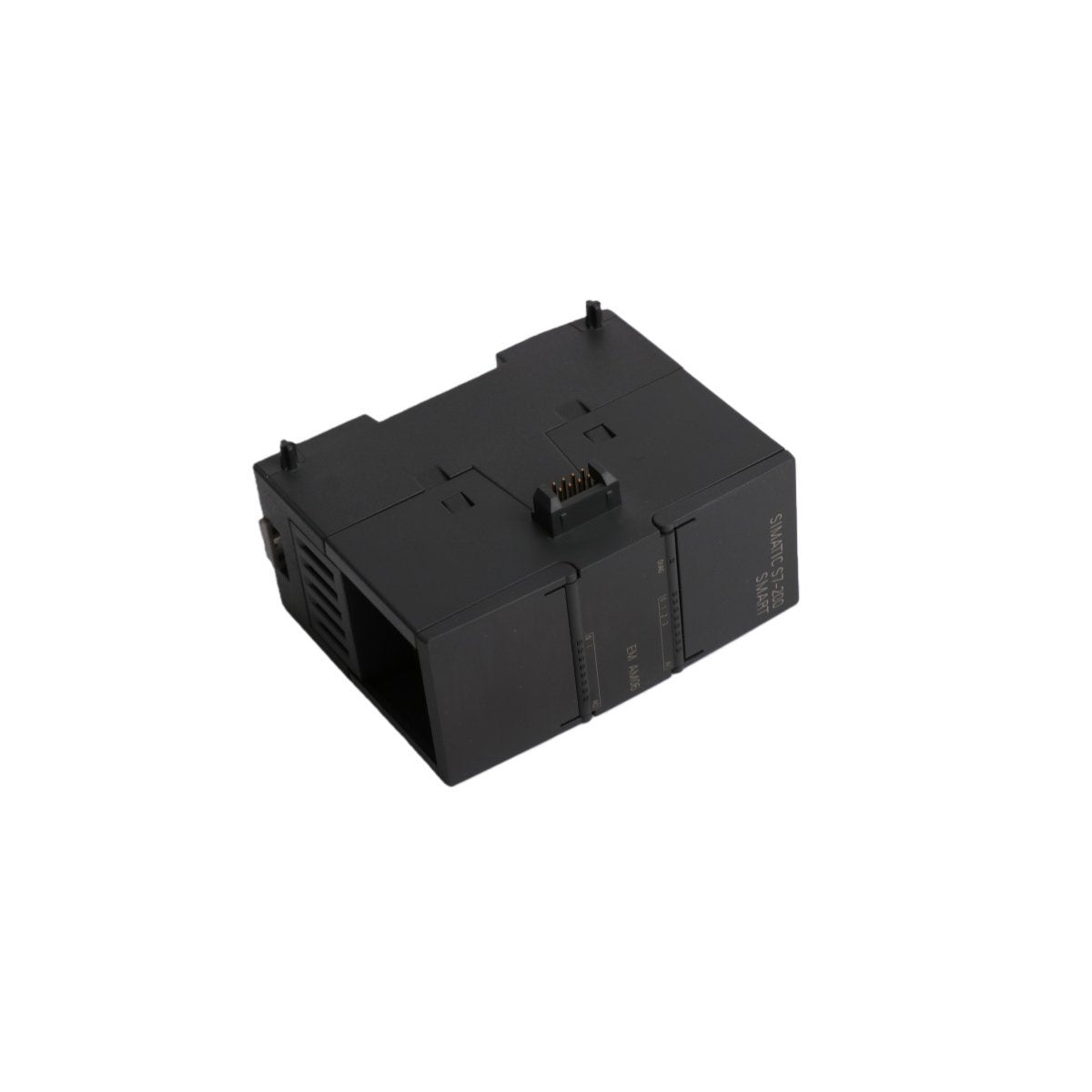

The Siemens 6ES7288-3AM06-0AA0 is a high-performance combined analog expansion module specifically engineered for the SIMATIC S7-200 SMART PLC series. By consolidating both input acquisition and output control into a single compact hardware profile, this module serves as an efficient interface for managing complex proportional processes. It allows engineers to bridge the gap between digital PLC logic and the analog physical world, facilitating the precise monitoring of environmental sensors and the accurate command of variable-speed actuators. This unified approach significantly reduces the physical footprint within the control cabinet while streamlining the overall system wiring architecture.

Hardware Architecture and Data Acquisition Specs

This mixed signal module is designed for versatility and electrical stability across varied industrial signal ranges:

• Channel Density: Integrated configuration featuring 4 Analog Inputs (AI) and 2 Analog Outputs (AO).

• Input Signal Versatility: Supports a broad spectrum of voltage ranges (+/- 2.5V, +/- 5V, 0-5V, 0-10V) and current loop standards (0/4-20 mA).

• Signal Resolution: High-fidelity conversion with 12-bit resolution for standard ranges (11-bit plus sign for bipolar +/- 10V signals).

• Diagnostic Intelligence: Built-in monitoring for overflow and underflow conditions to ensure data integrity during process fluctuations.

• Electrical Protection: Robust galvanic isolation between the internal backplane bus and the analog circuits to prevent CPU damage from field interference.

• Power Supply: Operates on a standard 24V DC nominal input with a typical low power dissipation profile.

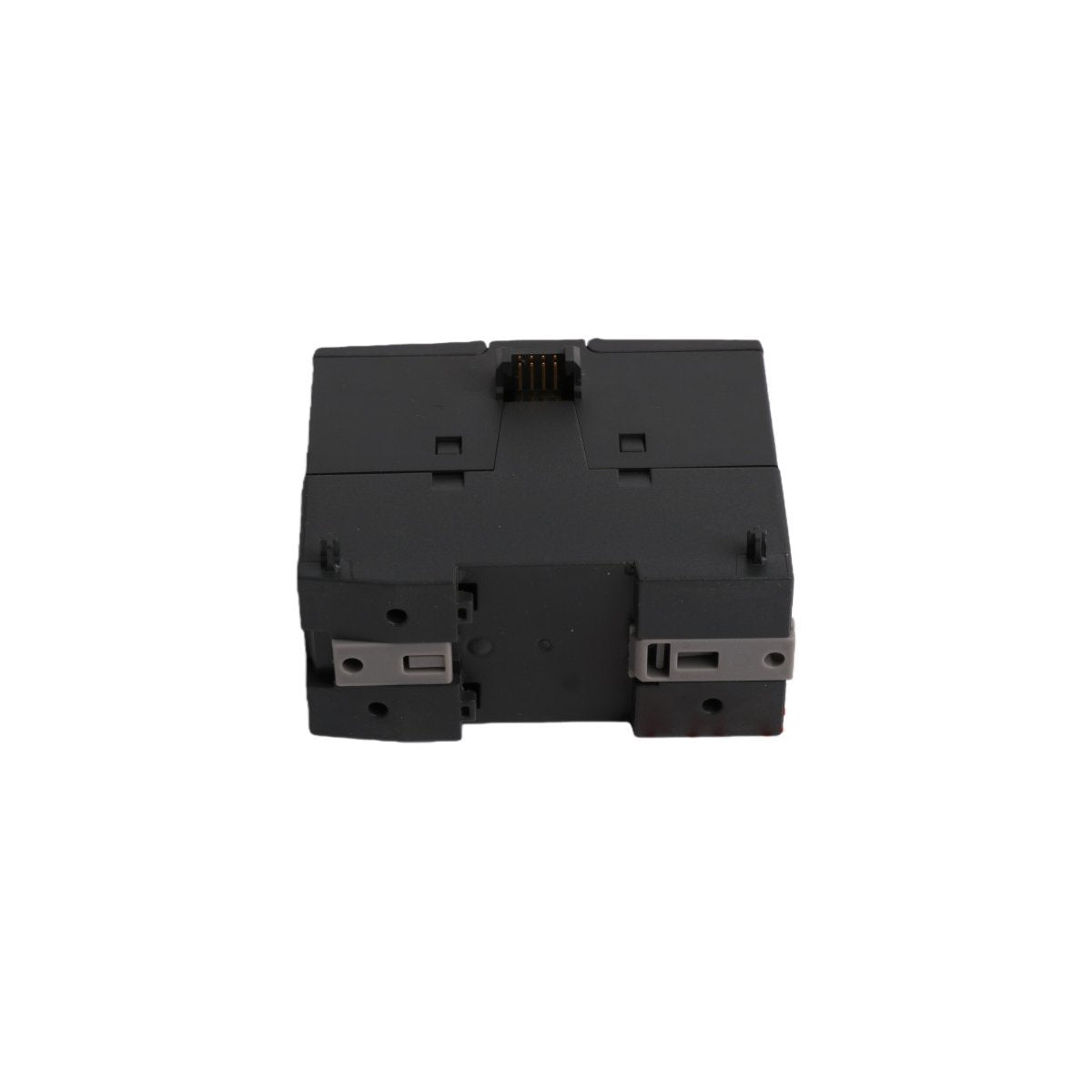

• Mechanical Design: Simplified DIN-rail mounting with an easy-access terminal block for rapid field installation and maintenance.

Industrial Deployment and Control Scenarios

The 6ES7288-3AM06-0AA0 is a strategic choice for automation tasks requiring simultaneous sensing and regulation:
