Product Overview

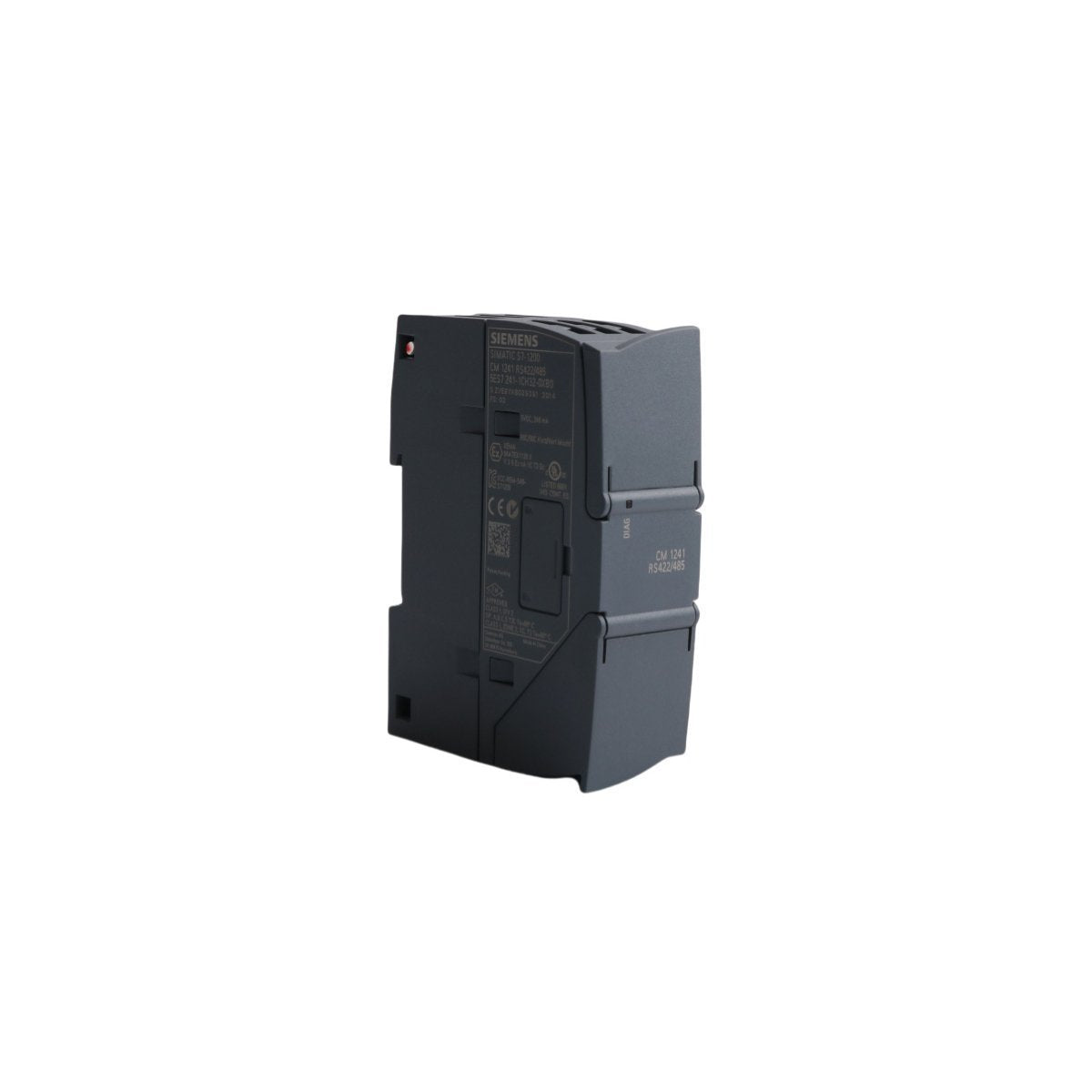

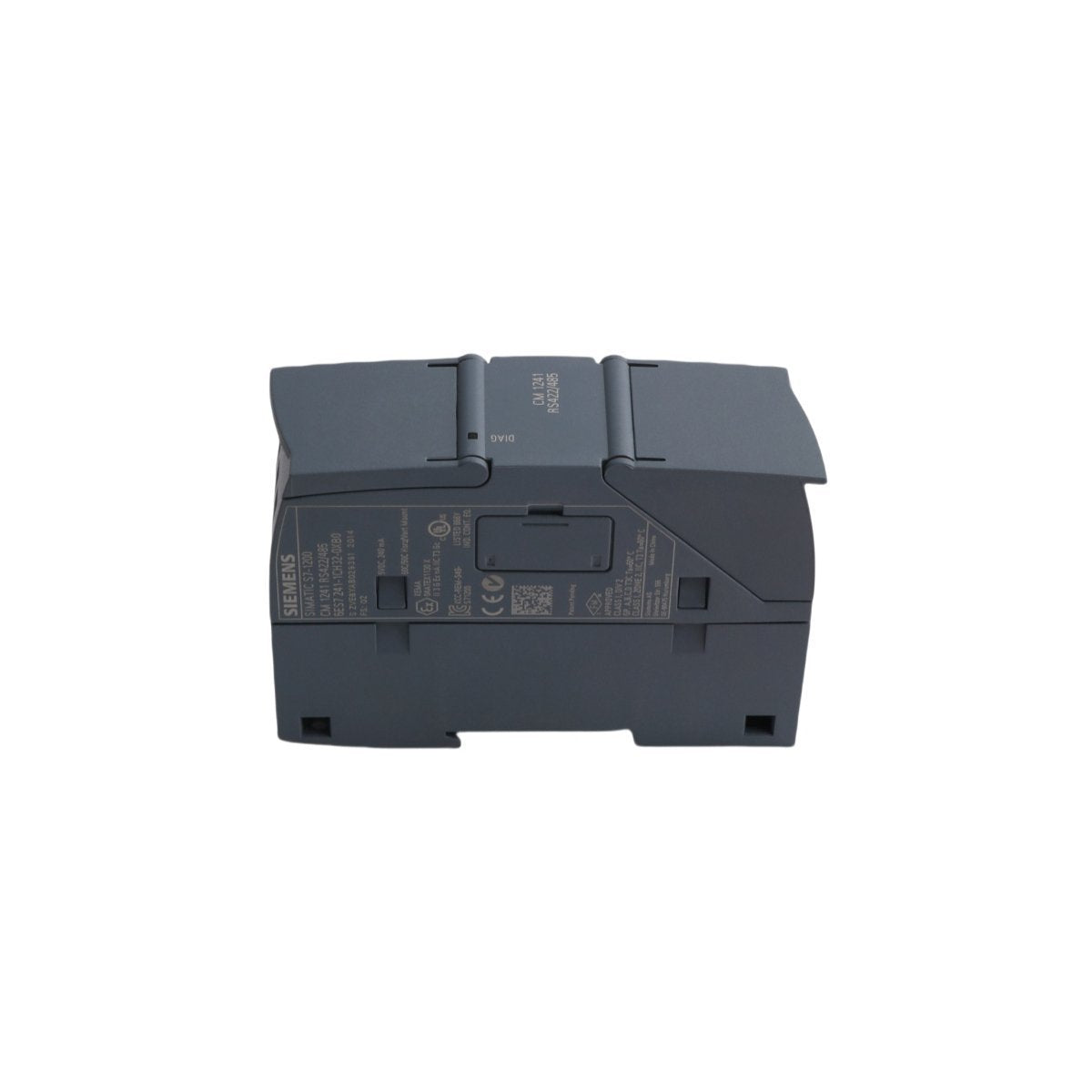

The Siemens 6ES7241-1CH32-0XB0 is a high-performance CM 1241 communication module designed to expand the serial connectivity of SIMATIC S7-1200 controllers. By providing a ruggedized RS422 and RS485 interface via a standard 9-pin D-sub connector, this module enables the PLC to exchange data with a vast array of peripheral hardware. It supports multiple serial protocols, including the versatile Freeport (user-defined) protocol, Modbus RTU, and USS, making it a universal bridge for legacy equipment integration. Its slim, side-mounting form factor allows for rapid hardware expansion without increasing the height of the S7-1200 station, ensuring reliable point-to-point or multi-point data links in electrically challenging factory environments.

Technical Communication Profiles and Physical Data

• Interface Type: RS422 / RS485 (Point-to-Point)

• Connector Style: 9-Pin D-sub (female)

• Protocol Support: Freeport, Modbus RTU (Master/Slave), USS

• Transmission Speed: Up to 115.2 kbit/s

• Input Voltage: 24V DC (Permissible range 20.4V to 28.8V)

• Current Consumption: Max 220 mA

• Device Dimensions: 2.2 x 14.3 x 12.6 cm

• Unit Weight: 0.12 kg (Net) / 0.15 kg (Shipping)

• Cable Length (Max): Up to 1000m depending on baud rate and cable quality

• Isolation: Galvanic isolation between serial interface and PLC logic

• Mounting: Standard S7-1200 DIN rail mounting (Left-side of CPU)

Industrial Network Integration and Use Cases

The 6ES7241-1CH32-0XB0 is an essential tool for engineers tasked with bridging modern PLCs with specialized serial devices. Key industrial applications include:

• Inverter and Drive Control: Utilizing the USS protocol to manage speed and torque parameters on SINAMICS or third-party motor drives over long distances.

• Sensor Data Acquisition: Interfacing with Modbus RTU-enabled scales, flow meters, and environmental sensors in process automation loops.

• Legacy Hardware Bridging: Using the Freeport protocol to communicate with specialized barcode scanners, printers, or custom laboratory equipment that utilizes non-standard serial strings.

• Distributed HVAC Management: Connecting several S7-1200 stations or HMI panels in a multi-drop RS485 network for centralized building climate control.

• Remote Telemetry: Implementing low-speed, long-range data transmission to remote sites where Ethernet cabling is impractical or cost-prohibitive.
