Product Overview

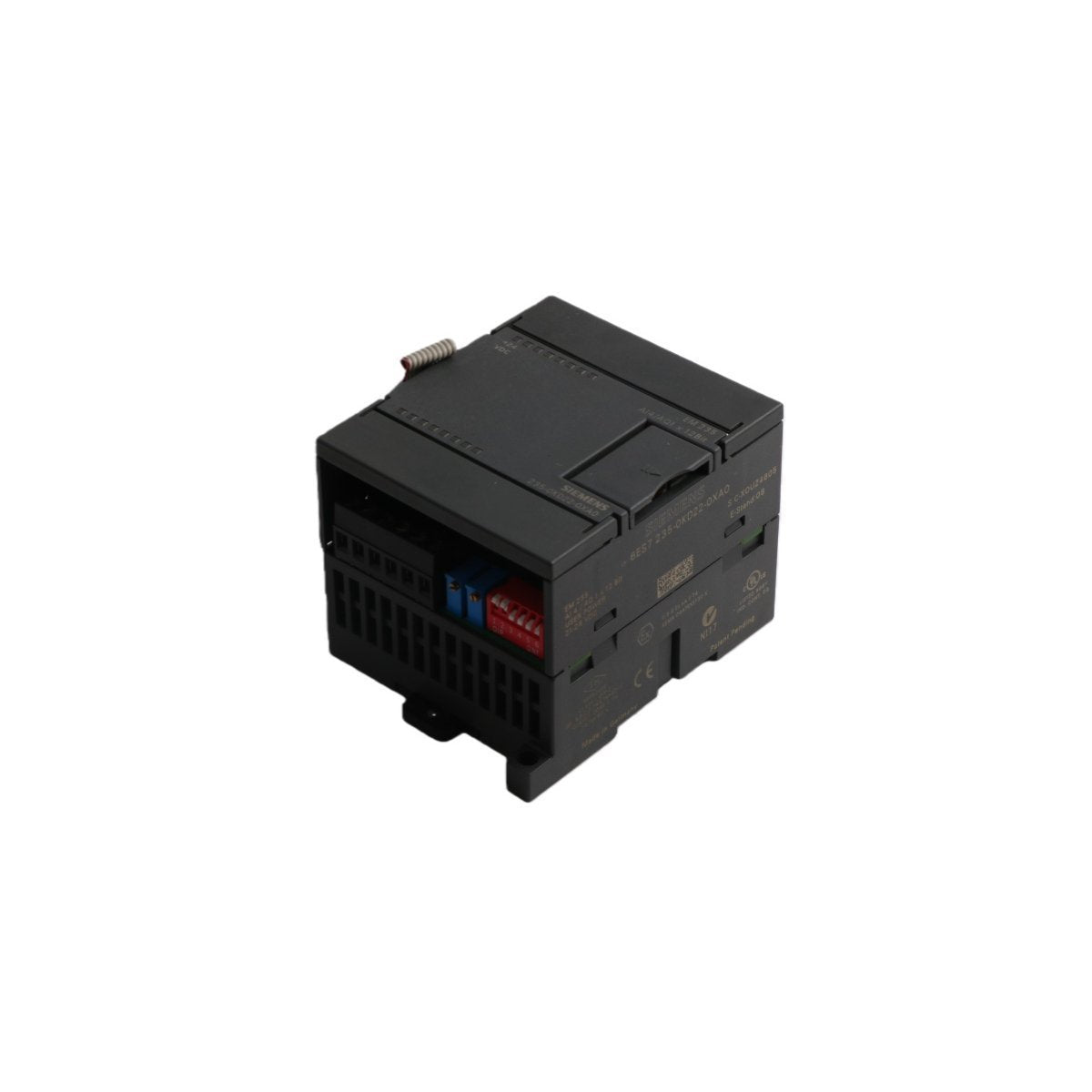

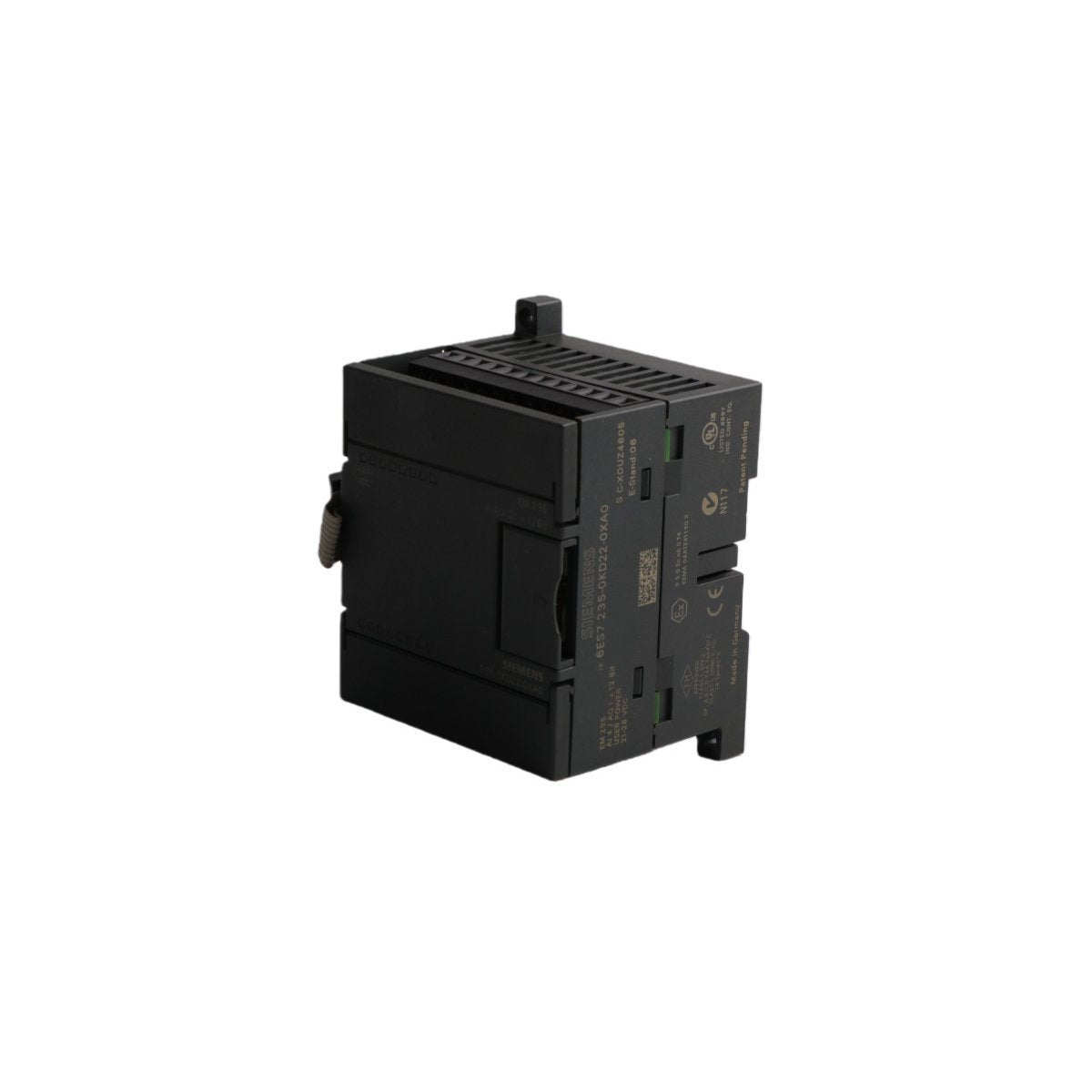

The Siemens 6ES7235-0KD22-0XA0 is a specialized EM 235 expansion module engineered for the legacy SIMATIC S7-200 PLC family. Specifically designed to interface with S7-22X series CPUs, this module provides a cost-effective hybrid solution for processing both incoming sensors and outgoing control signals. As a mission-critical spare part, it allows facilities to extend the operational life of existing automation hardware without requiring a full system migration. By integrating multiple analog channels into a single compact footprint, it facilitates the monitoring of process variables while simultaneously regulating final control elements in a deterministic control loop.

Hardware Architecture and Signal Parameters

The technical design of the 6ES7235-0KD22-0XA0 focuses on versatility and space-saving efficiency within industrial control cabinets:

• I/O Configuration: Features 4 analog inputs and 1 analog output on a single module, optimizing rail space in tight enclosures.

• Signal Ranges: Primarily configured for bipolar voltage signals of +/-10V DC, supporting a wide variety of industrial transmitters and actuators.

• Conversion Precision: Utilizes high-performance 12-bit Analog-to-Digital (A/D) and Digital-to-Analog (D/A) converters to ensure reliable data granularity.

• Isolation and Protection: Built-in galvanic isolation protects the CPU backplane from field-side electrical interference and transients.

• Physical Profile: Lightweight 0.95 kg construction with a narrow form factor (approx. 71mm width) for high-density mounting.

• Legacy Support: Recognized as a non-returnable spare part, specifically intended for the maintenance and repair of established S7-221, S7-222, S7-224, and S7-226 installations.

Industrial Deployment Context

The EM 235 Analog Mixed Module is a staple in legacy process control systems where stable voltage-based communication is required:
