Product Overview

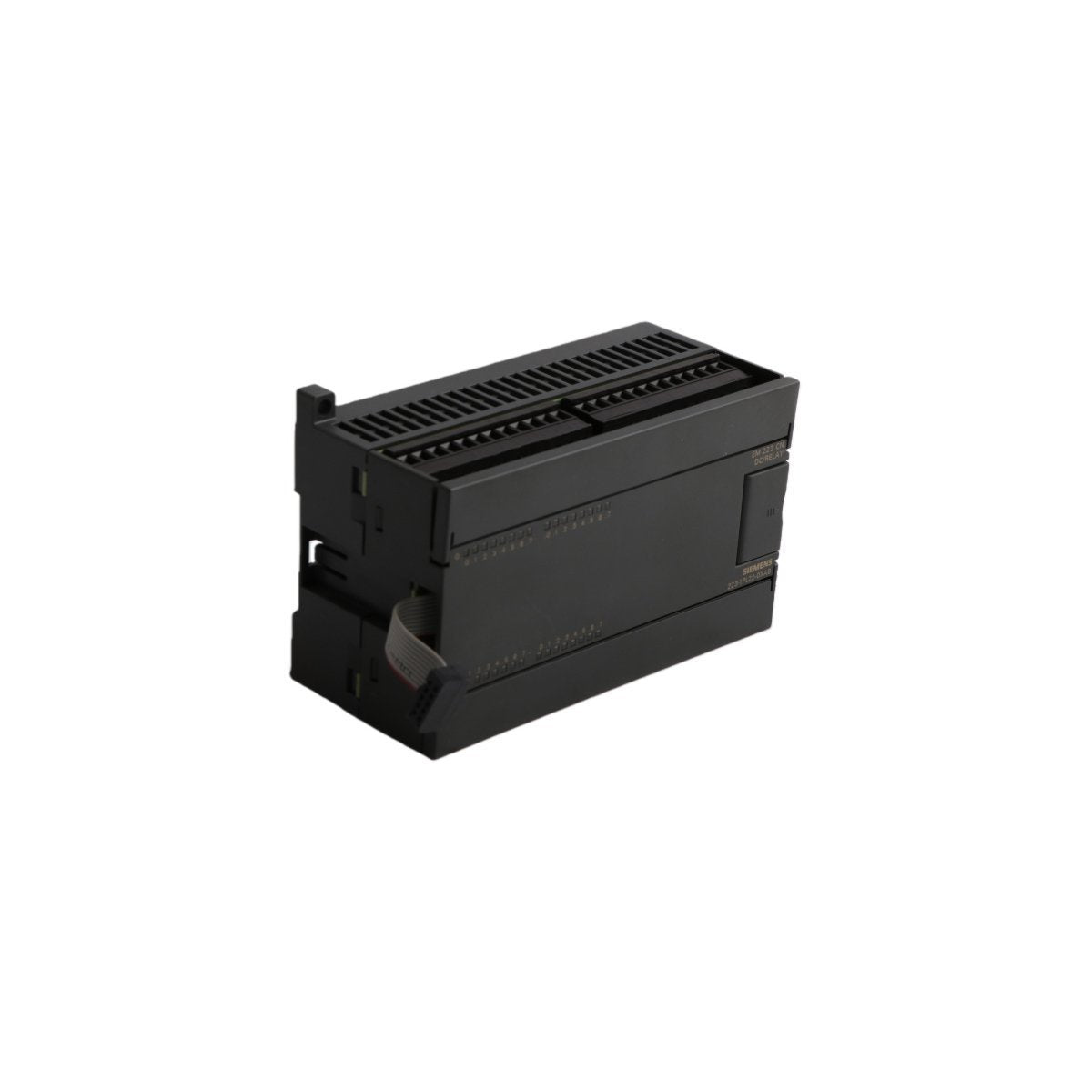

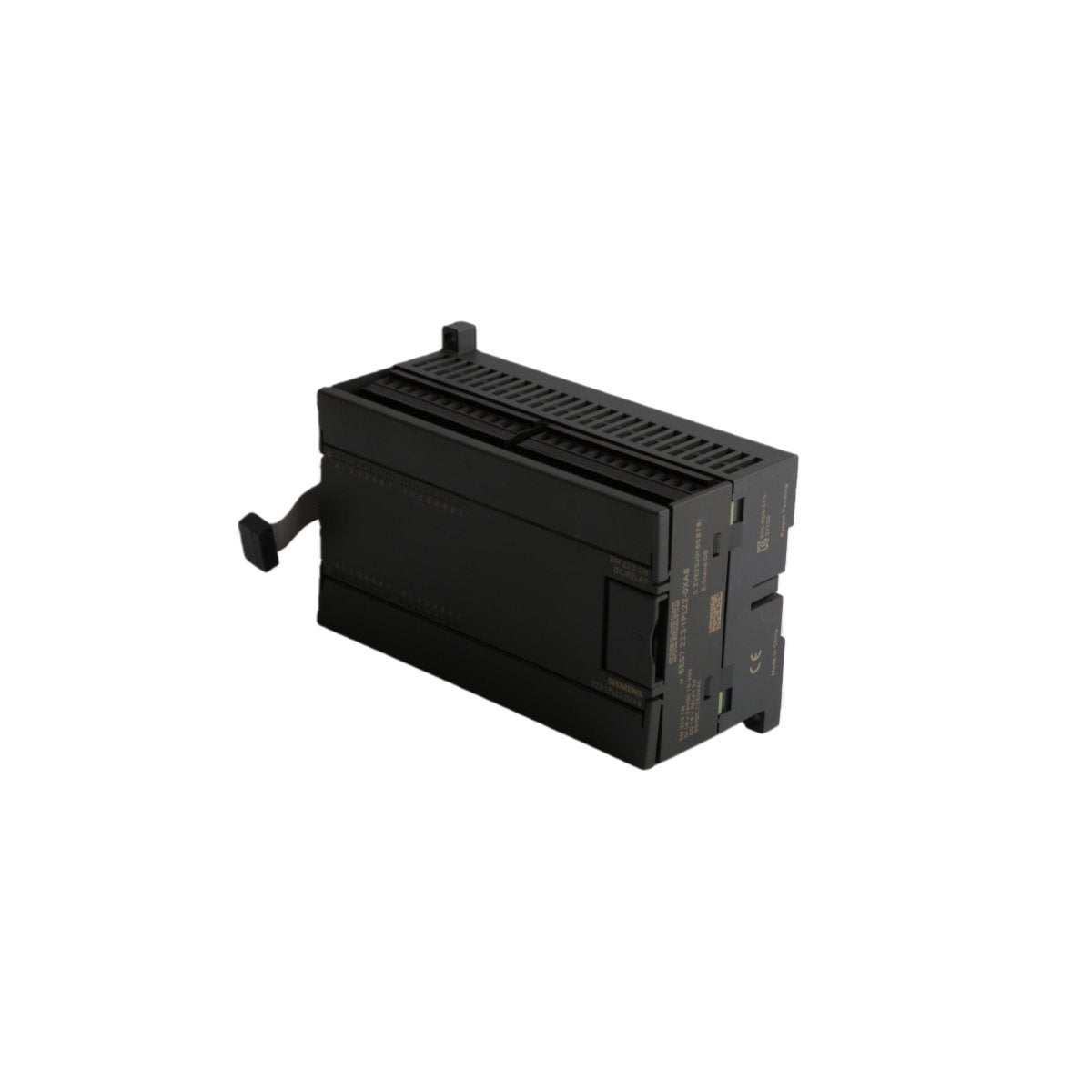

The Siemens 6ES7223-1PL22-0XA8 is a high-density digital expansion module belonging to the SIMATIC S7-200 CN product family. Engineered specifically for integration with S7-22X CPU architectures, this "combo" module provides a balanced array of 16 digital inputs and 16 relay outputs within a single housing. By consolidating 32 total I/O points into one unit, the EM 223 significantly scales the interfacing capacity of the controller while maintaining a compact footprint. This module is an essential hardware expansion for legacy and active S7-200 systems, ensuring reliable signal acquisition and load switching in distributed automation frameworks.

Engineering Specifications and Hardware Architecture

• Module Function: Digital Input/Output Combination (EM 223)

• Input Configuration: 16 Channels, 24V DC (Supports Sink/Source wiring)

• Output Configuration: 16 Channels, Mechanical Relay Contacts

• Switching Capacity: 2.0 Amperes per relay output

• Signal Logic: Typical 4 mA consumption per input channel for high signal detection

• Power Profile: Typical 6 W power loss during operation

• Isolation: Optical isolation between internal logic and field-side electronics

• Net Weight: 0.95 kg

• Module Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Mounting Standards: Standard 35mm DIN rail compatible

• Compliance: CE Certified for industrial environments

• Manufacturing Origin: Germany

Industrial Implementation and Deployment Profiles

The 6ES7223-1PL22-0XA8 is designed for versatile use cases where both high-density sensing and varied load control are required. Its primary industrial applications include:

• Automated Packaging Systems: Utilizing the 16 inputs to capture data from proximity sensors and photo-eyes while simultaneously driving 16 relay-controlled actuators like baggers and labelers.

• Mixed Voltage Environments: Leveraging the relay outputs to manage a combination of AC and DC loads, such as 230V AC solenoids and 24V DC indicator lamps, from the same module.

• HVAC and Building Control: Coordinating multi-point environmental monitoring (inputs) with the switching of fans, dampers, and heating contactors (outputs).

• Material Handling and Logistics: Providing centralized I/O for small conveyor cells where motor starters and feedback sensors must be localized to a single DIN rail station.

• Control System Retrofits: Expanding the capability of existing S7-200 CN installations without the need for multiple single-function modules, thereby optimizing cabinet space.
