Product Overview

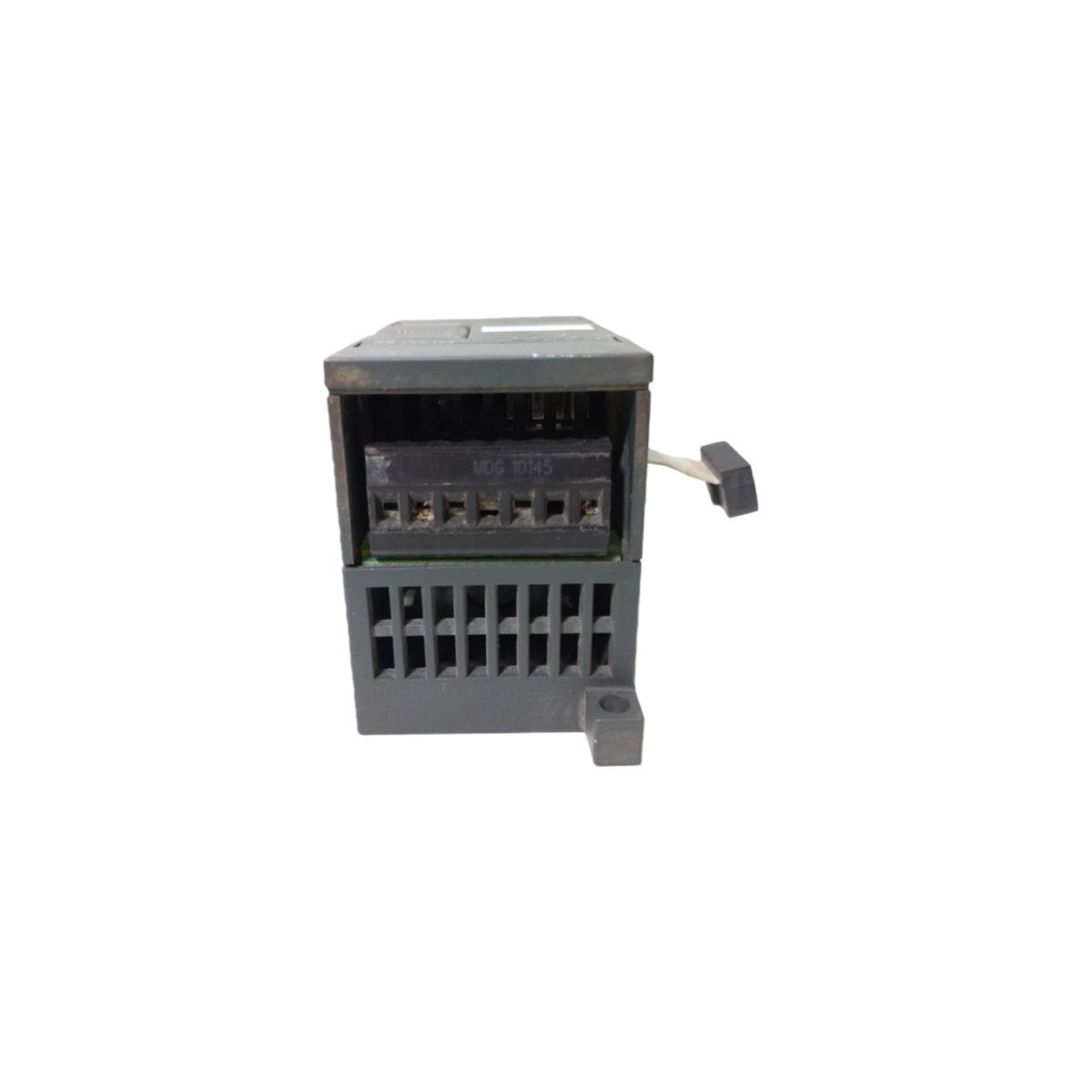

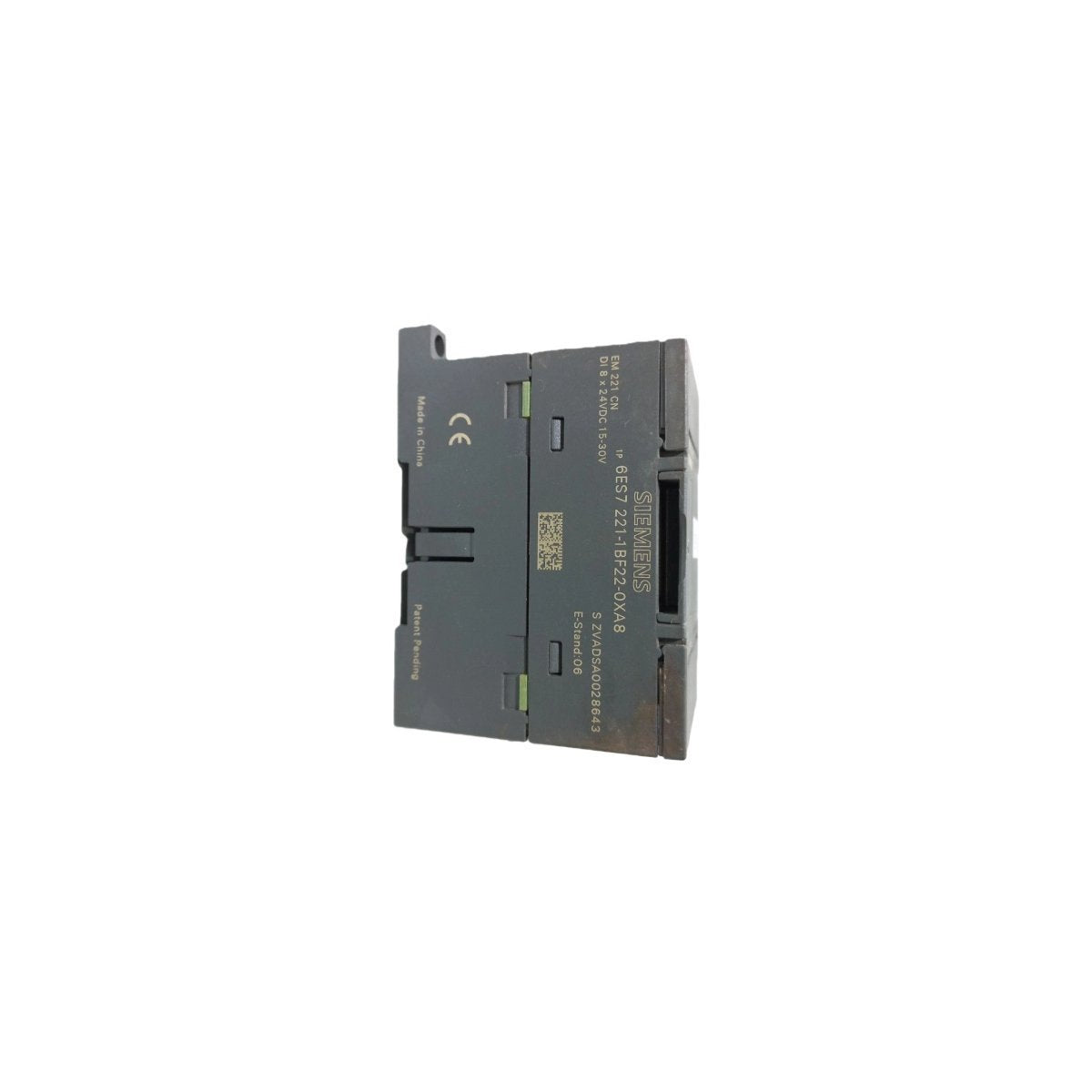

The Siemens 6ES7221-1BF22-0XA8 is a specialized expansion component for the SIMATIC S7-200 CN PLC series. Identified as the EM 221 module, it serves as a high-reliability interface for capturing discrete signals from the industrial field level. This module allows for the seamless expansion of CPU capabilities by adding eight dedicated digital input channels, designed to interpret binary data from various sensors and switches. Optimized for the CN (Chinese localized) version of the S7-200 family, it ensures robust signal processing and high-speed data acquisition for localized industrial control architectures, maintaining the stringent quality standards associated with German engineering.

Hardware Configuration and Technical Attributes

The EM 221 is characterized by its electrical versatility and space-saving form factor, making it ideal for dense control cabinet installations.

• Input Channels: 8 Digital Inputs

• Voltage Category: 24V DC

• Wiring Versatility: Supports both Sinking and Sourcing (M/P) configurations

• Signal Recognition: Logical "1" at approximately 4 mA

• Energy Consumption: Typically 2.0W

• Module Dimensions: 4.6 cm x 8.0 cm x 6.2 cm (Standard housing)

• Unit Weight: 0.12 kg

• Isolation: Galvanic isolation between the internal bus and the inputs

• Country of Origin: Germany

Industrial Implementation and Signal Integration

The 6ES7221-1BF22-0XA8 is widely deployed across various sectors where discrete signal monitoring is fundamental to the automation logic.

• Discrete Manufacturing: Integrating inputs from pushbuttons, emergency stop circuits, and selector switches into the master control logic.

• Position Monitoring: Interfacing with limit switches and proximity sensors to track the physical movement of machine components or conveyor systems.

• Safety Interlocks: Monitoring the status of safety gates and protective barriers to ensure operational compliance.

• Process Feedback: Receiving binary signals from pressure switches or level floats to trigger specific sequences in water treatment or chemical processing.

• System Upgrades: Providing a cost-effective path for increasing I/O density on existing S7-22X CPU installations without replacing the primary controller.
