Product Overview

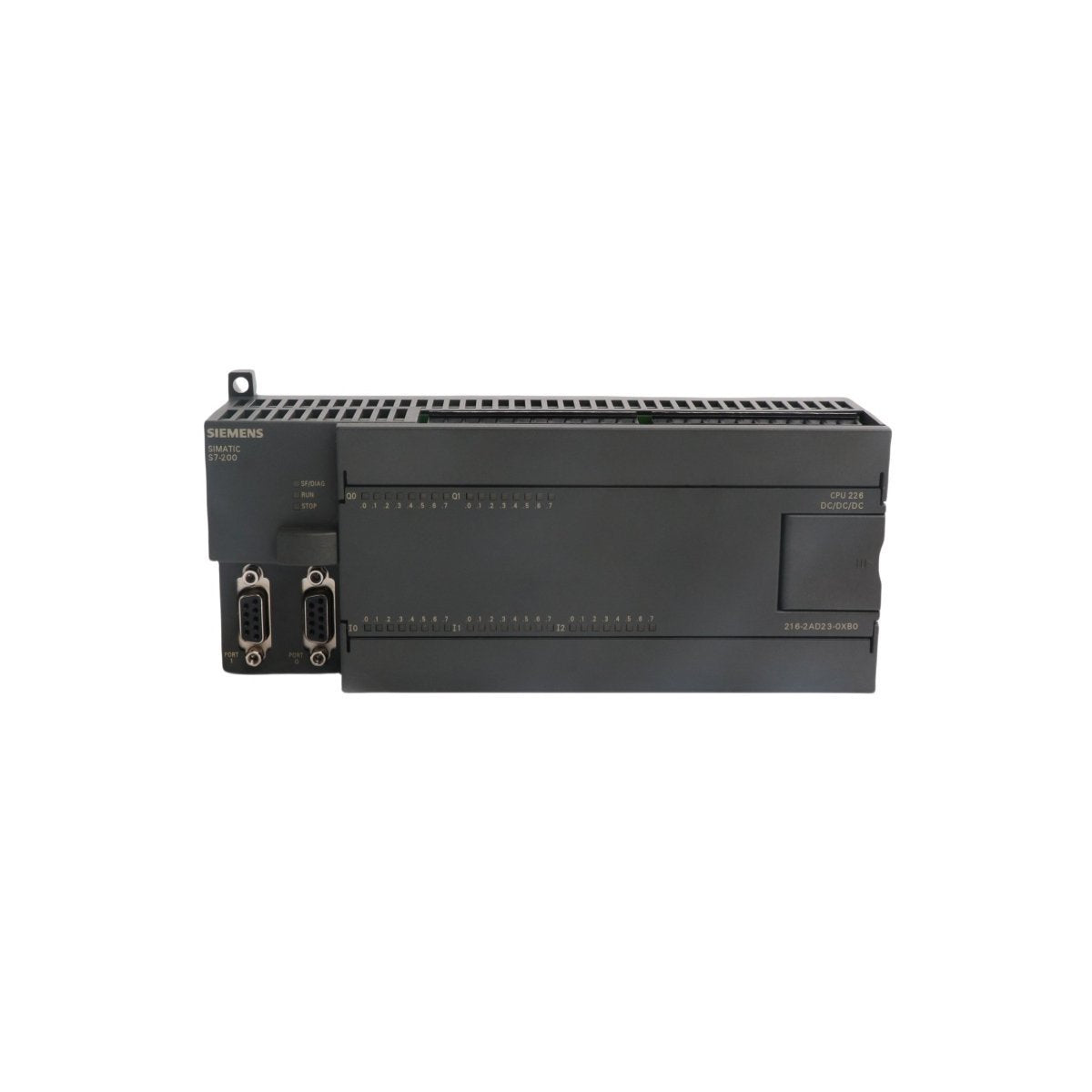

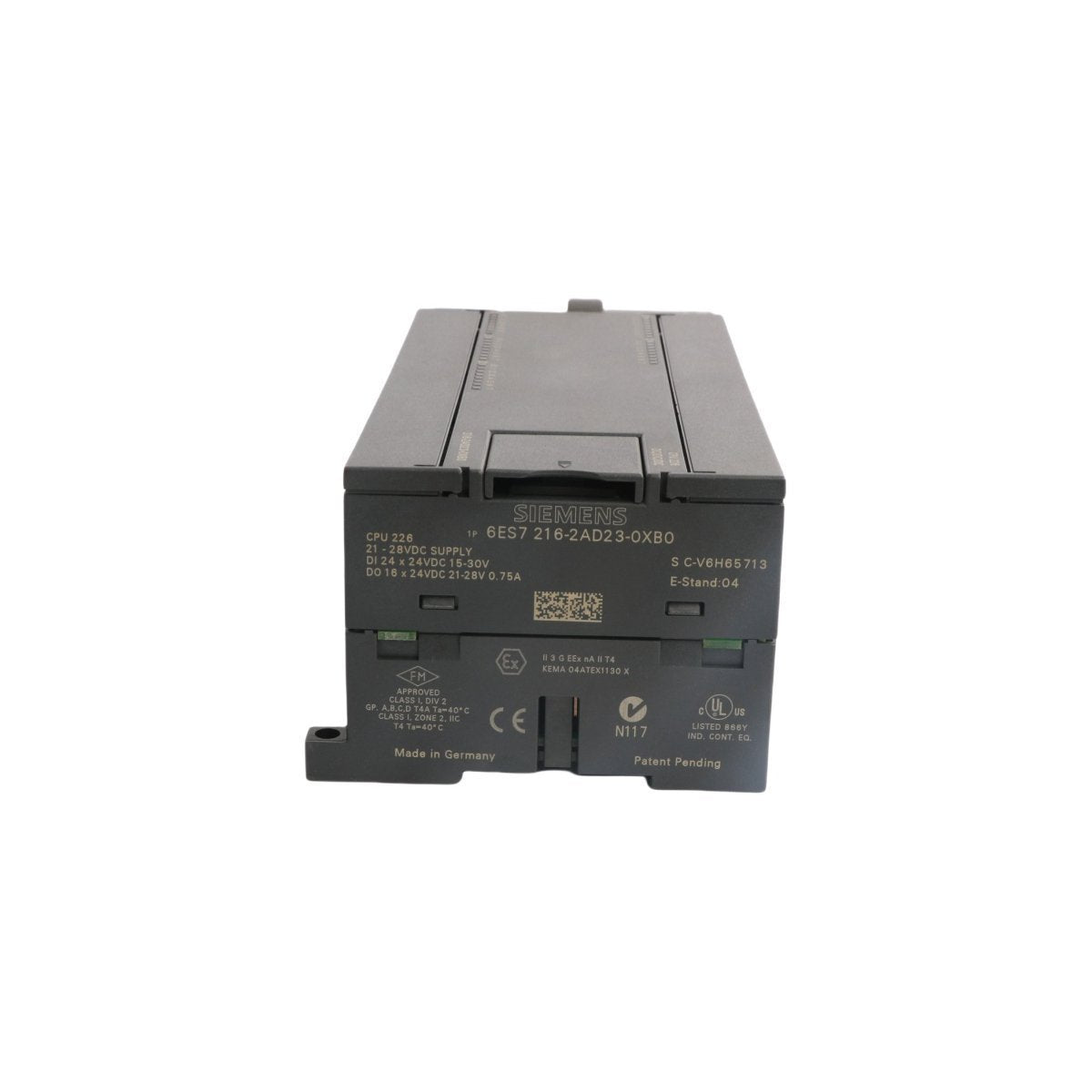

The Siemens 6ES7216-2AD23-0XB0 is the high-tier flagship of the S7-200 micro-PLC family, specifically the CPU 226 series. Designed for sophisticated standalone automation or distributed control, this compact unit integrates a high-density I/O count with advanced processing capabilities. It features 24 digital inputs (24V DC) and 16 robust relay outputs, making it capable of direct load switching without the immediate need for external expansion. As a proven solution for small to mid-sized machinery, the CPU 226 offers a large memory footprint and two integrated communication ports, allowing for simultaneous connection to human-machine interfaces (HMI) and diagnostic programming tools.

Core Architecture and Hardware Specifications

This module is engineered for high-speed logic execution and versatile signal handling:

• Integrated I/O: 24 Digital Inputs (24V DC) and 16 Relay Outputs

• Communication Ports: 2x RS485 interfaces supporting PPI, MPI, and Freeport protocols

• Memory Capacity: 16 KB User Program memory and 10 KB Data memory

• Expansion Capability: Support for up to 7 expansion modules for increased I/O density

• Processing Speed: 0.22 µs per binary instruction for rapid response

• Counter Functions: 6 high-speed counters (up to 30 kHz) and 2 high-speed pulse outputs

• Power Supply: 24V DC input voltage

• Device Mass: 0.42 kg

• Unit Dimensions: 19.5 cm x 9.5 cm x 6.2 cm

• Origin of Manufacture: Germany

• HS Export Code: 8537101190

The CPU 226 also includes an integrated real-time clock and supports PID control loops, ensuring precise regulation for temperature, pressure, and flow in continuous processes.

Strategic Industrial Implementations

The 6ES7216-2AD23-0XB0 is a cornerstone for OEMs and factory maintenance teams who require reliable, deterministic control in a small form factor. In the packaging and food processing industries, it is widely utilized to manage high-speed sorting, filling, and labeling operations where its integrated high-speed counters accurately track encoder positions. The dual communication ports provide a significant advantage in textile and material handling applications; one port can maintain a constant data link with a touchscreen display, while the second port remains available for network communication with a centralized SCADA system via PPI. Furthermore, the relay outputs are ideal for controlling legacy motor starters, solenoid valves, and indicator beacons directly. Programmed via STEP 7-Micro/WIN, this controller provides a stable, low-maintenance platform that has become a global standard for critical infrastructure and localized machine control.
