Product Overview

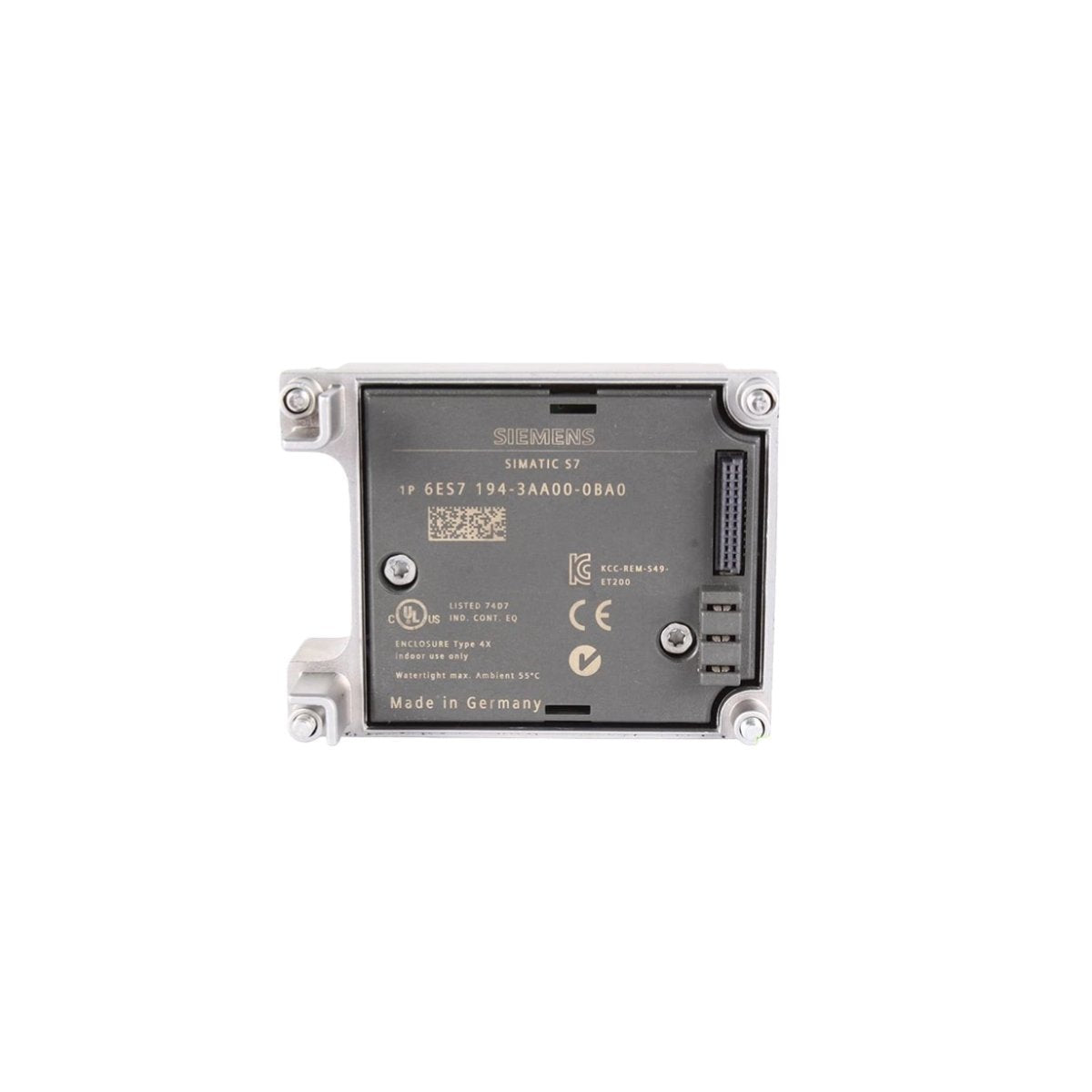

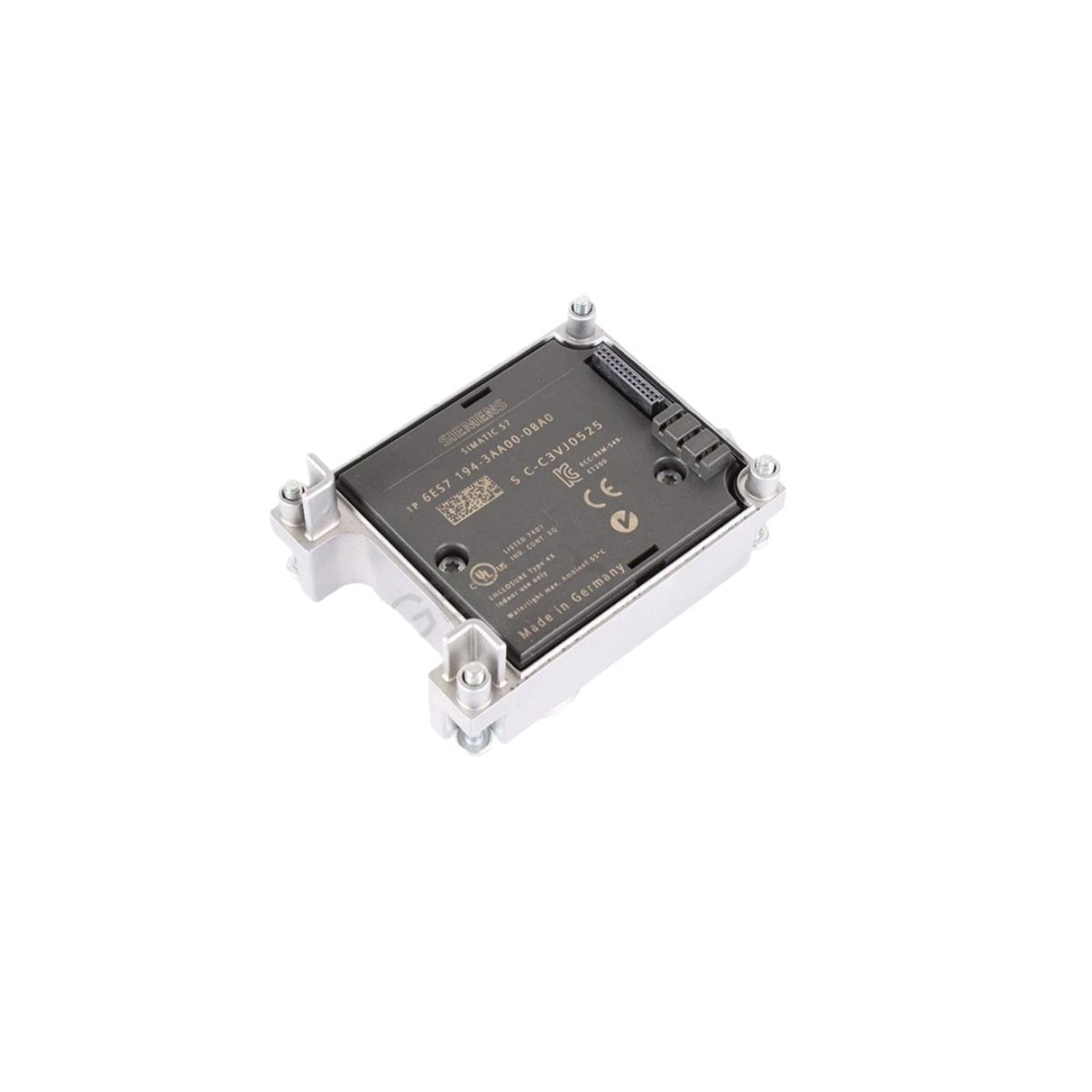

The Siemens 6ES7194-3AA00-0BA0 is a high-performance terminal connection block specifically engineered for the SIMATIC DP ET 200ECO distributed I/O series. This module acts as the physical interface for decentralized peripherals, bridging the gap between field sensors/actuators and the PROFIBUS-DP network. Designed for cabinet-free installation or space-optimized panels, it facilitates both signal transmission and power distribution through standardized connector interfaces. Its primary purpose is to provide a rugged, reliable node connection point that supports the high-speed data demands of modern factory automation while minimizing wiring complexity.

Technical Performance Metrics and Physical Data

This connecting block is characterized by its "T-functionality," allowing for the serial daisy-chaining of both bus signals and 24V DC supply voltage to subsequent stations without external splitters.

• Connector Interfaces: Dual M12 for PROFIBUS-DP and 7/8" for 24V DC power supply.

• Addressing Mechanism: Dual integrated rotary switches for manual PROFIBUS address assignment (Range 1–99).

• Energy Efficiency: Low thermal dissipation with a typical power loss of only 2 W.

• Network Integration: Supports seamless looping for both data and load voltage.

• Net Weight: 0.95 kg.

• Chassis Dimensions: 2.5 cm x 5.1 cm x 83.8 cm (Long-form profile for specific ET 200eco module mounting).

• Manufacturing Standards: Engineered in Germany; fully compliant with PROFIBUS-DP industrial standards.

• Operating Status: Currently active and supported within the Siemens SIMATIC lifecycle.

Industrial Implementation and Field Utility

The 6ES7194-3AA00-0BA0 is a vital component in decentralized architectures where field-level intelligence and reduced cabling are required.

• Distributed Control Networks: Ideal for large-scale manufacturing lines where I/O modules are mounted directly on the machinery rather than in a central control room.

• Automotive Assembly Lines: Used to connect ET 200ECO blocks in environments requiring high vibration resistance and secure M12/7/8" locking connections.

• Material Handling Systems: Simplifies the wiring of long-distance conveyor belts by allowing power and bus signals to be looped from one station to the next.

• Modular Machine Design: Enables machine builders to create "plug-and-play" sections of equipment that can be quickly addressed and integrated via the onboard rotary switches.
