Product Overview

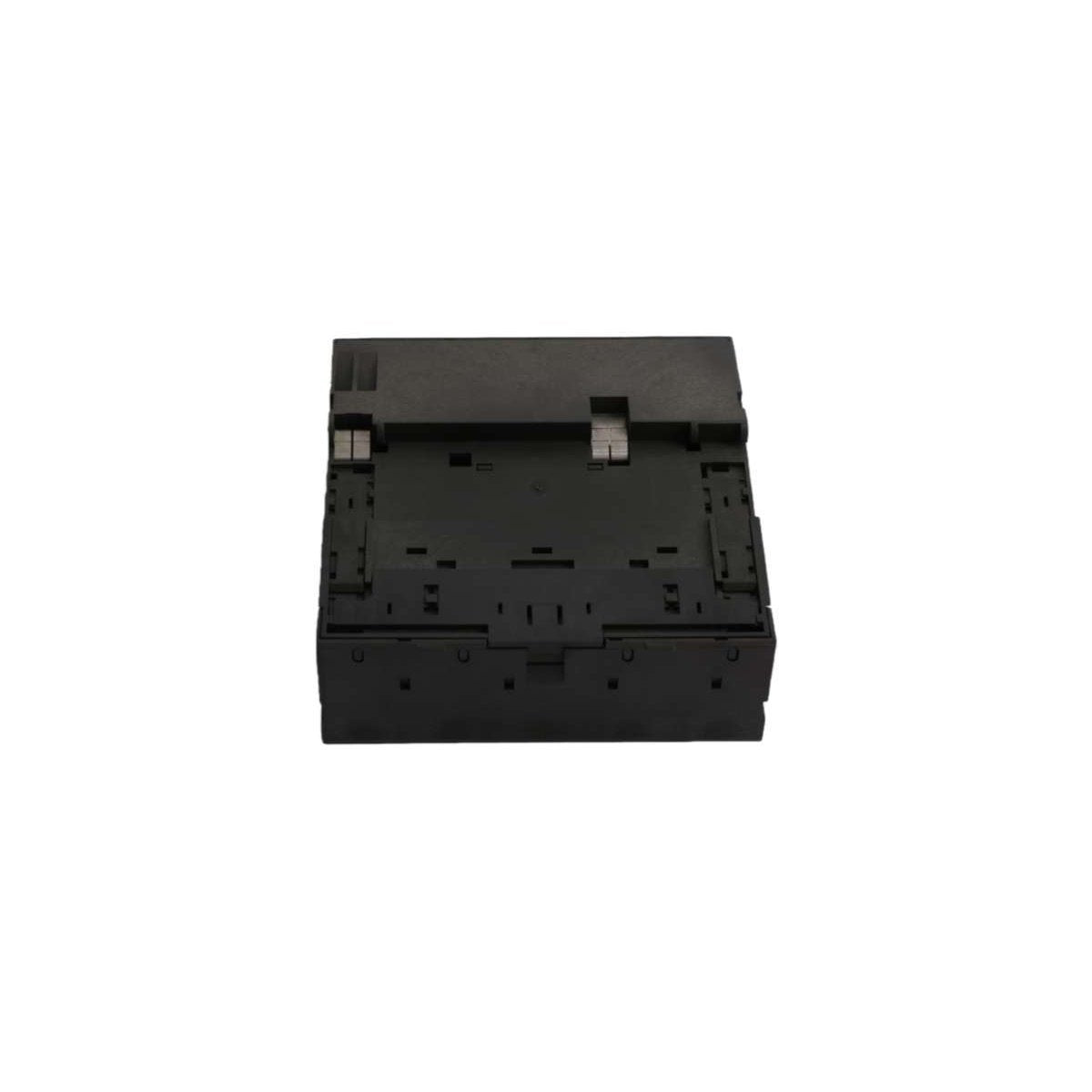

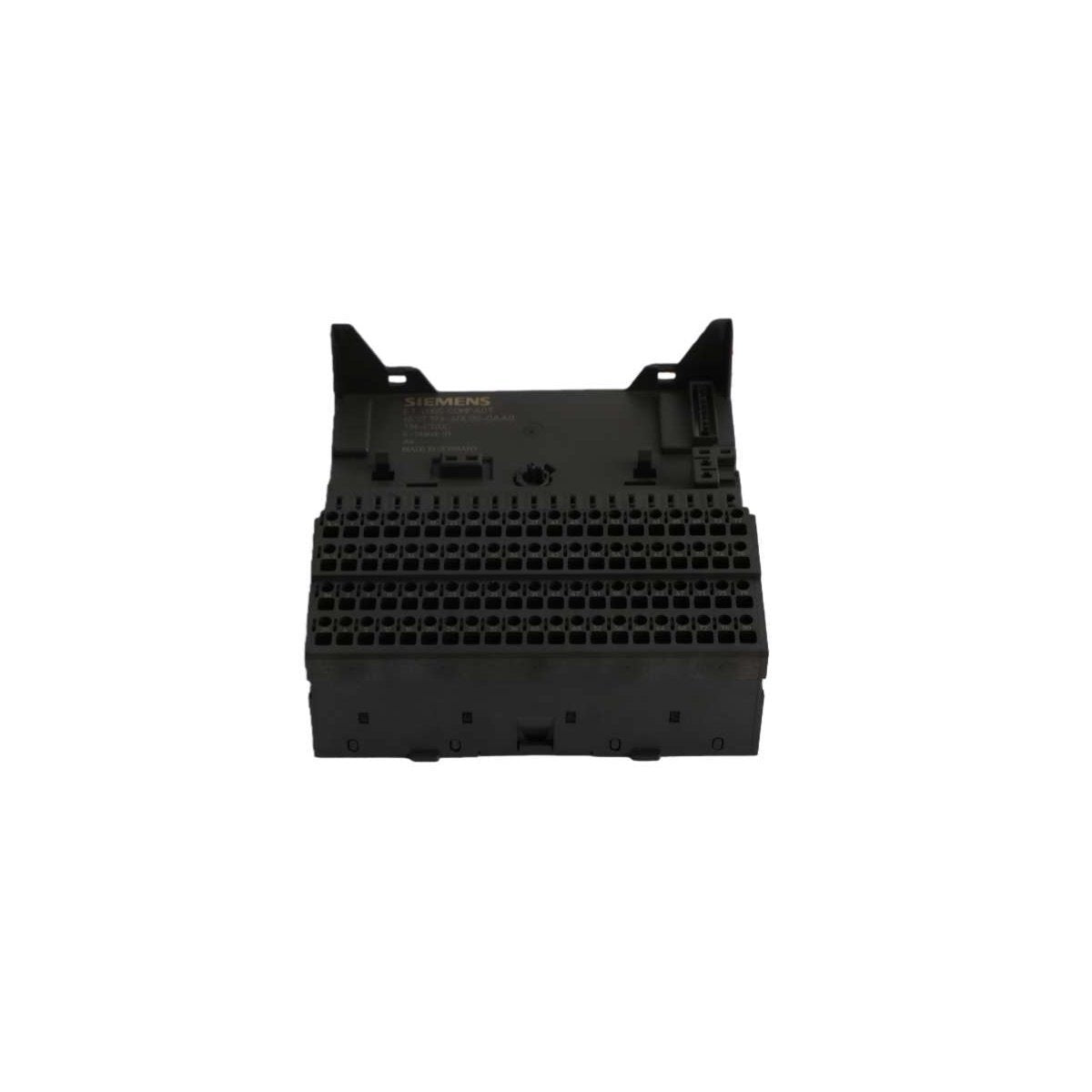

The Siemens 6ES7193-4DL10-0AA0 is a high-density terminal module engineered for the SIMATIC ET 200S distributed I/O system. Functioning as the mechanical and electrical foundation for I/O modules, this component facilitates organized field wiring through its TM-E15S24-01 architecture. It is specifically designed to handle complex wiring requirements in a compact footprint, supporting 2-wire connection methods for up to 32-point digital modules. By decoupling the permanent wiring from the electronic modules, it allows for "hot-swapping" and simplified system maintenance without disturbing the field connections.

Core Hardware Architecture and Physical Specifications

• Connection Interface: 4 x 21 screw-type terminals for secure conductor retention.

• Wiring Method: 2-wire connection capability for high-density signal distribution.

• Terminal Type: Robust screw terminals designed for vibration resistance and industrial durability.

• Mass: 0.95 kg.

• Physical Dimensions: 2.5 cm x 83.8 cm x 5.1 cm (W x H x D).

• Origin: Made in Germany.

• Product Series: SIMATIC DP / ET 200S.

Typical Industry Deployment Scenarios

This terminal module is essential in distributed control architectures where cabinet space is at a premium and high-density I/O counts are required.

In automated manufacturing lines, it serves as the primary interface for proximity sensors and actuators, providing a centralized point for field signals. Within water and wastewater treatment facilities, its vibration-resistant screw terminals ensure continuous signal integrity for remote telemetry units. It is also extensively utilized in food and beverage processing plants where the modular design of the ET 200S system allows for rapid reconfiguration of production modules. By consolidating 32 points into a single 15mm or 30mm width profile, it significantly optimizes the layout of control panels in large-scale infrastructure projects.
