Product Overview

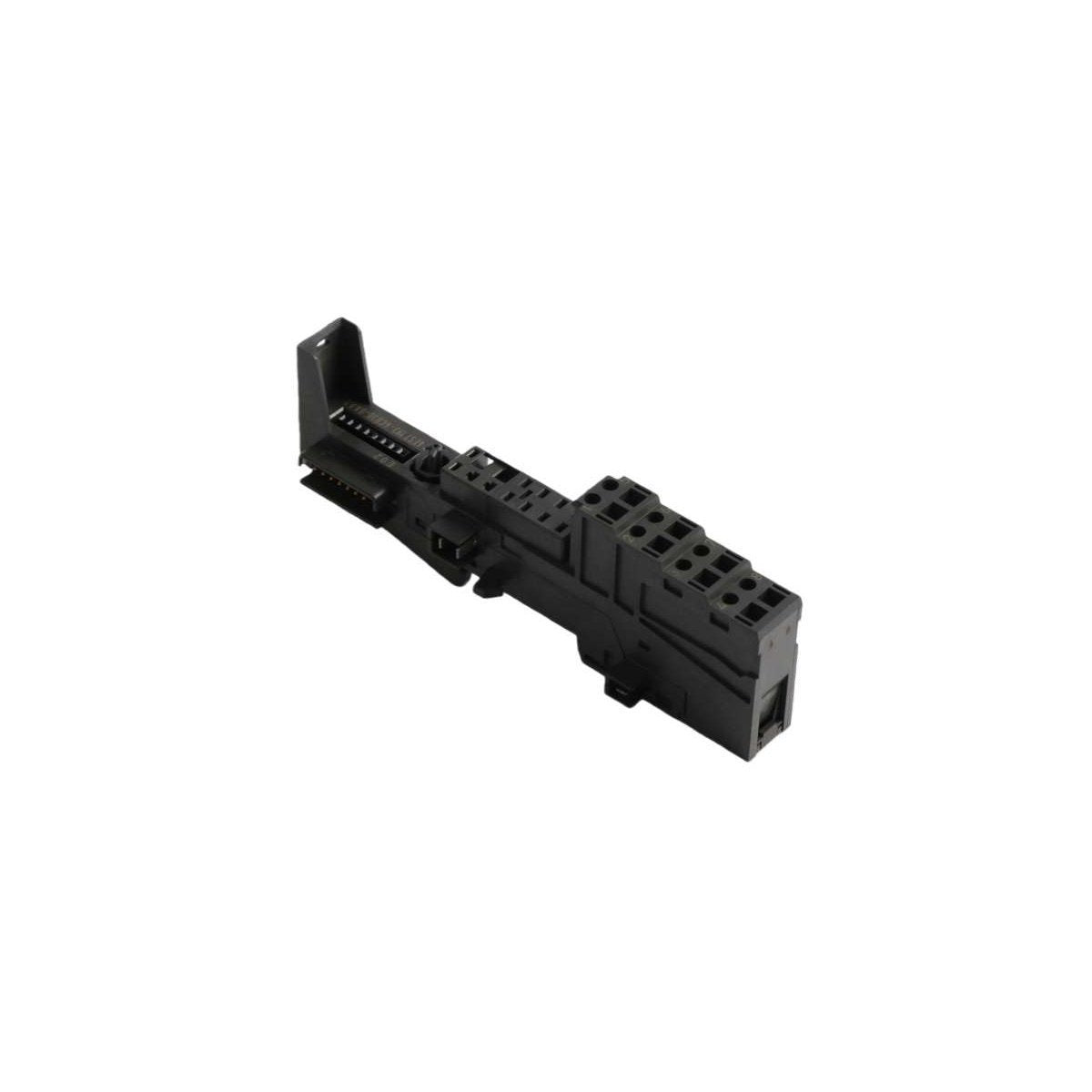

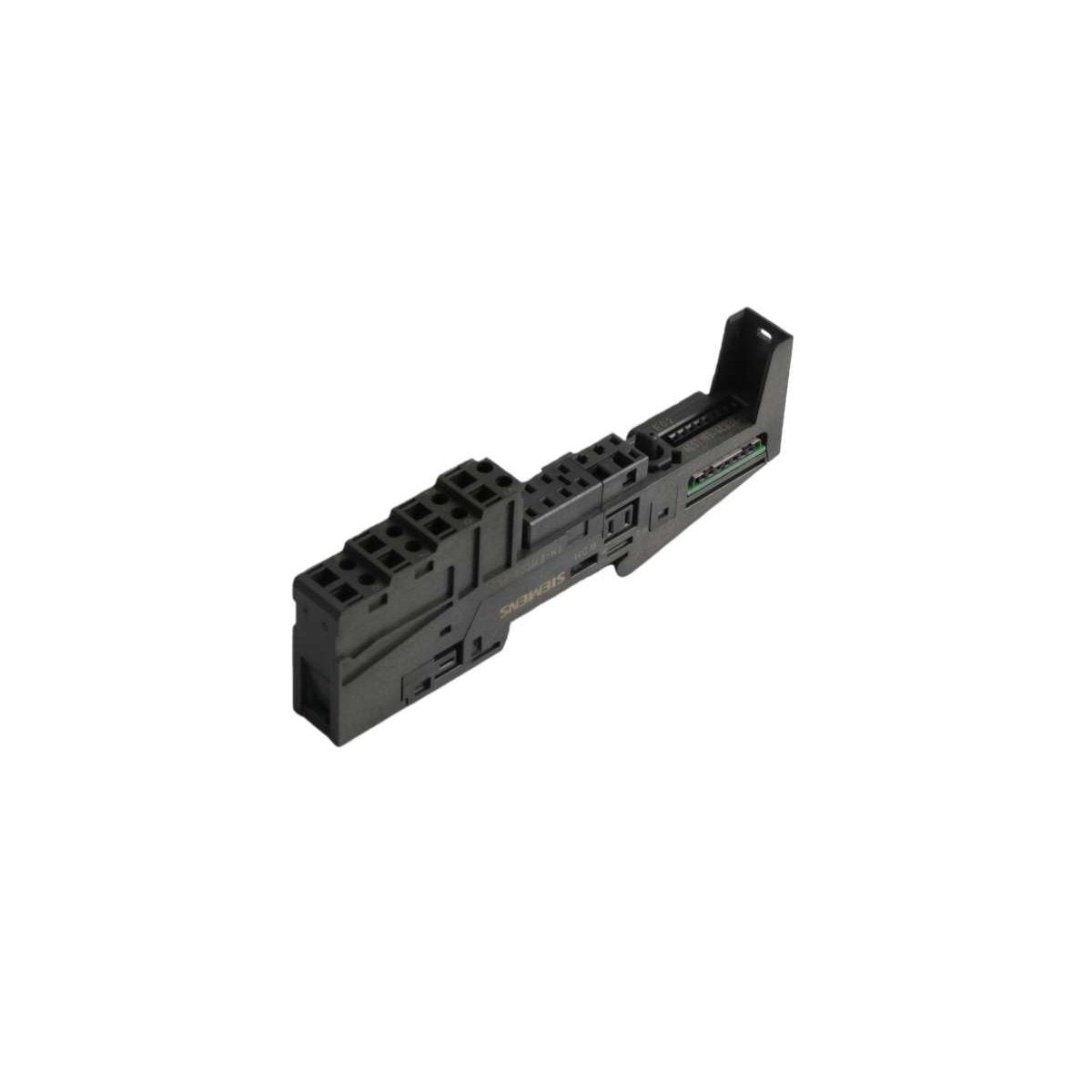

The Siemens 6ES7193-4CB30-0AA0 is a vital interconnectivity component designed for the SIMATIC ET 200S distributed I/O architecture. This terminal module acts as the physical and electrical interface between field-level sensors or actuators and the electronics modules within the PLC rack. Engineered to facilitate high-density wiring, it provides a stable platform for signal distribution while maintaining organized cable management. Its primary objective is to ensure low-resistance, vibration-proof connections that prevent signal attenuation in high-speed automation environments. By providing a dedicated termination point, it allows for the hot-swapping of electronics modules without disturbing the permanent field wiring, thereby maximizing system availability.

Technical Construction and Hardware Profile

• Component Class: Termination / Front Connector Module

• Pin Configuration: 16-pin high-density terminal interface

• Wiring Methodology: Optimized for tool-free, rapid-connect technology

• Mounting Compatibility: Standard SIMATIC ET 200S backplane rails

• Physical Mass: 0.95 kg

• Casing Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Connector Integrity: Gold-plated or high-conductivity contact surfaces for signal stability

• Thermal Endurance: Designed for standard industrial cabinet temperature ranges

• Manufacturing Origin: Germany

• HS Classification: 8537101190

Industrial Deployment and Connectivity Roles

This terminal module is a foundational element in distributed control systems where installation speed and maintenance simplicity are paramount. Key industrial use cases include:

• High-Speed Assembly Automation: Utilizing the tool-less wiring design to significantly reduce the commissioning time for automotive and electronics assembly lines.

• Continuous Process Monitoring: Providing a secure termination point for digital and analog sensors in chemical or water treatment facilities.

• Cabinet Density Optimization: Leveraging the narrow 2.5 cm width to maximize the number of I/O points per linear meter of DIN rail.

• Modular Machine Building: Facilitating rapid prototype changes and modular production line adjustments by allowing quick disconnection and reconfiguration of field devices.

• Maintenance and Repair Operations: Enabling technicians to replace faulty I/O modules instantly while the terminal module maintains the integrity of the field-side electrical loop.
