Product Overview

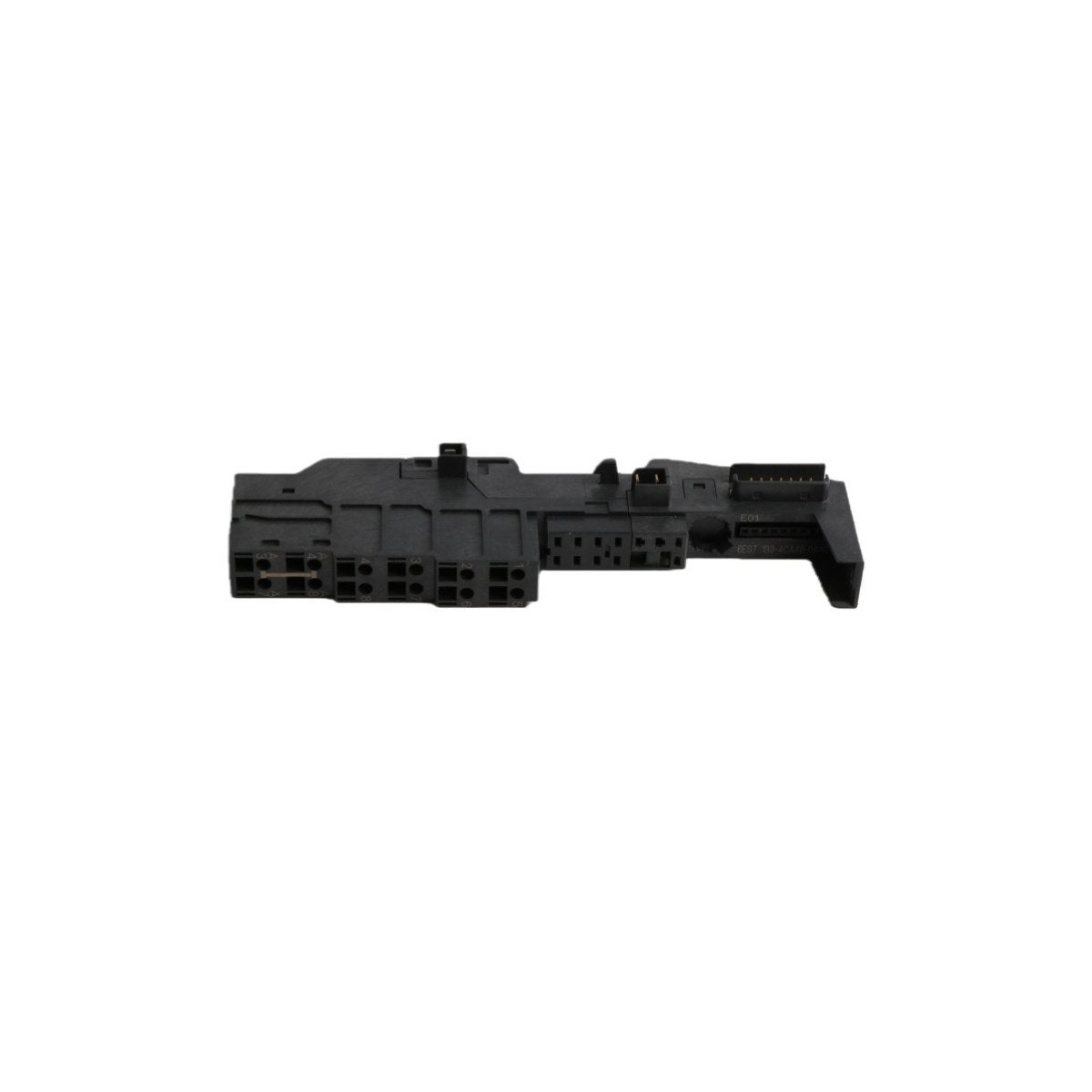

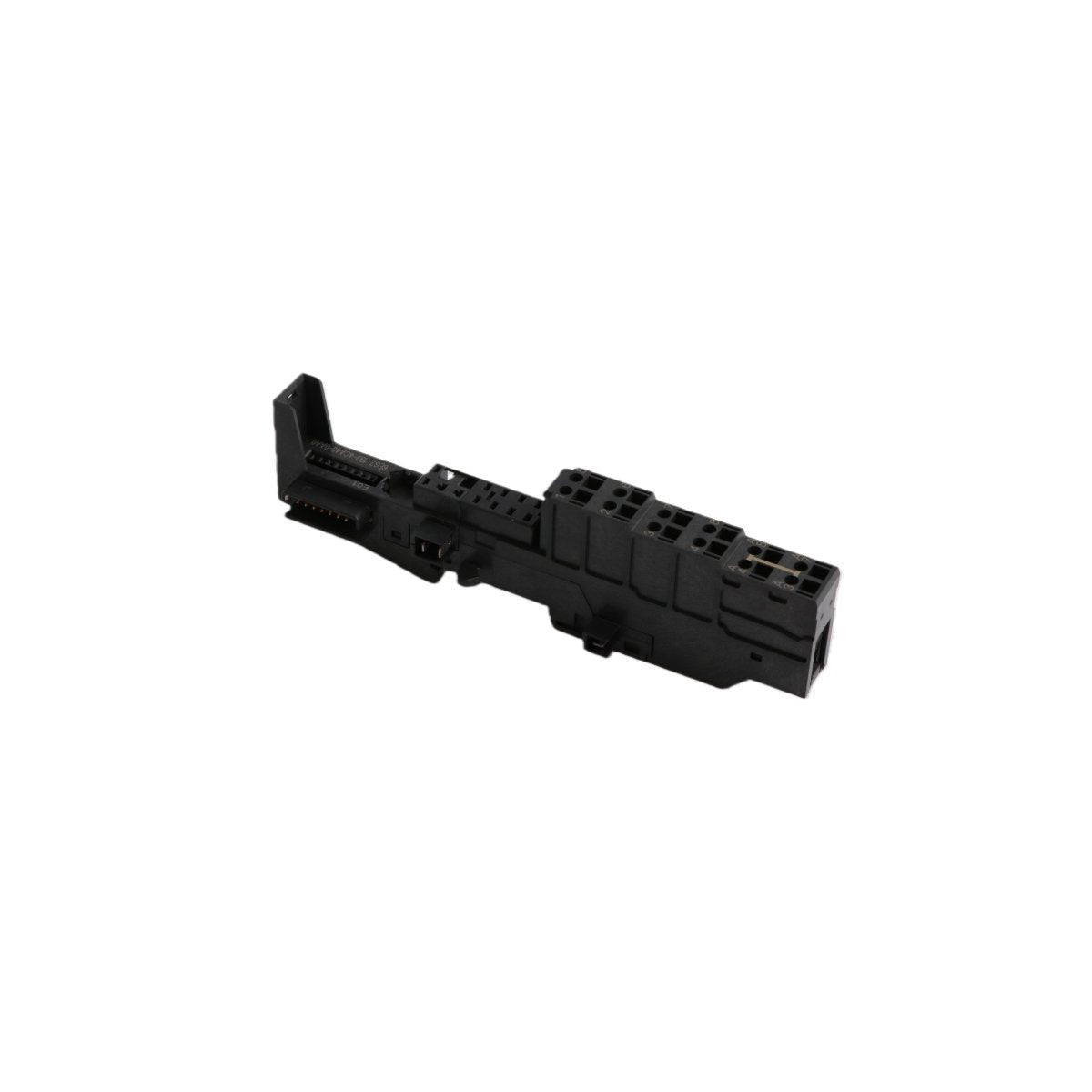

The 6ES7193-4CA40-0AA0 represents a fundamental component of the SIMATIC ET 200S distributed I/O architecture. This TM-E15S24-A1 terminal module serves as the mechanical and electrical interface for electronic modules, providing a stationary wiring base that allows for "permanent wiring." By separating the wiring level from the electronics, this module enables hot-swapping of functional units without disturbing the field cables. Engineered for space-sensitive control cabinets, its ultra-slim profile facilitates high-density I/O configurations while maintaining robust electrical connectivity through a proven screw-termination system.

Construction Specifications and Physical Properties

The following data outlines the mechanical and electrical framework of the TM-E15S24-A1 interface:

• Connection Type: Screw-type terminals for secure conductor retention

• Terminal Configuration: 2x6 terminals with direct access to the AUX1 bus

• Module Width: 15 mm

• Current Carrying Capacity: Up to 10 A for the power bus and AUX bus

• Voltage Rating: Maximum 24 V DC (nominal)

• Installation Method: Standard DIN rail mounting with interlocking mechanism

• Physical Dimensions: 15 mm x 132 mm x 43 mm

• Unit Weight: 0.065 kg (Note: Shipping weights for bulk packs of 5 typically total 0.35 kg)

• Packaging Unit: 5 pieces per standard order block

Deployment Scenarios and Field Utility

Industrial Control Panels

This module is primarily utilized in decentralized automation environments where panel depth and width are restricted. It provides a standardized landing point for digital and analog sensors and actuators.

Modular Machine Building

Due to the ET 200S modularity, the 6ES7193-4CA40-0AA0 is frequently integrated into OEM machinery requiring flexible I/O expansion. The AUX1 bus connection is specifically useful for distributing potential across multiple modules without additional jumpers.

High-Vibration Environments

The screw-terminal design is preferred in heavy industrial sectors, such as material handling and wastewater treatment, where mechanical vibration might compromise tension-clamp connections over time.
