Product Overview

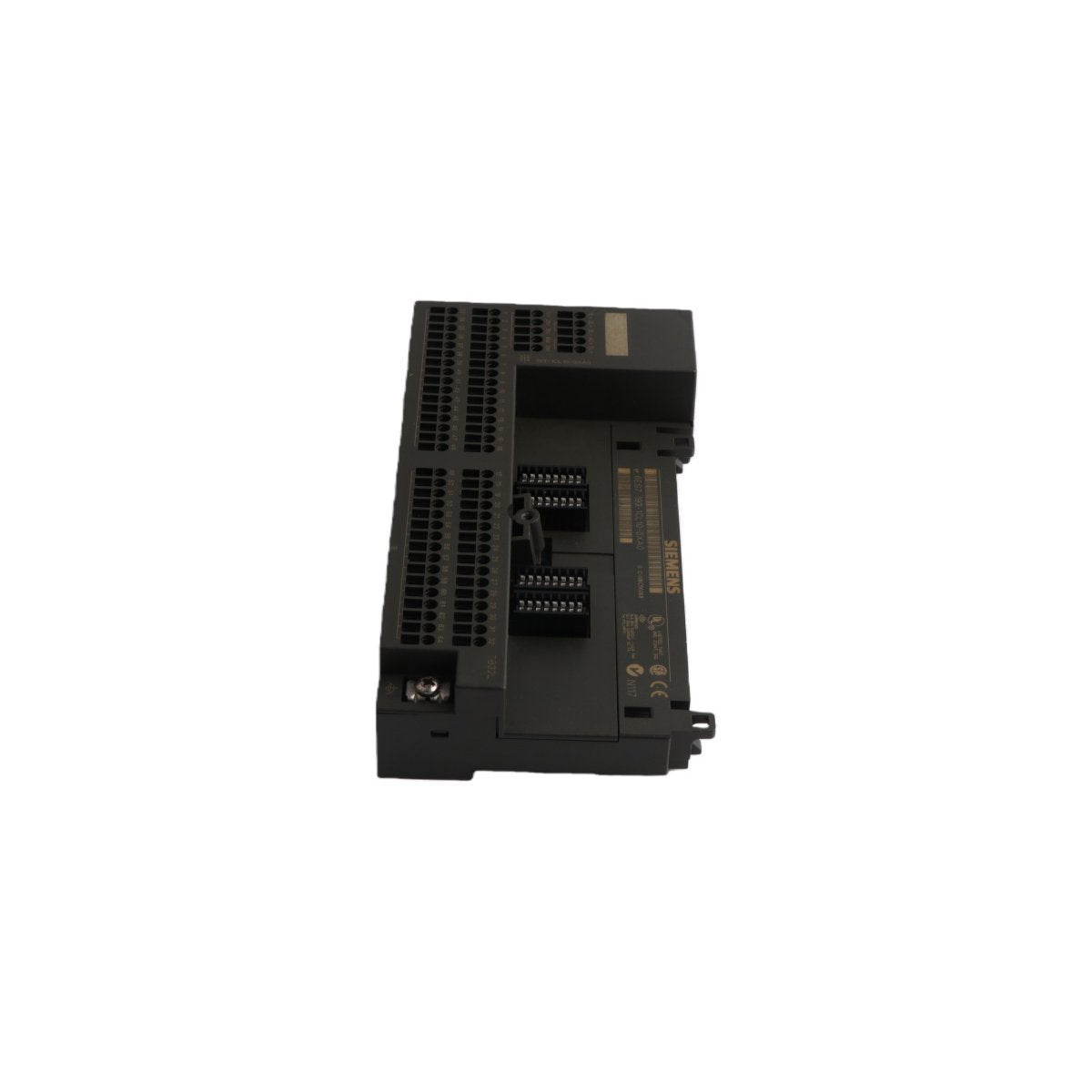

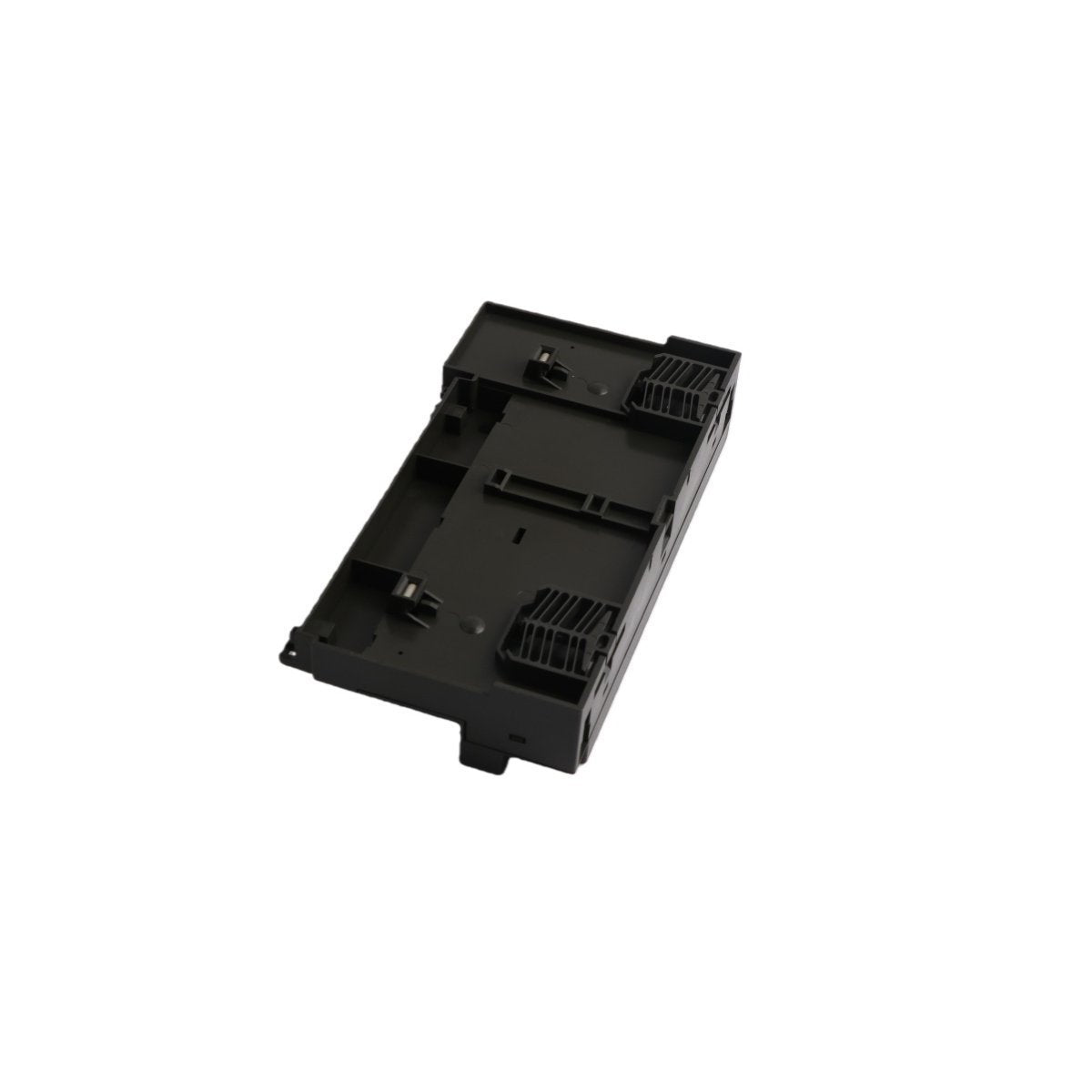

The Siemens 6ES7193-1CL00-0XA0 is a specialized 80-pin terminal block designed for the SIMATIC ET 200L distributed I/O station. Functioning as a high-density wiring interface, this component facilitates the direct connection of field-level sensors and actuators to the electronic circuitry of the PLC system. It is engineered to provide a bridge between industrial field wiring and modular control units, ensuring signal integrity across high-density I/O configurations. This front connector is vital for maintaining a clean, manageable cabinet layout while providing the mechanical robustness required for continuous industrial operation.

Mechanical Properties and Hardware Configuration

This terminal module is built to rigorous German engineering standards, ensuring long-term contact stability and resistance to vibration-induced failures.

• Connection Type: Screw-type terminals for secure electrical contact

• Pin Count: 80-pin configuration (designed for ET 200L modules)

• Physical Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Net Weight: 0.95 kg

• Mounting Style: Front-facing plug-in connection

• Housing Material: Industrial-grade reinforced polymer

• Operating Status: Active production model

• System Compatibility: Optimized for SIMATIC ET 200L Series

Industrial Deployment Scenarios

The 6ES7193-1CL00-0XA0 terminal block is primarily utilized in large-scale distributed automation architectures where space-saving and high-density wiring are prioritized. Its most common applications include:

Distributed Control Systems

Acting as the primary wiring hub for remote I/O stations in factory automation, where signal distribution must remain localized to reduce cabling costs.

High-Density Machine Tooling

Integration into CNC machinery and complex assembly lines that require dozens of discrete signal inputs and outputs within a narrow mechanical footprint.

Control Cabinet Optimization

Standardized for use in environments where rapid module replacement is necessary; the removable front connector allows for I/O module swaps without disconnecting the field wiring.

Process Infrastructure

Deployment in water treatment or energy distribution panels where reliable, screw-clamped connections are mandated to prevent data loss in high-vibration settings.
