Product Overview

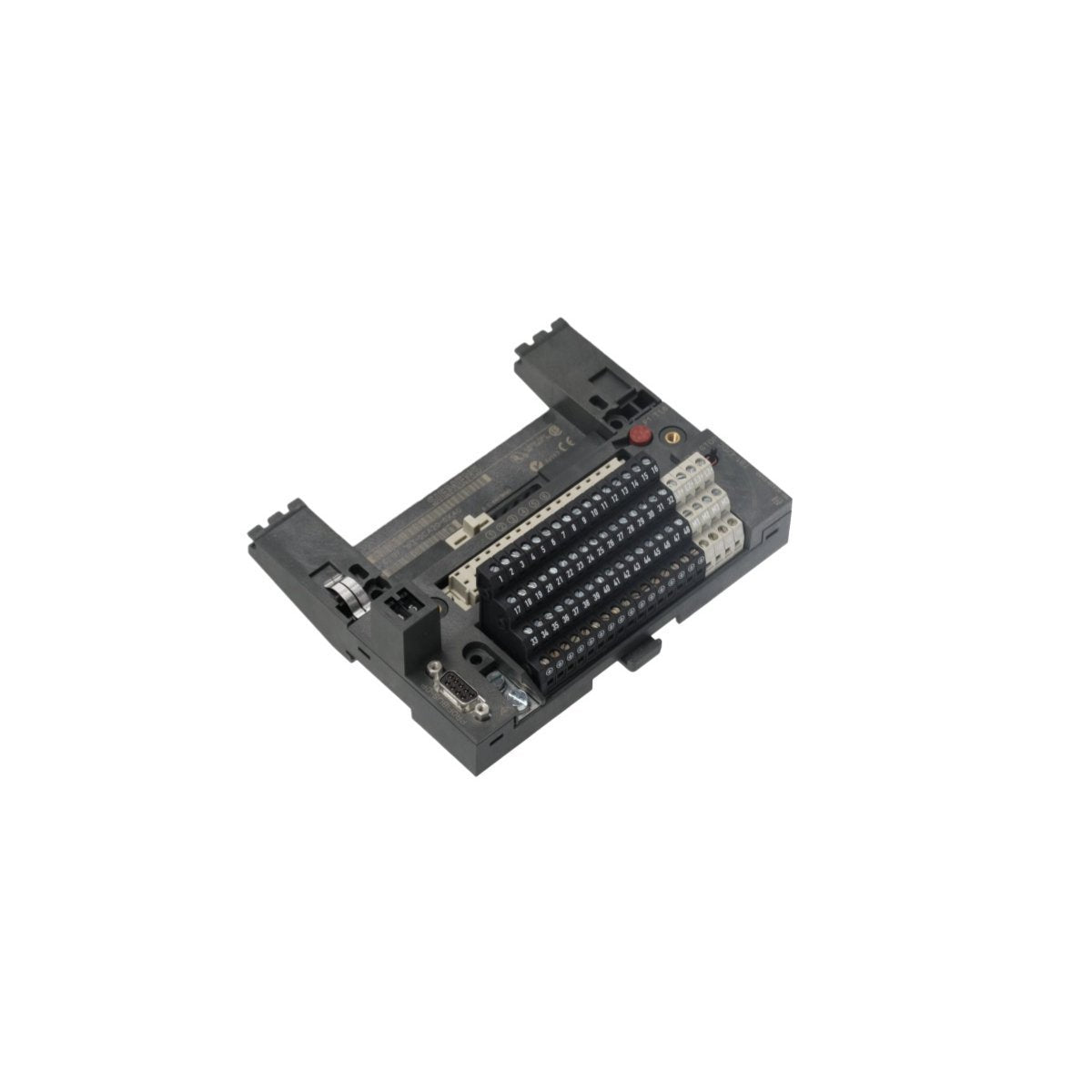

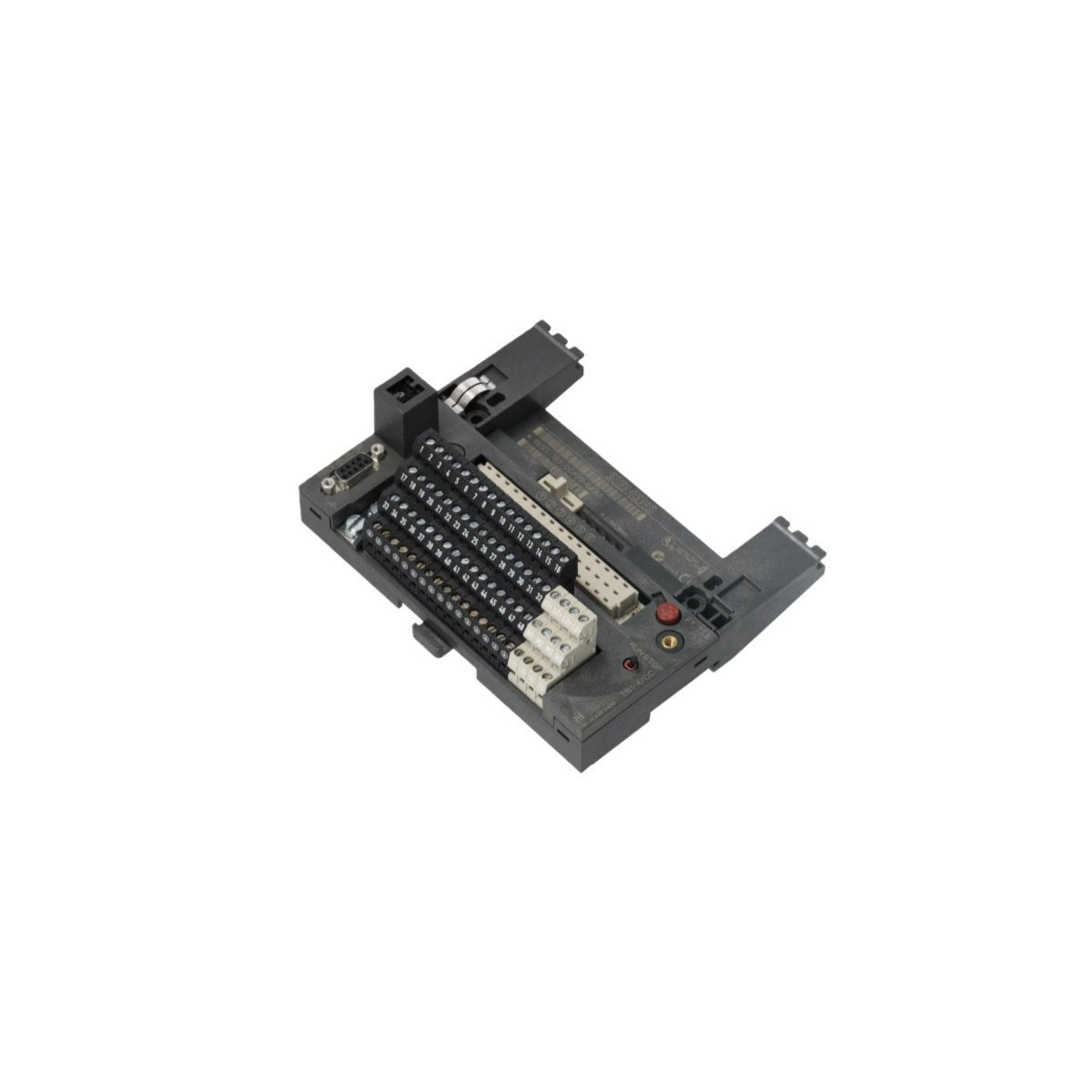

The Siemens 6ES7193-0CA20-0XA0 is a fundamental interconnect component designed specifically for the SIMATIC ET 200S distributed I/O lineup. Acting as a mechanical and electrical foundation, this terminal module allows for the seamless mounting of power or electronic modules while providing a secure termination point for field wiring. It is engineered to facilitate rapid assembly and modular expansion of PLC systems, ensuring that signal integrity is maintained across the backplane bus. By utilizing a screw-terminal interface, it provides a vibration-resistant connection point for sensors and actuators in high-intensity industrial environments.

Core Hardware Specifications

• Manufacturer: Siemens

• Part Number: 6ES7193-0CA20-0XA0

• Product Series: SIMATIC DP / ET 200S

• Nominal Supply Voltage: 24 V DC

• Permissible Voltage Range: 20.4 V to 28.8 V DC

• Connection Method: Screw-type terminals

• Module Width: 15 mm (Standard Slim Design)

• Protection Rating: IP20

• Operating Temperature Range: 0 °C to +60 °C

• Physical Mass: 0.95 kg

• Device Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Manufacturing Origin: Germany

Industrial Implementation Scenarios

This terminal module is essential for building structured control panels where reliability and ease of maintenance are prioritized. It is widely utilized in:

• Distributed Control Systems: Providing the localized wiring base for ET 200S stations connected via PROFIBUS or PROFINET.

• Automotive Production Lines: Supporting modular I/O configurations that require quick replacement of electronic components without disturbing the permanent field wiring.

• Energy Management: Serving as the interface for monitoring power distribution metrics where electrical isolation between the electronics and the field level is required.

• Material Handling: Integrating sensors and motor starters in conveyor systems, benefiting from the robust screw-terminal grip in high-vibration settings.
