Product Overview

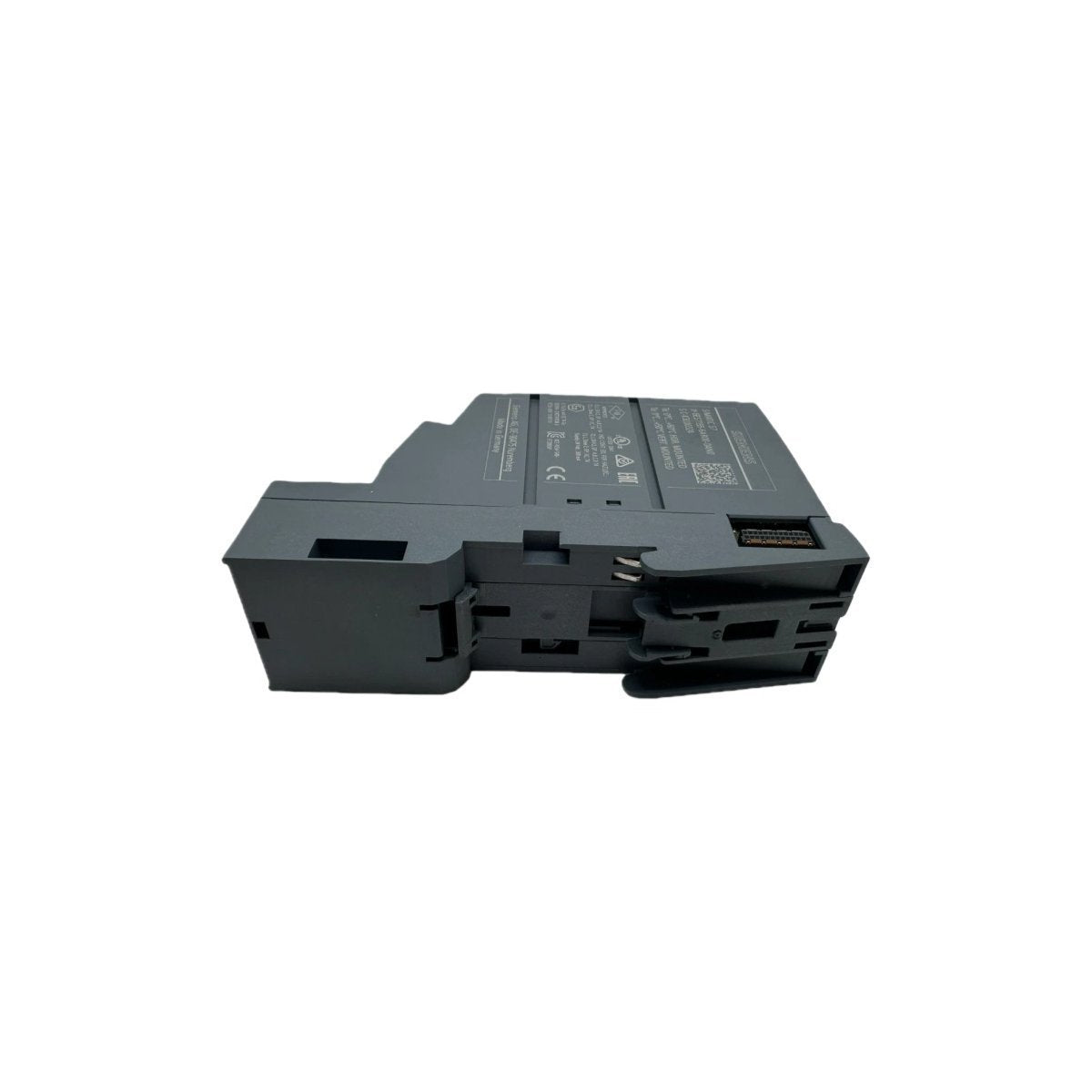

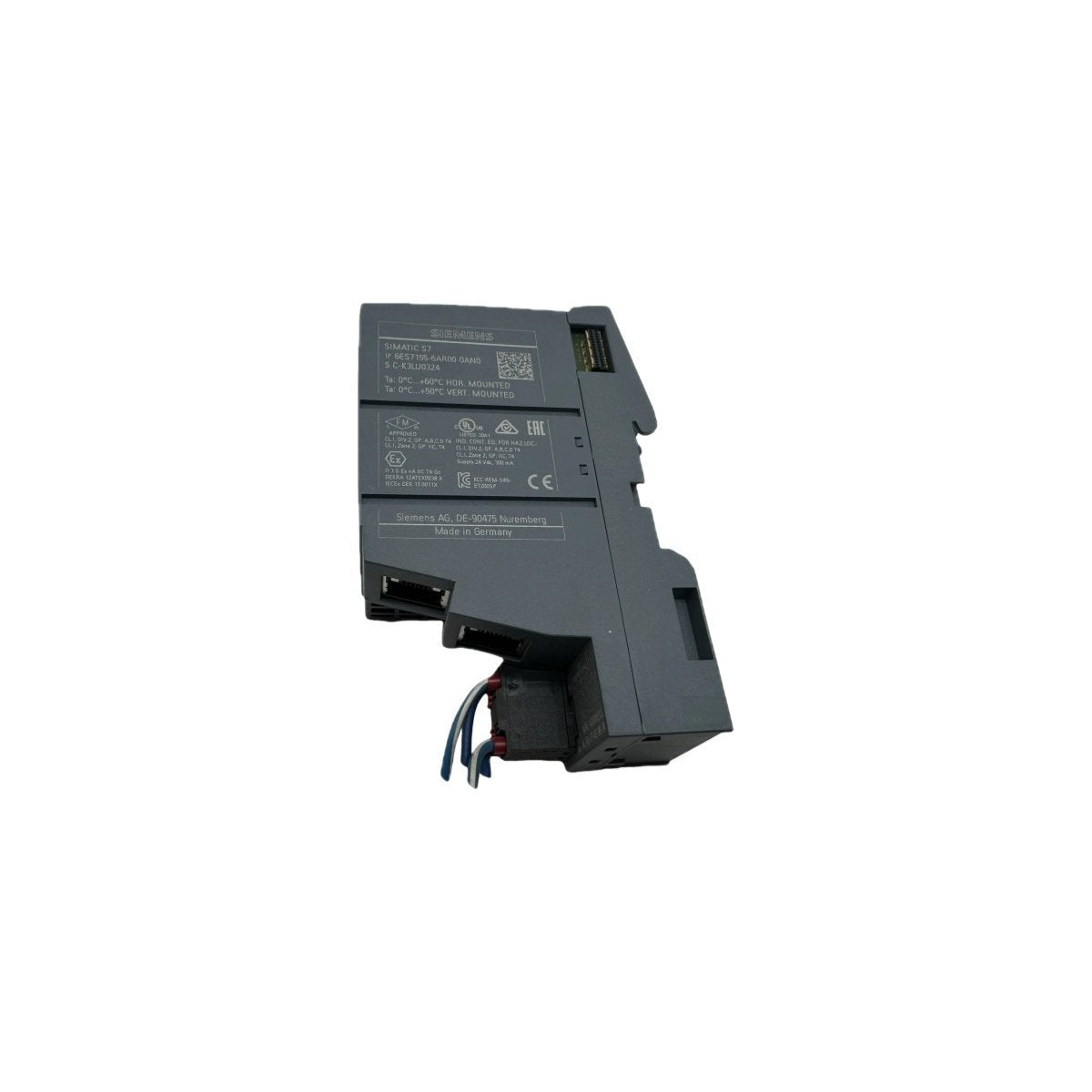

The 6ES7155-6AR00-0AN0 serves as a streamlined communication gateway for the SIMATIC ET 200S-series successor, the ET 200SP distributed I/O system. This "Basic" (BA) version interface module is specifically engineered for cost-sensitive automation projects that prioritize essential functionality and a compact footprint. Acting as the primary node on a PROFINET network, it facilitates the seamless exchange of digital and analog signals between the central controller and decentralized peripheral modules. By integrating network switching and server module capabilities directly into the unit, it offers an all-in-one entry point for modernizing small-to-medium scale industrial control architectures.

System Configuration & Technical Attributes

• Network Interface: Dual-port RJ45 interface with integrated 2-port switch for linear bus topologies.

• Module Capacity: Supports the connection of up to 12 peripheral ET 200SP modules.

• I/O Mapping: Manages a maximum of 192 I/O signals (32 bytes per input/output process image).

• Integrated Server Module: Included as standard to simplify assembly and reduce spare part overhead.

• Communication Protocol: PROFINET IO with support for basic real-time (RT) data exchange.

• Mounting Standard: Quick-snap installation on standard 35mm DIN rails.

• Input Voltage: 24V DC supply with internal backplane power distribution.

• Physical Profile: Optimized slim design to maximize lateral cabinet space.

• Origin & Quality: Precision-manufactured in Germany to rigorous industrial standards.

Strategic Industrial Implementations

• Localized Machine Control: Providing a dedicated, budget-friendly I/O node for small standalone machines such as packaging wrappers or labelers.

• Auxiliary System Integration: Ideal for interfacing decentralized sensors on non-critical support systems like lubrication skids or cooling fans.

• Simple Conveyor Logic: Managing distributed photocells and motor starters along short-run transport lines in logistics centers.

• Infrastructure Monitoring: Collecting simple environmental or status data in building management systems (BMS) where high-speed motion control is not required.

• Retrofit Projects: Used as a low-cost replacement to move legacy systems toward an Ethernet-based backbone without over-investing in unused high-end features.
