Product Overview

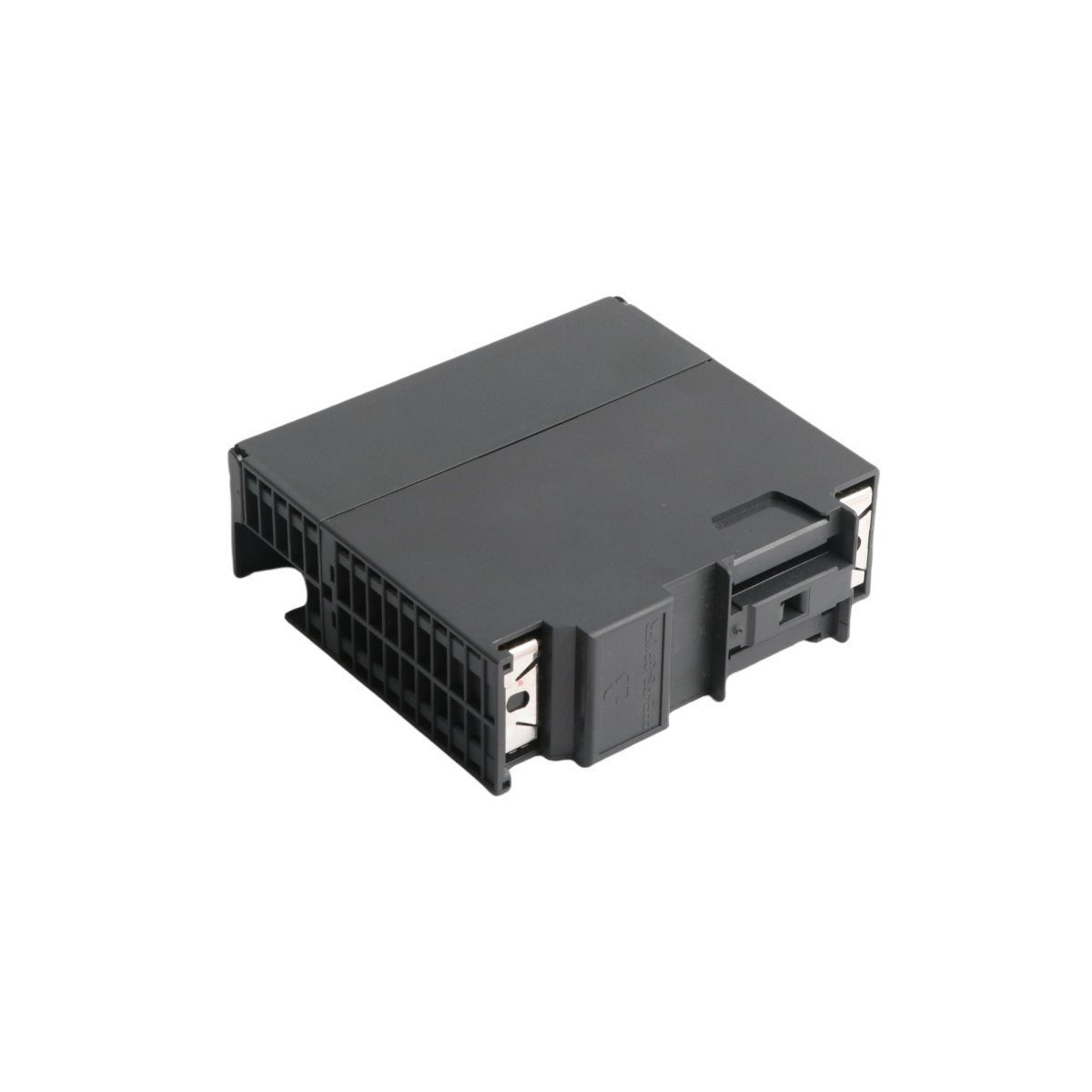

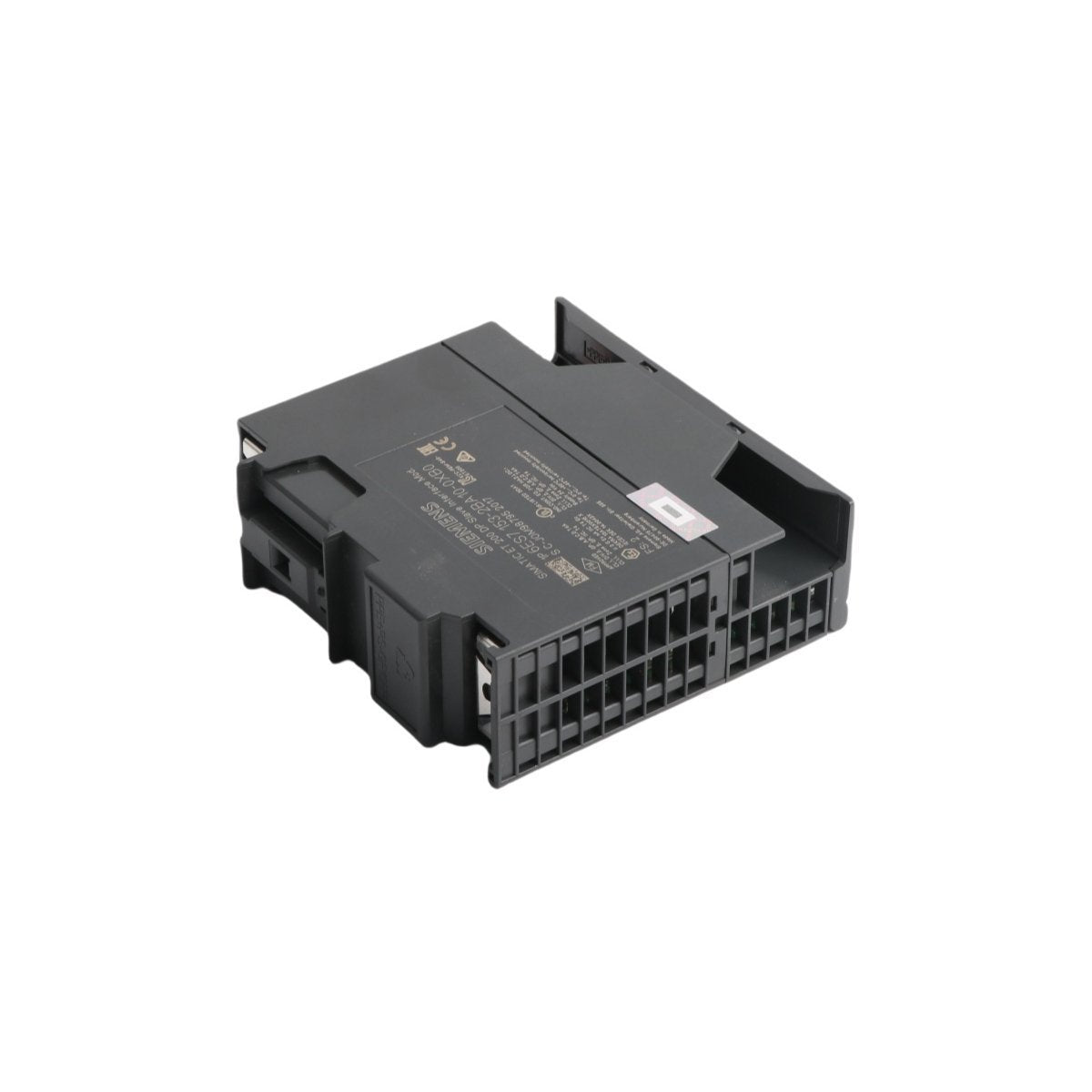

The Siemens 6ES7153-2BA10-0XB0 is a "High Feature" (HF) communication head-end designed for the SIMATIC ET 200M distributed I/O station. This interface module acts as the bridge between the PROFIBUS DP network and the modular S7-300 I/O expansion rack. Engineered for high-availability systems, the IM 153-2 HF supports redundant configurations, ensuring that critical automation processes remain active even if a primary communication path is compromised. This unit is essential for complex control architectures that require high-speed data exchange, precise synchronization, and the ability to manage a high density of digital, analog, and functional modules in a decentralized layout.

Technical Quantities and Hardware Capabilities

This interface module is distinguished by its advanced firmware and support for sophisticated signaling protocols:

• Expansion Capacity: Supports the connection of up to 12 S7-300 signal modules, function modules, or communication processors on a single station.

• Redundancy Features: Native support for PROFIBUS DP redundancy, facilitating seamless switchover in mission-critical environments.

• Timing & Synchronization: Integrated isochronous mode and hardware-level timestamping (with 1ms accuracy) for precise event logging and motion control.

• HART Integration: Expanded quantity structure specifically designed to handle HART auxiliary variables for process instrument communication.

• High-Density Signal Handling: Facilitates the operation of 64-channel modules and 32-signal slots, maximizing I/O density within a 5.1cm width.

• Power Parameters: Operates on a 24V DC nominal supply with a wide permissible range of 20.4V to 28.8V DC.

• System Connectivity: PROFIBUS DP slave interface with automatic baud rate detection up to 12 Mbit/s.

Advanced Industrial Implementations

The 6ES7153-2BA10-0XB0 is the preferred interface for large-scale automation where reliability and timing are non-negotiable:
