Product Overview

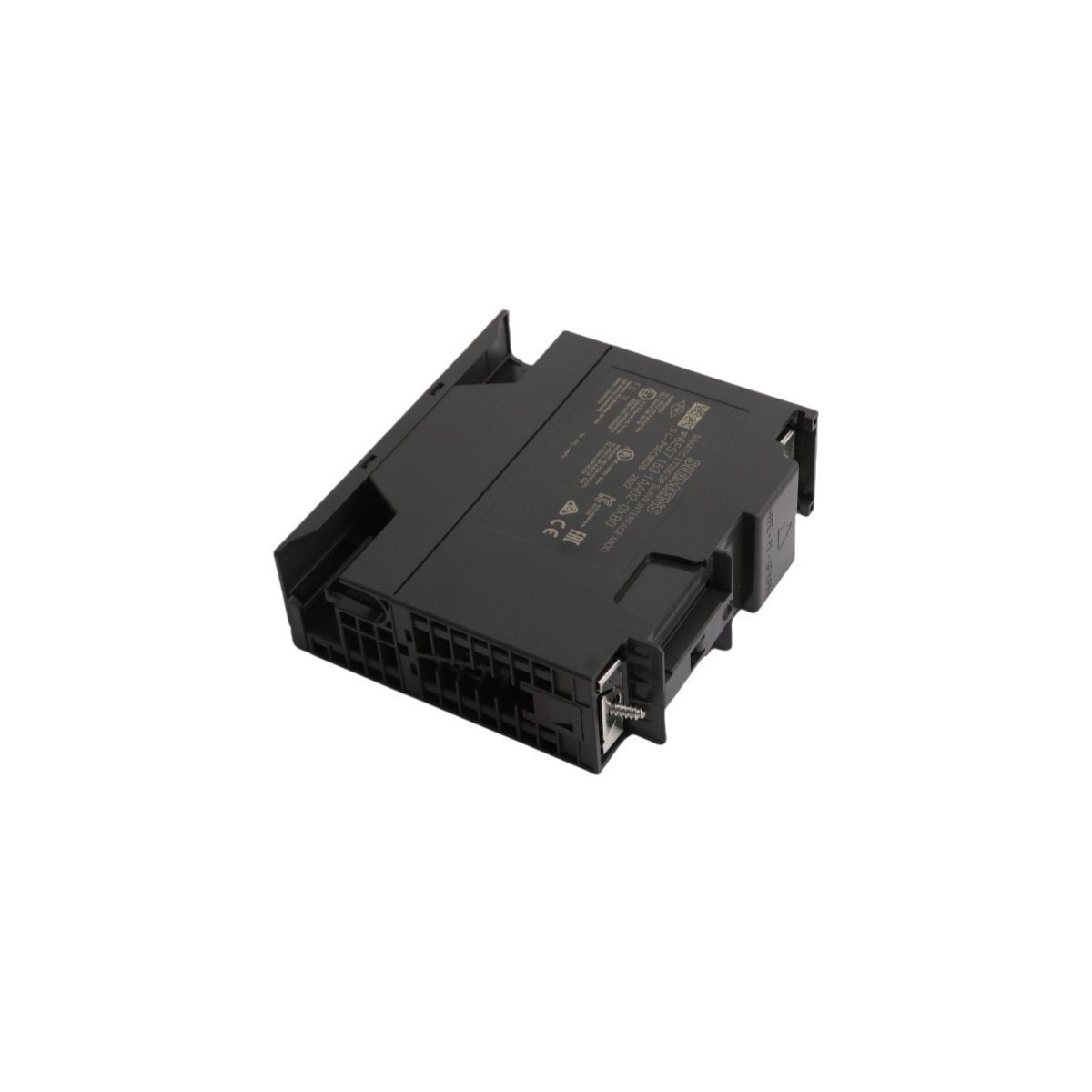

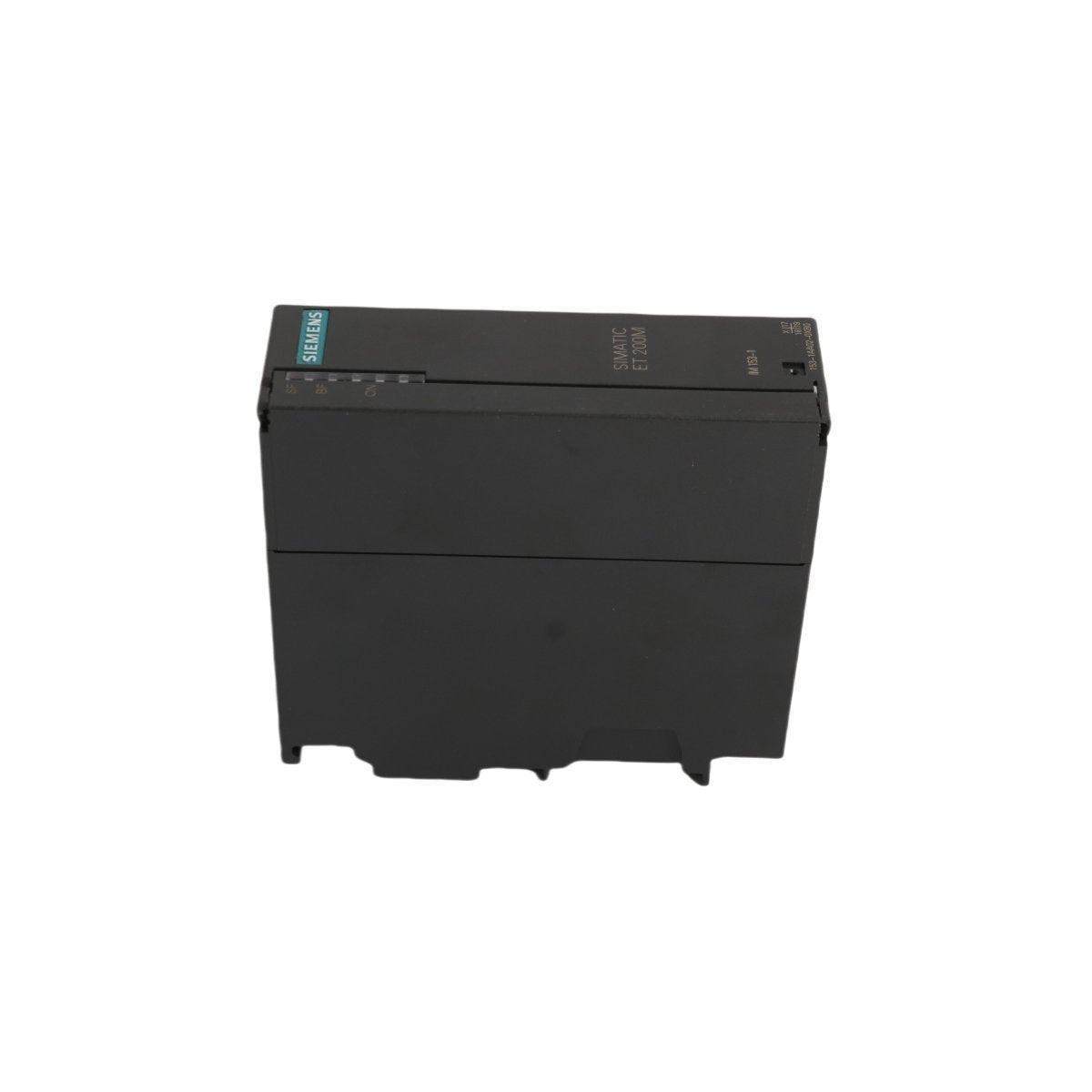

The Siemens 6ES7153-1AA02-0XB0 serves as the primary communication link for the SIMATIC ET 200M decentralized I/O system. This interface module (IM 153-1) bridges the gap between a central PLC and remote signal modules, allowing for the expansion of I/O points over a PROFIBUS DP network. By utilizing this module, engineers can decentralize control architecture, significantly reducing the cost of field wiring and improving signal integrity by digitizing data close to the source. The unit is fully compatible with S7-300 signal modules, making it a versatile choice for expanding existing Siemens automation environments or building new, high-performance distributed networks.

Technical Infrastructure and Hardware Performance

The 6ES7153-1AA02-0XB0 is characterized by its high-speed data throughput and robust electrical isolation, ensuring reliable operation in electrically noisy industrial settings.

• Communication Protocol: PROFIBUS DP (slave), compliant with IEC 61158 standards.

• Data Transmission Rate: Supports automatic baud rate detection up to 12 Mbps.

• Expansion Capacity: Allows for the connection of up to 8 S7-300 signal, communication, or function modules.

• Diagnostic Capabilities: Integrated LED status indicators for bus faults, system errors, and power supply monitoring.

• Supply Voltage: 24V DC nominal input via a standard terminal connection.

• Interface Type: 9-pin Sub-D socket for PROFIBUS DP connection.

• Station Address: Configurable via integrated DIP switches (Address range 1 to 125).

• Physical Mass: 0.26 kg.

• Housing Dimensions: 4.0 cm x 11.6 cm x 12.5 cm.

• Country of Manufacture: Germany.

Strategic Industrial Implementations

The IM 153-1 is a staple in large-scale process industries and manufacturing plants where localized intelligence and distributed data acquisition are mandatory.

• Continuous Process Plants: Ideal for water treatment facilities and chemical processing where sensors and actuators are spread across vast distances.

• Automotive Assembly Lines: Providing high-speed I/O response times for synchronized robotics and conveyor systems via the 12Mbps PROFIBUS backbone.

• Power Distribution Monitoring: Utilizing the robust ET 200M architecture to monitor electrical switchgear in substations while maintaining isolation from high-voltage interference.

• Retrofitting and Modernization: Seamlessly integrating legacy S7-300 hardware into newer, decentralized control schemes without replacing existing signal modules.

• Food and Beverage Production: Managing decentralized valve blocks and temperature sensors while meeting IP20 cabinet installation requirements.
