Product Overview

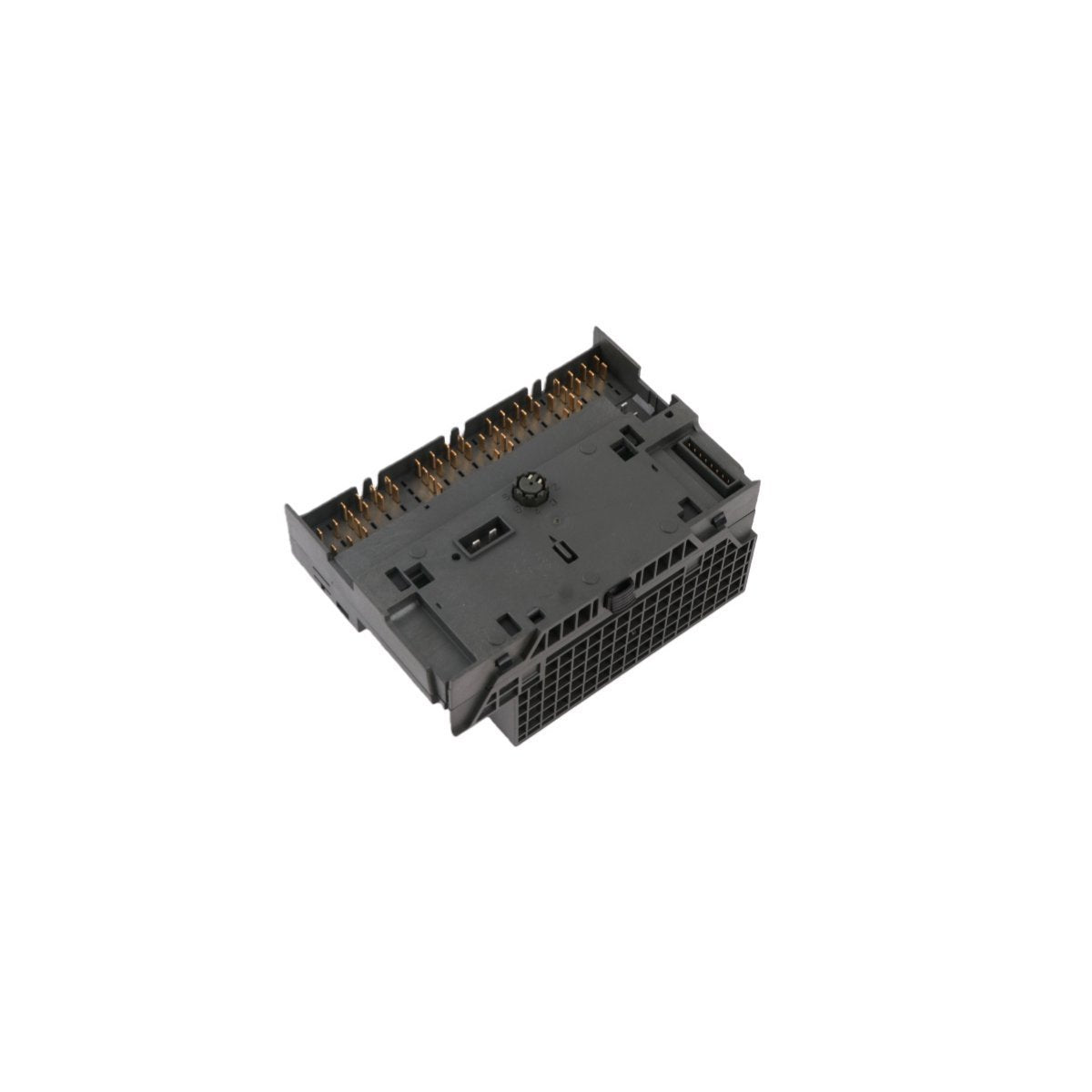

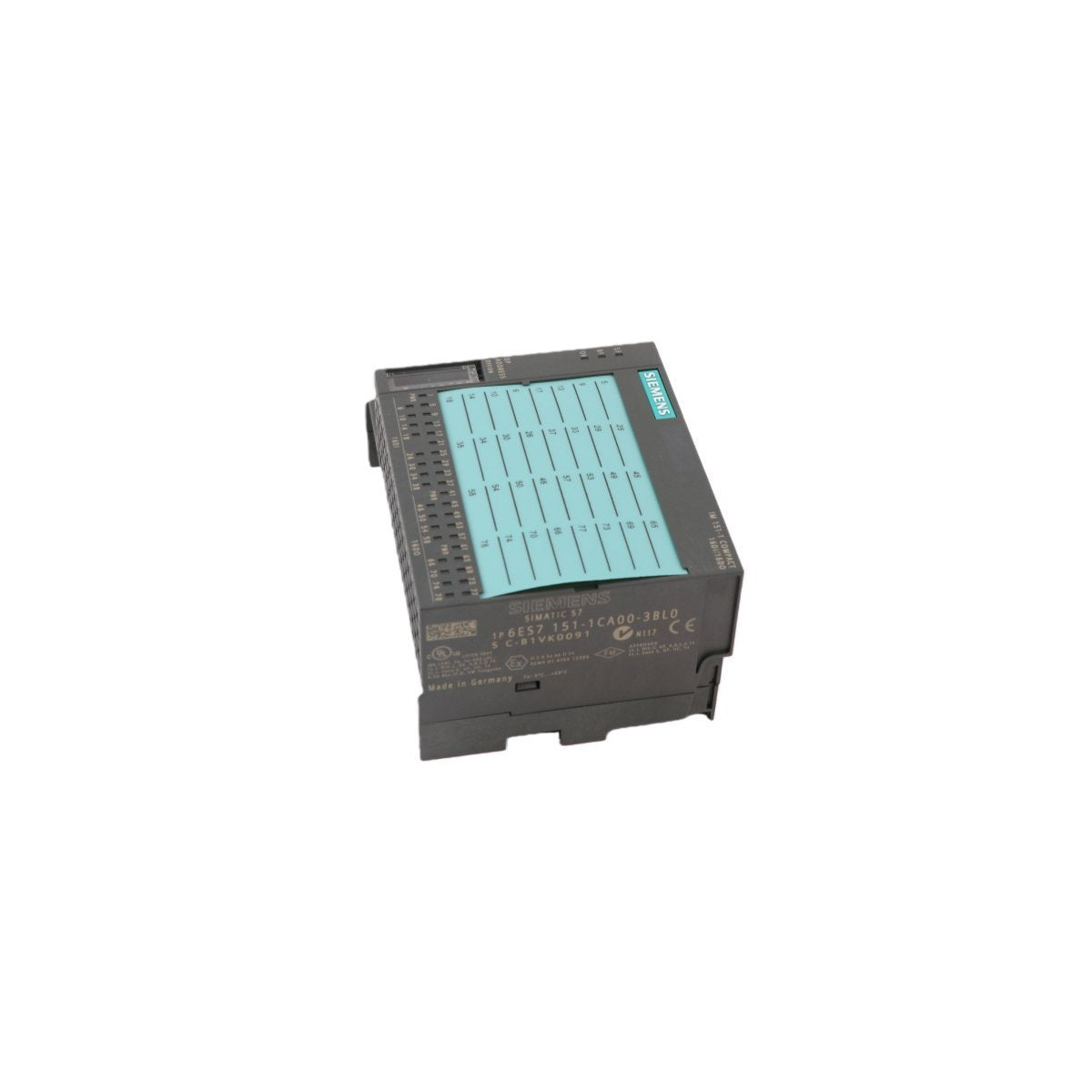

The 6ES7151-1CA00-3BL0 is a high-performance integrated interface module designed for the SIMATIC ET 200S distributed I/O system. This compact unit serves as a bridge between the PROFIBUS DP fieldbus and local I/O channels, providing a hybrid solution that includes built-in digital inputs and outputs. Engineered for space-sensitive control cabinets, it allows for a decentralized automation architecture where speed and reliability are critical. The module facilitates seamless communication between the central PLC and field-level devices, ensuring data integrity across the automation network.

Vital Specifications and Hardware Metrics

• Device Designation: IM 151-1 COMPACT

• Integrated I/O Count: 16 Digital Inputs and 16 Digital Outputs

• Operational Voltage: 24V DC

• Input Delay: Typically 3 ms

• Bus Protocol: PROFIBUS DP up to 12 Mbit/s

• Expandability: Supports up to 12 additional ET 200S expansion modules

• Physical Dimensions: 10.2 cm x 7.6 cm x 12.7 cm

• Net Weight: 0.95 kg

• Front Connector: Integrated terminal block with screw or spring-loaded options

Common Deployment Fields and Industrial Scenarios

The versatility of this compact module makes it a staple in various automated environments. In manufacturing, it is frequently utilized for localized sensor-actuator control on conveyor systems and assembly lines. Its high-speed 3ms response time is particularly advantageous for packaging machinery where timing precision is non-negotiable. Additionally, because it can be expanded with up to 12 specialized modules, it is often deployed in complex processing plants that require a mix of digital, analog, and power modules under a single PROFIBUS node. Its rugged construction ensures it remains operational in environments subjected to standard industrial vibration and temperature fluctuations.
