Product Overview

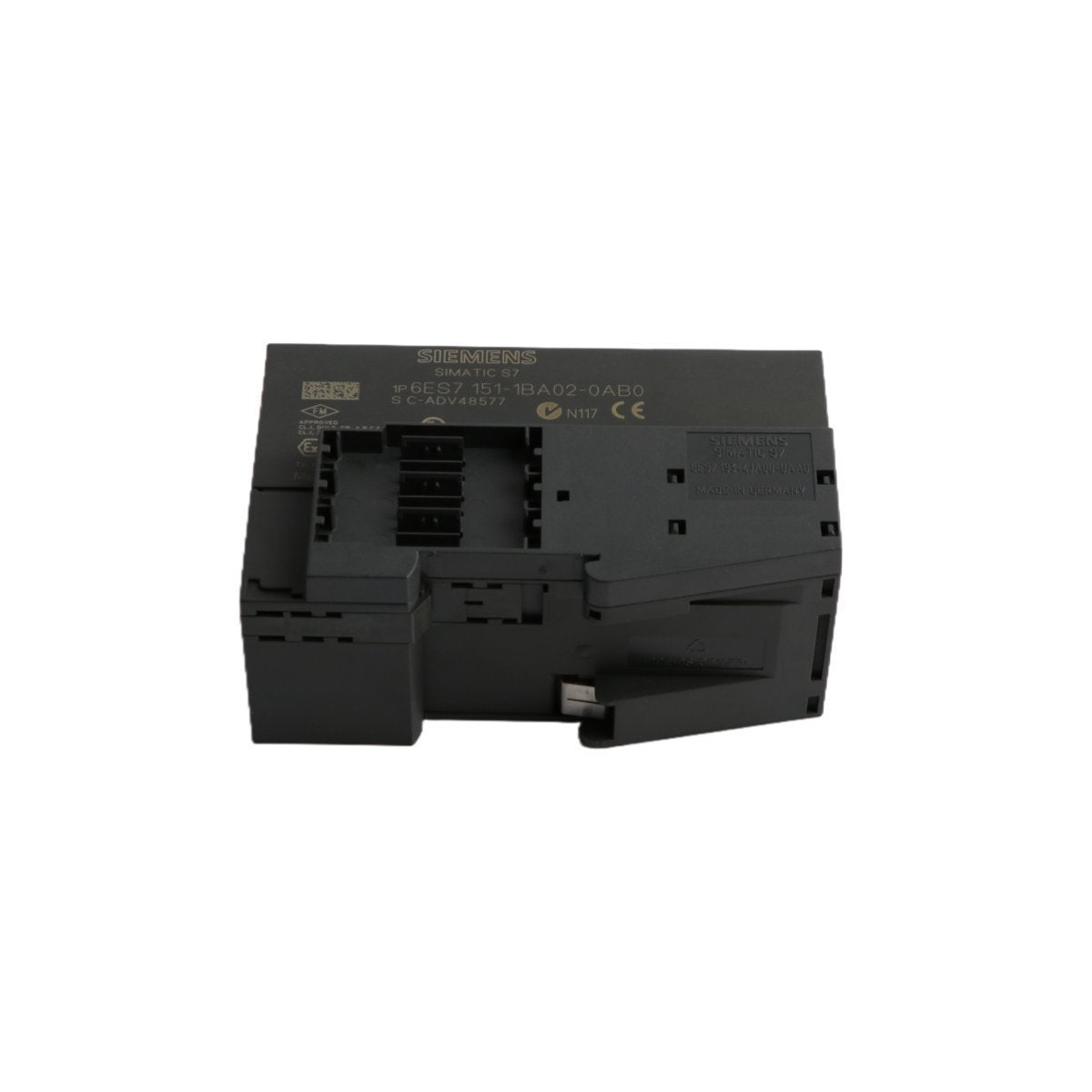

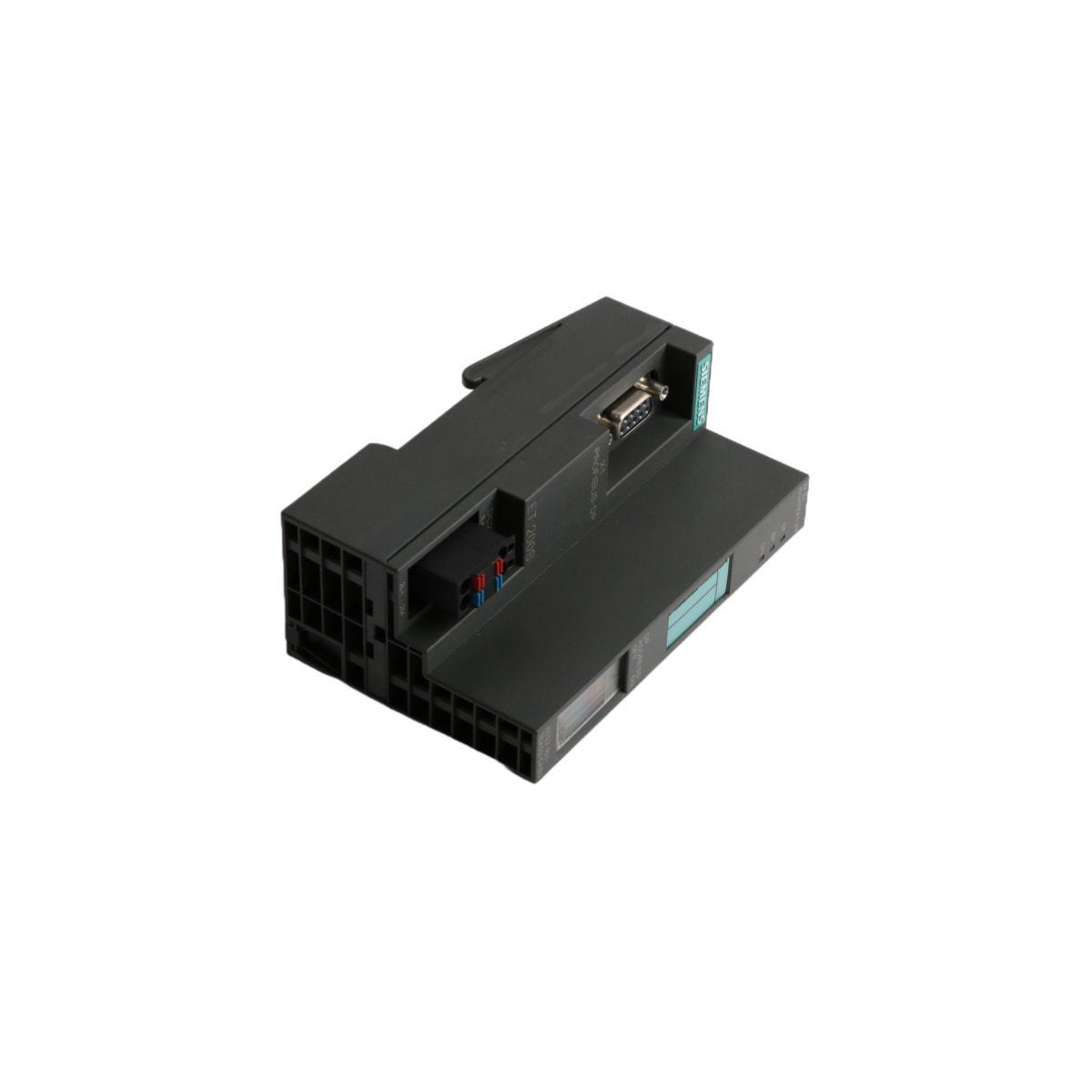

The Siemens 6ES7151-1BA02-0AB0 is a specialized IM151-1 High Feature (HF) interface module designed to command the ET 200S distributed I/O station. Functioning as the primary gateway to the PROFIBUS DP network, this module manages high-speed data traffic between a central PLC and up to 63 localized expansion modules. As a "High Feature" variant, it supports isochronous mode, providing the deterministic communication required for high-precision motion control and rapid-cycle industrial processes. This module is engineered to handle large data volumes across decentralized architectures while maintaining the strict signal synchronization necessary for modern, complex automation environments.

Technical Architecture and Networking Capabilities

The 6ES7151-1BA02-0AB0 provides an advanced communication backbone for fieldbus applications, ensuring data integrity through optical isolation and high-speed processing.

• Fieldbus Protocol: Optimized for PROFIBUS DP V1, supporting transmission rates from 9.6 kbit/s up to a maximum of 12 Mbit/s.

• Expansion Scalability: Capable of addressing and powering a station width of up to 63 peripheral modules.

• Data Throughput: Manages a maximum of 244 bytes for input data and 244 bytes for output data per station.

• Isochronous Operation: Supports clock-synchronized communication, eliminating jitter in time-critical control loops.

• Diagnostic Integration: Comprehensive on-board LED indicators for bus faults (BF), system errors (SF), and power status (ON).

• Interface Type: Standard 9-pin Sub-D female socket for robust fieldbus connection.

• Electrical Safety: Integrated galvanic isolation to protect backplane electronics from field-level electrical noise.

Sector-Specific Utility and Scenarios

The High Feature capabilities of the 6ES7151-1BA02-0AB0 make it indispensable in sectors requiring high-speed coordination and large-scale I/O density.

Automotive Powertrain AssemblyIn engine and transmission assembly lines, the isochronous mode of the IM151-1 HF ensures that torque tools and robotic positioning sensors are perfectly synchronized with the line speed. The 244-byte capacity allows for the transmission of complex diagnostic data from smart sensors without bottlenecking the network.

High-Speed Packaging MachineryFor bottling and labeling plants, this module manages the rapid I/O cycles needed for precise product tracking. Its ability to support 63 modules allows a single PROFIBUS node to control an entire conveyor segment, including digital inputs for photo-eyes and analog outputs for variable frequency drives.

Logistics and Warehousing SolutionsIn automated storage and retrieval systems (ASRS), the 6ES7151-1BA02-0AB0 handles the distributed communication for stacker cranes. The optical isolation ensures that the long PROFIBUS cable runs—often subjected to electromagnetic interference from large motors—remain stable and error-free.

Legacy System ModernizationAs a reliable spare part for established ET 200S installations, this module ensures that existing PROFIBUS networks can continue to operate with modern "High Feature" performance. It allows for the expansion of older stations to include more complex analog or technological modules without requiring a full network overhaul.
