Product Overview

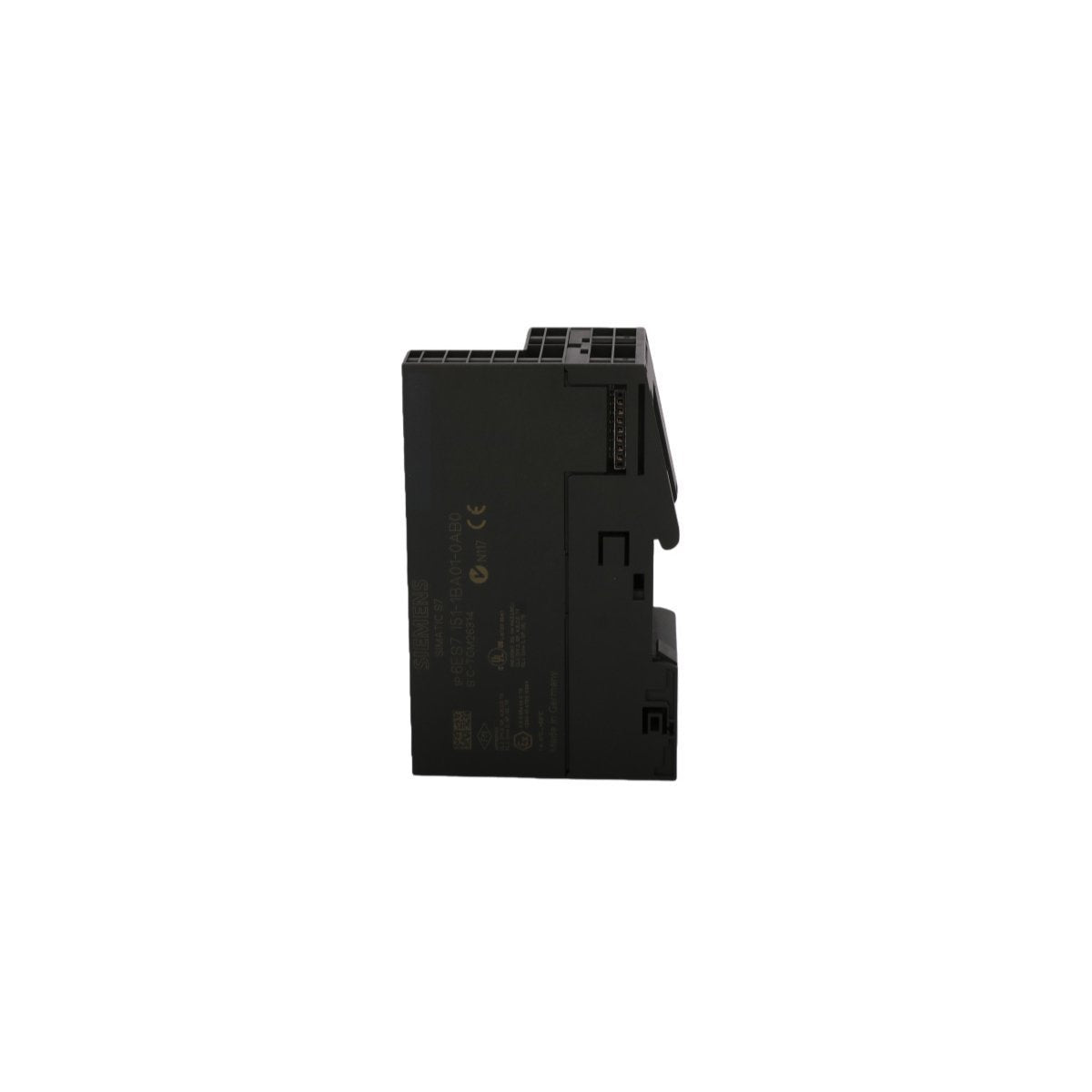

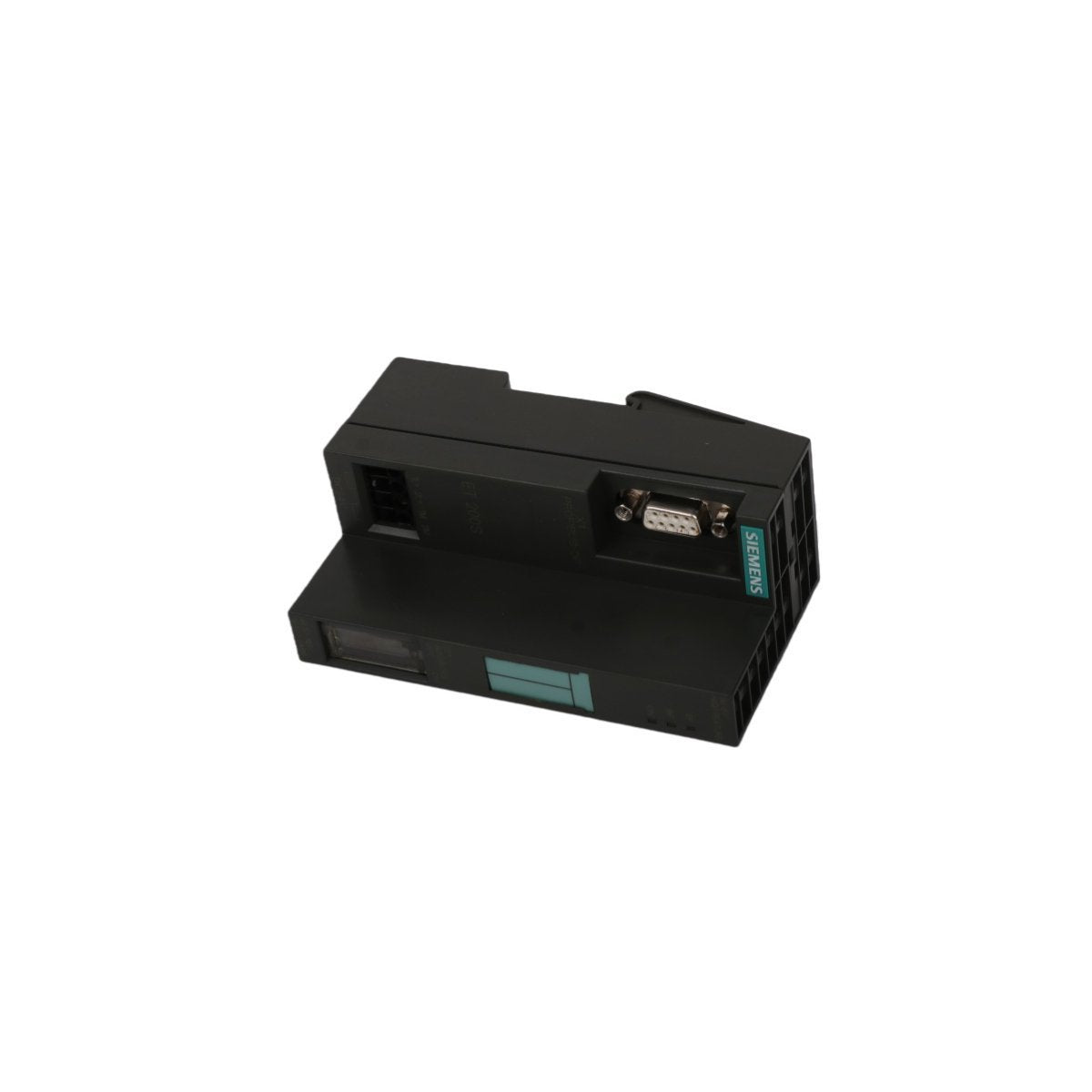

The Siemens 6ES7151-1BA00-0AB0 serves as the primary intelligence and communication gateway for the SIMATIC ET 200S distributed I/O system. Classified as an IM 151-1 Standard interface, this module functions as the "Head Station" on a PROFIBUS DP network, bridging the gap between a central PLC and remote field-level peripherals. Its primary role is to manage the backplane bus data exchange for a variety of electronic modules, including digital/analog I/O and motor starters. By decentralizing control logic and placing this interface directly at the machine level, engineers can significantly reduce wiring complexity and improve signal response times in complex automation topologies.

System Configuration and Communication Capacity

This interface module is engineered for high-density hardware management and deterministic data throughput:

• Network Protocol PROFIBUS DP V0 and V1 support

• Station Expansion Supports up to 63 individual I/O or motor starter modules per rack

• Data Throughput Maximum address space of 244 bytes for inputs and 244 bytes for outputs

• Transmission Rate Automatic detection up to 12 Mbit/s

• Isolation Galvanic isolation between the PROFIBUS DP interface and the backplane bus

• Configuration Logic Easy setup via GSD file or TIA Portal/STEP 7 hardware manager

• Unit Mass 0.95 kg

• Physical Dimensions 2.5 cm x 5.1 cm x 83.8 cm

• Manufacturing Origin Germany

• Export Classification HS Code 8537101190

The unit features integrated diagnostic LEDs for bus faults (BF), system faults (SF), and power status, allowing maintenance teams to troubleshoot network integrity without external diagnostic tools.

Industrial Applications and Integration Strategy

The 6ES7151-1BA00-0AB0 is a foundational component for large-scale manufacturing environments, particularly in automotive assembly lines and automated warehousing. Its ability to support up to 63 modules makes it ideal for managing high-density sensor arrays on conveyor systems, where localized PROFIBUS connectivity reduces the need for massive cable bundles returning to the main control room. In process industries, such as water treatment or food and beverage, the IM 151-1 Standard is utilized to link remote motor starters and valve manifolds to a central S7-300 or S7-400 controller. While it provides a more cost-effective alternative to the "High Feature" variant, it maintains the robust electrical protection required for placement in cabinets subject to electromagnetic noise from high-frequency drives. By standardizing on this interface, facility operators can ensure a scalable, future-proof distributed I/O architecture that is both easy to commission and simple to maintain through the modular "bit-modular" design of the ET 200S family.
