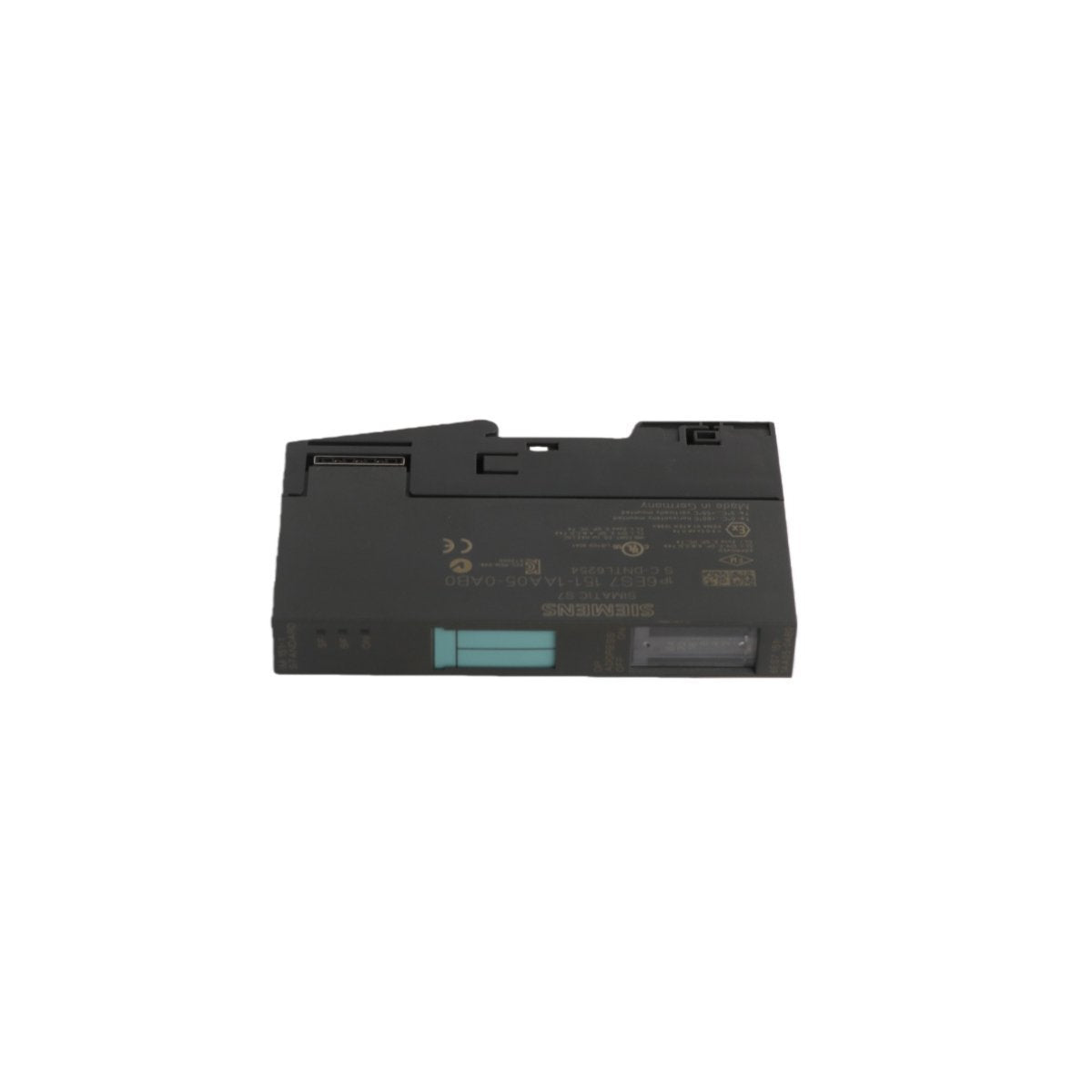

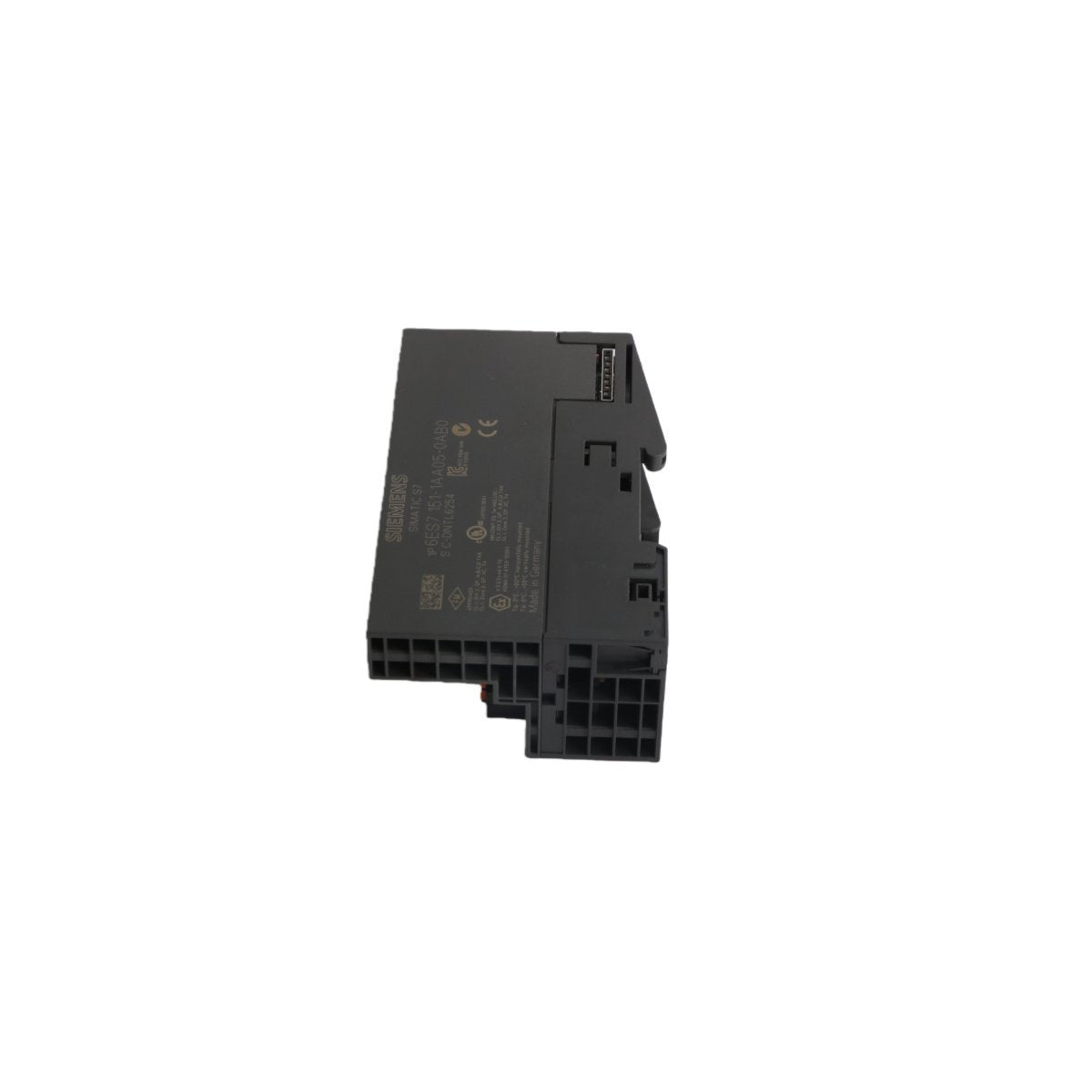

6ES7151-1AA05-0AB0 Siemens SIMATIC ET 200S IM 151-1 Standard Interface Module
-
Dimensions: 12.7 x 8.5 x 7.1 cm
-
Country of origin: Germany
-
Payment: T/T, Western Union
-
Shipping port: Xiamen
Product Overview
The Siemens 6ES7151-1AA05-0AB0 is a high-performance IM 151-1 Standard interface module designed to act as the primary communication gateway for the ET 200S distributed I/O system. This module facilitates the link between a central PLC (such as an S7-300 or S7-400) and remote field devices over a PROFIBUS DP network. By decentralizing the I/O architecture, the 6ES7151-1AA05-0AB0 allows for the localized acquisition of sensor data and distribution of control commands directly at the machine level. This reduces complex wiring overhead, minimizes signal interference over long distances, and provides a modular framework for scalable industrial automation.
Architecture Performance and Communication Capabilities
The hardware design of the 6ES7151-1AA05-0AB0 is optimized for high-density data throughput and system flexibility:
-
PROFIBUS Connectivity: Utilizes a standard 9-pin D-sub female connector for reliable RS485 bus communication at speeds up to 12 Mbit/s.
-
Payload Capacity: Manages a substantial data volume with up to 244 bytes for input and 244 bytes for output per station.
-
Expansion Potential: Supports the connection of up to 63 individual I/O modules (such as digital, analog, or power modules) on a single localized rack.
-
Bus Length Support: Capable of addressing stations across extensive network segments, depending on the configured baud rate and repeaters used.
-
Diagnostic Intelligence: Features integrated SF (System Fault) and BF (Bus Fault) LED indicators for rapid localized troubleshooting and network status verification.
-
Modular Configuration: Designed for DIN-rail mounting, providing a compact 45mm width footprint that saves valuable control cabinet space.
-
Compatibility: Engineered to operate seamlessly within any standard PROFIBUS DP environment, ensuring interoperability with third-party masters via GSD files.
Strategic Industrial Infrastructure Roles
The IM 151-1 Standard module is a foundational component for decentralized control strategies across various automated sectors:
| Industry Segment | Implementation Utility |
| Factory Automation | Decentralizing I/O for conveyor systems and assembly cells to simplify field wiring and maintenance. |
| Material Handling | Managing remote sensor clusters on large-scale sorting systems with high-speed PROFIBUS data exchange. |
| Machine Tooling | Providing a localized interface for motor starters and frequency inverters within a unified ET 200S station. |
| Process Logistics | Serving as a communication head for remote valve terminals and flow transmitters in large distribution plants. |
| Legacy Site Support | Acting as a drop-in replacement part to maintain the operational uptime of established S7-300 and S7-400 control networks. |
