Product Overview

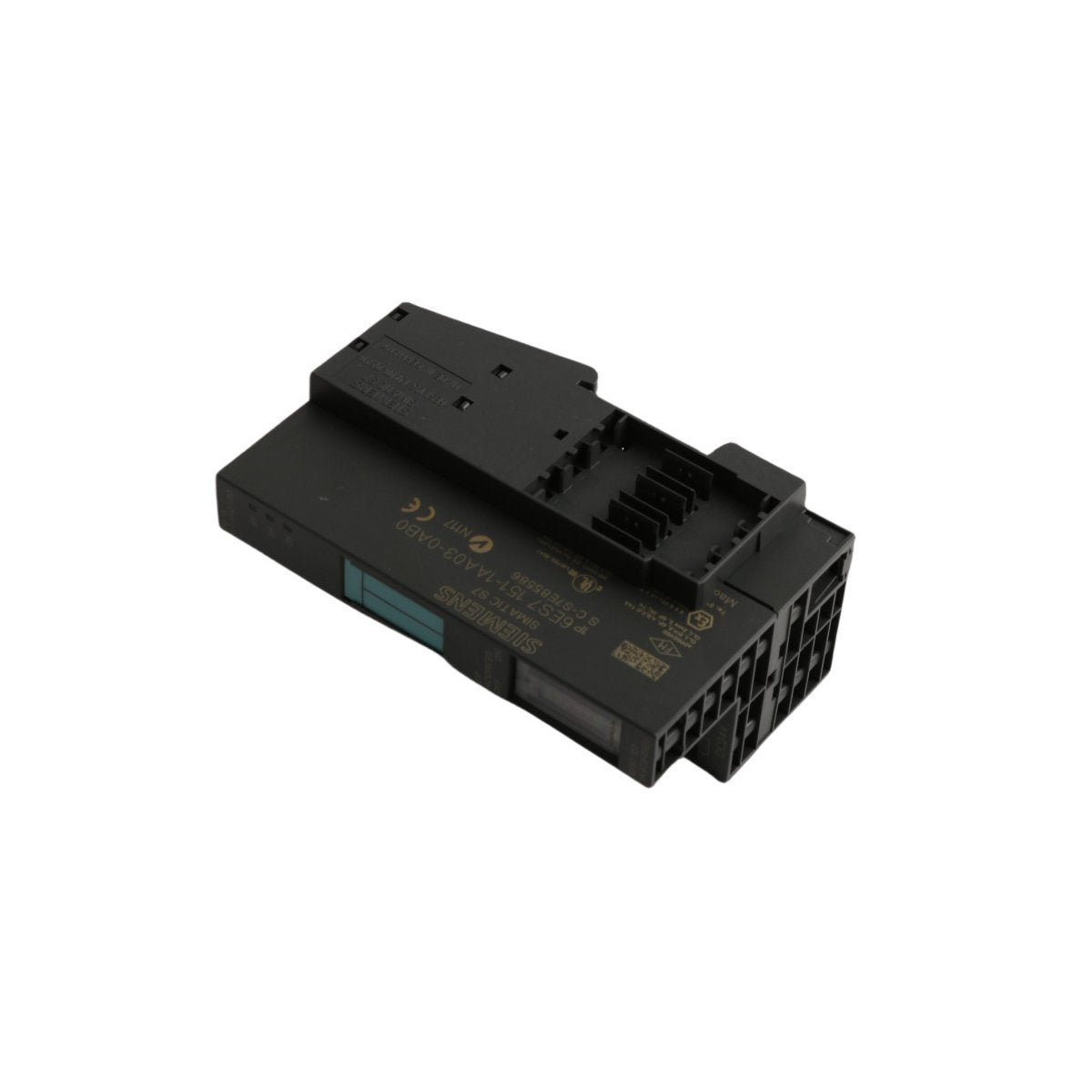

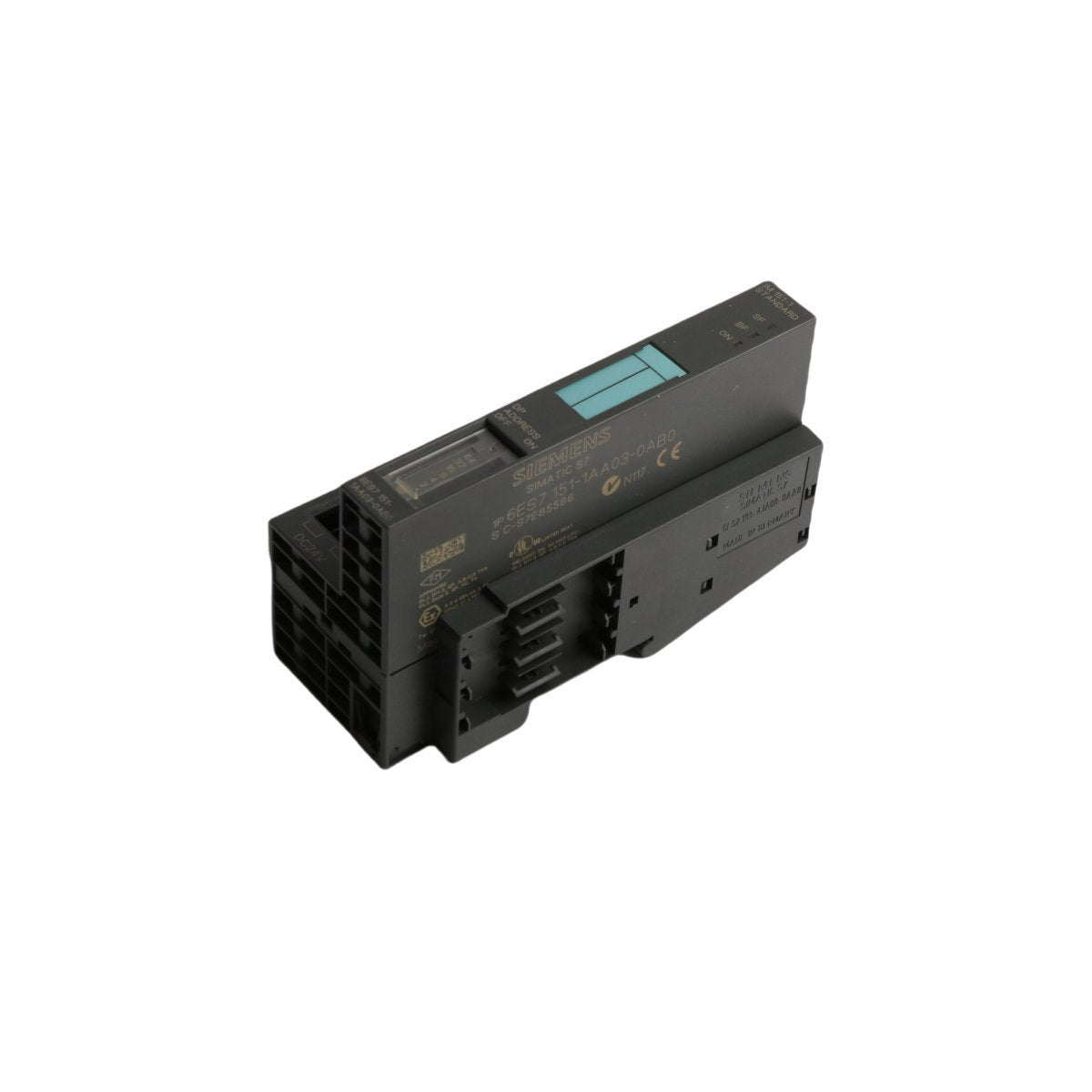

The 6ES7151-1AA03-0AB0 is a high-performance communication head-end module designed for the Siemens SIMATIC ET 200S distributed I/O system. As an IM151-1 Standard interface, its primary function is to link decentralized I/O stations to a master PLC via the PROFIBUS DP network. This module manages the entire data traffic between the field-level electronic modules and the higher-level controller, ensuring deterministic and rapid signal processing. By acting as the gateway for up to 63 expansion modules, it provides the backbone for scalable automation architectures where centralized control of remote hardware is essential for operational efficiency.

System Specifications and Networking Architecture

Field Deployment and Industrial Integration

Decentralized Control in Manufacturing

The 6ES7151-1AA03-0AB0 is widely implemented in automotive assembly and large-scale manufacturing lines. It allows engineers to place I/O points directly at the machine sensors and actuators, reducing wiring costs and electromagnetic interference compared to traditional centralized wiring.

Process Plant Distribution

In water treatment or chemical processing, this interface module manages remote clusters of analog and digital signals. Its support for 128-byte data packets ensures that complex diagnostic data from specialized instruments can be transmitted back to the main control room without latency.

Material Handling and Logistics

Used in massive conveyor and sorting systems, the IM151-1 Standard enables high-speed data exchange required for precision timing. The 12 Mbit/s PROFIBUS capability ensures that tracking sensors and diverter actuators stay perfectly synchronized with the central logic.

Legacy Infrastructure Support

As a robust and proven interface, this module is a critical spare part for maintaining existing SIMATIC S7-300 or S7-400 installations. It provides a reliable pathway for facilities to expand their current PROFIBUS networks without transitioning to newer Ethernet-based protocols.
