Product Overview

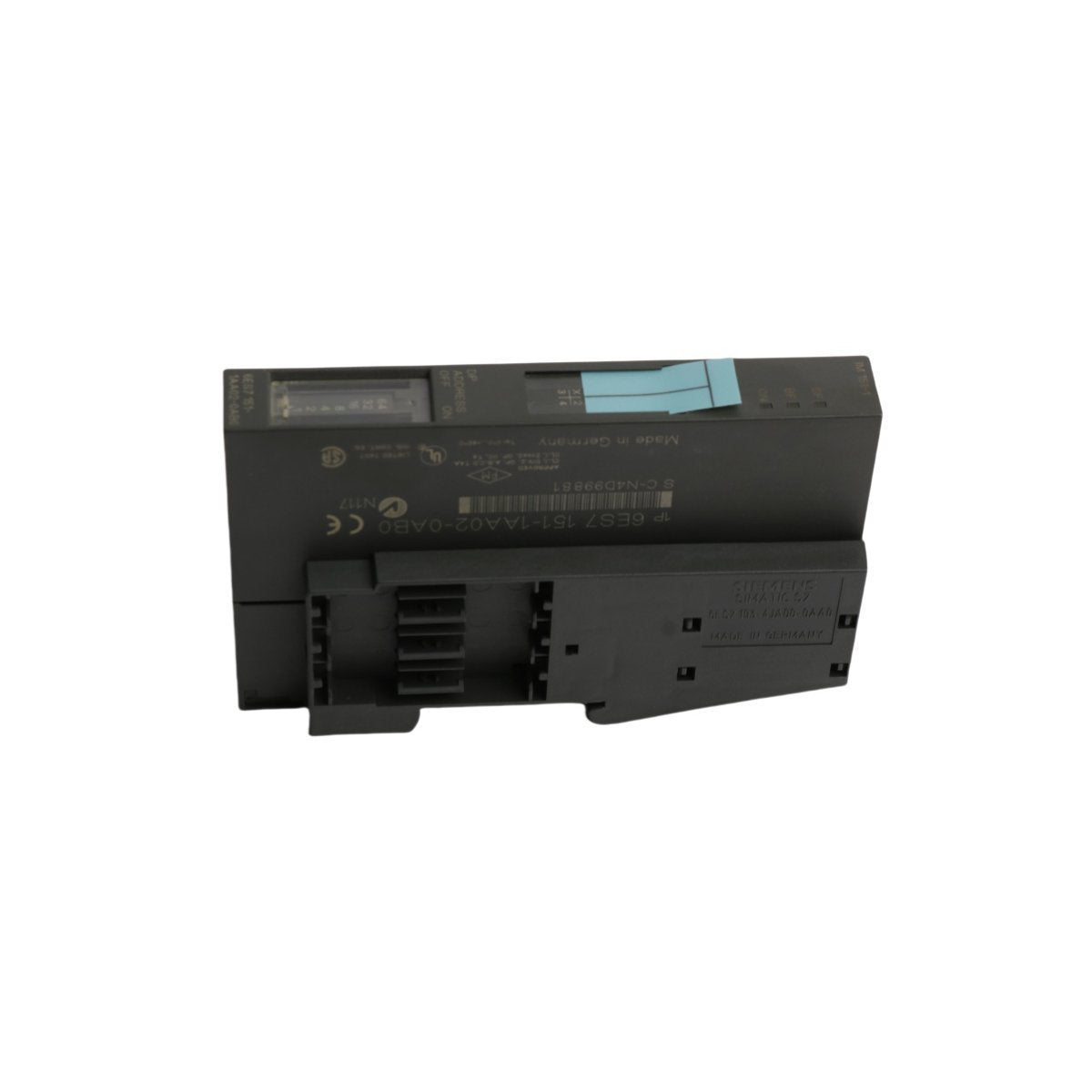

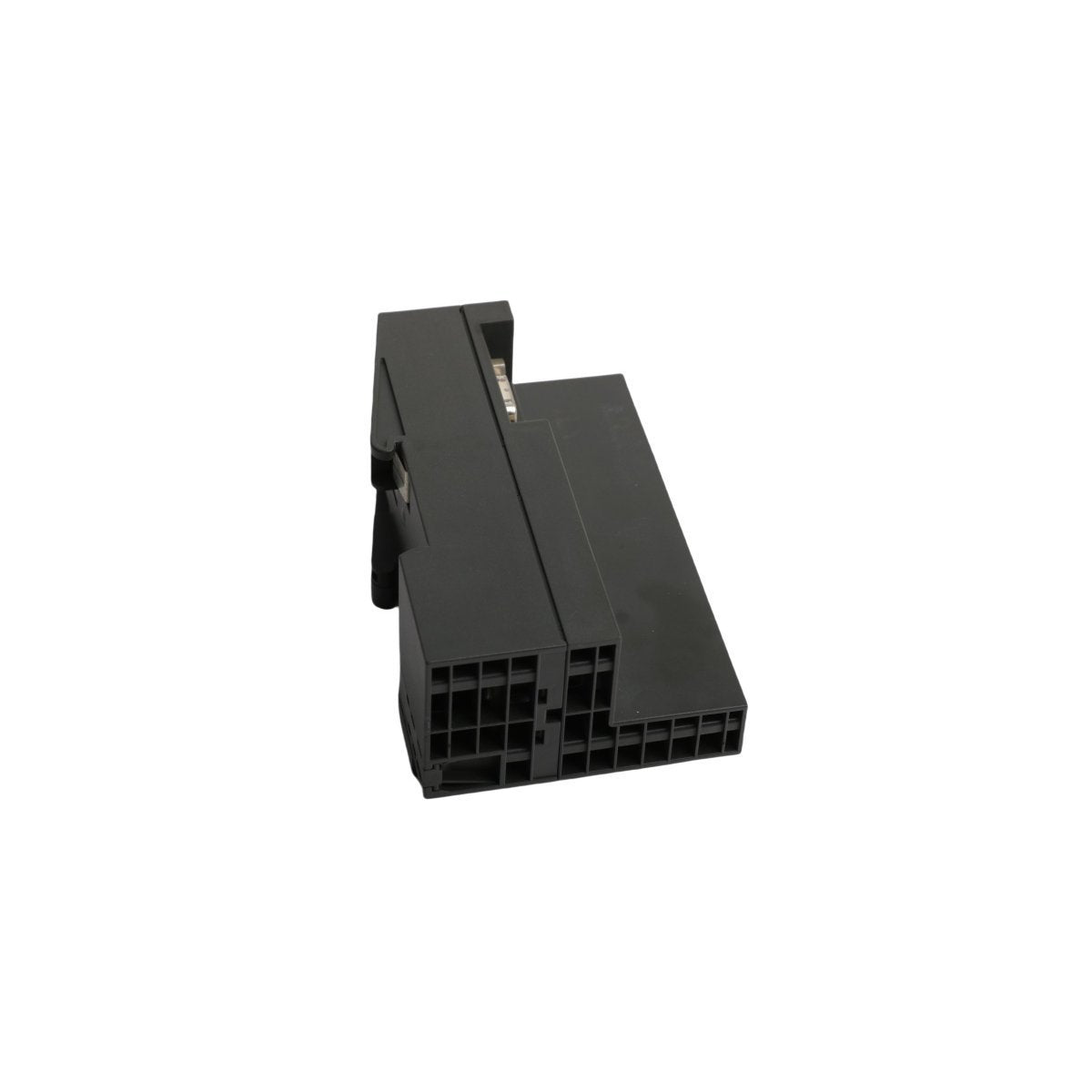

The 6ES7151-1AA02-0AB0 is a high-performance communication head-end for the SIMATIC ET 200S distributed I/O system. Serving as the IM151-1 Standard interface, this module is the primary link between a central PLC (such as an S7-300 or S7-400) and remote field-level components. It manages the cyclic data exchange across the PROFIBUS DP network, translating high-speed bus signals into local backplane commands for electronic and power modules. Its architecture is optimized for reliability and modularity, allowing engineers to build decentralized control nodes that reduce field wiring while maintaining deterministic response times in complex automation environments.

Technical Architecture and Data Parameters

• Communication Protocol: PROFIBUS DP (up to 12 Mbit/s with auto-detection)

• Max Station Expansion: Supports the connection of up to 63 I/O modules

• Address Space: Handles up to 128 bytes of input data and 128 bytes of output data

• Interface Hardware: Integrated 9-pin Sub-D female connector for bus linkage

• Bus Termination: Comes standard with the necessary terminating module for end-of-station integrity

• Voltage Supply: 24V DC nominal input

• Physical Profile: Compact 45mm width for high-density rail mounting

• Weight: 0.15 kg (Net) / 0.2 kg (Shipping)

• Configuration: Parametrization via STEP 7 or GSD file for multi-vendor integration

Industrial Integration and Practical Use

• Decentralized Manufacturing: Ideal for automotive and assembly lines where sensors and actuators are spread across a wide area, requiring localized I/O clusters.

• Material Handling Systems: Used in conveyor control networks to manage distributed motor starters and proximity sensors via a single PROFIBUS line.

• Process Plant Connectivity: Integrates analog and digital signals in water treatment or chemical processing skids without running hundreds of individual wires back to the central rack.

• Machine Retrofitting: A preferred choice for upgrading legacy machinery to a distributed architecture, significantly improving diagnostic capabilities and reducing maintenance overhead.

• Modular System Scalability: Enables manufacturers to add or remove I/O capacity by simply clipping new electronic modules onto the ET 200S rail without reconfiguring the entire bus head.
