Product Overview

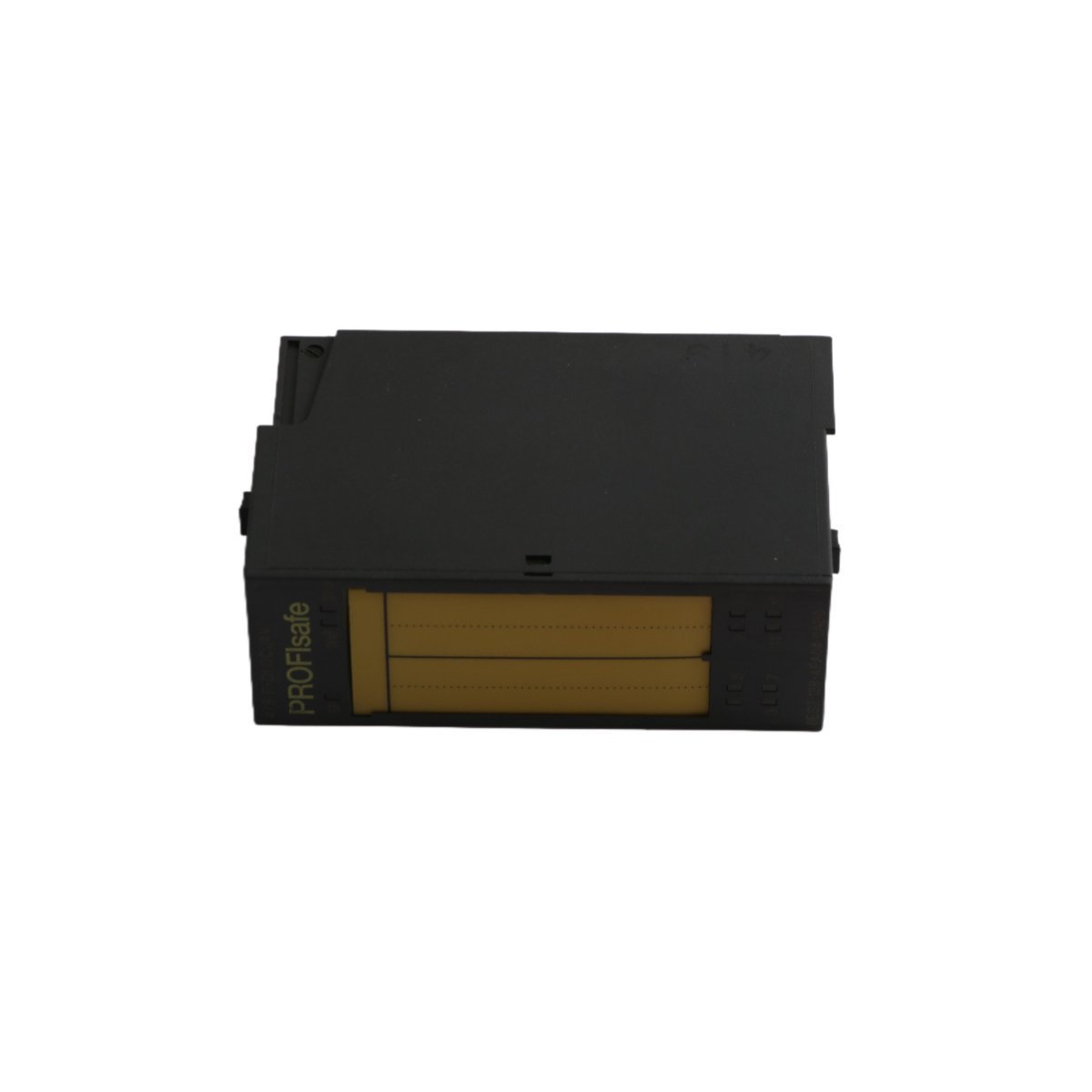

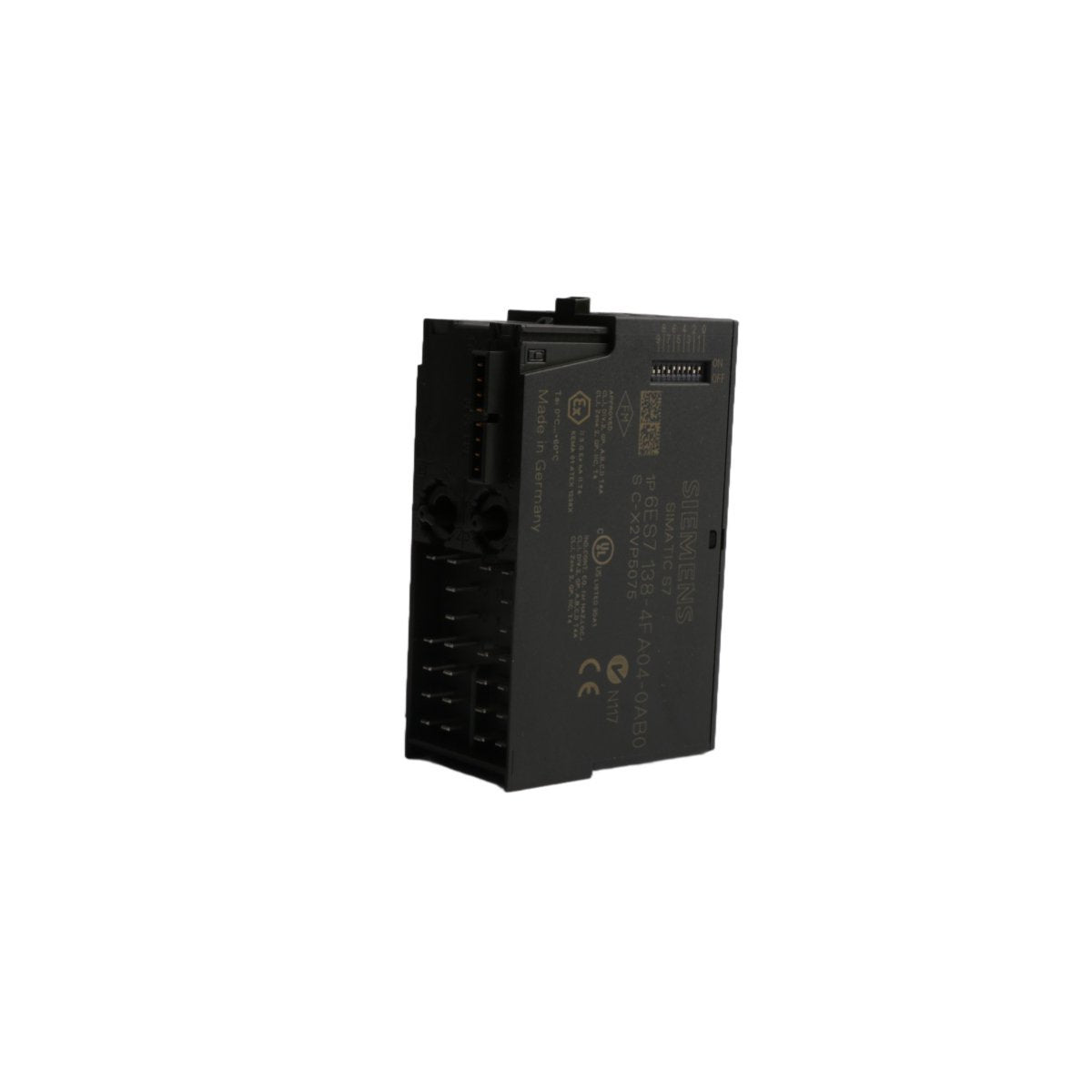

The 6ES7138-4FA04-0AB0 is a specialized fail-safe electronic module designed for the Siemens SIMATIC ET 200S distributed I/O ecosystem. This PROFIsafe-enabled component provides a highly secure interface for acquiring safety-related digital signals, supporting either 4-channel or 8-channel configurations depending on the wiring requirements (single-channel or dual-channel evaluation). Engineered to operate in environments with the most stringent protection requirements, it integrates seamlessly into safety-oriented automation architectures. By utilizing advanced internal diagnostics and redundant monitoring, the module ensures that critical signals from field devices are processed with the highest level of integrity, effectively bridging the gap between hardware safety and digital control logic.

Safety Certification and Hardware Parameters

• Safety Integrity Level: Supports applications up to SIL 3 (IEC 61508) and PLe (ISO 13849-1).

• Input Configuration: 4 F-DI (for dual-channel safety) or 8 F-DI (for single-channel safety).

• Rated Voltage: 24V DC (L+ protection).

• Communication Protocol: PROFIsafe via PROFIBUS DP or PROFINET (requires High Feature interface modules).

• Module Width: 30 mm compact design for space-optimized cabinet mounting.

• Internal Monitoring: Short-circuit detection, cross-circuit monitoring, and wire break diagnostics.

• Isolation: Optically isolated between backplane bus and load voltage for enhanced noise immunity.

• Weight: 0.24 kg.

• Operating Range: Compatible with ET 200S standard and safety-related terminal modules.

Functional Deployment & Security Applications

• Emergency Shutdown (ESD) Systems: Reliable processing of inputs from E-stop pushbuttons and pull-wire switches in manufacturing cells.

• Machine Guard Monitoring: Interfacing with safety gate switches and magnetic interlocks to prevent unauthorized access during machine operation.

• Hazardous Zone Isolation: Managing inputs from light curtains and laser scanners to ensure immediate machine deceleration or shutdown upon detection of personnel.

• Safety Logic Migration: Ideal for facilities transitioning from traditional PROFIBUS DP safety layouts to modern PROFINET-based Ethernet architectures.

• Automotive & Material Handling: Crucial for protecting operators near robotic assembly stations and high-speed conveyor sorting systems where deterministic safety response times are mandatory.
