Product Overview

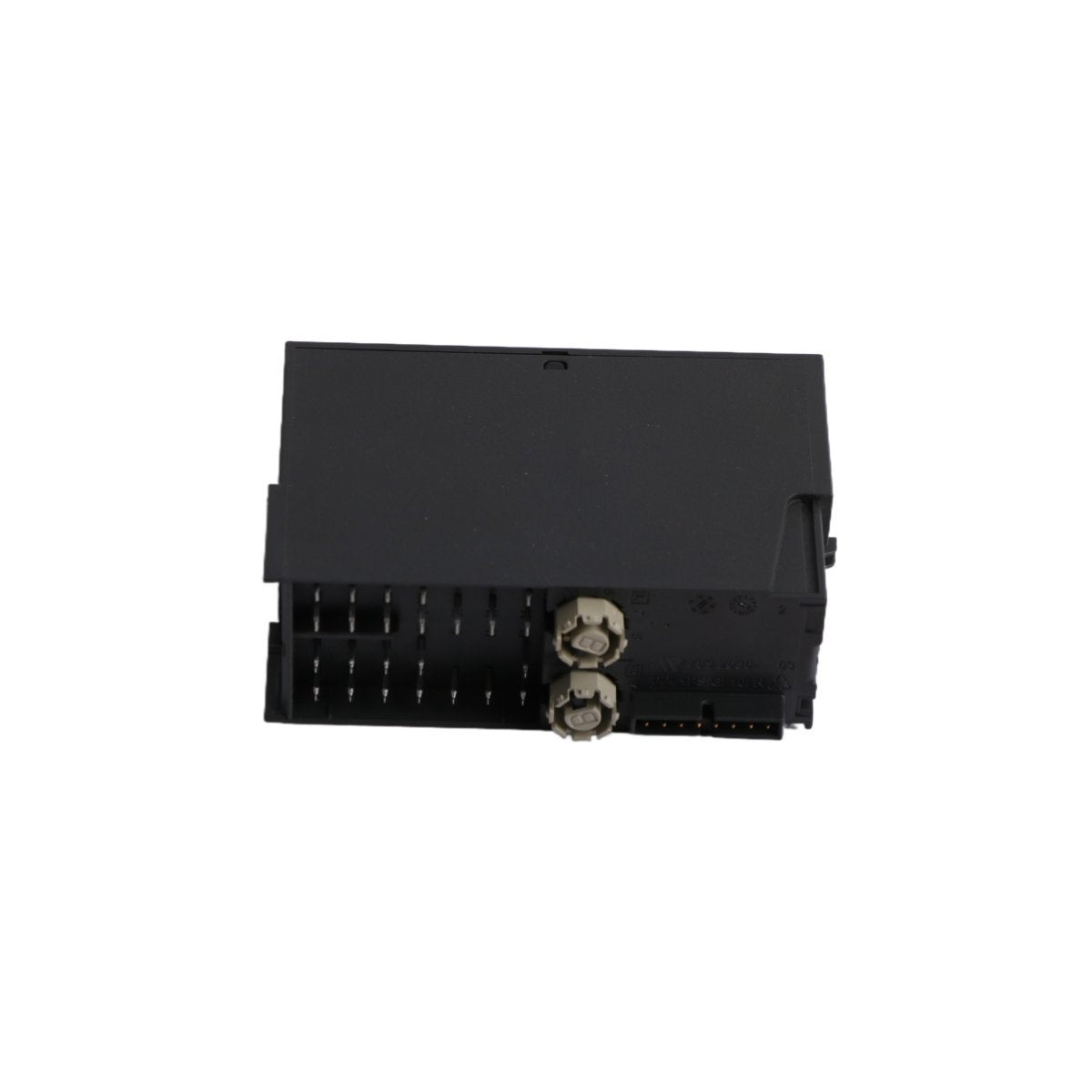

The Siemens 6ES7138-4FA03-0AB0 is a specialized fail-safe electronic module developed for the SIMATIC ET 200S distributed I/O architecture. This safety-rated component is engineered to process critical digital signals within a PROFIsafe network environment. It provides a high-integrity interface for safety-related field devices, such as emergency stop buttons, light curtains, and safety interlocks. By decentralizing safety logic, this module allows for shorter wiring runs and improved diagnostic transparency, ensuring that machine-level hazards are managed according to the most stringent international safety regulations.

Safety Architecture and Hardware Specifications

This module is defined by its redundant internal processing and its ability to maintain safe states even in the event of hardware or communication failures.

• Number of Fail-Safe Inputs: 4 or 8 channels (depending on 1-out-of-1 or 1-out-of-2 wiring configuration)

• Nominal Voltage: 24V DC

• Safety Standards Compliance: SIL 3 (IEC 61508), PL e (ISO 13849-1), and Category 4 (EN 954-1)

• Communication Protocol: PROFIsafe via PROFINET or PROFIBUS DP

• Module Width: 30 mm

• Diagnostic Capabilities: Short-circuit monitoring, wire break detection, and internal self-tests

• Power Loss: Typical 4.0 W

• Product Dimensions: 10.5 x 12.5 x 4 cm

• Net Weight: 0.24 kg

• Manufacturing Origin: Germany

• Isolation: Galvanic isolation between backplane bus and load voltage

Mission-Critical Safety Implementations

Automotive Robotic CellsIn high-speed assembly lines, the 6ES7138-4FA03-0AB0 is used to monitor safety gates and laser scanners. When a human operator enters a restricted zone, the module instantly transmits a fail-safe signal via PROFIsafe to the central F-CPU, ensuring that robotic arms reach a safe stop in accordance with SIL 3 requirements.

Packaging and Filling MachineryThis module manages the emergency stop circuits across distributed sections of a packaging plant. Because it integrates directly into the ET 200S station, it allows for localized safety signal processing, reducing the complexity of the safety relay cabinet and providing detailed fault diagnostics to the HMI if an E-stop is triggered.

Complex Material HandlingFor automated warehouse systems and long-distance conveyors, the 6ES7138-4FA03-0AB0 provides the reliable input processing needed for pull-wire switches and position sensors. Its vibration-resistant construction ensures that safety signals are never lost due to the mechanical stress typical of heavy-duty logistics environments.

Safe Motion ControlWhen paired with fail-safe drives, this module acts as the sensor interface for safe speed monitoring and safe torque off (STO) functions. Its fast response time and high-resolution diagnostics ensure that any deviation from safe operating parameters is detected and addressed before a hazardous situation develops.
