Product Overview

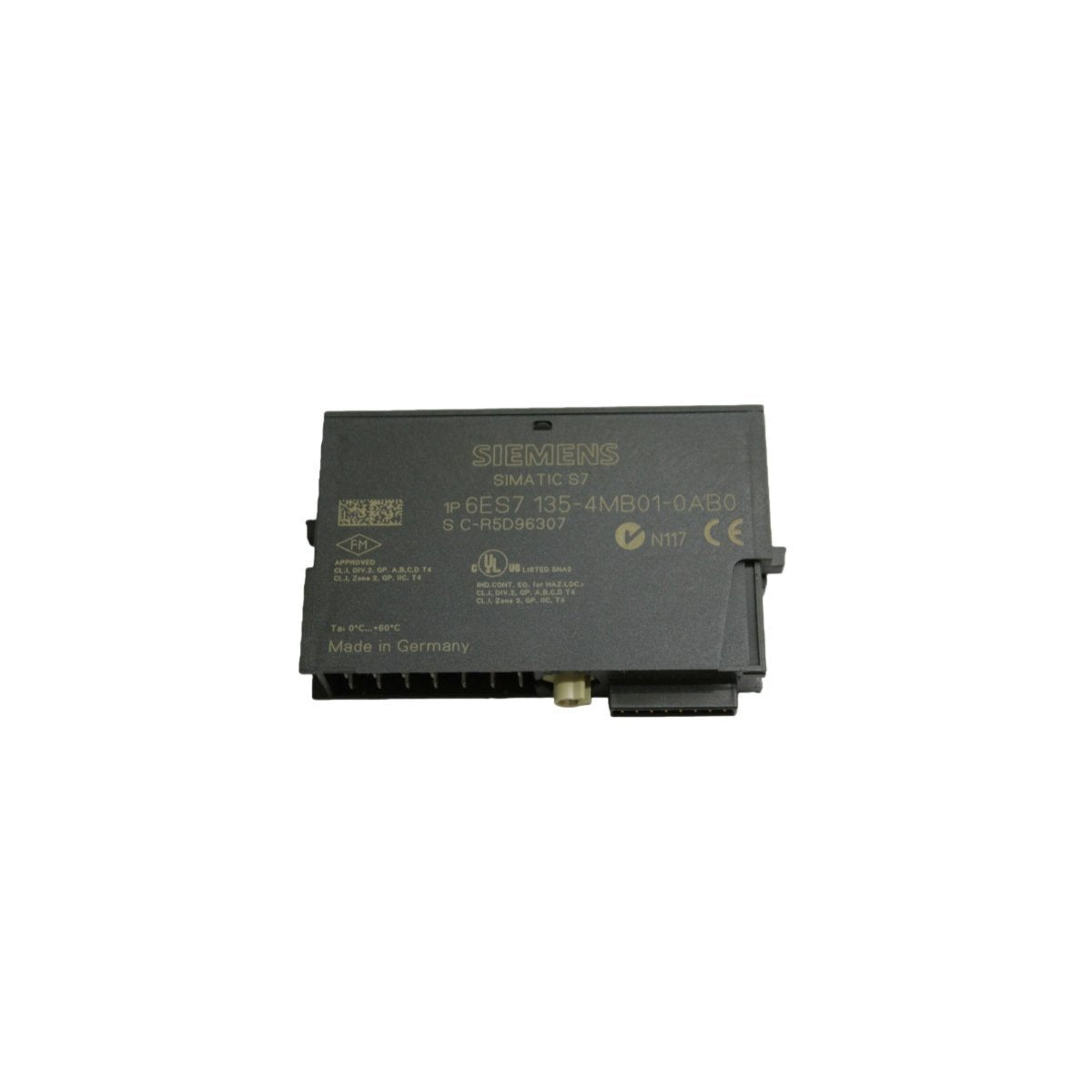

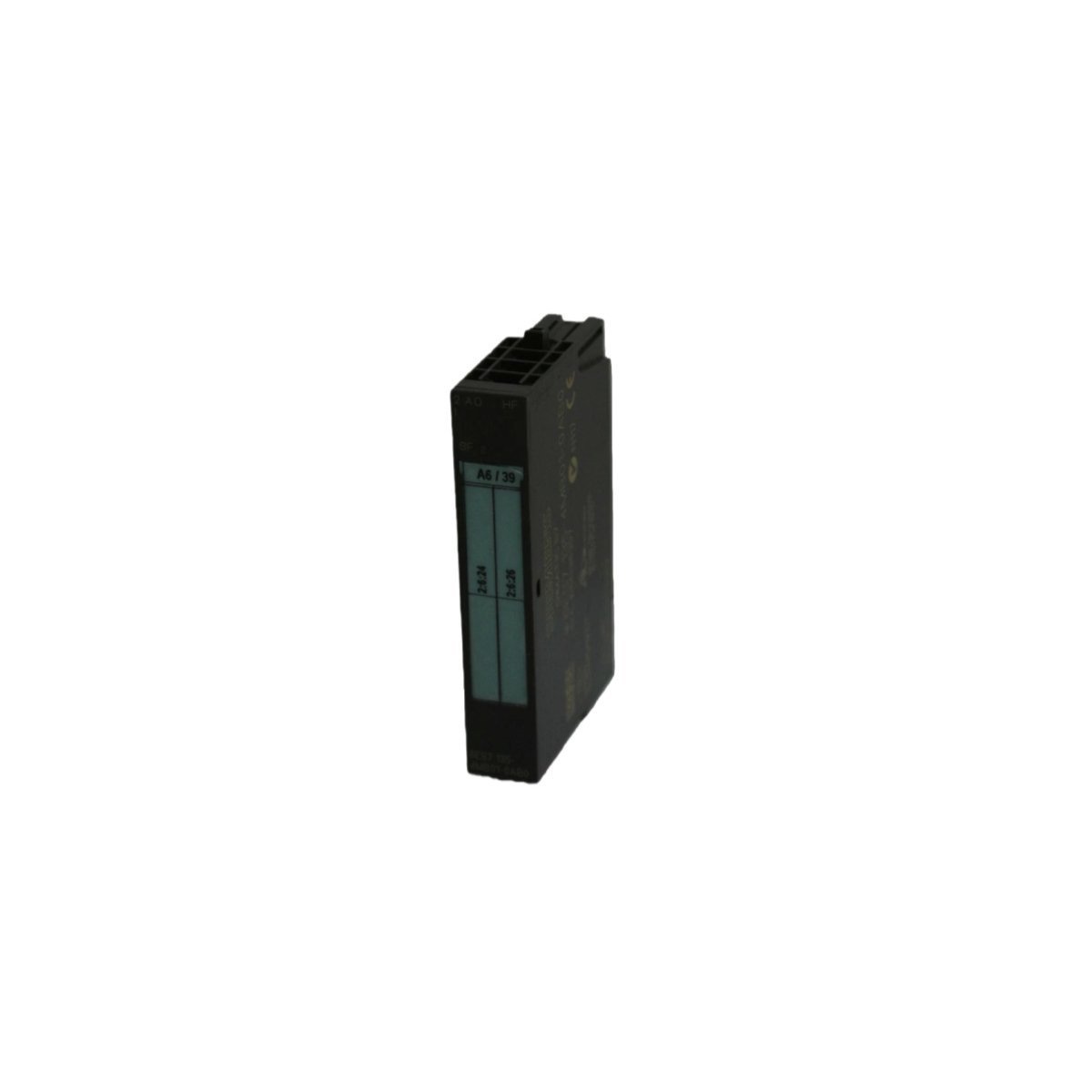

The Siemens 6ES7135-4MB01-0AB0 is a sophisticated 2-channel analog output expansion module engineered for the SIMATIC ET 200S distributed I/O architecture. This unit acts as the primary interface between digital control logic and physical actuators, converting processor commands into highly precise voltage signals. By deploying this module in decentralized configurations, industrial operators can position control intelligence closer to the field equipment. This design strategy effectively eliminates signal degradation and noise interference associated with long-distance analog wiring, ensuring stable and deterministic performance for high-stakes automation processes.

Superior Hardware Integration and Operational Specs

This High-Feature electronic module is built to deliver exceptional resolution and electrical protection within a modular framework:

• Dual-Channel Output: Manages two independent analog voltage channels in a slim, space-saving 15mm width housing.

• Precision Signal Output: Delivers high-linearity voltage signals with standard operational ranges of +/- 10V or 1 to 5V.

• High-Bit Resolution: Utilizes 15-bit plus sign resolution to provide ultra-fine granularity for sensitive modulation tasks.

• Intelligent Monitoring: Features advanced diagnostics for short-circuit detection, group errors, and bus communication integrity.

• Hot-Swap Compatibility: Engineered for integration with ET 200S terminal modules, allowing for component replacement under power without disrupting system wide operations.

• Isolated Circuitry: Offers reliable galvanic isolation between the internal backplane bus and the external load to safeguard the PLC CPU.

• Rapid Response: Optimized for low-latency signal updates, ensuring that field devices respond instantly to changes in the control algorithm.

Specialized Industrial Use Cases

The 6ES7135-4MB01-0AB0 is a critical asset for sectors requiring meticulous control over variable electrical signals:
