Product Overview

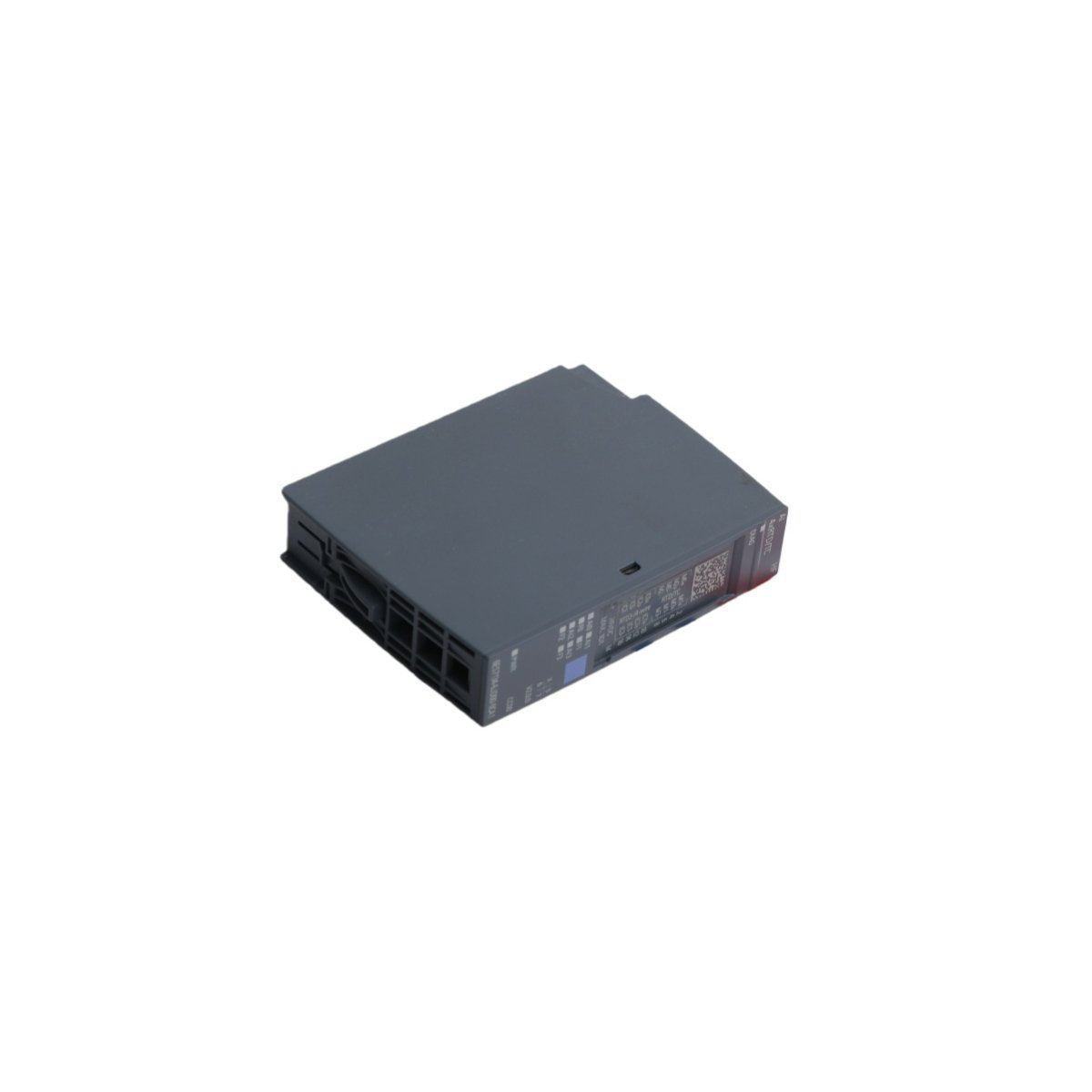

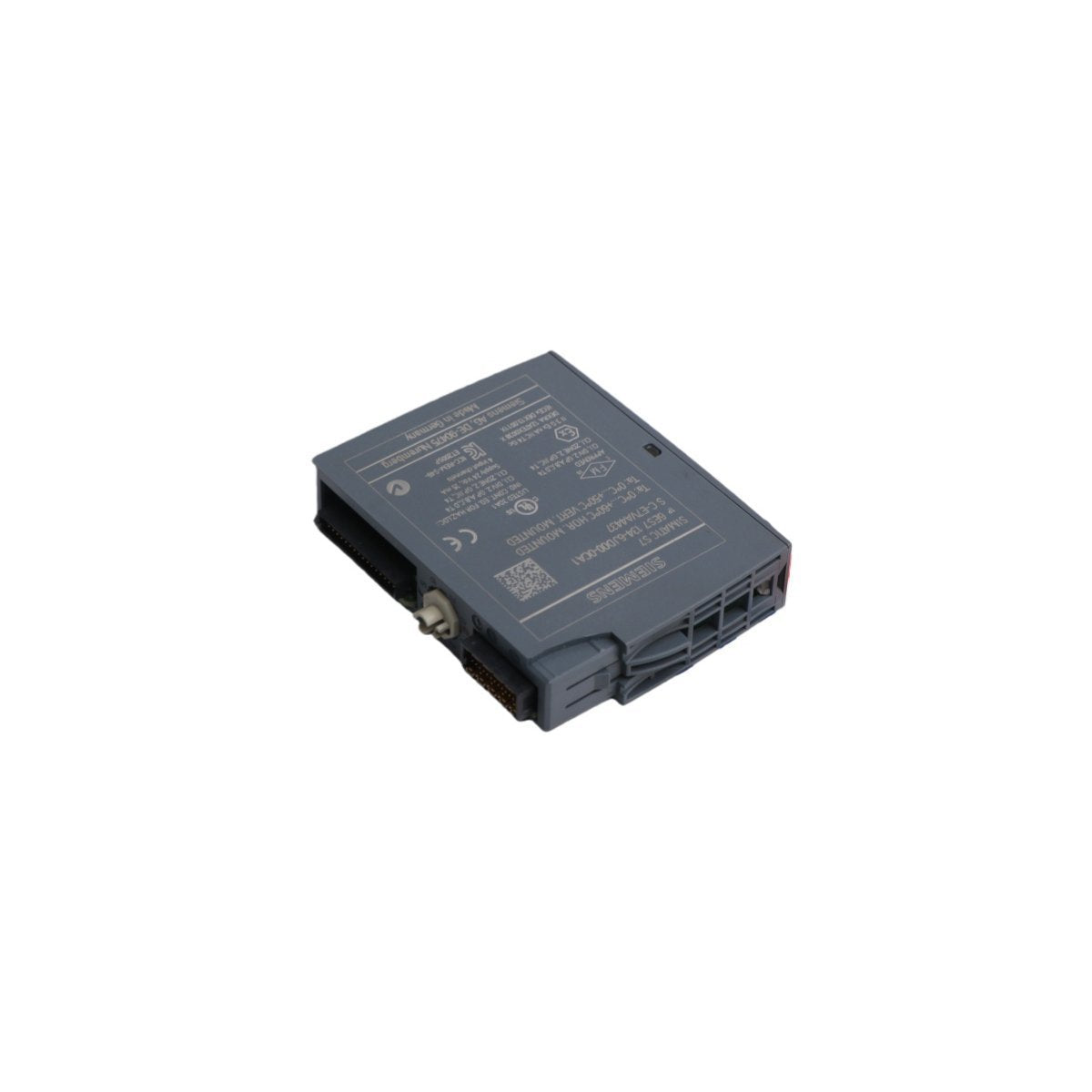

The Siemens 6ES7134-6JD00-0CA1 is a premium High Feature (HF) analog input module designed for the decentralized SIMATIC ET 200SP I/O system. This advanced electronic component is engineered to provide precise temperature acquisition across four independent channels. It acts as a universal thermal interface, capable of processing signals from both Resistance Temperature Detectors (RTD) and Thermocouples (TC). By utilizing high-resolution 16-bit conversion and internal cold-junction compensation, this module translates delicate microvolt or resistance changes into accurate digital process values. Its modular design allows it to be integrated into space-critical control cabinets while maintaining the high-speed backplane communication characteristic of the ET 200SP family.

Advanced Engineering and Technical Attributes

• Input Capacity 4 Analog Inputs (Configurable for RTD or Thermocouple)

• Measurement Resolution 16-bit (including sign)

• Accuracy Class +/- 0.1 percent of full scale

• RTD Connection Modes Supports 2-wire, 3-wire, and 4-wire configurations

• Thermocouple Support Compatible with Types B, E, J, K, L, N, R, S, T, U, C

• Diagnostics Detailed channel-level monitoring for wire breaks, overflow, and underflow

• BaseUnit Interface Compatible with BU-Type A0 or A1 (Color Code CC00)

• Energy Consumption Typically 0.75W power loss

• Net Weight 0.95 kg

• Unit Dimensions 2.5 cm x 5.1 cm x 83.8 cm

• Origin Germany

• HS Tariff Code 8537101190

This module features integrated noise suppression for 50/60 Hz interference, ensuring that high-precision measurements remain stable in environments with heavy electrical motor noise or high-frequency drives.

Practical Industry Implementation

The 6ES7134-6JD00-0CA1 is a cornerstone for process-driven industries where thermal precision is non-negotiable. In pharmaceutical and chemical manufacturing, it is utilized to monitor reactor vessel temperatures where the difference of a fraction of a degree can affect batch quality. The 4-wire RTD support is particularly valuable in large-scale facilities like oil refineries, where long cable runs between the sensor and the control cabinet otherwise introduce lead-resistance errors. In the food and beverage industry, the module's thermocouple capabilities are used to monitor high-temperature ovens and pasteurization cycles. Furthermore, its advanced diagnostic suite—providing immediate alerts for sensor burnout or cabling faults—makes it an ideal choice for critical equipment protection in power generation and metallurgy. By decentralizing these high-feature measurements through the ET 200SP architecture, plant operators can achieve laboratory-grade accuracy directly on the factory floor.
