Product Overview

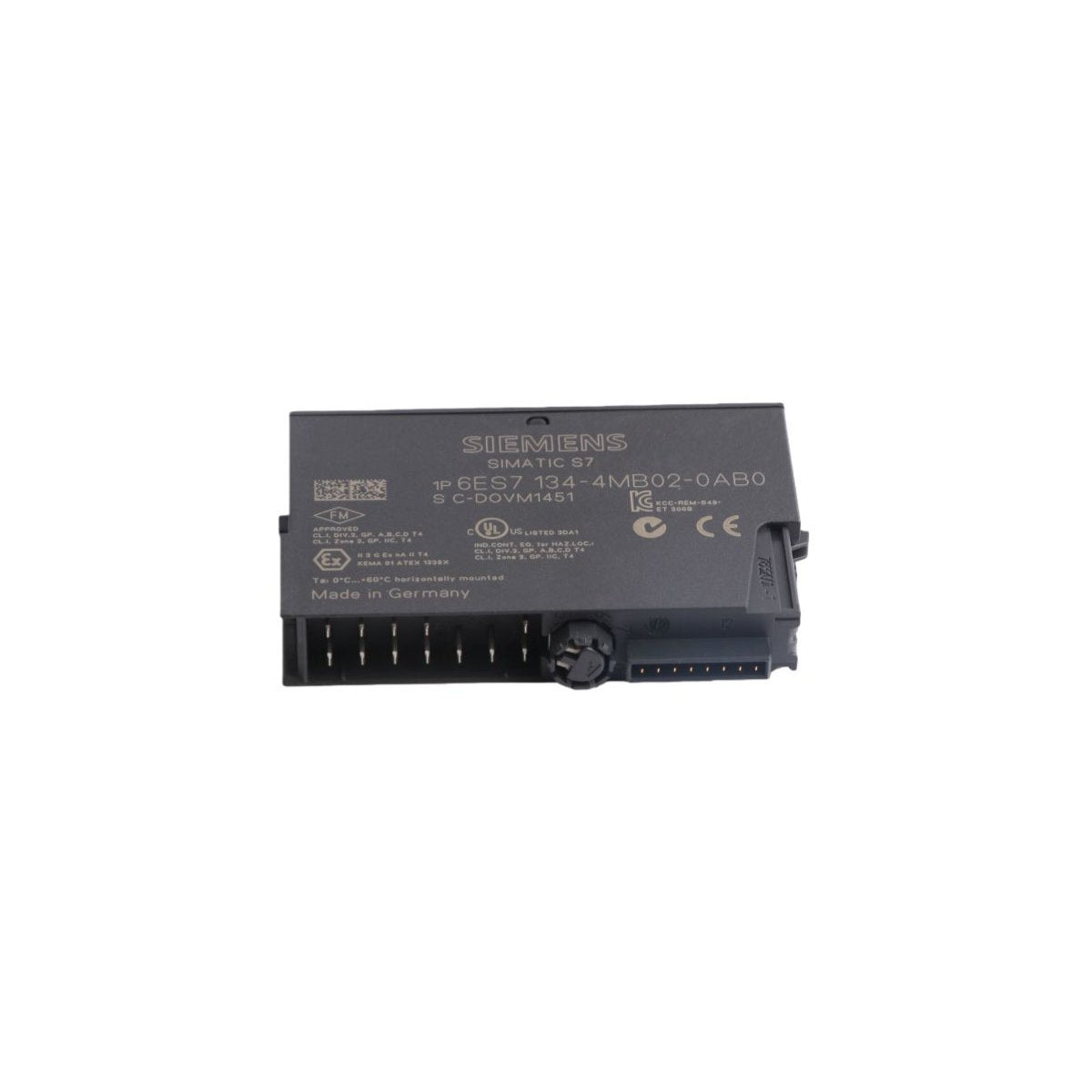

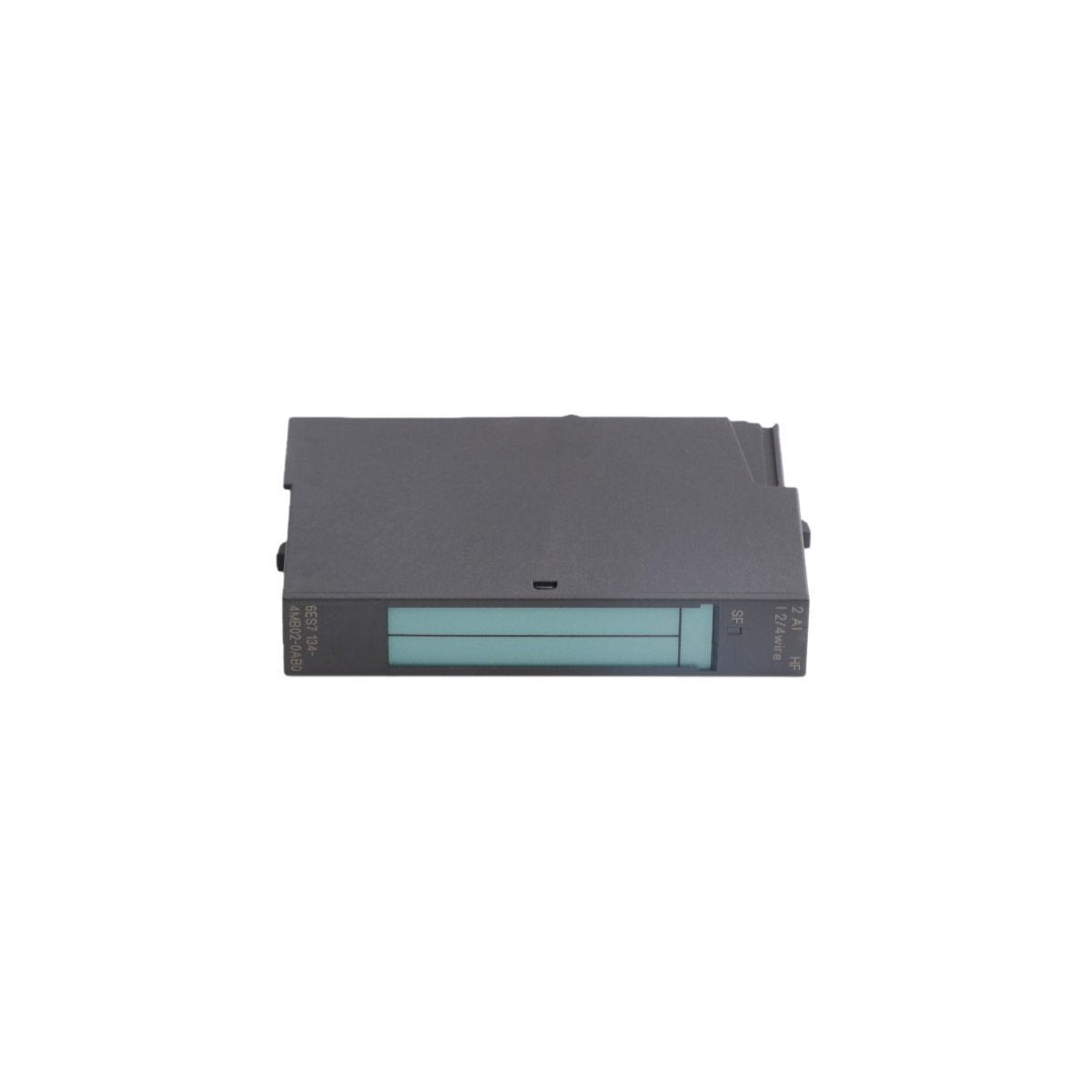

The Siemens 6ES7134-4MB02-0AB0 is a high-precision, two-channel analog input module designed for the SIMATIC ET 200S distributed I/O family. Categorized as a "High Feature" (HF) component, this module is engineered for industrial environments where measurement accuracy and synchronization are non-negotiable. It provides a compact 15mm form factor that allows for maximum I/O density on the DIN rail. The 6ES7134-4MB02-0AB0 is specifically optimized for current measurement, supporting standard industrial ranges with high resolution. By utilizing isochronous mode, it delivers deterministic data processing, making it a critical choice for motion control and fast-cycle process automation.

Measurement Performance and Hardware Specifications

This module features advanced signal conditioning and high-speed conversion circuitry to ensure data integrity in the presence of industrial electrical noise.

• Input Resolution: Delivers exceptional 15-bit plus sign resolution for granular signal tracking.

• Signal Ranges: Dual-channel support for both bipolar ($\pm20$ mA) and unipolar (4 to 20 mA) current signals.

• Synchronization: Supports isochronous operation with a rapid conversion time of 0.5 ms and a minimum DP cycle of 0.7 ms.

• Transducer Compatibility: Flexible configuration allows for both 2-wire and 4-wire measuring transducers.

• Signal Protection: High common-mode voltage tolerance (up to 100 VAC) and complete electrical isolation from load voltage L+.

• Diagnostic Suite: Integrated group fault (SF) LED and I&M (Identification & Maintenance) data support for rapid troubleshooting.

Industrial Utility and Control Scenarios

The 6ES7134-4MB02-0AB0 is the preferred solution for decentralized control architectures requiring high-fidelity analog feedback.

Precision Chemical DosingIn pharmaceutical and chemical processing, accurate current feedback is required to manage flow rates and additive volumes. The 15-bit resolution of this High Feature module allows the PLC to detect minute fluctuations in transducer signals, ensuring batch consistency and compliance with strict quality standards.

High-Speed Machine SynchronizationUtilizing its isochronous mode, the 6ES7134-4MB02-0AB0 is ideal for machines where analog feedback must be perfectly synchronized with the PROFIBUS/PROFINET cycle. This is essential for tension control in printing presses or position tracking in high-speed sorting systems.

Critical Infrastructure MonitoringFor energy and water management systems, the 100V common-mode voltage protection ensures that the module remains operational even in environments with significant ground potential differences. It reliably monitors 4-20 mA pressure and level sensors across expansive distributed sites.

OEM Panel ConstructionThe slim 15mm design enables machine builders to significantly reduce the size of localized control boxes. By integrating high-density 2AI HF modules, OEMs can provide full analog monitoring capabilities without increasing the footprint of the distributed I/O station.
