Product Overview

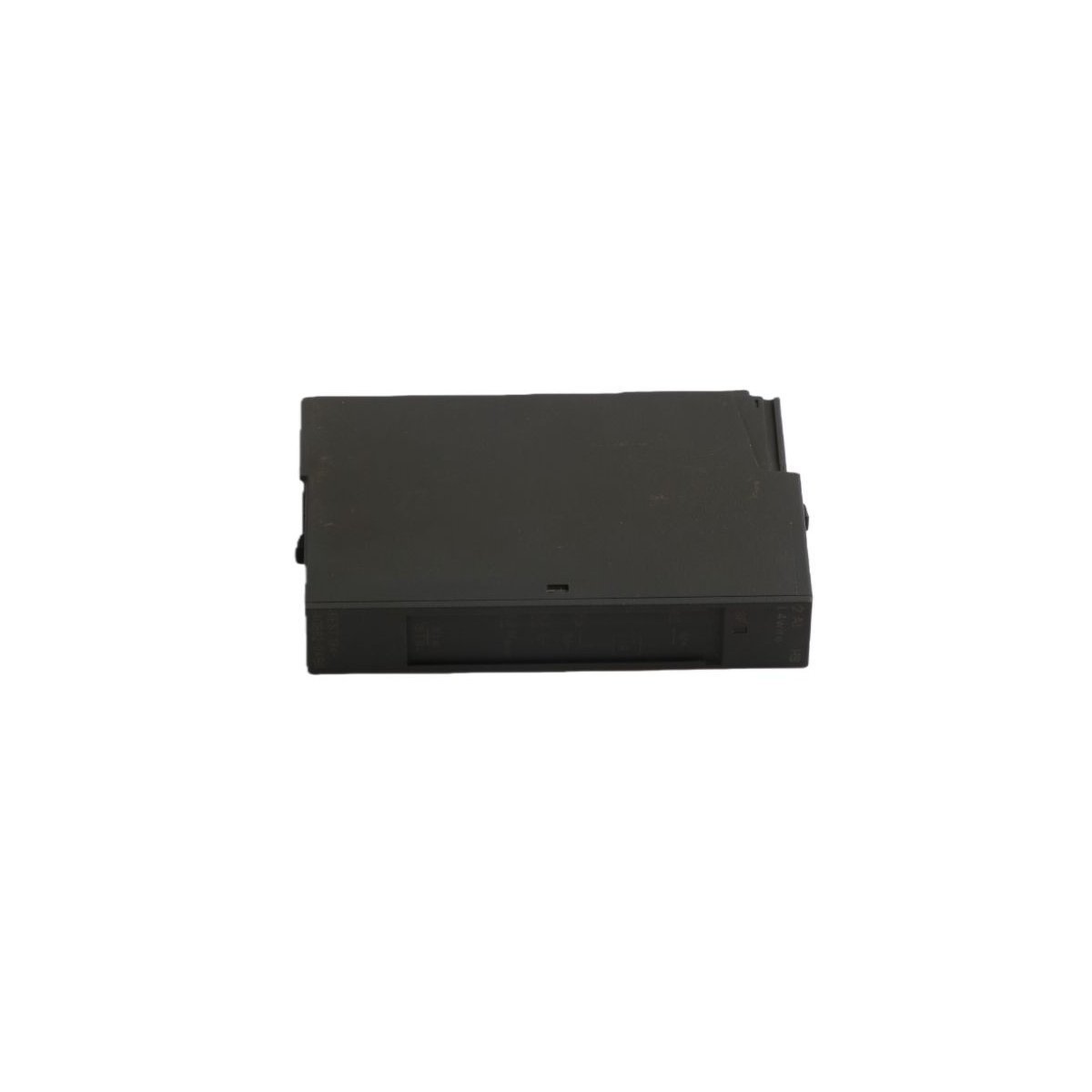

The Siemens 6ES7134-4GB60-0AB0 is a specialized High-Speed (HS) analog electronic module designed for the SIMATIC ET 200S distributed I/O platform. This 2-channel current measurement unit is engineered for precision-heavy environments, offering a remarkable 16-bit resolution to capture the most minute process fluctuations. Unlike standard I/O, the "HS" designation signifies an optimized internal cycle time, allowing the module to feed data to the central controller with minimal latency. It is an essential component for high-dynamic control loops where the speed of signal acquisition directly impacts the stability and efficiency of the automated process.

Hardware Parameters and Performance Capabilities

Designed for seamless integration into the ET 200S bit-modular architecture, this module provides the following technical advantages:

• Measurement Density: Dual-channel architecture supporting two 2-wire transducers (current loop) with integrated short-circuit protection.

• Conversion Accuracy: High-fidelity 16-bit A/D conversion (including sign) ensures laboratory-grade precision for industrial current ranges (4-20mA).

• Enhanced Dynamics: Significantly reduced conversion and cycle times compared to Standard (ST) modules, enabling high-frequency sampling for rapid process changes.

• System Interoperability: Fully compatible with the broader ET 200S ecosystem, allowing for "mix-and-match" configurations with standard or high-feature modules.

• Electrical Protection: Robust galvanic isolation between the internal backplane bus and the field-side electronics to prevent interference from common-mode voltages.

• Diagnostic Intelligence: Supports comprehensive hardware interrupts and group error detection, reporting wire breaks or overflow conditions back to the PLC in real-time.

• Form Factor: Ultra-compact 15mm width design, allowing for high-density DIN-rail mounting and efficient cabinet space utilization.

Operational Use Cases

The 6ES7134-4GB60-0AB0 is the preferred solution for sophisticated automation tasks that require more than just basic monitoring:
