Product Overview

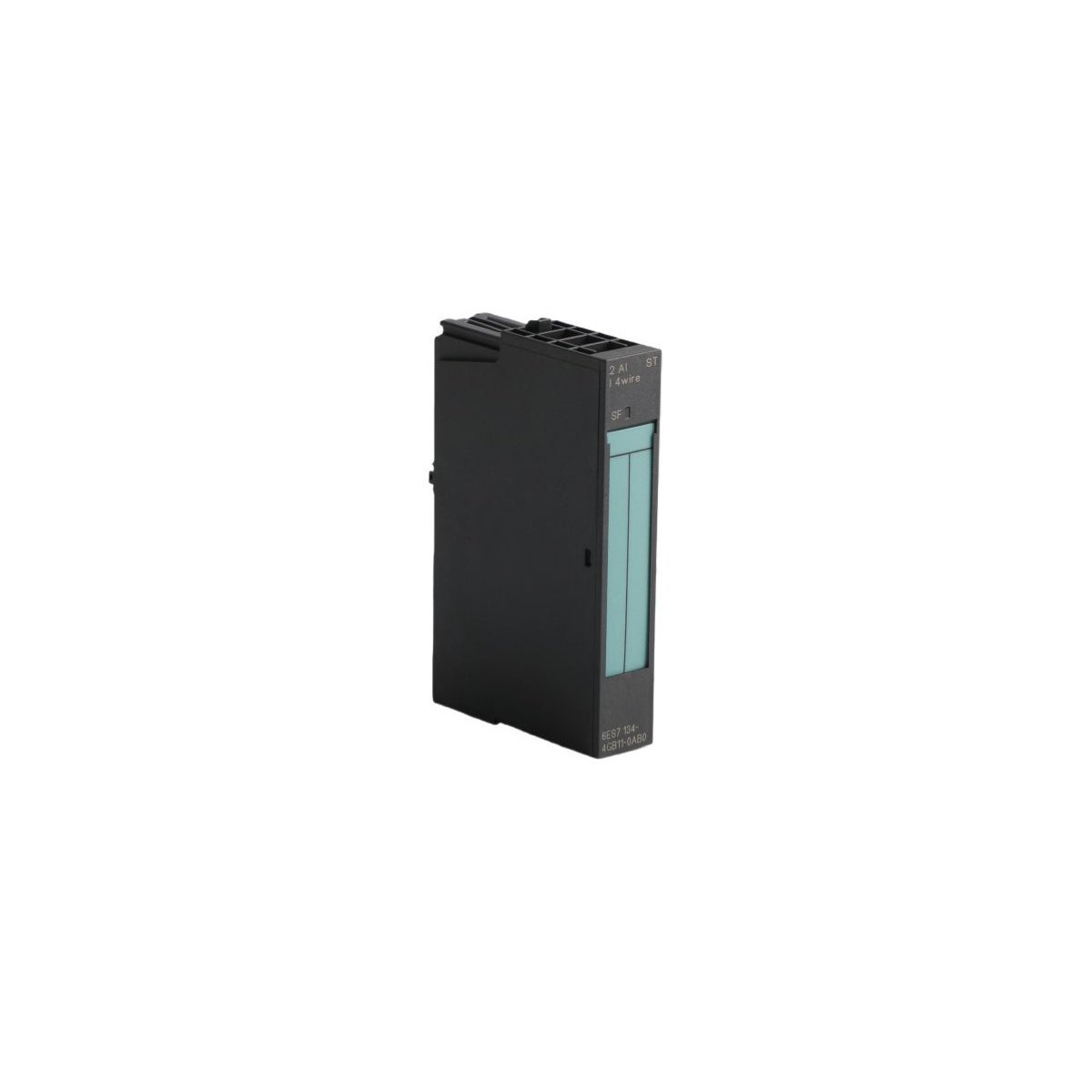

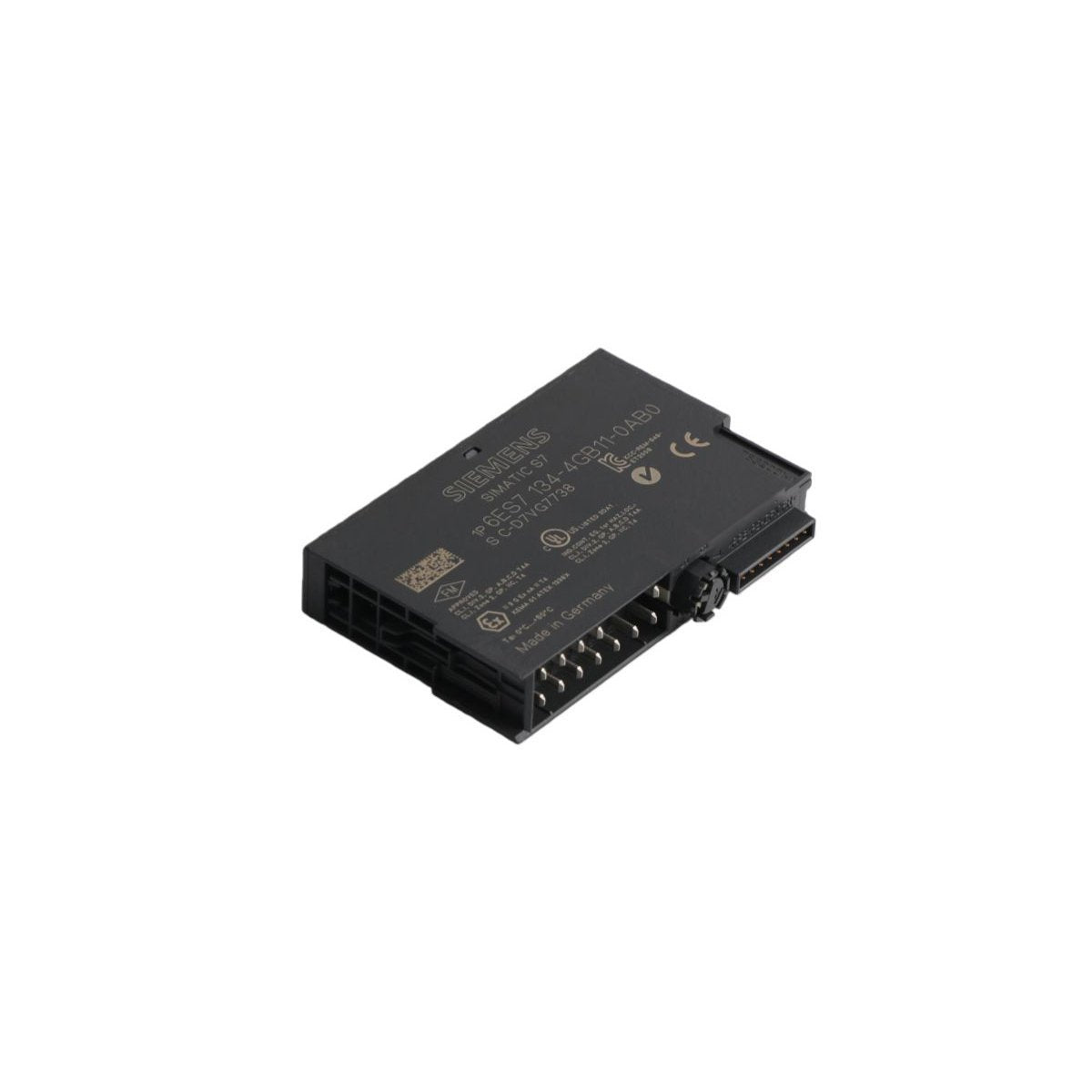

The Siemens 6ES7134-4GB11-0AB0 is a high-performance 2-channel analog input module tailored for the SIMATIC ET 200S distributed I/O peripheral system. This "Standard" (ST) grade electronic module is specifically designed to interface with 4-wire current transmitters, converting field signals into precise digital data for the central PLC. Occupying a slim 15mm width on the terminal module, it allows for high-density I/O configurations in compact control cabinets. By isolating input channels from the backplane bus, it safeguards system integrity while providing the high-resolution signal processing required for modern industrial automation and process monitoring.

Technical Performance Attributes

This module utilizes 13-bit resolution plus sign to deliver granular data acquisition, maintaining high accuracy even under fluctuating thermal conditions.

• Input Channels: 2 Analog Inputs (Isolated).

• Transmitter Type: 4-wire current transmitters.

• Current Ranges: ±20 mA (13 bits + sign) and 4 to 20 mA (13 bits).

• Precision Accuracy: ±0.4% operational limit at 25°C.

• Conversion Time: 65 ms per channel.

• Noise Suppression: >70 dB common-mode rejection (50/60 Hz).

• Diagnostics: Integrated Group Fault (SF) LED indicator.

• Isolation: Tested at 500 V DC between channels and backplane bus.

• Module Width: 15 mm.

• Product Weight: 0.04 kg (Net) / Approx. 0.95 kg (Gross shipping weight including protective packaging).

• Physical Dimensions: 15 mm x 81 mm x 52 mm (Standard ET 200S profile).

Industrial Implementation Scenarios

Environmental Monitoring and Scrubber SystemsIn emission control systems, the 6ES7134-4GB11-0AB0 accurately processes 4-20 mA signals from gas analyzers and flow meters. Its superior crosstalk suppression ensures that simultaneous readings from multiple sensors remain independent and precise, which is vital for regulatory compliance.

Chemical Batch ProcessingThe module’s high repeatability (±0.05%) makes it an excellent fit for chemical dosing applications. By providing stable current measurement from 4-wire mass flow meters, it helps maintain exact ratios in mixing tanks, directly impacting final product quality.

HVAC and Large-Scale Building AutomationWithin centralized air handling units, this module tracks pressure differentials and humidity levels. Its ability to operate reliably up to 60°C (horizontal mounting) allows for installation in mechanical rooms where ambient temperatures may fluctuate significantly.

Water and Wastewater TreatmentUsed extensively in telemetry for pump stations, the 13-bit resolution allows for the fine monitoring of reservoir levels and pipe pressure. The diagnostic SF LED facilitates rapid troubleshooting by maintenance teams, identifying wire breaks or module faults instantly to prevent overflow incidents.
