Product Overview

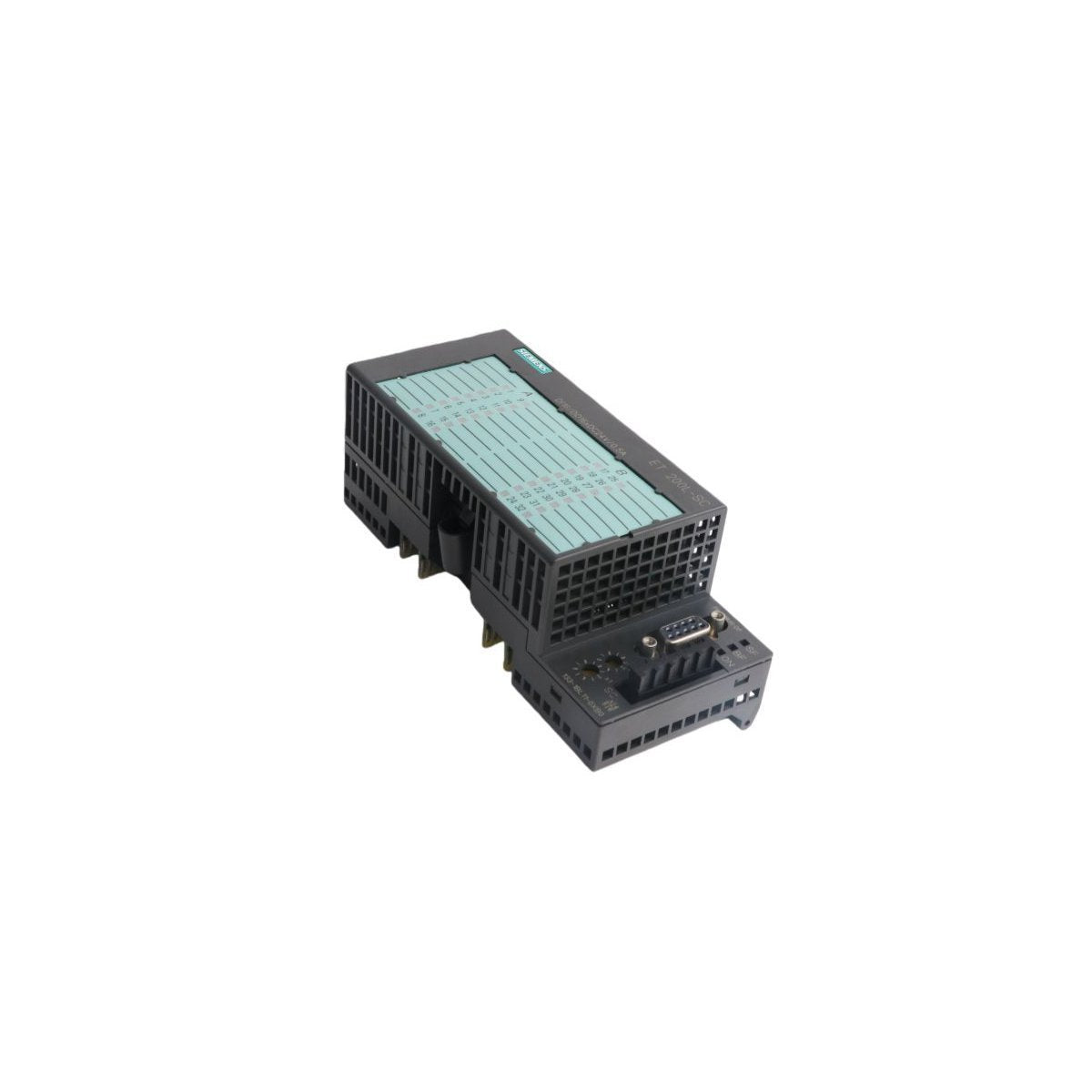

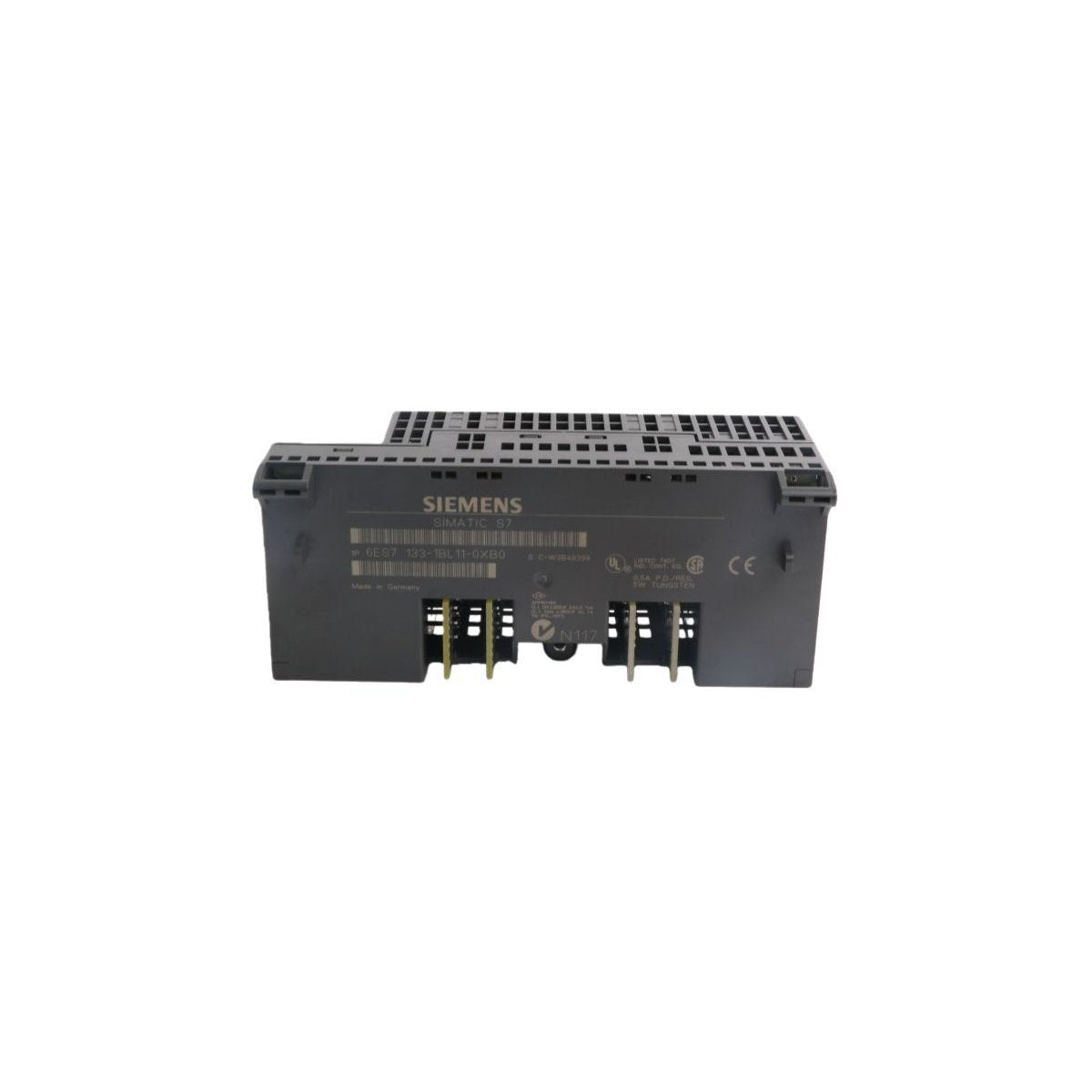

The Siemens 6ES7133-1BL11-0XB0 is a high-density, integrated electronics block designed for the SIMATIC ET 200L distributed I/O system. This versatile module functions as a standalone PROFIBUS-DP node, providing a fixed configuration of 16 digital inputs and 16 digital outputs in a single, space-saving unit. Engineered for decentralized automation, it allows for the acquisition and control of discrete signals in close proximity to the machine level. Its innovative two-tier design separates the active electronic components from the passive wiring base, allowing for rapid module replacement without the need to disconnect field wiring, thereby ensuring maximum system availability and simplified maintenance.

Hardware Specifications and Performance Metrics

• Channel Density: 16 Digital Inputs / 16 Digital Outputs

• Operating Voltage: 24V DC

• Input Signal Logic: "1" signal at 13V to 30V; "0" signal at -30V to +5V

• Input Delay Time: Typical range of 2.0 ms to 4.5 ms

• Output Load Capacity: 0.5 Amperes per channel

• Switching Frequency: 100 Hz (Resistive), 0.5 Hz (Inductive), 8 Hz (Lamp loads)

• Short Circuit Protection: Integrated electronic shutdown per channel

• Network Addressing: Manual configuration via two decimal rotary switches

• Physical Weight: 0.95 kg

• Device Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Origin of Production: Germany

• HS Classification: 8537101190

This block is optimized for high-speed communication over PROFIBUS-DP, supporting shielded cable lengths up to 1000 meters for digital inputs, making it ideal for large-scale industrial floor layouts.

Industrial Deployment and Automation Utility

The 6ES7133-1BL11-0XB0 is a primary choice for manufacturing sectors requiring compact, non-expandable I/O stations with a high channel count. In the automotive and metalworking industries, this module is frequently utilized for managing a cluster of sensors and actuators on localized assembly stations or tool-changing units. Its robust current-handling capabilities and integrated short-circuit protection make it suitable for driving solenoid valves and signaling lamps directly without external protection. Because the ET 200L series is designed for "bit-modular" efficiency, it is particularly effective in palletizing systems and packaging machinery where decentralized control nodes must be small enough to fit into tight machine frames. Furthermore, the ability to hot-swap the electronics block onto an existing terminal base makes it an indispensable component for facilities operating on continuous shifts, where reducing mean time to repair (MTTR) is a critical performance indicator.
