Product Overview

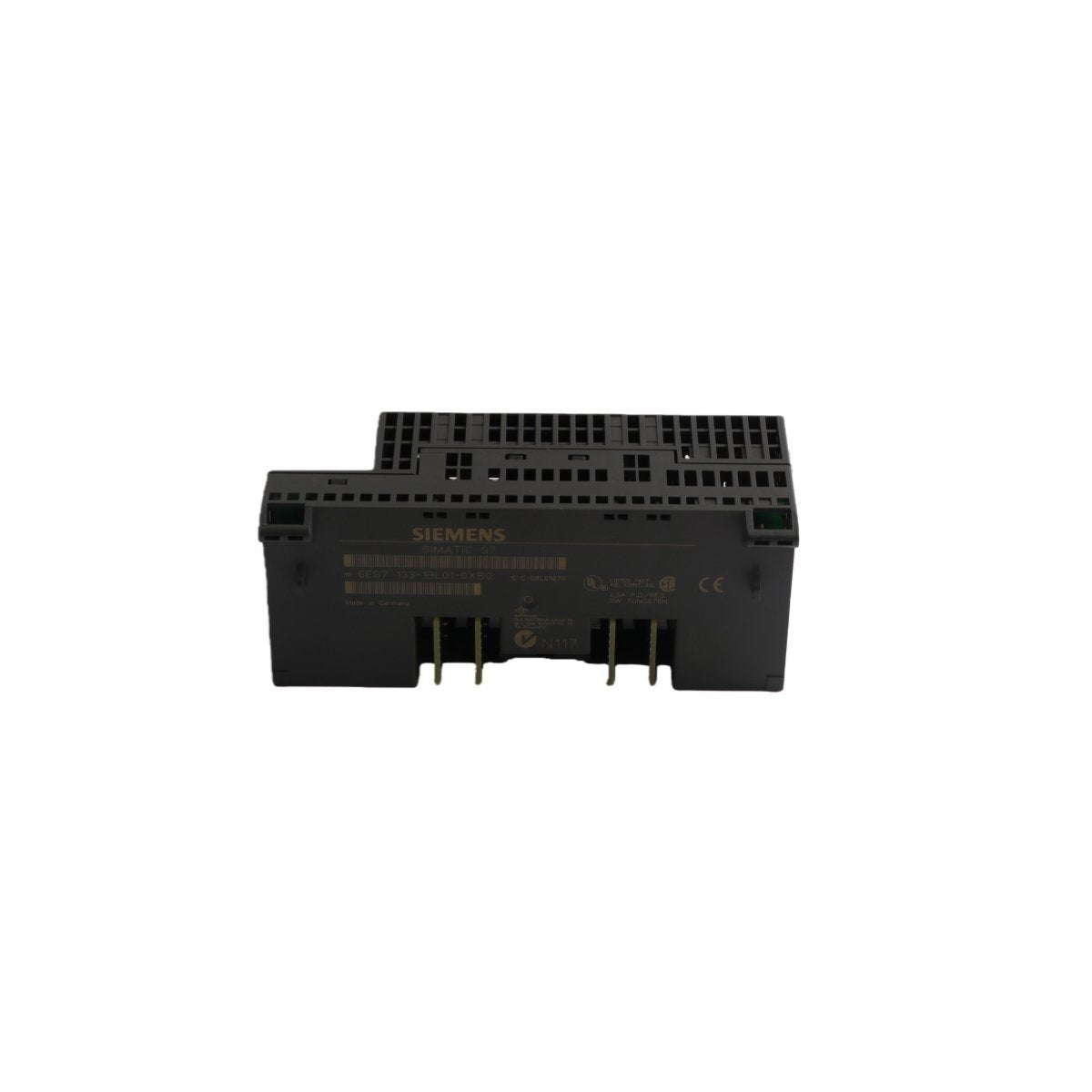

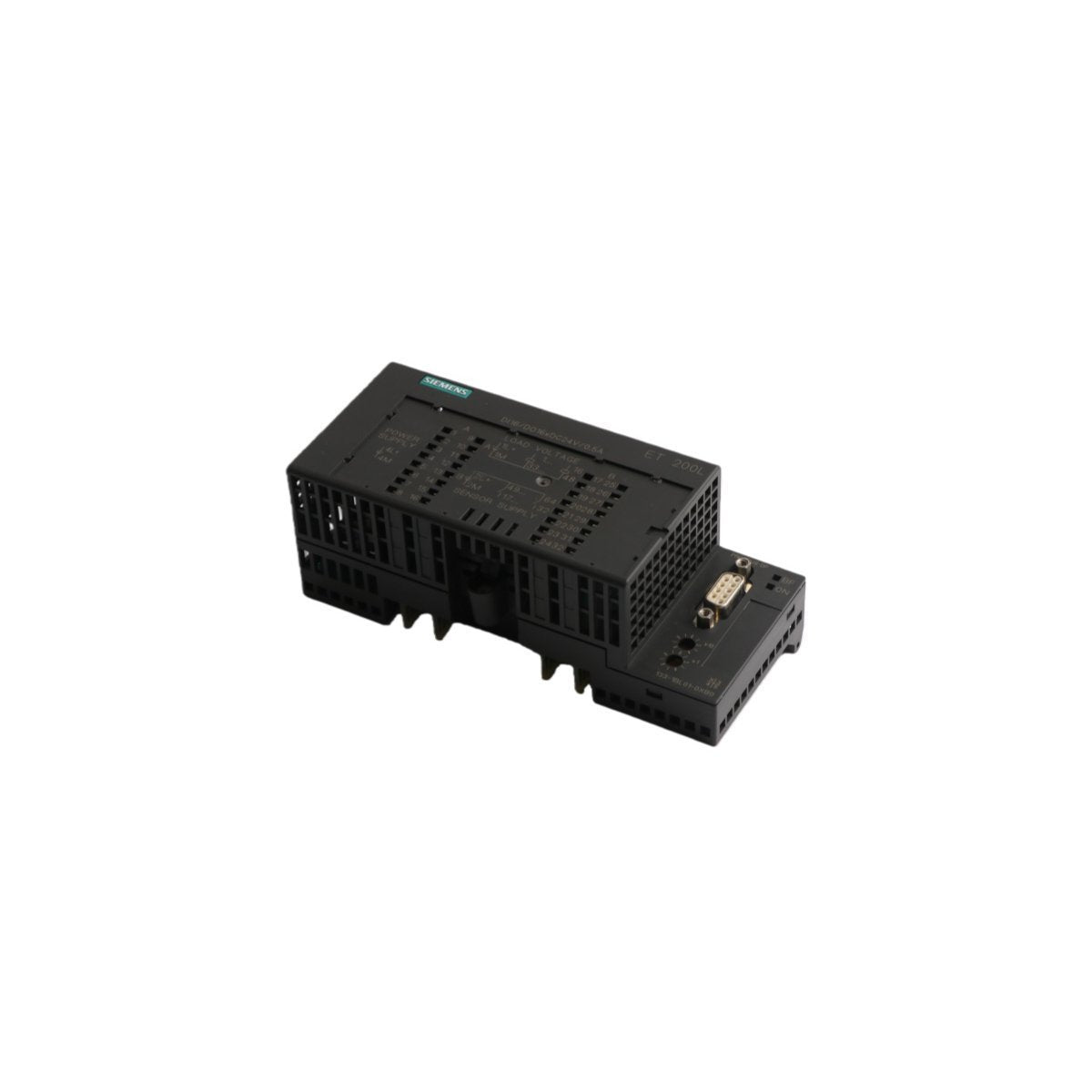

The 6ES7133-1BL01-0XB0 is a high-density, integrated peripheral module belonging to the Siemens SIMATIC ET 200L distributed I/O family. This "All-in-One" solution provides a balanced configuration of 16 digital inputs and 16 digital outputs within a single, space-optimized housing. Designed to function as a decentralized node on a PROFIBUS DP network, this module minimizes extensive field wiring by allowing the I/O interface to be mounted directly at the machine site. It serves as the primary data bridge for small-to-medium automation cells, ensuring synchronized communication between field-level sensors, actuators, and a central PLC.

Hardware Architecture and Interface Parameters

• Input Channels: 16 Digital Inputs (24V DC)

• Output Channels: 16 Digital Outputs (24V DC Transistor)

• Current Capacity: 0.5 Amperes per output channel (8A total module current)

• Network Interface: Integrated PROFIBUS DP communication port

• Supply Voltage: 24V DC nominal power requirement

• Standard Compliance: Fully compliant with IEC 1131-2, 89/336/EEC (EMC), and 73/23/EEC (Low Voltage)

• Signal Resolution: Optimized for high-speed switching of standard 24V DC sensors and actuators

• Housing Design: Compact ET 200L form factor for high-density DIN rail mounting

• Diagnostic Support: Integrated status LEDs for channel-specific monitoring and system health

Industrial Applications and System Utility

Decentralized Machine Control

The 6ES7133-1BL01-0XB0 is ideally suited for modular machine building where local I/O clusters are needed for independent machine segments. Its ability to handle both input sensing and output execution makes it a standalone solution for controlling conveyor diverters, small assembly stations, and rotary tables.

Automated Packaging and Sorting

In logistics and packaging lines, this module manages the high-frequency switching required for pneumatic solenoid valves and optical proximity sensors. The 0.5A output rating is specifically calibrated to drive standard industrial solenoids and signaling lamps without the need for interposing relays.

Retrofitting and System Expansion

For facilities looking to add I/O capacity to existing PROFIBUS networks, the ET 200L series offers a cost-effective path. Its compact design allows it to be tucked into small junction boxes or existing control panels where larger modular racks (like the ET 200M) cannot fit.

Infrastructure and HVAC Monitoring

Beyond the factory floor, the 16DI/16DO mix is perfect for building automation, allowing for the simultaneous monitoring of temperature switches or dampers while controlling pump starters and ventilation fans from a single remote location.
