Product Overview

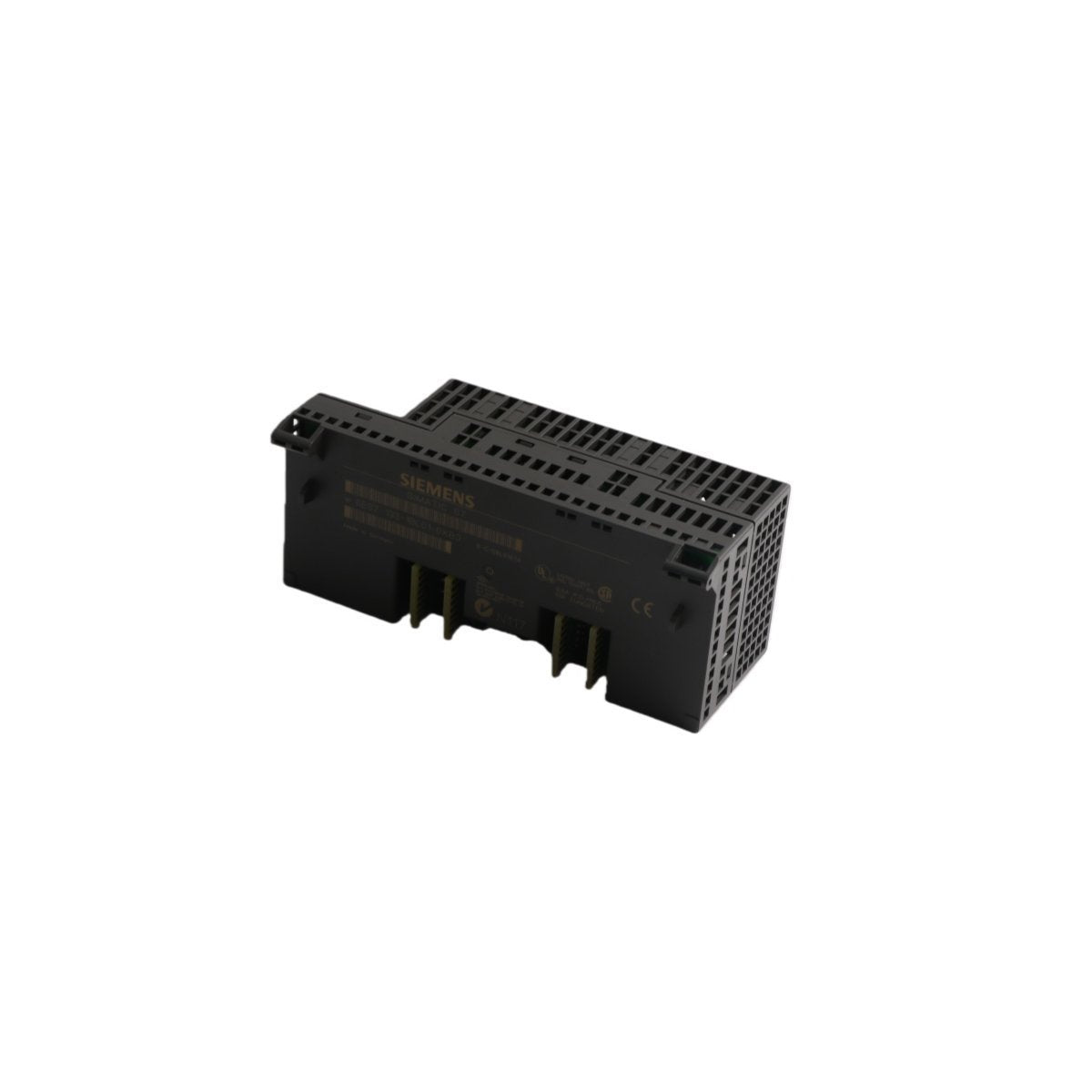

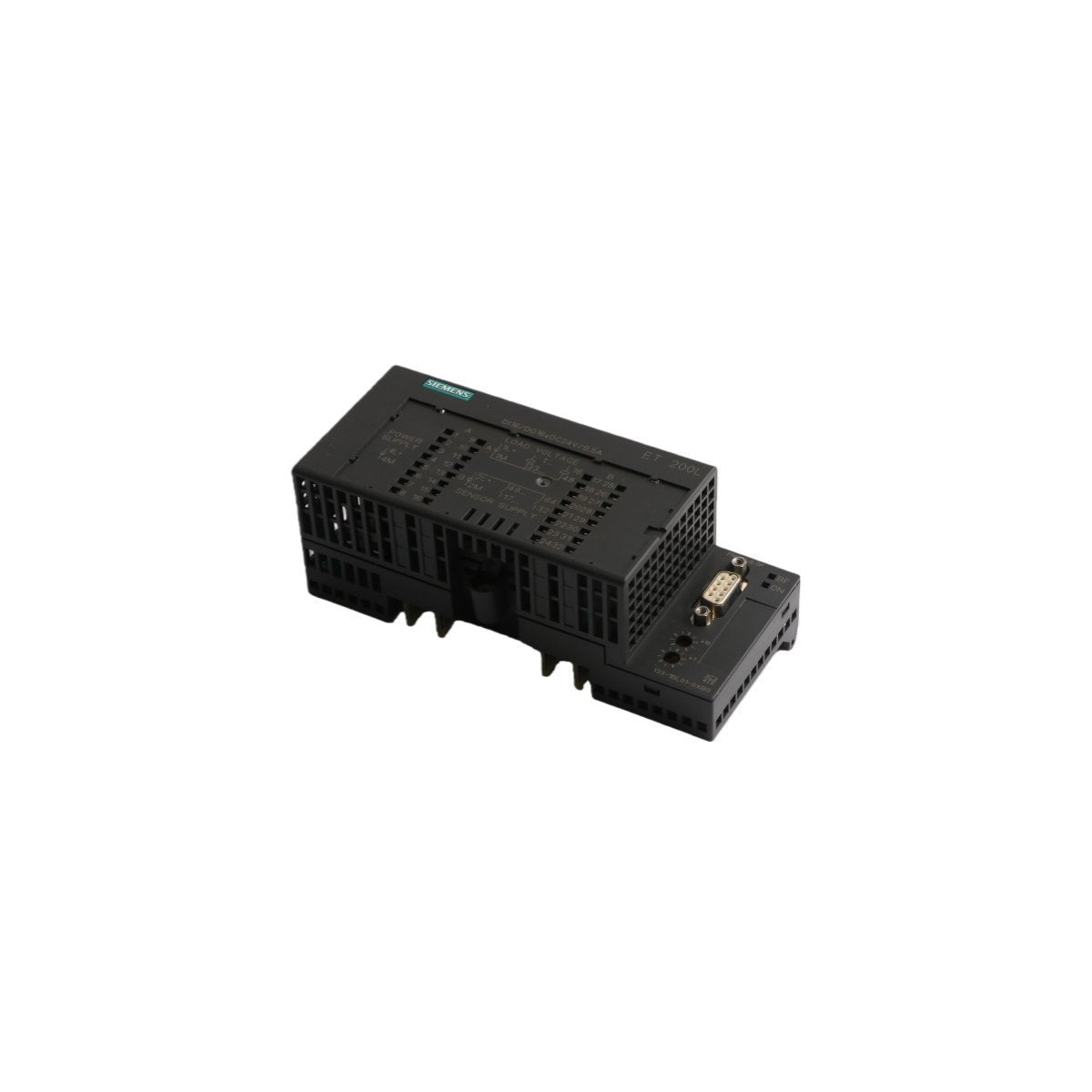

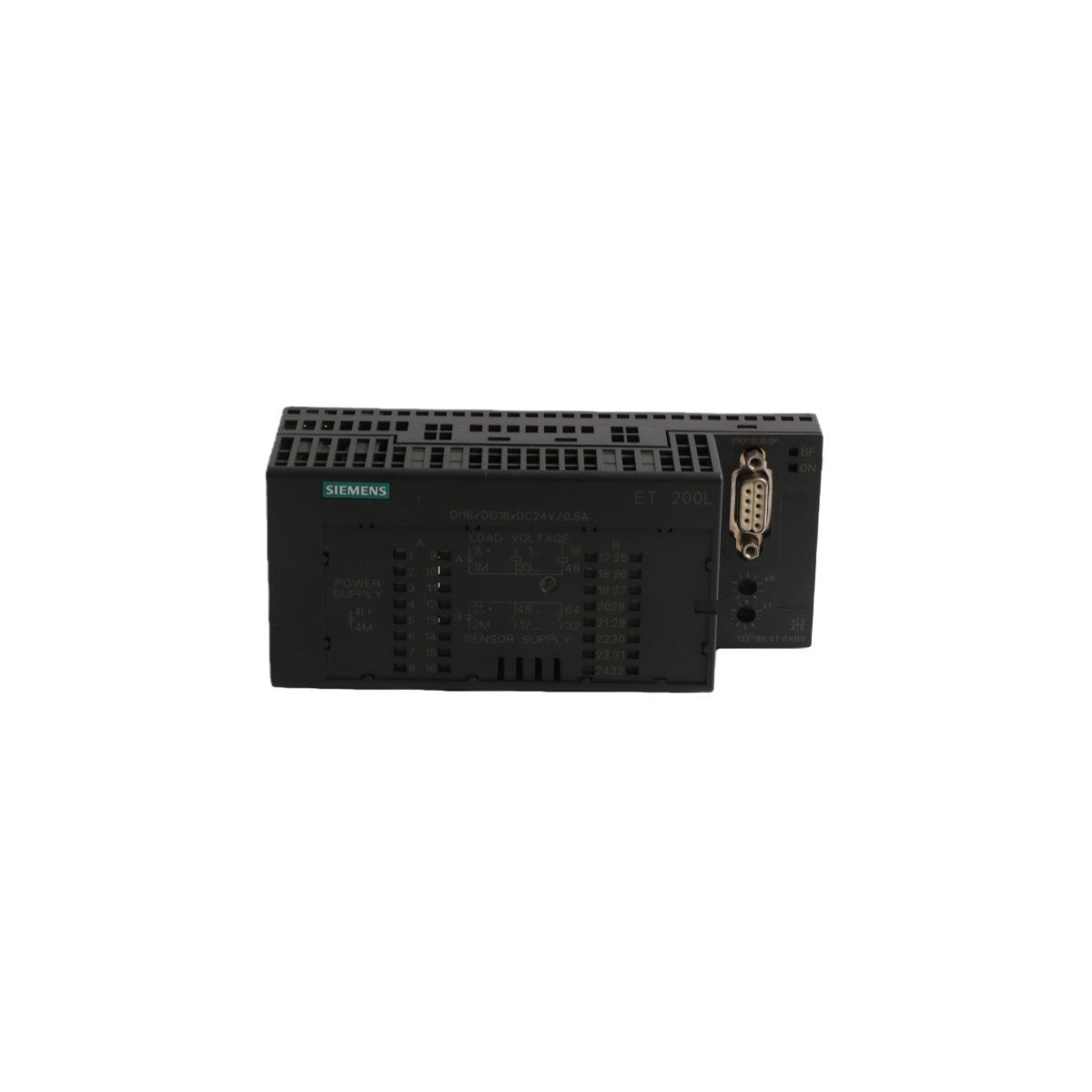

The Siemens 6ES7133-0BN01-0XB0 is a high-density digital electronics module designed for the legacy SIMATIC ET 200B distributed I/O system. This compact unit serves as a versatile interface for decentralized automation, integrating both input and output capabilities into a single housing. By combining 24 digital inputs with 8 digital outputs, it allows for significant space savings within control cabinets while maintaining high signal integrity. Engineered for 24V DC environments, the module facilitates the acquisition of discrete sensor signals and the direct control of actuators, making it a reliable choice for extending PLC functionality across a factory floor.

Performance Specifications and Hardware Profile

This ET 200B series module is optimized for industrial power stability and features a rugged electrical design to handle standard switching loads.

• I/O Configuration: 24 Digital Inputs and 8 Digital Outputs (Integrated)

• Supply Voltage: 24V DC (Permissible range 18.5V to 30.2V)

• Input Signal Filtering: Integrated 3ms delay to suppress signal bounce and EMI

• Output Driving Power: 0.5 Amps per digital output channel

• Logic Consumption: Typically 85mA (internal circuit)

• Energy Footprint: Maximum power loss of 5.5W

• Installation Requirements: Compatible with TB2/DC or TB4/DC terminal blocks

• Cabling Tolerance: Supports up to 100 meters of unshielded cable

• Module Width: 235 mm

• Device Dimensions: 2.5 cm x 5.1 cm x 83.8 cm (Packaged dimensions)

• Net Weight: 0.61 kg

• Gross Shipping Weight: 0.95 kg

• Origin: Germany

Industrial Implementation and Use Cases

Decentralized Manufacturing StationsIn automated assembly lines, the 6ES7133-0BN01-0XB0 is used to collect data from up to 24 proximity switches and limit sensors. Its simultaneous 8 digital outputs allow the system to trigger pneumatic cylinders or conveyor gates locally, reducing the amount of wiring that needs to be routed back to the main control cabinet.

Process Feedback and Indicator ControlThis module is ideal for controlling operator stations. The 24 inputs can capture button presses and selector switch positions, while the 8 outputs drive status lamps or audible buzzers. The 3ms input delay ensures that mechanical switch "bounce" does not cause false triggers in the PLC logic.

Material Handling and WarehousingFor long-distance conveyor systems, the module's ability to operate with unshielded cables up to 100 meters is a significant advantage. It allows for the cost-effective distribution of I/O points across large floor areas, ensuring that the SIMATIC S7 system can monitor pallet positions and control diverters with minimal signal degradation.

Retrofitting Legacy SystemsAs part of the ET 200B family, this module is a critical spare part for maintaining existing industrial installations. It enables the continued operation of proven automation architectures by providing a direct replacement for failed I/O units, ensuring that system uptime is preserved without the need for a full architectural overhaul.
