Product Overview

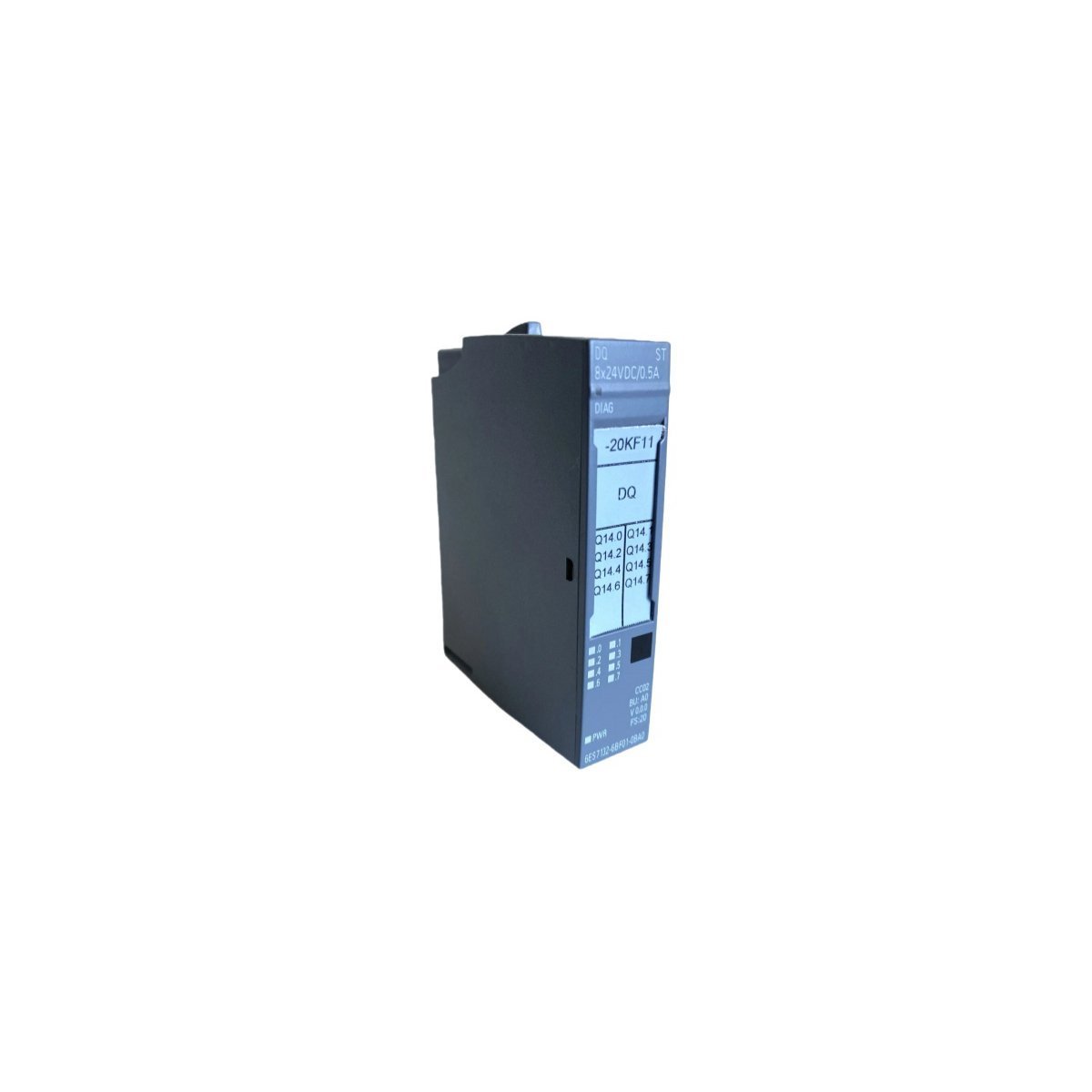

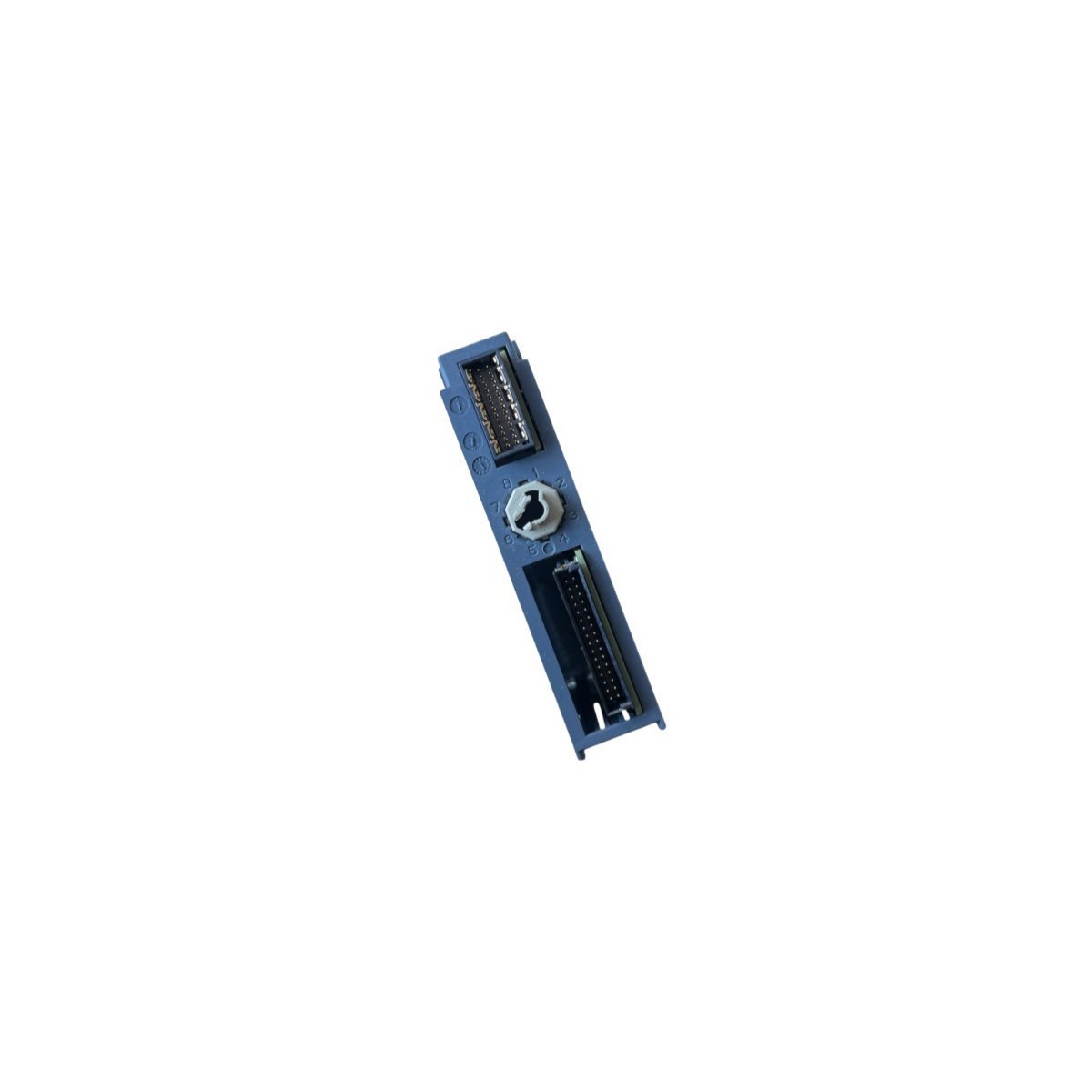

The Siemens 6ES7132-6BF01-0BA0 is a high-density digital output card specifically designed for the SIMATIC ET 200SP distributed I/O system. This "Standard" (ST) class module provides eight independent sourcing channels, each capable of delivering 0.5A at a nominal 24V DC. Engineered for high-speed switching and reliable signal distribution, this module allows a central PLC to control field-level actuators like solenoid valves, contactors, and indicator lamps. Its compact, modular design integrates seamlessly into the ET 200SP station, utilizing the bit-modular architecture to minimize cabinet footprint while maintaining professional-grade electrical isolation and signal integrity.

Technical Architecture and Hardware Attributes

The following specifications define the electrical and physical profile of the 6ES7132-6BF01-0BA0 unit:

• Channel Density: 8 Digital Outputs (Sourcing/P-switching)

• Output Rating: 24V DC / 0.5 Amperes per channel

• Total Current Capacity: 4A per module (at aggregate load)

• BaseUnit Compatibility: Type A0 (Color Code CC02)

• Diagnostic Features: Wire break detection, short-circuit protection, and supply voltage monitoring

• Safety Functions: Support for "Substitute Value" (safe state) on communication loss

• Hot-Swap Capability: Supports multi hot-swapping for module replacement during active operation

• Module Weight: 0.95 kg

• Device Dimensions: 2.5 cm x 5.1 cm x 83.8 cm

• Origin of Production: Germany

• HS Export Code: 8537101190

This module features integrated LED indicators for channel status and system diagnostics, allowing maintenance personnel to identify fault conditions at a glance.

Industrial Utility and Control System Integration

The 6ES7132-6BF01-0BA0 is extensively deployed in modern manufacturing and process automation environments where uptime is critical. In the automotive and packaging industries, its support for hot-swapping is vital; it allows technicians to replace a damaged module without powering down the entire station or interrupting the factory-wide PROFINET or PROFIBUS network. The advanced diagnostics enable "predictive maintenance" strategies by pinpointing exactly which field cable has a wire break or which actuator has shorted to ground, drastically reducing Mean Time to Repair (MTTR). In high-safety applications, the substitute value function ensures that all eight outputs switch to a predefined "safe" state if the connection to the CPU is severed, preventing uncontrolled machine movements. Its small form factor and low power dissipation make it an ideal choice for decentralized control boxes mounted directly on machinery or within tight electrical enclosures.
